 BASIC INFORMATION

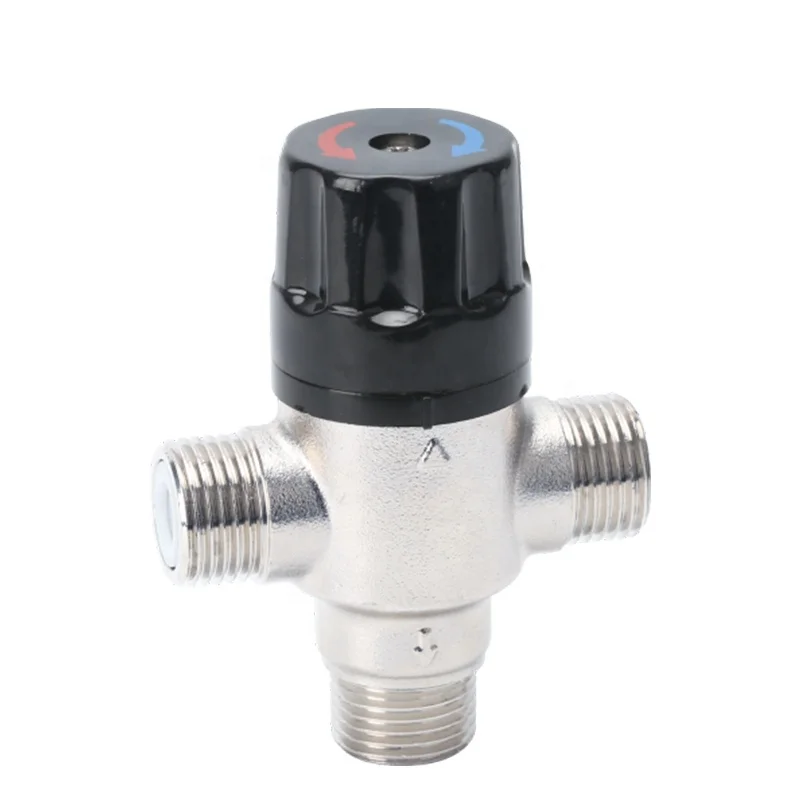

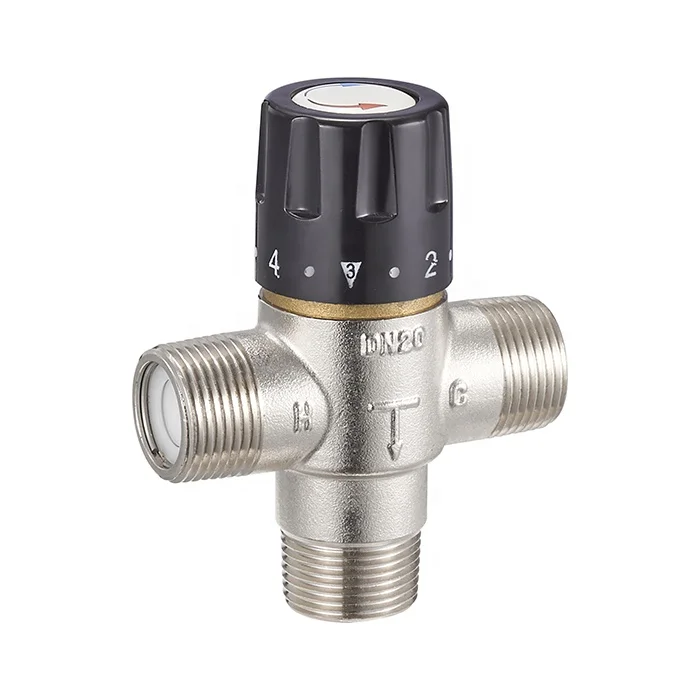

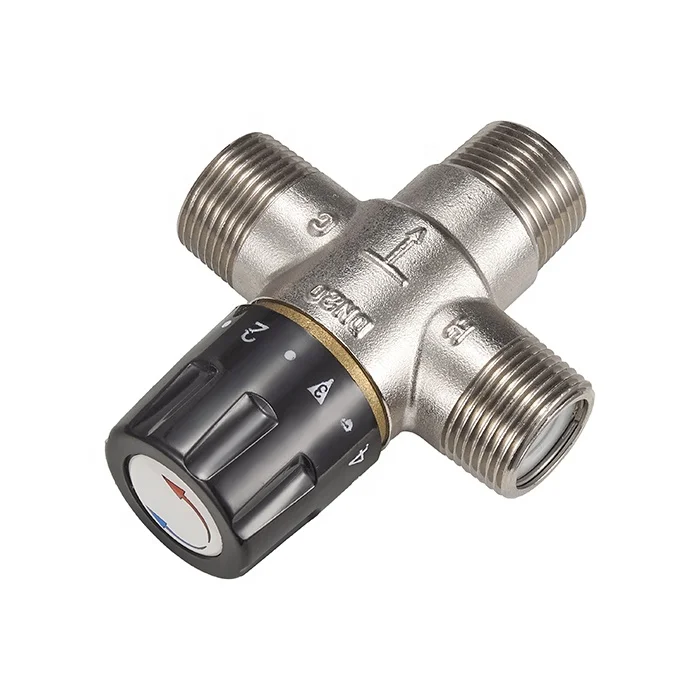

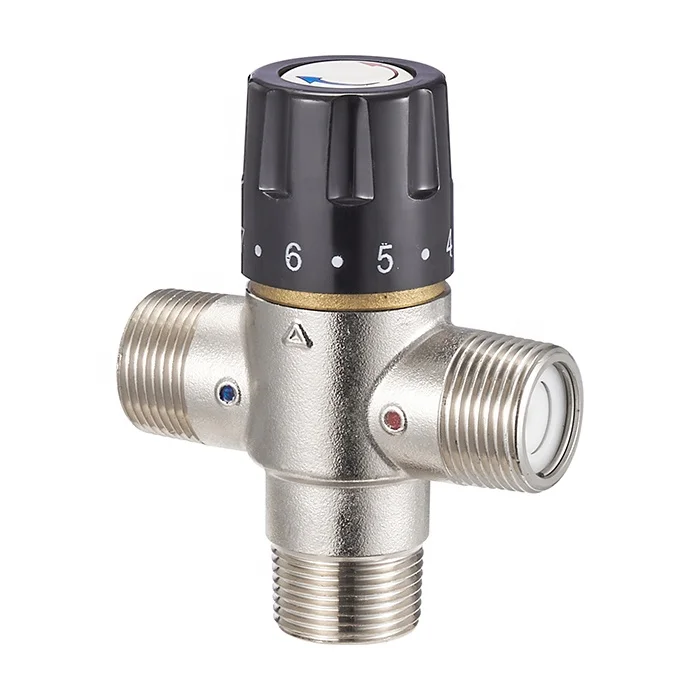

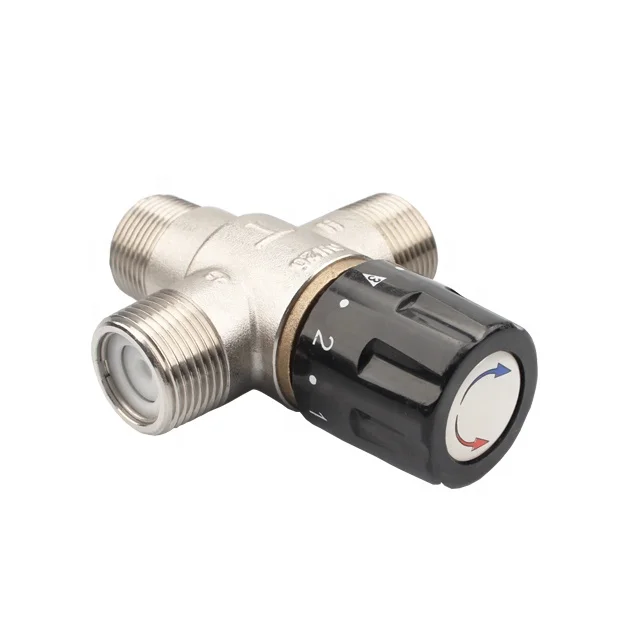

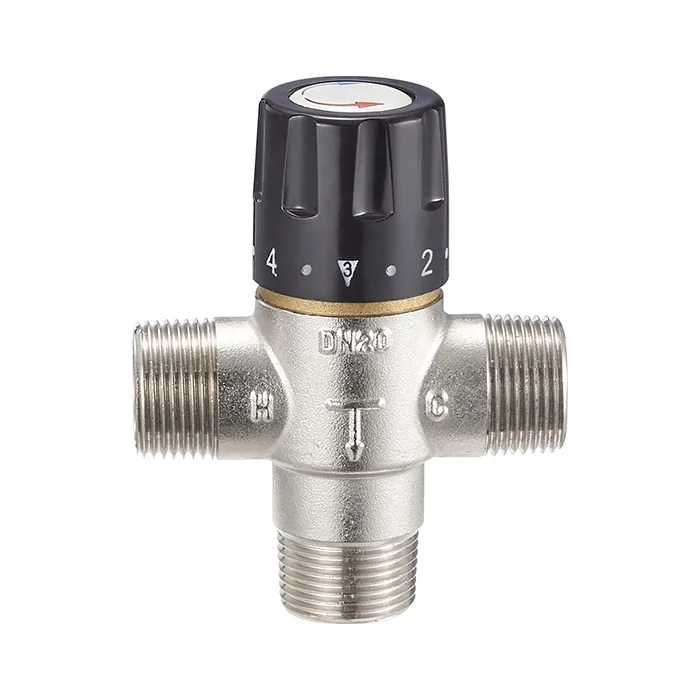

Descriptions: Thermostatic Mixing Valve

Material: H58-3/CW617N/CW614N

Size: M1/2''/M3/4'' for heating system

Color: Nickel Plated/Chrome Plated

Working Medium: Hot/Cold water



Working Pressure: 0.03-1Mpa

Cold Water Inlet Temprature: 4°C-29 °C

Hot Water Inlet Temperature: 40 °C -90 °C

Mixed Outlet Water Temperature: 30°C -55 °C

Control Precision: ±2 °C

Flow Rate(1 kg pressure): 26.67 L/min



 Knob Temperature:



Position	Min	1	2	3	4	5	6	7	Max
Temperature /℃	-	30	34	39	43	47	51	55	-







  FEATURES & ADVANTAGES

>>  Rapid failsafe on either hot or cold supply failure

>>  Delivers stable mixed water temperature

>>  Extended mix temperature range : 35℃-55℃

>>  Forging process, 100% no leakage

>>  High precision machining, top quality finish, make the valve's  quality stable and reliable

 >>  Professional engineered designed and produced, to give out excellent performance.



 INSTALLATIONS

1. All installations should be carried out by a Licensed Professional.

2.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.

3. After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 C.

4. The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.

5. If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.

6. Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation.
