3d fence mesh welding machine function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit. The input panel has two types touch screen and button, more intelligent and rational, once pressing, and separate welding.
2. The welding power is electric power. The cross wire is fed from hopper driven by stepper motor, and the line wire is fed by brake motor driven car and the mesh is pulled by the stepper motor driven car.
3. The cross and the line wires are both pre-straightened and pre-cut by the special straightening and cutting machine.
4. The biggest advantage of the machine is that there is different cross spacing in the same mesh.
5.The welding electrodes and transformer are equipped with the water cooling system,thus prolong the machine life and working time.
Main parameter
Wire Diameter | 2.5-6.0mm |
Welding Points | 48 |
Width of mesh | max 2500mm |
Line Wire Space | 50-250mm |
Cross Wire Space | 50-2500mm |
Mesh produced form | in panel |
Welding Speed | 40-70cross wires / min |
Transformer | 125KVA*6(water cooling system) |
Weight | 3500KGS |
Voltage | 380V,50Hz,three phrase |
Feeding cross wire | step motor hopper |
Dimension | 5.4*3.2*1.8m |
Welding time | 10ms~100ms |
Main producing procession:
The whole production lines includes:

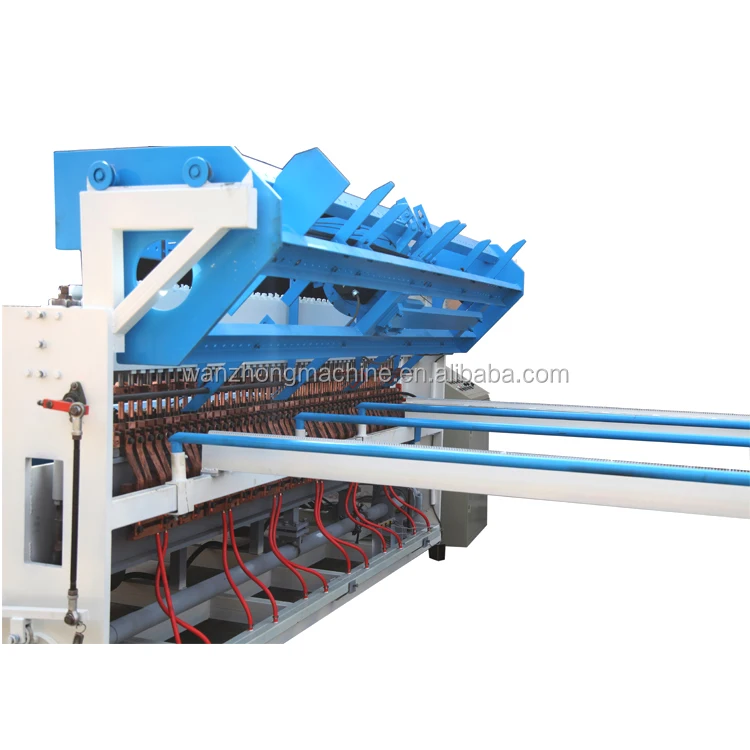

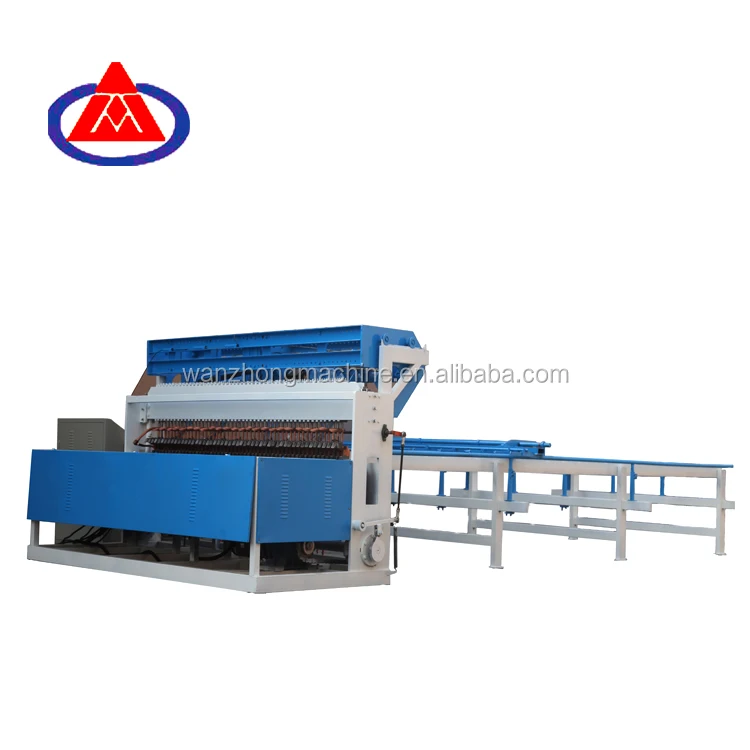

Fence Mesh Welding Machine

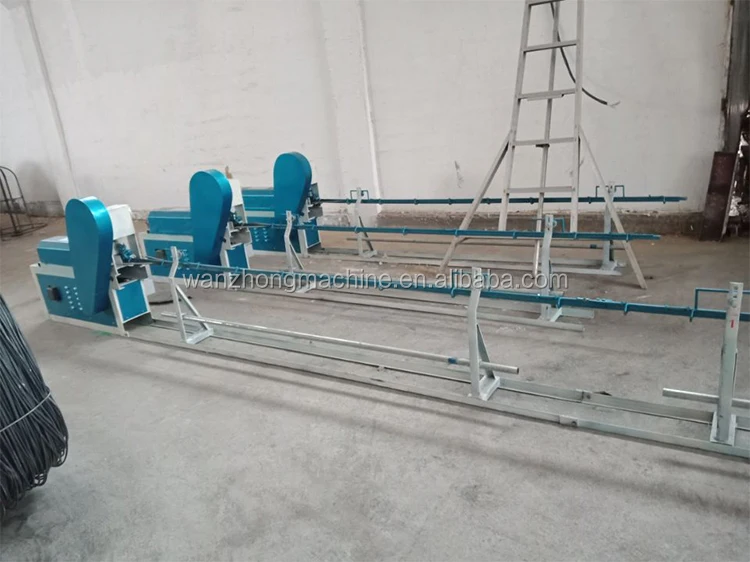

Wire Straightening and Cutting Machines

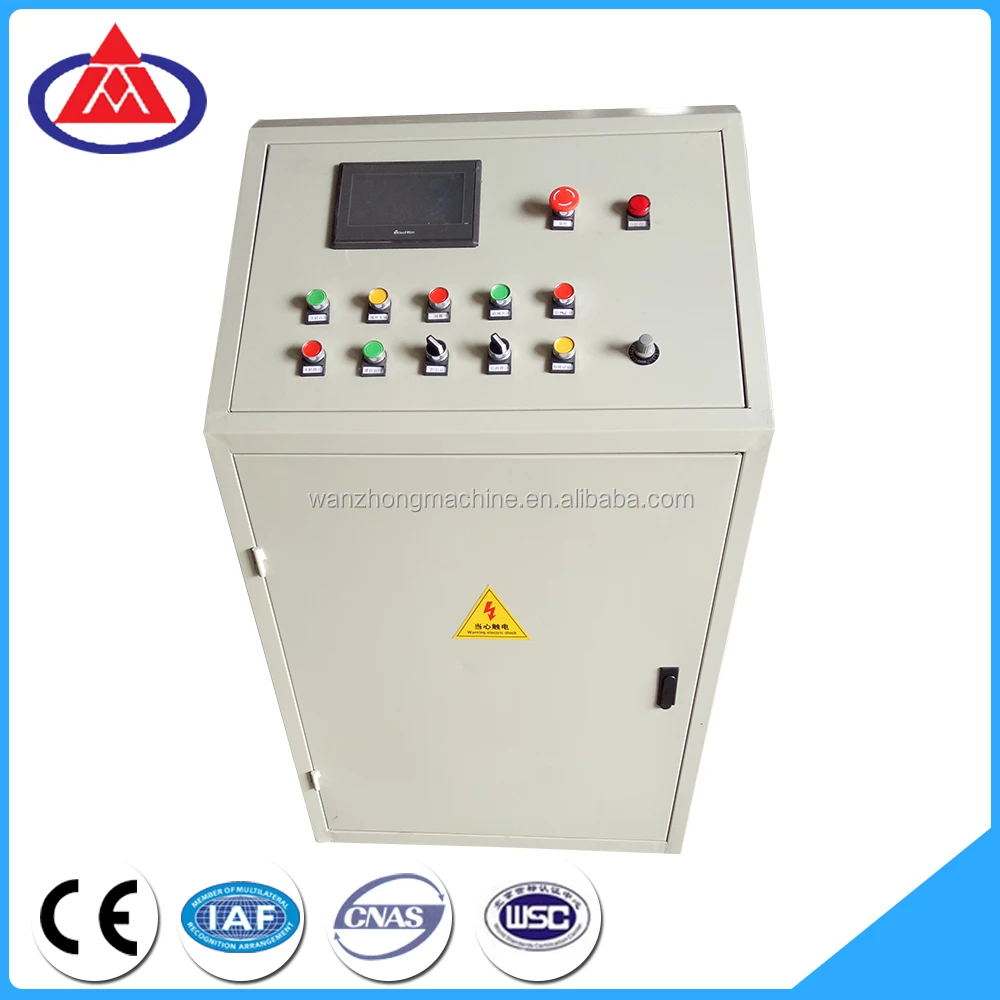

Control Cabinet
Water Cooling System
3D Fence Bending Machine
Fence Mesh Welding Machine is working in our oversea customer's factory:
Q:Are you manufacture or trading company?
A:We are manufacture,our factory set up on 2006,So we can give you a competitive price.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt,they will inspect the machine before shipping,to ensure there is nothing problem of the machine.
Q:Does the packing strong?
A:Yes,of course!All of our export packing,all to meet the export packing standards.
Q:How about after-sales service process?
A:We supply the detailed instructment and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Surely,special technical engineers supply urgent technical support and consulting,at the same time,we assign the technical engineers to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure they the personal and property safety, and pay 80 salaries per day.
Equipment Program part is life-long maintenance.
Q:How about the quality guarantee?
A:Usually one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Surely can be negotiable.
Q:How about the payment term?
A:T/T,L/C,trade assurance,we can all accept.
Q:Where is your factory?
A:Our factory located in wire mesh industrial zone,anping county,hebei province,china,welcome to visit our factory!
There is about two hundred and fifty kilometers away from Beijing Airport.
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
