25 км/ч скорость Tongsheng Tsdz2 350 Вт 250 датчик крутящего момента редукторный бесщеточный двигатель Средний коленчатый привод моторные
- Категория: Запчасти для электровелосипедов >>>
- Поставщик: Yangzhou,Saili,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 286.20 $* | 292.76 $* |
| Jul-18-2025 | 232.5 $* | 237.41 $* |
| Jun-18-2025 | 281.93 $* | 287.24 $* |
| May-18-2025 | 279.50 $* | 285.41 $* |
| Apr-18-2025 | 223.11 $* | 227.67 $* |
| Mar-18-2025 | 275.82 $* | 281.69 $* |
| Feb-18-2025 | 272.6 $* | 277.97 $* |
| Jan-18-2025 | 270.78 $* | 275.21 $* |
Характеристики
PRODUCT DESCRIPTION
Motor Features:
1. Easy to install, suitable for most regular bikes
2. The maximum torque is about 80N.m and the climbing ability is strong
3. Internal control axial torque sensor actual double-sided torque
4. Small size, beautiful appearance, weight about 3.6 kg
5. Comfortable ride, high efficiency, low battery consumption and longer battery life
6. Safe, reliable and excellent performance PCT/CN2014/091373
7. Provide coaster brake (optional)
Main Parameters | ||
Motor | TSDZ2 Geared Brushless Motor | |
Voltage | 36V | |
Power | 250-350W | |
Controller | Integrated | |
Max torque | 80 N.m | |
Sensor | Torque | |
Chainwheel | 42T | |
Speed | 25km/h | |
Motor weight | 3.6kgs | |
Bottom bracket size | 68mm~73mm | |
IP-CODE | IP-54 | |
MOTOR INSTALLATION
PACKING

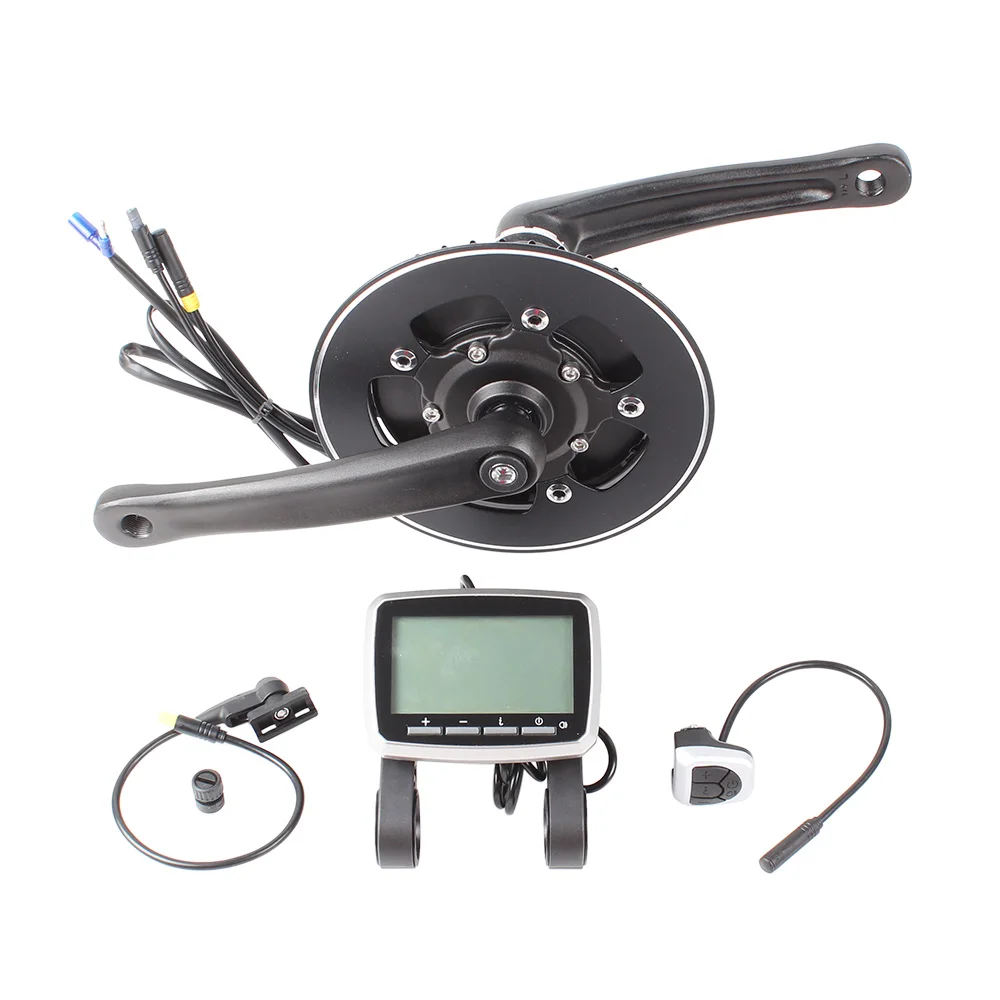

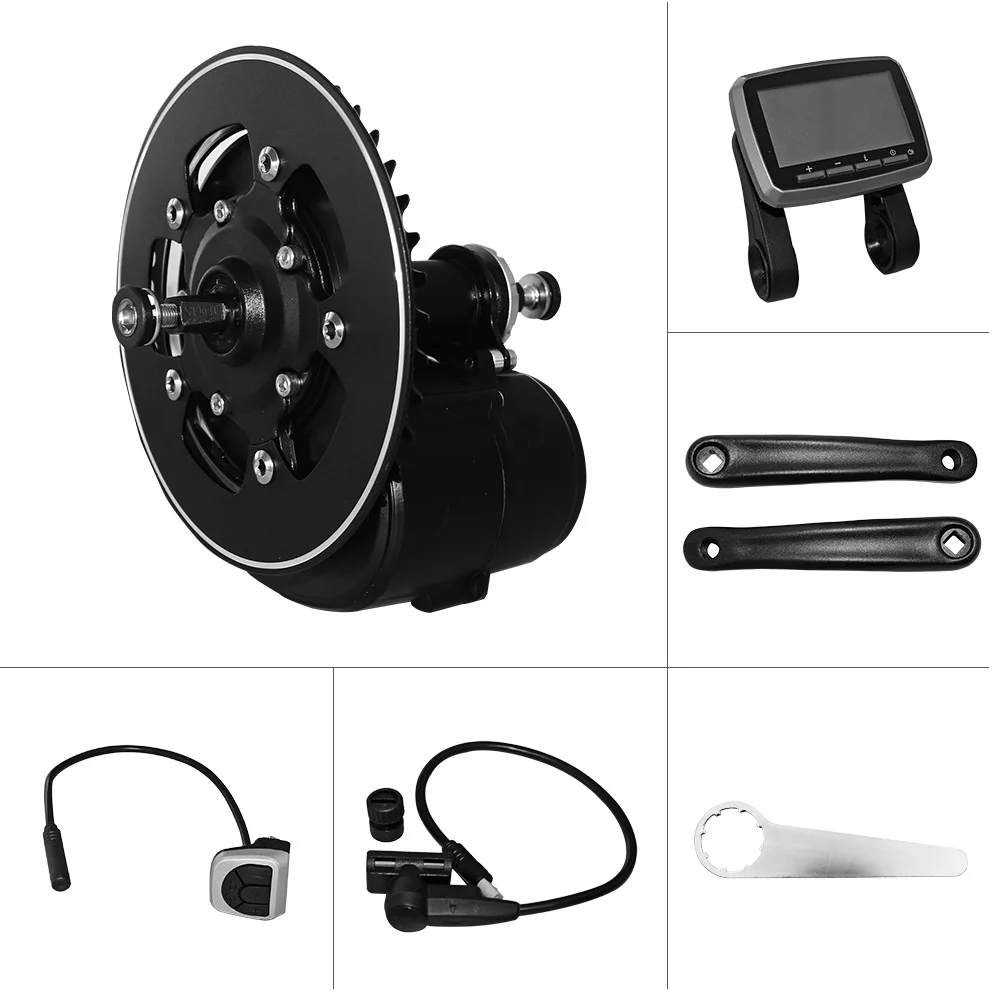

What the complete kits include?

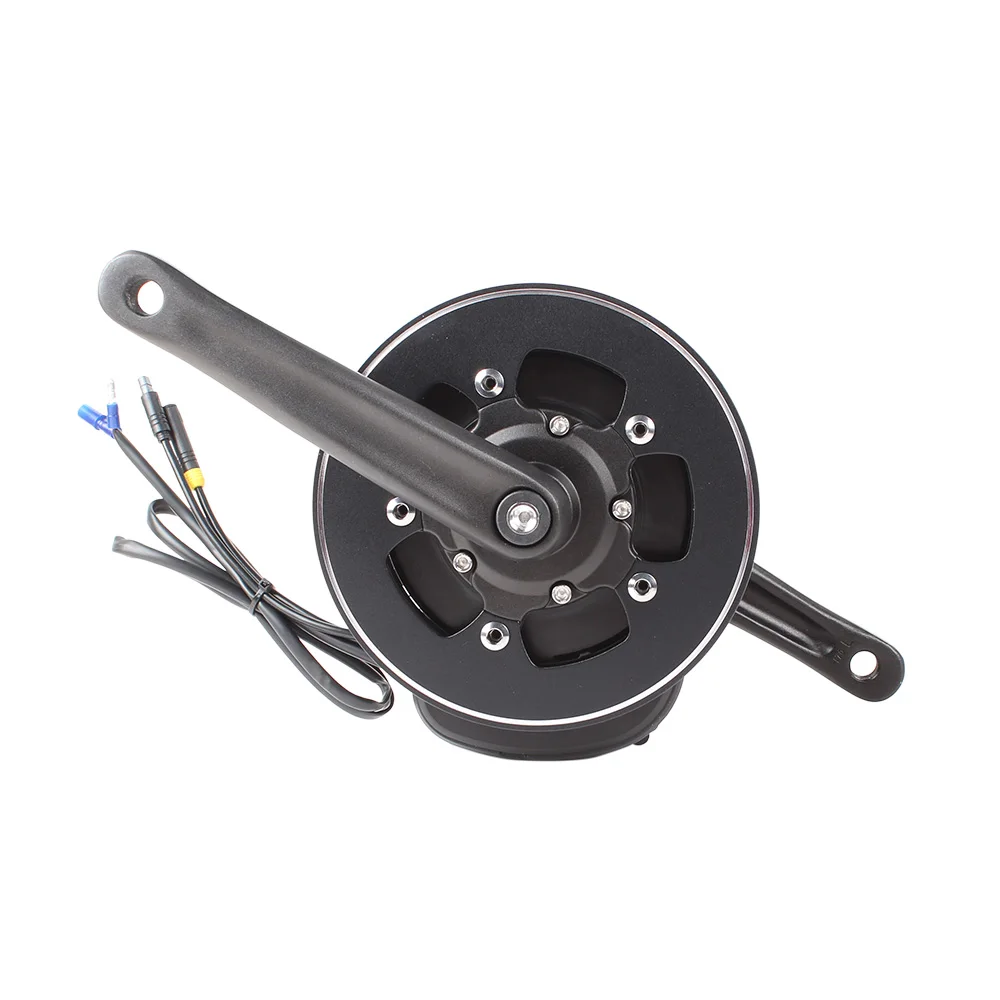

1 PC * TSDZ2 mid-drive motor

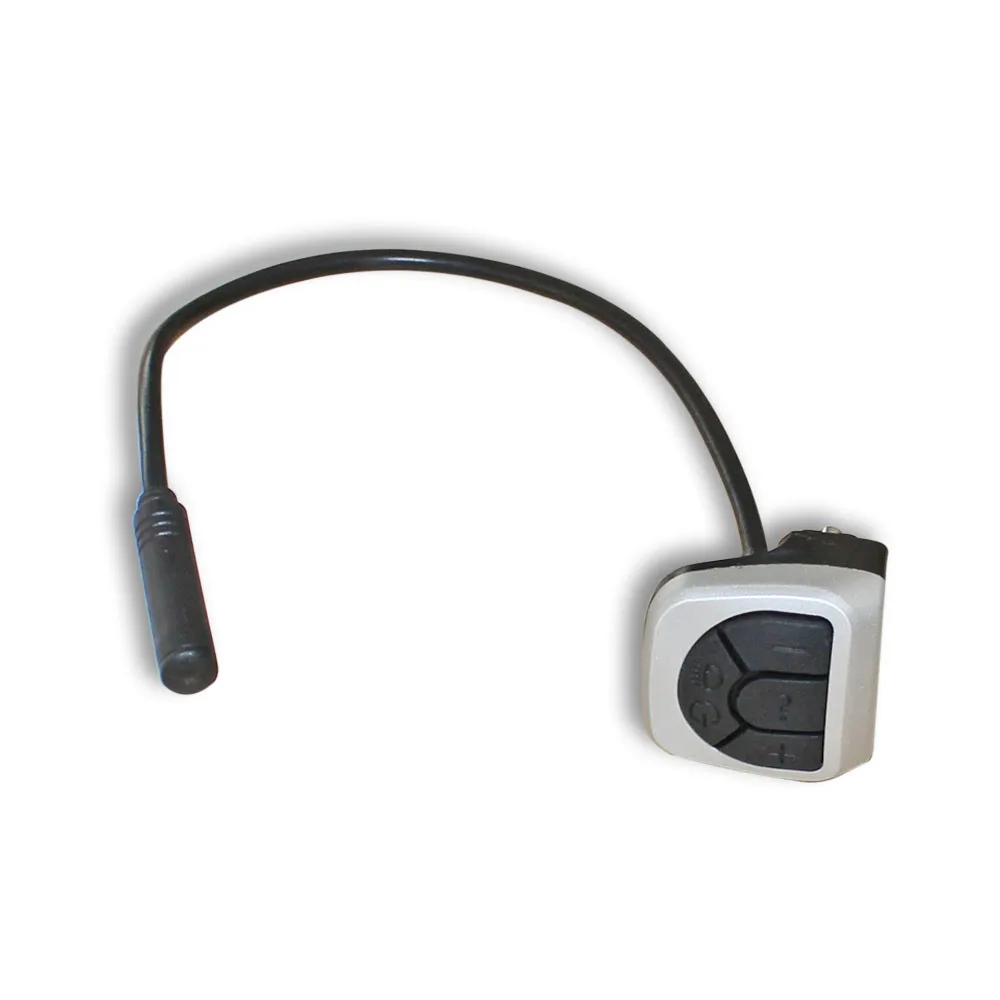

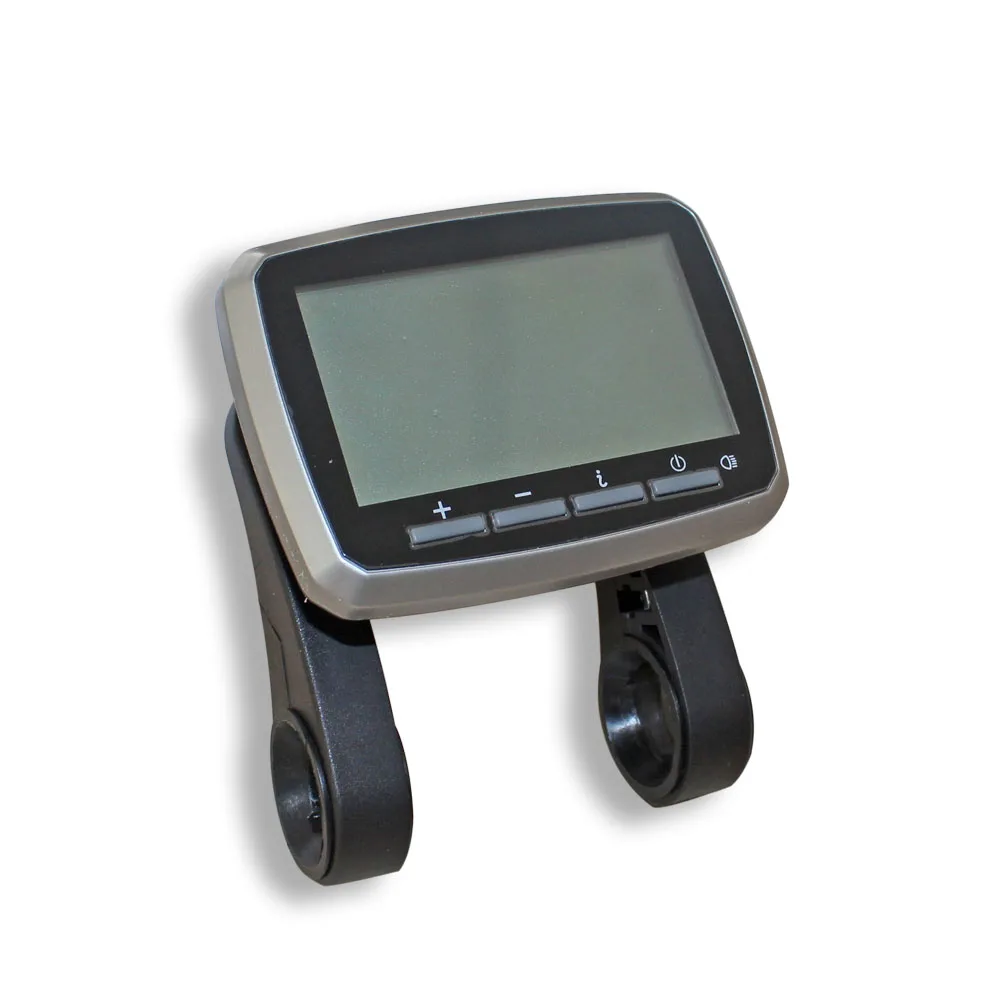

1 PC * VLCD5 display with left hand operator
1 PC * VLCD5 display with left hand operator
1 PC * Power connection cable

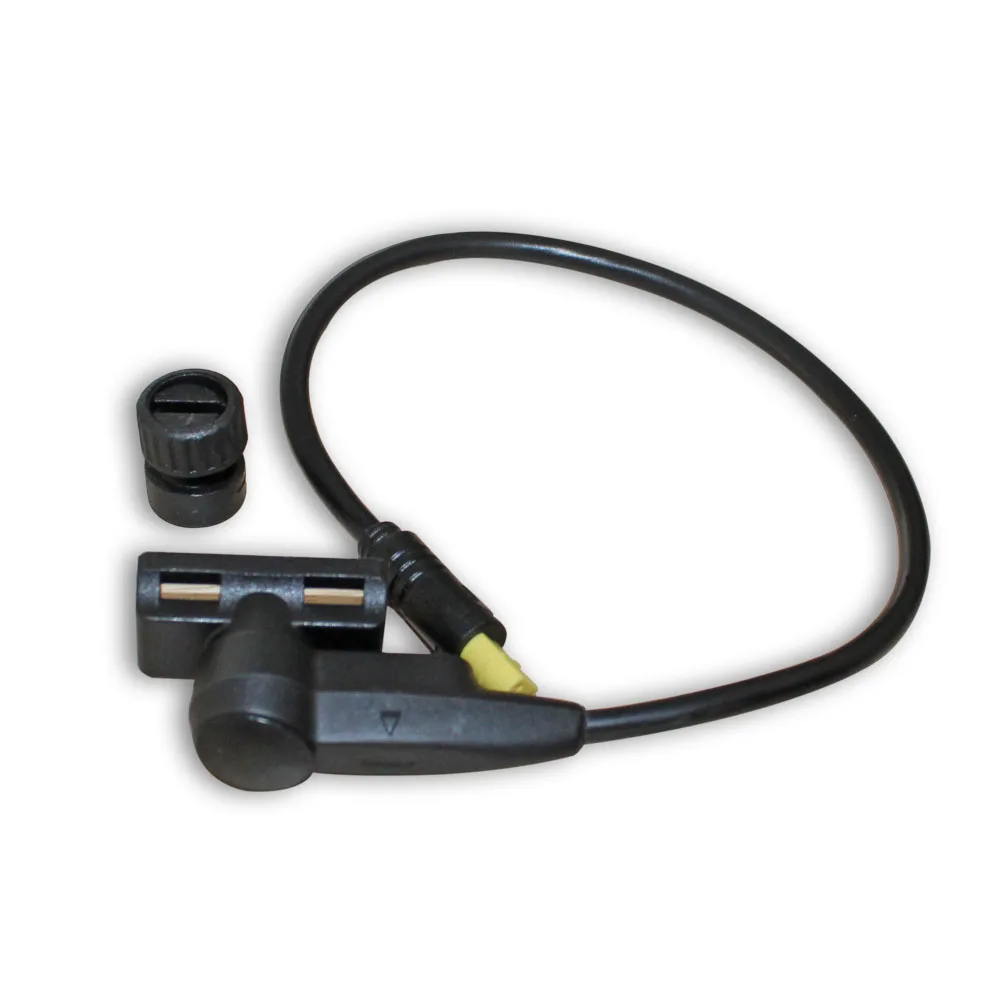

1 PC * Torque detective sensor
1 PAIR * Crank-arm
1 PC * Torque detective sensor
1 PAIR * Crank-arm
1 PC * Wrench
1 PAIR * Power-off brake lever (optional)
1 PC * Thumb Throttle (optional)
1 PC * Thumb Throttle (optional)
CUSTOMER FEEDBACK
