Автоматическая гибочная машина для акрила


Поделиться:


Цена:2 435,00 $ - 2 652,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 3092.83 $* 3154.12 $*
Jul-16-2025 2508.2 $* 2558.67 $*
Jun-16-2025 3044.95 $* 3105.10 $*
May-16-2025 3019.13 $* 3079.68 $*
Apr-16-2025 2411.32 $* 2459.27 $*
Mar-16-2025 2971.76 $* 3030.71 $*
Feb-16-2025 2946.27 $* 3005.94 $*
Jan-16-2025 2922.73 $* 2980.87 $*

Характеристики


This machine is one upgrade automatic bending machine, can do acute degree and Arc degree bending both, and the control system adopt the PLC with the can touch screen display.



And have two option:

one is machine with one side heating type( underside heating).



Another one is machine is up and down two side heating type.



Function introduction:

1. This machine are specially equipped with energy-saving heat insulation, which can increase thermal energy efficiency by more than 40% than other factory machines.



2. Infrared plating barium heater, The heating temperature is absolutely uniform, this machine saves over 40% of the heat energy than ordinary machines.



3. At the same time of bending, the heater will shifted and cut off power automatical, let the plate cooling and styling faster, saving power, making the operation more reasonable and more humane.

4. Adopt special multi-function positioning protractor, make the bending Angle adjustable, controllable, accurate and convenient.



5. It adopts special heating device to make the plate heat more evenly

6. The heating width can be adjusted, the arc bend is more convenient, use more widely.

7. It has the timing function.The working time of heating device can be set according to plate variety, thickness and material

8. controlled by PLC, and time and Angle can be set on touch screen.More precise, more convenient Angle adjustment



2. Specifications:



Model

G2400

Heating solution

Up and down two tubes heating

Voltage

220V 50-60HZ

Power

4000w

Control system

Mitsubishi PLC, Can Touch screen

Effective bending width

2440mm

Effective bending length

Unlimited

Down side heating temperature

650 degree centigrade

Up side heating temperature

650 degree centigrade

Pressure of compression bar

150KG

Working mode of compression bar

Automatically

Working speed of compression bar

1″-10/ time( can adjust)

Upside heating mode

pnuematic

Reverse turning bed working mode

Automatically

Bending mode

Automatically

Bending degree

60-179degree

Heating width area

Adjustable (via the cooling plastic pipes to adjust)

Bending shape

Acute and arc angles is adjustable

Bending time

70-600S

Bending materials thickness

0-30mm

Water tank volume

50l

Dimension

2650x650x1200mm

Package size

2850x850x1300mm

Gross weight

360kgs

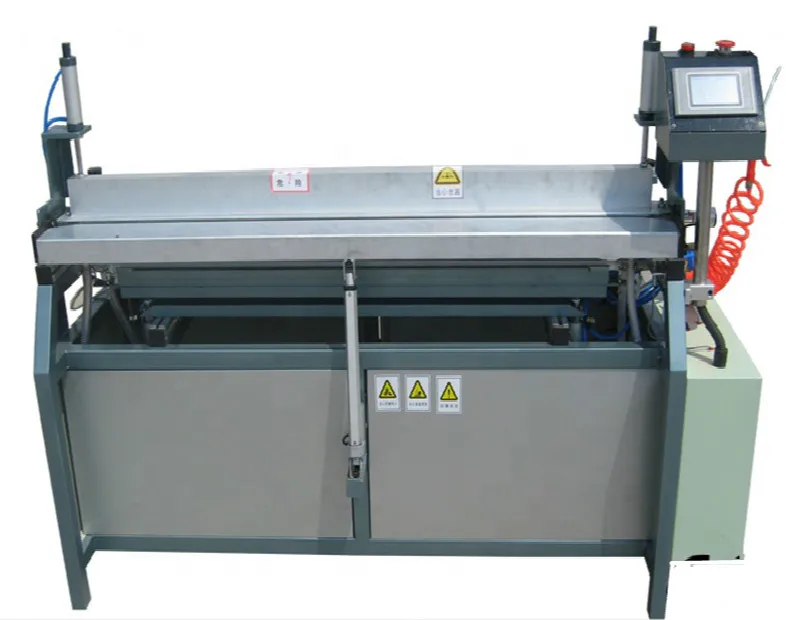

Machine pictures:



















samples pictures:

degree bend sample.JPG



degree bended sample.JPG
