HART Коммуникационный модем с интерфейсом RS232
- Категория: Модемы >>>
- Поставщик: Microcyber,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 212.62 $* | 223.34 $* |
| Aug-16-2025 | 210.7 $* | 221.31 $* |
| Jul-16-2025 | 176.1 $* | 185.62 $* |
| Jun-16-2025 | 206.73 $* | 216.36 $* |
| May-16-2025 | 180.62 $* | 189.59 $* |
| Apr-16-2025 | 203.49 $* | 213.17 $* |
| Mar-16-2025 | 201.29 $* | 211.23 $* |
| Feb-16-2025 | 199.73 $* | 209.3 $* |
| Jan-16-2025 | 198.98 $* | 208.28 $* |
Характеристики
Product Description
We provide two kinds of HART modem. HART-RS232 is the converter for HART signal to RS-232 signal. HART-USB is the converter for HART signal to PC virtual series port.
Features
Product Characteristic
According to the HART physical layer specification
Isolated transformer prevents the influence of earthing.
Voltage signal modulator/demodulator
Low power consumption designation
Powered by series port or USB port
Interface Type: DB9 female mount
Ambient Temperature: 0 ~ 50 ℃
Compressive Strength :500 V AC HART bus and serial port (UART,USB)
Receiving Impedance : ≥5 K Ω, end-to-end
Output Signal VPP: 600 mV ≥ VPP ≥ 400 mV, 500 Ω load resistance
Receiving Sensitivity: 120 mV, 500 Ω test resistance
Usage Instruction
HART Modem is the protocol converter between HART device and configurator on PC.
Connection Diagram
The figure above is a sample basic case. To connect multiple HART device, please connect the other devices parallel with the “Transmitter”. Please note that the power should support multiple devices and the terminator should be set in the middle of the power and parallel point.
HART-RS232 is a HART MODEM with voltage modulator/demodulator. To communicate with a HART device, please connect the clincher of HART port of HART-RS232 to the two terminals of the network adaptor resistance or the power of HART device. To communicate with a PC, please connect the other port of HART-RS232 to the series port of PC.
The USB driver installation program should be run for HART-USB. The driver provides a virtual series ports for HART configurator software.
The indication light shows the state of modem. Green LED indicates the power is working well and the modem is sending data. Red LED indicates the modem is receiving data.

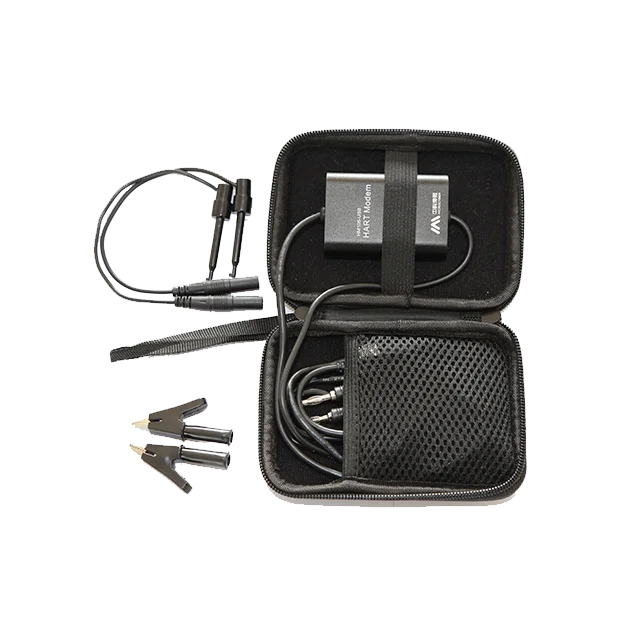

Configuration Kit for HART Modem
Easy to use
Compatible with all standard HART Instruments
LEDs for signaling the sending / receiving
No external power supply required
Standard USB/RS232 connection to PC
Galvanic isolation
Specification
Parameter | Value |
Power Supply | No external power supply required |
Galvanic Isolation | 500VAC between the device and the PC |
Receiving Impedance | ≥5KΩ |
Receiving Sensitivity | 120mVpp |
Output Amplitude | 500mVpp(500Ω) |
Connector | USB/RS232 connector to PC, 2 alligator clip on Transmitter |
Cable Length | USB/RS232 cable: 1.5m; HART cable: 1.00 m |
Housing
Parameter | Value |
Weight | app. 125 g(include cable) |
Dimensions | 60 x 45 x 14 mm |
Environments
Parameter | Value |
Operating temperature | 0 to 50 °C |
Storage Temperature | -40 to 85 °C |
Humidity | 0-95% (no condensation) |
PC System
Parameter | Value |
Operating System | Windows 98/ME/2000/XP/win7/win8 |
USB/RS232-Port | USB-Host/RS232 |
How To Choose NCS-HM105 HART Modem?
Company Information
FAQ
Q: Can I get a free electronic manual?
A: Yes, if you want it, please contact us.
Q: Can you provided OEM service?
A: Yes, we can, such as communication board, we can also provided fieldbus development toolkit.
