Мощность 0 5-8 PH испаритель из чистого титана/пушка для морепродуктов прудов холодильных
- Категория: Детали для охлаждения и теплообмена >>>
- Поставщик: Baoji,City,Changsheng,Titanium,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 171.47 $* | 180.41 $* |
| Aug-20-2025 | 170.5 $* | 179.19 $* |
| Jul-20-2025 | 143.89 $* | 150.55 $* |
| Jun-20-2025 | 167.10 $* | 175.41 $* |
| May-20-2025 | 145.60 $* | 152.25 $* |
| Apr-20-2025 | 164.85 $* | 172.17 $* |
| Mar-20-2025 | 163.90 $* | 171.37 $* |
| Feb-20-2025 | 161.35 $* | 169.90 $* |
| Jan-20-2025 | 160.46 $* | 168.46 $* |
Характеристики

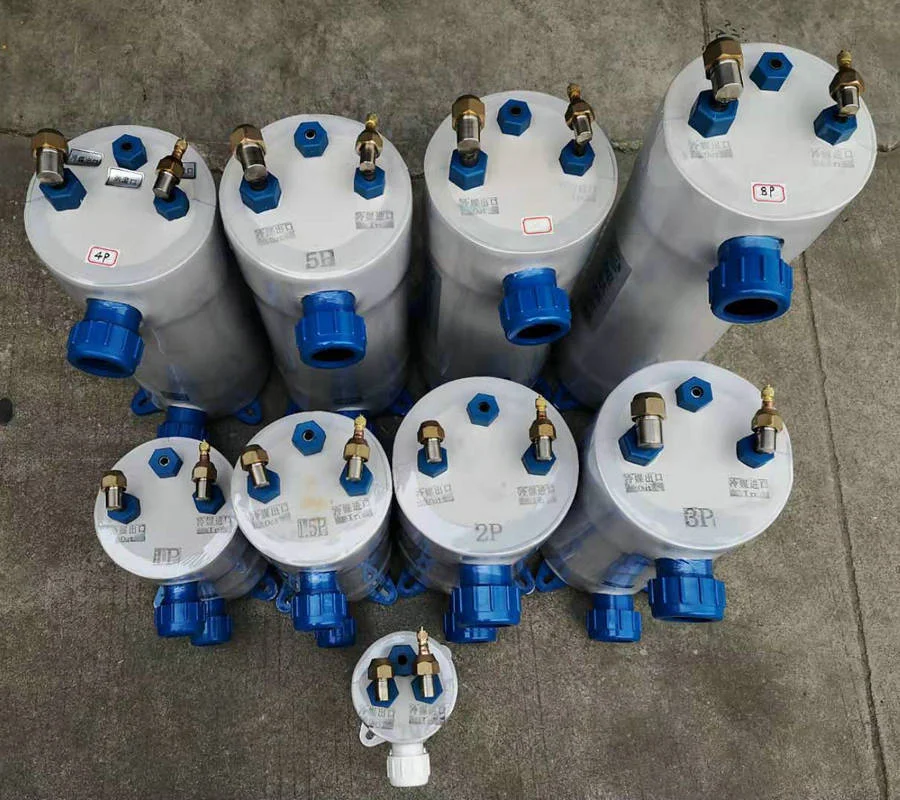

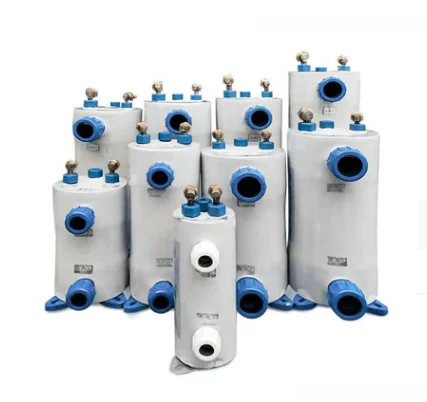

Titanium Evaporator(Straight Type)
Titanium evaporator is made up with top titanium pipe, and environmental friendly PVC plastic mold. We have developed the new PVC mold which can bear higher water pressure, and it is suitable for cooling and heating salt water. You can add a titanium heater in it. You are warmly welcome to offer drawings and samples for customized manufacturing.
Introduction of spare parts
Refrigerant (inside titanium tube) | Water (insight PVC shell) | ||
Max working pressure(Mpa) | 4.5mpa | 0.5mpa(normal),0.6-1.2mpa (optional) | |
Temperature range(℃) | —50 to 150 ℃ | 0 to 50℃ | |
Application | R12, R22, R134a | Swimming pool water, fresh, salt water, anti-freezing fluid, etc | |
Attention | 1, please discharge all the water to avoid ice breaking when temperature below 0 ℃. 2, please discharge all the air for the first time using, and the water pressure can not overtop the specified max working pressure. 3, please keep water clean, and we suggest you install the filter and clean regularly. | ||

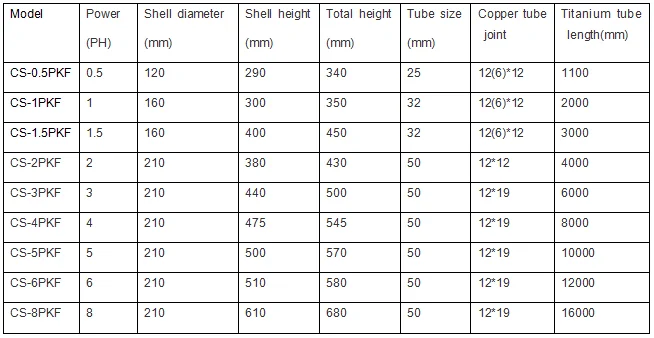

Power (PH) | Shell diameter (mm) | Shell height (mm) | Total height (mm) | Tube size (mm) | Copper tube joint | Titanium tube length(mm) |
0.5 | 120 | 290 | 340 | 25 | 12(6)*12 | 1100 |
1 | 160 | 300 | 350 | 32 | 12(6)*12 | 2000 |
1.5 | 160 | 400 | 450 | 32 | 12(6)*12 | 3000 |
2 | 210 | 380 | 430 | 50 | 12*12 | 4000 |
3 | 210 | 440 | 500 | 50 | 12*19 | 6000 |
4 | 210 | 475 | 545 | 50 | 12*19 | 8000 |
5 | 210 | 500 | 570 | 50 | 12*19 | 10000 |
6 | 210 | 510 | 580 | 50 | 12*19 | 12000 |
8 | 210 | 610 | 680 | 50 | 12*19 | 16000 |
Titanium Coiling tube
Strong anti-corrosion titanium evaporator condenser coils
Work Condition:
1)Refrigerant side(In the tube):R22,R134a,R407c,R410a etc.
2)Water side (in your tank):Nature water,drink water,seawater etc .
Material:
Heat transfer Tube: Titanium
Features:
1)Usually used for heating and cooling.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
4)It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking ,
no contamination of medium,and not easy to formed oxides on the surface.
Application:
Bend titanium tube pipe are widely used for mariculture ,seawater heat transfer,saline heat transfer, chemical industry,food
Industry,Metallurgy,refrigeration,light industry,plating industry,aluminum oxidation tank,salt manufacturing ,paper
making,ultrasonic,electrommunication and central heating etc.
Notice:
1) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
2) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
1)Refrigerant side(In the tube):R22,R134a,R407c,R410a etc.
2)Water side (in your tank):Nature water,drink water,seawater etc .
Material:
Heat transfer Tube: Titanium
Features:
1)Usually used for heating and cooling.
2)Pure titanium tube has super strong corrosion proof ability and high intensity.
3) The seamless titanium tube was tested by 2.0MPa pressure to make sure the tube is strong and not leakage .
4)It has the character of strong corrosion resistance ,good heat resistance , high conductivity, non-toxic,no-scale ,no-blocking ,
no contamination of medium,and not easy to formed oxides on the surface.
Application:
Bend titanium tube pipe are widely used for mariculture ,seawater heat transfer,saline heat transfer, chemical industry,food
Industry,Metallurgy,refrigeration,light industry,plating industry,aluminum oxidation tank,salt manufacturing ,paper
making,ultrasonic,electrommunication and central heating etc.
Notice:
1) The data list is our suggested data, We can produce any capacity heat exchangers according customer requirement and design.
2) To guarantee constant inprovement of technology , the parameters shall be changed without further notice.
Package

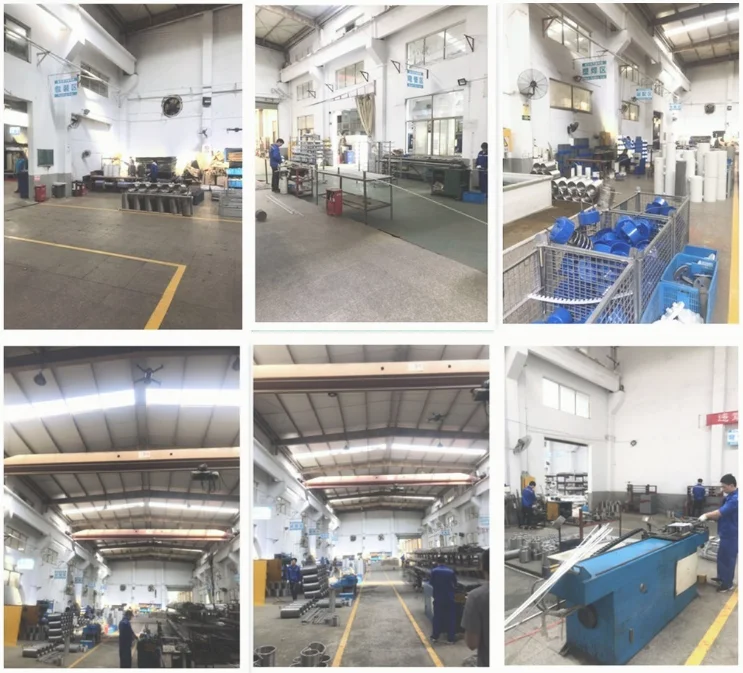

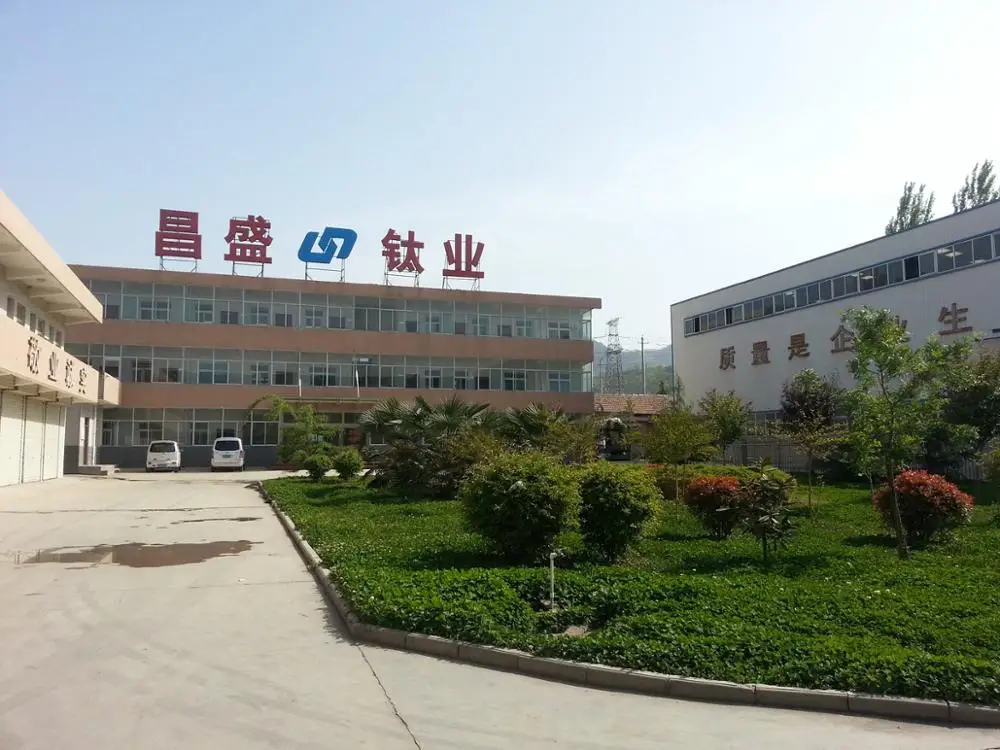

Company Profile
* In the year 2001, set up the forging workshop.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
* In 2010, researched and developed the technology of big seamless titanium tube.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and American Ural Company.
* In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City
* In 2017, enlarged the production of tube.
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
* In 2010, researched and developed the technology of big seamless titanium tube.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and American Ural Company.
* In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City
* In 2017, enlarged the production of tube.
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November.
Related products
FAQ
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
Do you have a dedicated R & D team? Can you design a product for us?
Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. Mainly processing, based on many years of market experience, recommend related product for customers.
Can you provide samples? Is there a charge?
Samples can be provided for a fee
What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium anode products is around 7%. There are two main reasons for the problem: 1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear. 2) 5% is an unexpected situation and the extension of the construction period. 3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the product is damaged.
What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability. 2) We are 100% responsible for problems caused by damaged packaging during transportation.
Can you provide samples? Is there a charge?
Samples can be provided for a fee
What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium anode products is around 7%. There are two main reasons for the problem: 1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear. 2) 5% is an unexpected situation and the extension of the construction period. 3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the product is damaged.
What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability. 2) We are 100% responsible for problems caused by damaged packaging during transportation.
