Барьерная сетка Rockfall Tecco из высокопрочной стальной проволоки высокопрочная стальная проволока плетеная
- Категория: >>>
- Поставщик: Hebei,Longen,Wire,Mesh,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.2 $* |
| Aug-16-2025 | 0.59 $* | 0.73 $* |
| Jul-16-2025 | 0.24 $* | 0.70 $* |
| Jun-16-2025 | 0.62 $* | 0.79 $* |
| May-16-2025 | 0.6 $* | 0.81 $* |
| Apr-16-2025 | 0.65 $* | 0.12 $* |
| Mar-16-2025 | 0.77 $* | 0.19 $* |
| Feb-16-2025 | 0.6 $* | 0.18 $* |
| Jan-16-2025 | 0.57 $* | 0.11 $* |
Характеристики
Products Description
Rockfall barrier mesh / Tecco Wire Mesh Specification
Materia: High Tensll steel wire.
Wire diameter: 3.0mm, 4.0mm
Mesh type: Rhomboid hole
Mesh size : 83mmx143mm（ inscribed circle diameter65mm）
Wire diameter: 3.0mm, 4.0mm
Mesh type: Rhomboid hole
Mesh size : 83mmx143mm（ inscribed circle diameter65mm）
Tensile strength: Minimum 1770 MPa
Braking load of single wire: 12.5 kN
Mesh roll width: 1–3.5m，Customized
Mesh roll length:1–30 m，Customized
Surface treatment: Hot dipped galvanized, zinc-aluminum coated
Braking load of single wire: 12.5 kN
Mesh roll width: 1–3.5m，Customized
Mesh roll length:1–30 m，Customized
Surface treatment: Hot dipped galvanized, zinc-aluminum coated
Zinc thickness: galvanized coating ( 95% ZN -5% Al )，No less than 150 g/㎡
Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is made
ofdeformed steel bar of 25 mm diameter)
Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is made
ofdeformed steel bar of 25 mm diameter)

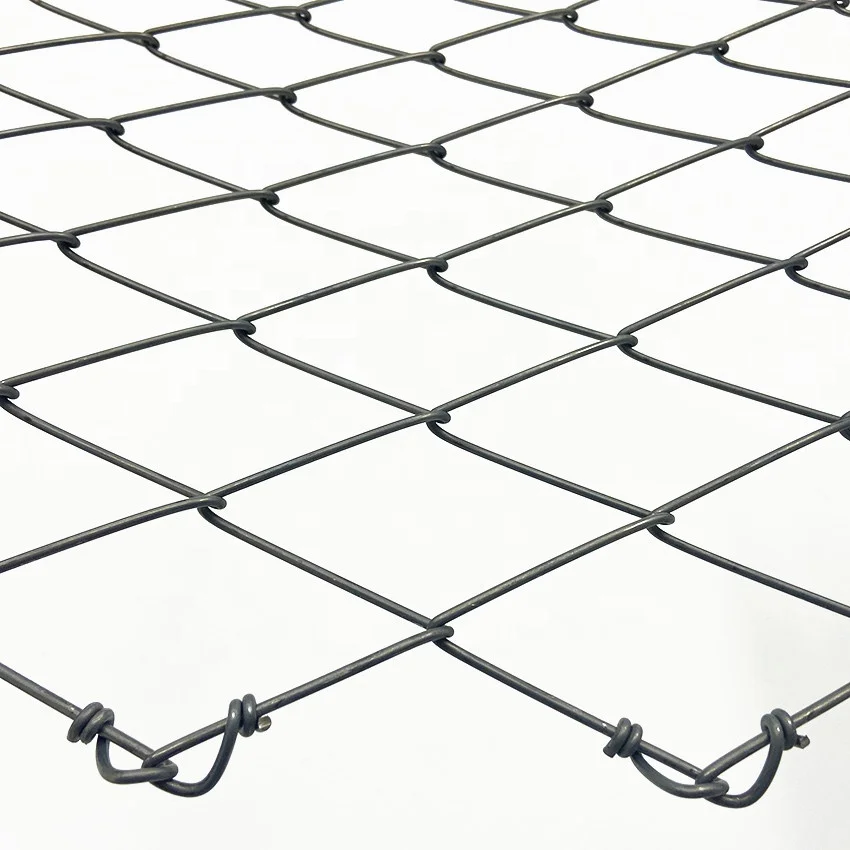

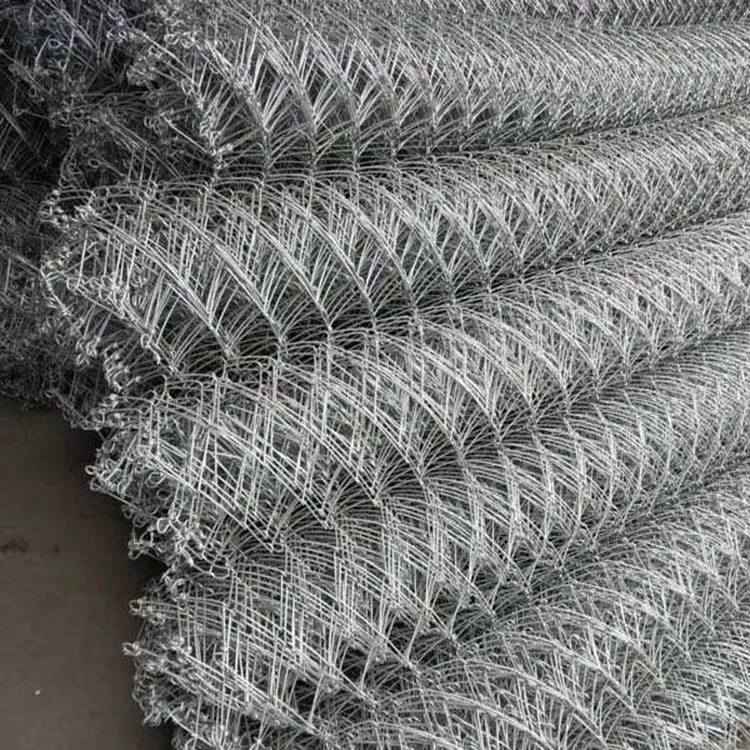

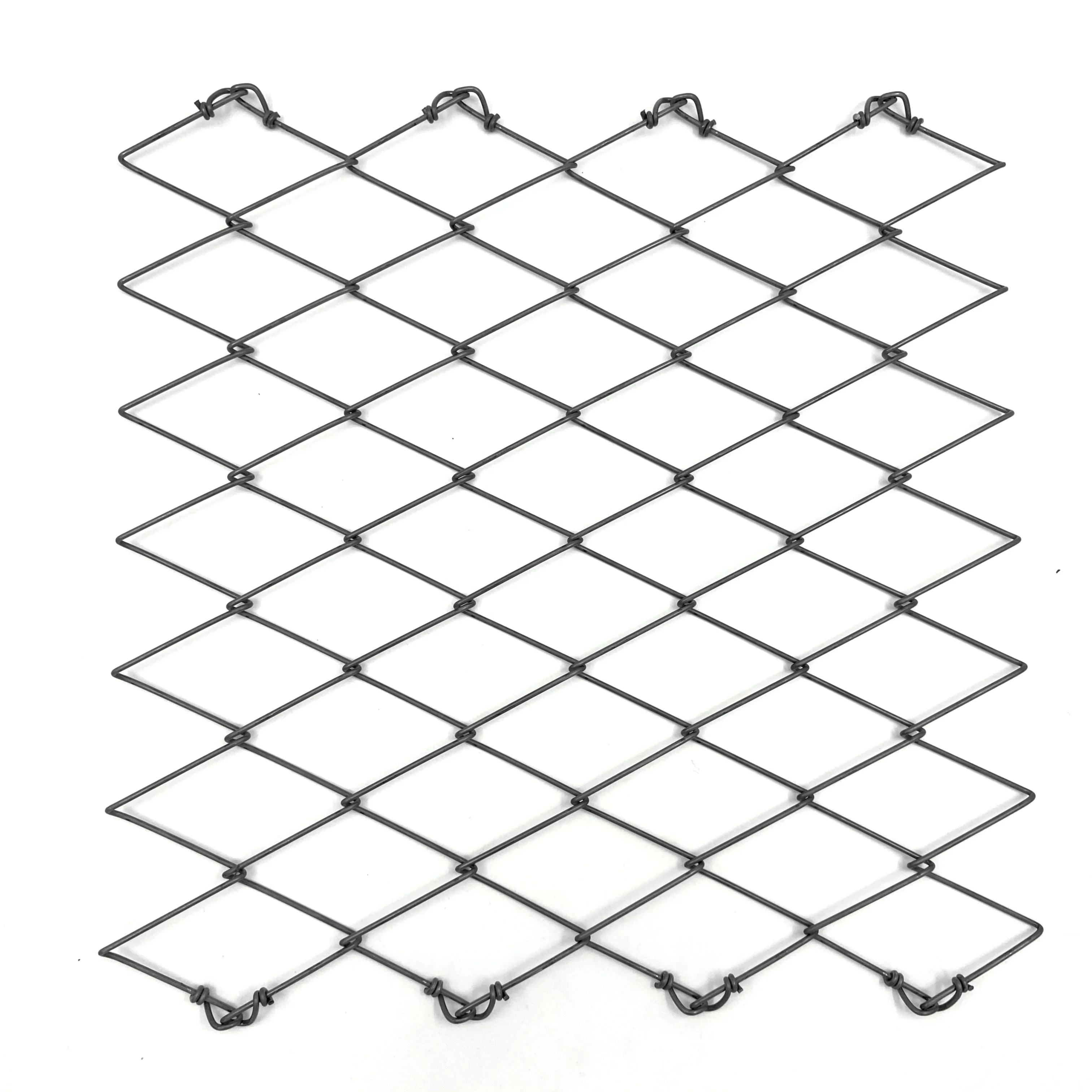

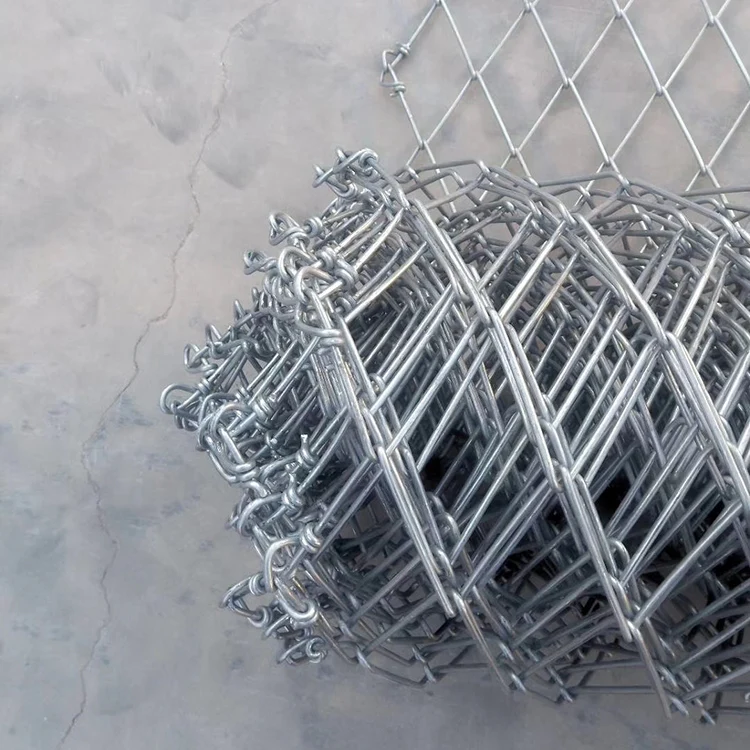

Detailed Images
wire Tensile strength | Wire diameter (mm) | Hole size （mm） | weight KG/㎡ | width M/Roll | length M/Roll | Braking load of single wire: 12.5 kN. |
1770MPa | 3 | 83x143 | 1.65 | 1-3.5 | 1-10 | |
70x130 | 1.90 | 1-3.5 | 1-10 | |||
4 | 83x138 | 3.30 | 1-3.5 | 1-10 | ||
70x130 | 3.60 | 1-3.5 | 1-10 |
system Components
Tecco wire mesh system Components
Main Components: High-tensile steel wire mesh,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock.
Product Application

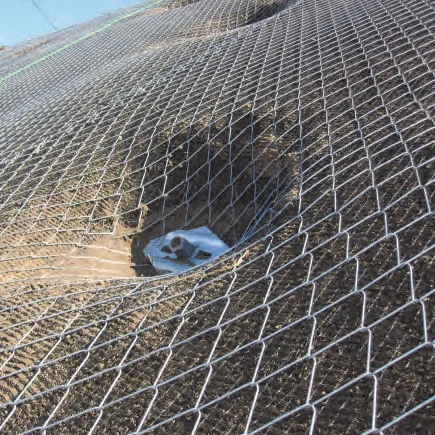

The tecco wire mesh is usually installed on soil or rocky textured surfaces such as mountains and slopes to prevent falling rocks and to ensure plant growth. In addition, it can be used to control water, soil loss and external soil spray sowing.
Company Information
Hebei Longen Wire Mesh Co.,LTD
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh...see more>>
Packaging & Shipping
Delivevr time ：10~20 workinng days after payment receipt confirmed (based on actual quantity) Packing : standard export packing or customized packing as your request.
