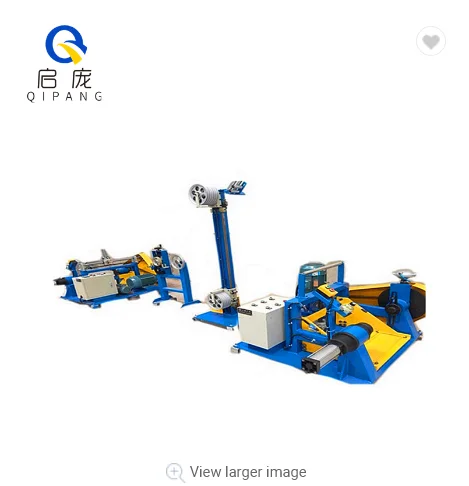

QIPANG 630 мм/800 мм катушка Обмотка Машина кабель проволока обмотки

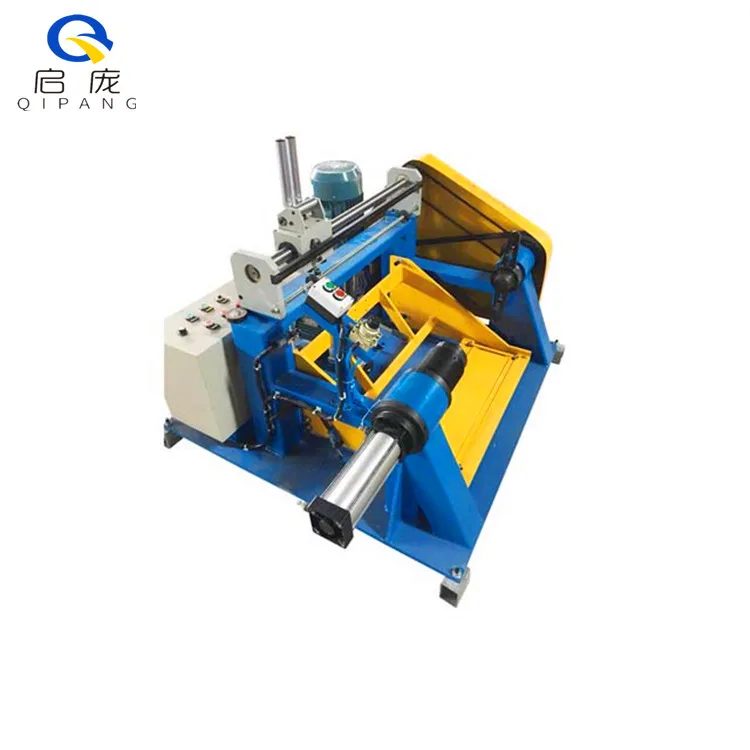

1. 630-1000mm active pay-off machine

Adapt to bobbin flange OD diameter: 630-1000mm, 1000mm, overall width 475-750mm, inner hole 56/80
Top shaft mode: no shaft top cone pneumatic top tight
Pay-off speed: MAX200 m / min
Clamp the bobbin: 0.75KW electric screw lift
Power: 4KW motor drive spool release line
Brake: 10KG electromagnetic brake
Maximum load capacity: 3000 kg

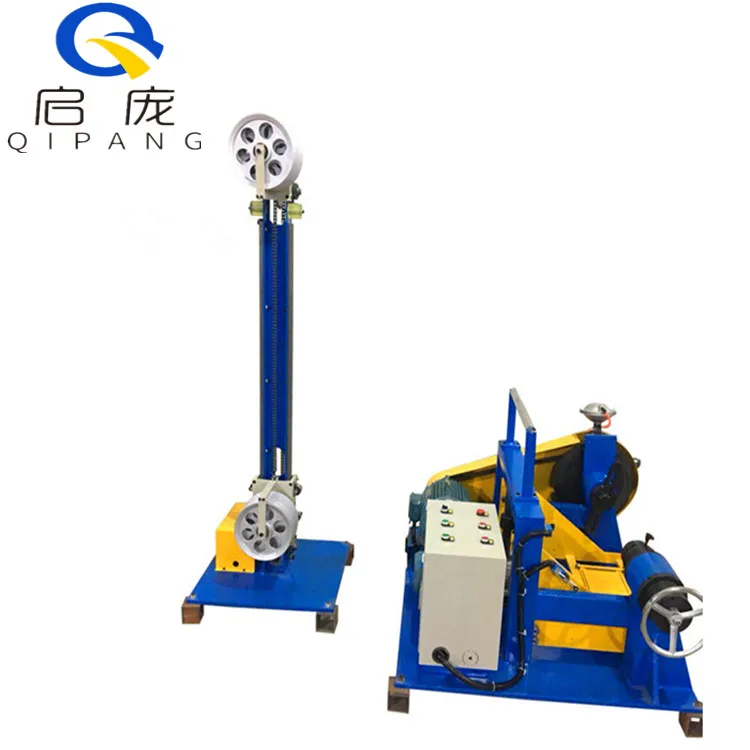

2. Vertical tension storage Accumulator/Dancer

Total height of 2 meters;
The storage line volume is 0-15 meters, and the storage line wheel is 400mm (4 groups + 3 groups);
Adapt to the wire diameter: 0.5-10mm2 hard wire, 15mm soft wire;
Guide wheel material: aluminum alloy material, surface hardening treatment;
Control mode: The sensor gives a 0-10V voltage signal to control the speed of the line.

3. Meter counter

Form: one-way stop;
The surface of the meter wheel and the pressure roller adopts a rubber wheel to ensure that the wire is not damaged.

4. 400-630 shaftless winding machine

Adapted to bobbin flange OD diameter: PN400-PN630, coil width 280-475mm, inner hole diameter 56mm
Applicable line speed: 200m/min
Top shaft mode: no shaft top cone
Clamp the bobbin: electric screw lifts, the upper and lower limits are safe and reliable
Cable: GP30 rolling ring drives, adjustable pitch. Wire winding : 10N.M torque motor winding wire

Automatic take-up machine, wire rope, wire winder, winding machine, automatic reversing, high-speed operation, adjustable frequency conversion speed

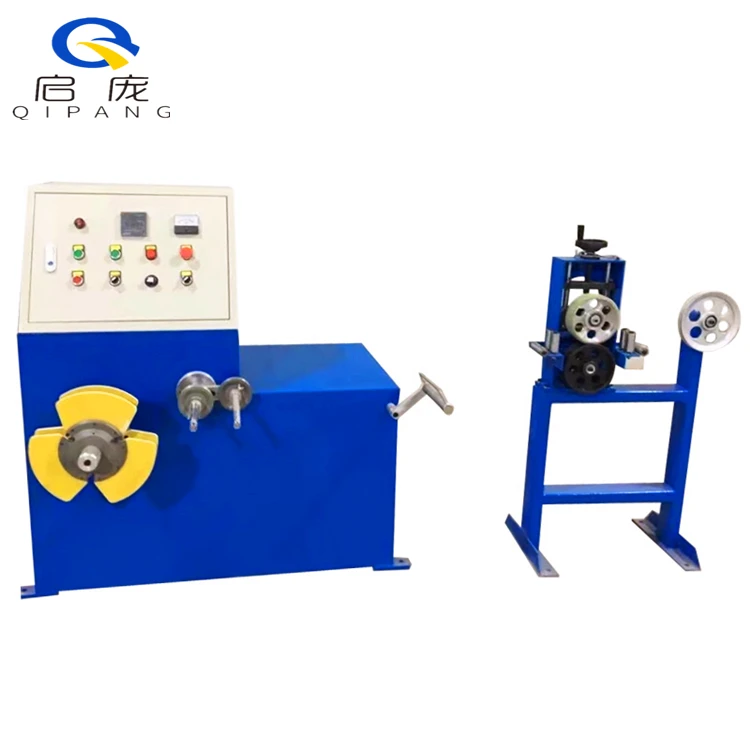

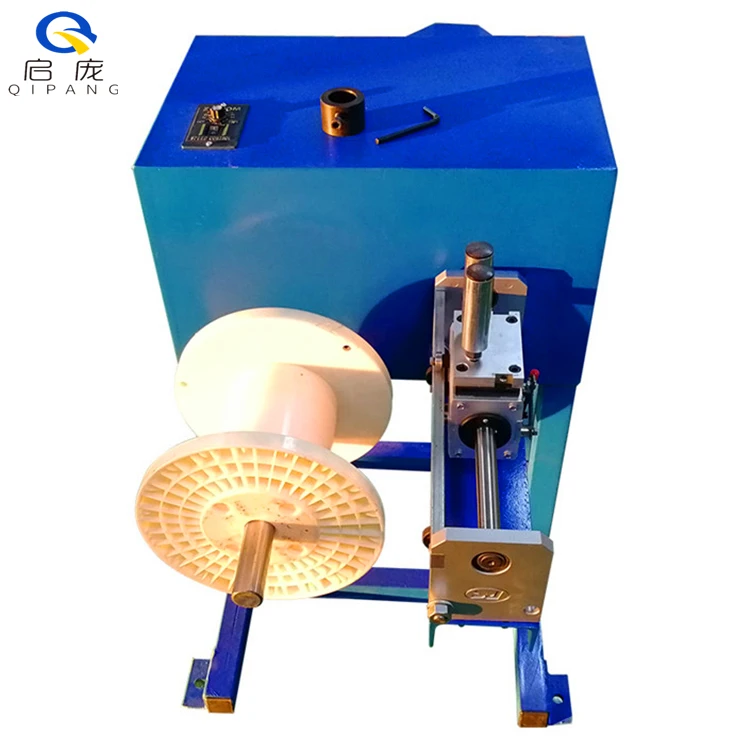

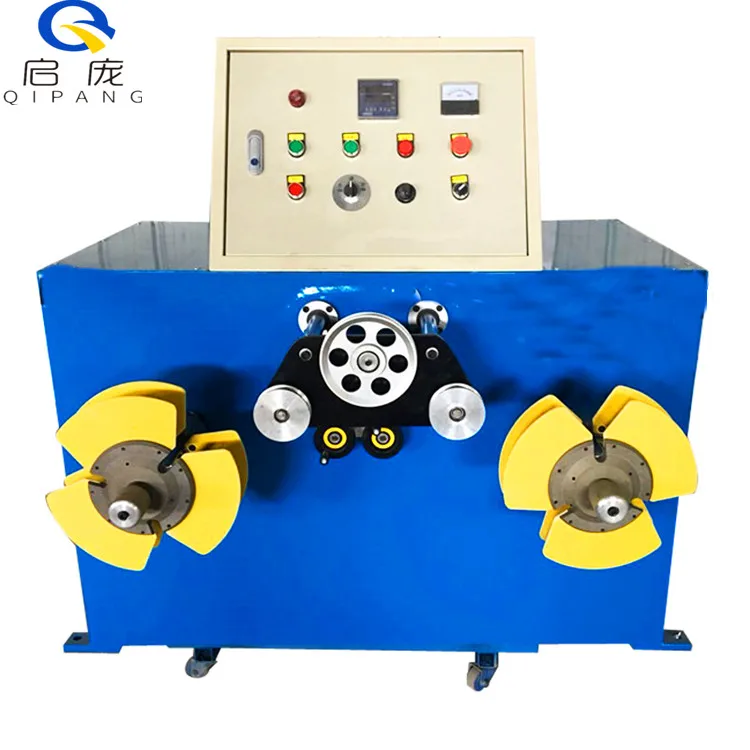

Receiving machine model: TC-630 type cable wire winding machine for spool .

Total body size: length 850mm*650mm*700mm,

Components are: power 380V/220V

Motor: 550 watts, inverter: 750 watts

Frame 1, the standard size of the PC400: 250mm, 56mm., 400mm.

The width of the reel can be customized according to customer requirements.

wire material range: 0.1 - 50mm can be.
