Характеристики
Product Description

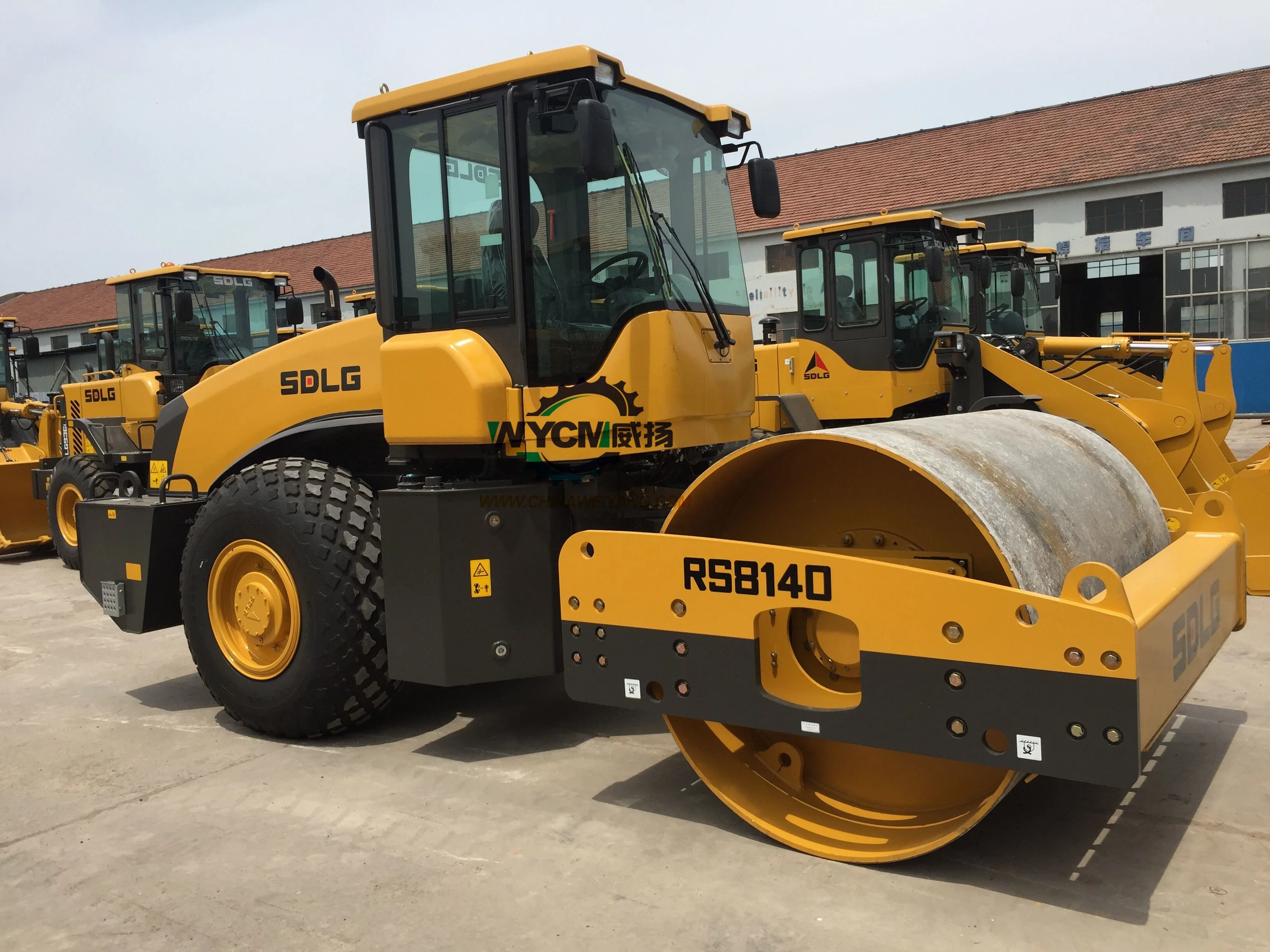

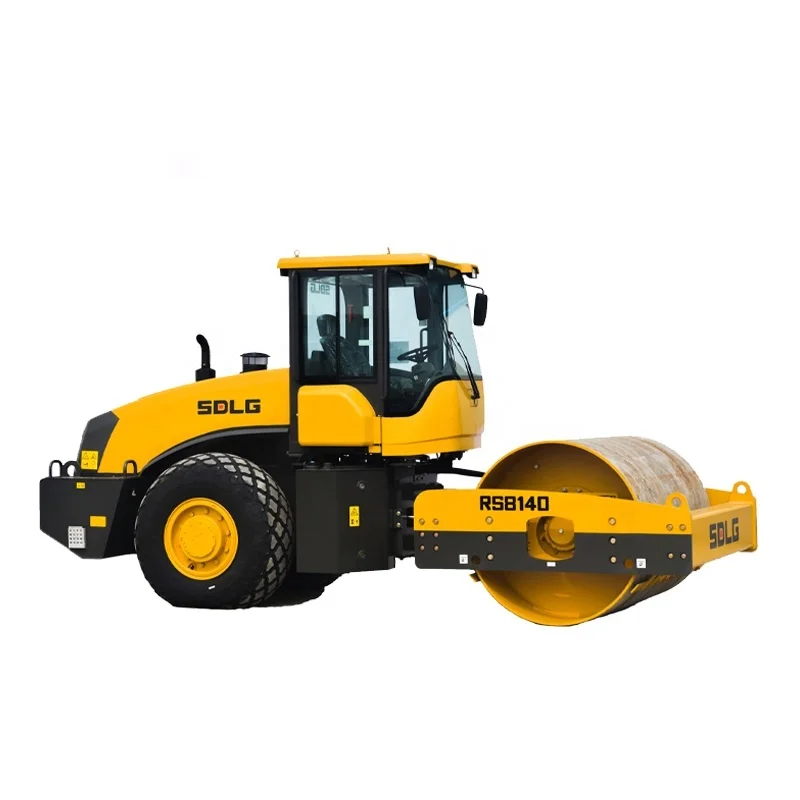

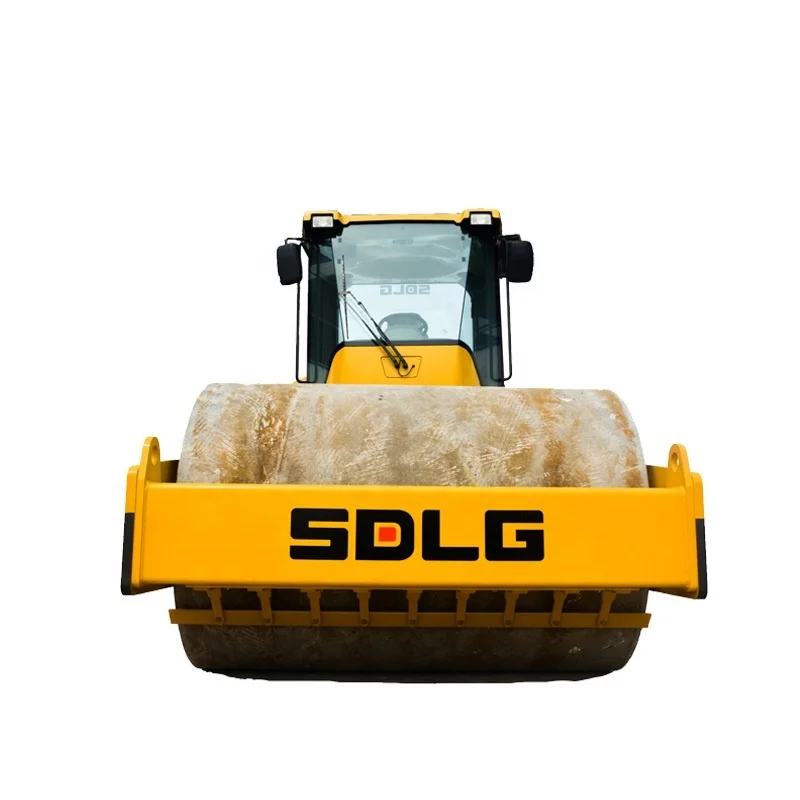

RS8140 Mechanical Single Drum Vibratory Road Roller
RS8140 mechanical single-drum vibratory road roller is a heavy-duty auto-propelled vibratory road roller and can effectively compact various soil layer and rock fill. This machine is of industrial leading level in compacting, driving and operating performances and reliability, repair and maintenance performance and so on. It is ideal compacting equipment for road, airport, harbor, railway, dam and industrial site.
Overall dimensions | ||
L×W×H | 6113×2300×3140mm | |
Width/diameter(D/E)of vibratory drum | 2130mm | |
Wheel tread | 1535mm | |
Wheelbase | 3303mm | |
Min.ground clearance | 350mm | |
Min.turning radius | 6400mm | |
Compaction width | 2130mm | |
Theoretical gradeability | 30% | |
Turning angle | 35° | |
Overall performance | ||
Operating weight | 14000kg | |
Front wheel distributed weight | 1480kg | |
Rear wheel distributed weight | 1823kg | |
Nominal amplitude (high/low) | 1.8／1.0mm | |
Frequency | 30Hz | |
Excitation force (high/low) | 261／145kN | |
Static linear load | 322N／cm | |
Engine | ||
Model | WP6G125E202 | |
Type | Inline, Water-cooled,Four-stroke, Direct injection | |
Rated Power/Speed | 92kW/2000r/min | |
Engine displacement | 6750ml | |
Cylinder bore /stroke | 105/130mm | |
Emission standard | GB 20891-2007 | |
Min. Fuel-consume ratio | ≤220g/kW.h | |
Max.torque | 540N.m | |
Transmission system | ||
Clutch type | Dry single-plate clutch | |
Transmission type | Fixed shaft mechanical shift | |
Gears | Forward 3 reverse 2 | |
Brake system | ||
Service brake type | Air over hydraulic disc type | |
Parking brake type | Manual，Caliper disc type | |
Steering system | ||
Type | Full hydraulic steering gear | |
System pressure | 16MPa | |
Swing angle | ±12° | |
Vibratory system | ||
Type | Open-type system | |
System pressure | 20Mpa | |
Fill capacity | ||
Fuel | 270L | |
Hydraulic oil | 130L | |
Engine | 16L | |
Transmission | 13L | |
Drive axle (main drive and wheel reducer) | 13L+2×2.5L | |
Brake system | 2L | |
