Универсальный Синий Стандартный Гидравлический тормозной шланг sae j1401 для автомобилей и мотоциклов шланги грузовиков с
- Категория: Truck Parts & Accessories >>>
- Поставщик: Hebei,Orient,Rubber,&,Plastic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.6 $* | 0.17 $* |
| Aug-16-2025 | 0.26 $* | 0.45 $* |
| Jul-16-2025 | 0.81 $* | 0.47 $* |
| Jun-16-2025 | 0.4 $* | 0.17 $* |
| May-16-2025 | 0.90 $* | 0.68 $* |
| Apr-16-2025 | 0.13 $* | 0.77 $* |
| Mar-16-2025 | 0.62 $* | 0.30 $* |
| Feb-16-2025 | 0.6 $* | 0.72 $* |
| Jan-16-2025 | 0.40 $* | 0.63 $* |
Характеристики
product description
SAE J1401 DOT 1/8 HL Hydraulic Brake Hose With Fittings
Applications
Designed for pressure transmission for auto, truck and trailer hydraulic pressure brake systems.Truck and trailer manufacturers,aftermarket packagers and wholesalers use this hose. It is certified to meet SAEJ1401 requirements.
Temperature range : -40~+100°C
Construction
External layer:CR/EPDM
Reinforcement :PET
Middle layer :NBR
Reinforcement :PET
Internal layer:EPDM
Specification
| Item Code | I.D | O.D | Wall Thickness | Wall Diff | Expansion Max. ml/m | Min.Brust Pressure | |
| mm | mm | mm | mm | 6.9MPa | 10.3MPa | MPa | |
| 1 | 3.2 | 10.5±0.2 | 3.65 | ≤0.25 | <1.08 | <1.38 | >80 |
| 2 | 4.8 | 13±0.3 | 4.35 | ≤0.3 | <1.81 | <2.36 | >60 |
| 3 | 6.3 | 15±0.3 | 3.75 | ≤0.3 | <2.69 | <3.84 | >50 |

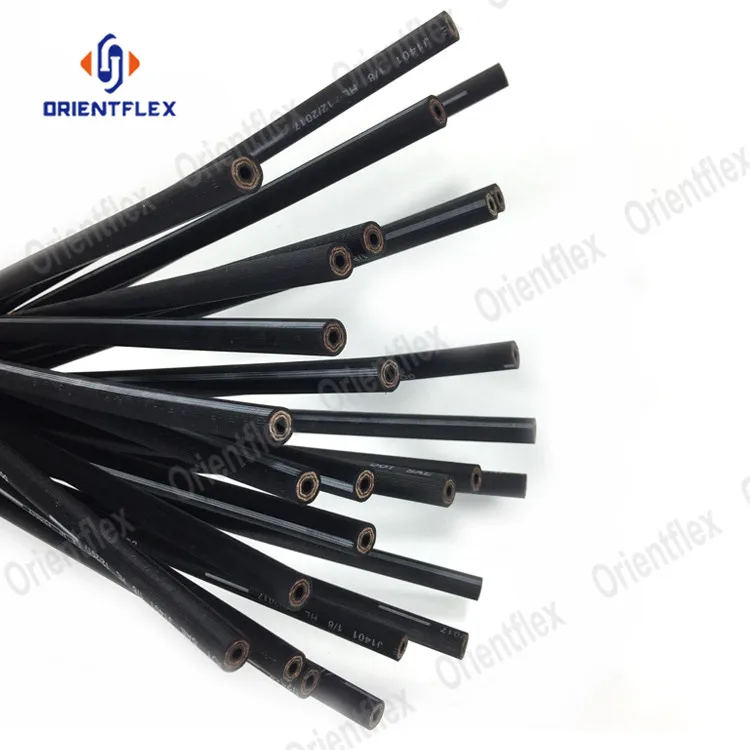

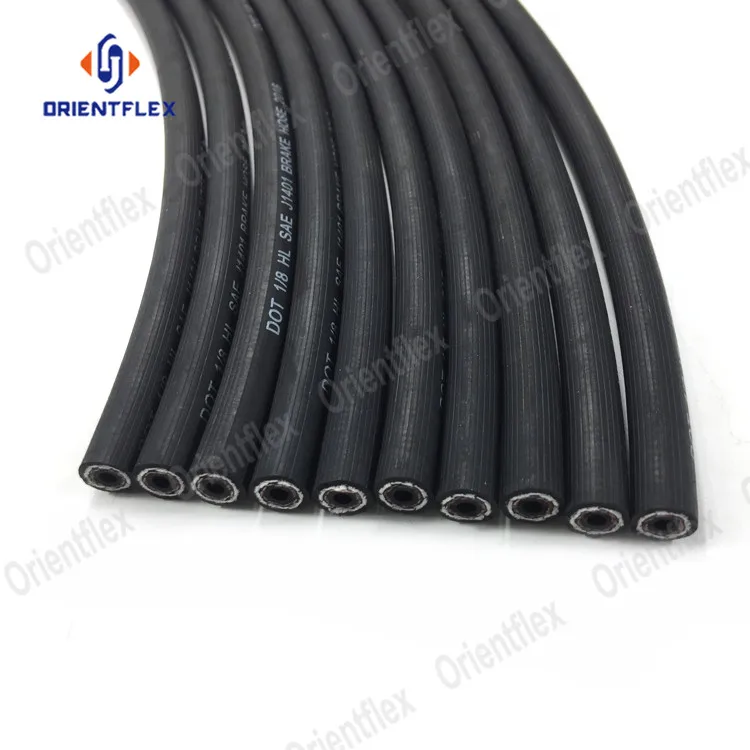

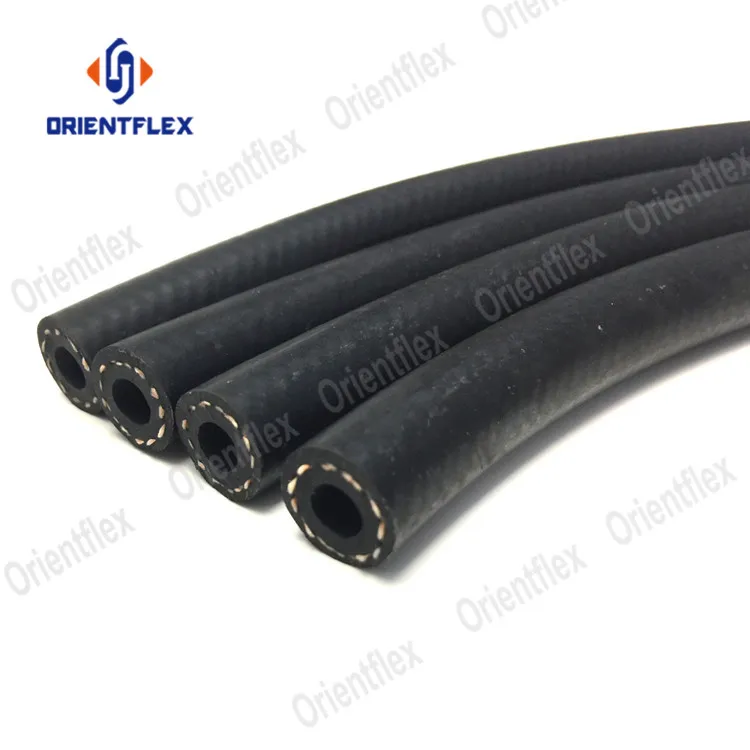

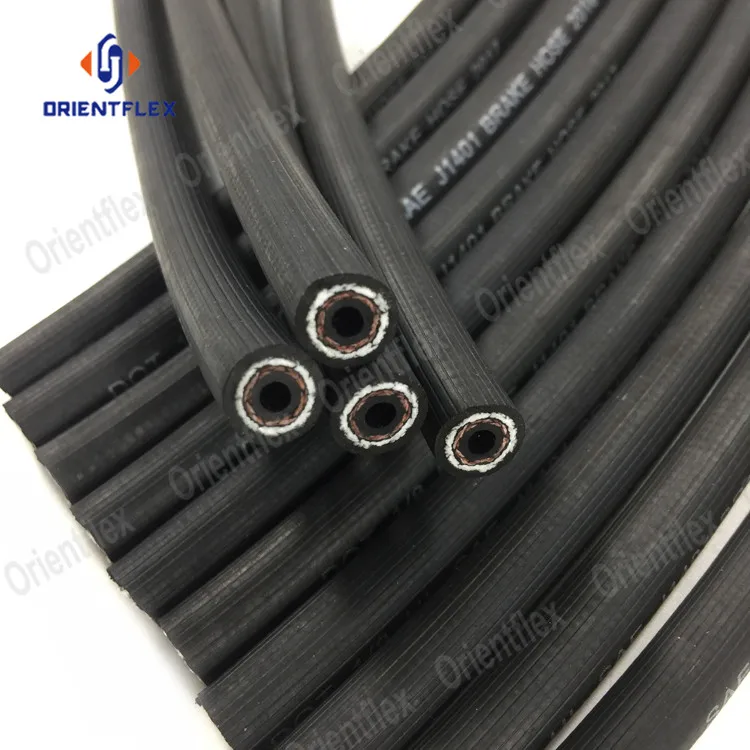

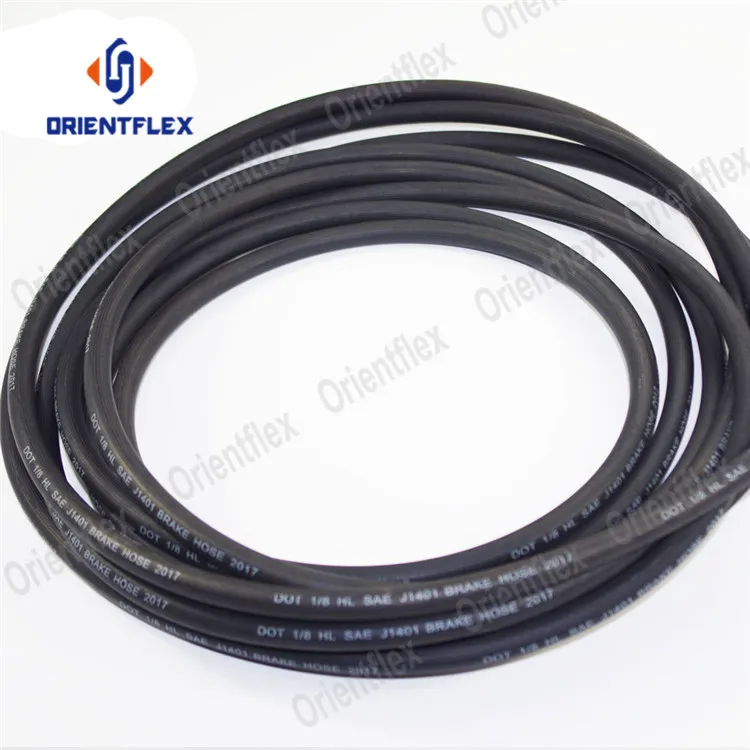

Product show:
Packing
Packing:After finishing the hydraulic brake hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers' requirements.
Related Products
| Auto Rubber Hose |
| Fuel Hose SAE J30R7 |
| Heater Hose SAE J20R4 |
| Hydraulic Brake Hose SAE J1401 |
| Air Brake Hose SAE J1402 |
| Air Conditioner Hose SAE J2064 |
| Power Steering Hose SAE J188 |
| Oil Cooler Hose SAE J1532 |
certificate
Certifications:All Product Meet The Standard Of ISO And The Requirement Of API.
For More Certifications And about ORIENT Please See The Below Link:
http://orientrubber.en.alibaba.com/custom_page_1/About_Orient.html
market export
Market &Trade show: Our product has exported to over 30 countries,including the United States, Britain, Brazil, Russia and so on. And we participate in overseas exhibitions every year.
