1000 Вт 2000 1500 ручной лазерный сварочный аппарат волоконный для ювелирных изделий браслет золотого и серебряного
- Категория: Лазерные сварочные станки >>>
- Поставщик: Wuxi,Cylion,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 15113.0 $* | 15869.55 $* |
| Aug-16-2025 | 14986.15 $* | 15735.74 $* |
| Jul-16-2025 | 12573.46 $* | 13202.60 $* |
| Jun-16-2025 | 14732.0 $* | 15469.41 $* |
| May-16-2025 | 12827.31 $* | 13468.39 $* |
| Apr-16-2025 | 14478.42 $* | 15202.69 $* |
| Mar-16-2025 | 14351.16 $* | 15069.80 $* |
| Feb-16-2025 | 14224.57 $* | 14935.68 $* |
| Jan-16-2025 | 14097.8 $* | 14802.68 $* |
Характеристики
Product Description
Chinese 500W 1000W 1500w 2000w laser welding machine
Channel Letter Laser Welding Machine Price
Model | LW-W1000 | LW-W1500 | LW-W2000 |
Laser power source | 1000W | 1500W | 2000W |
Fiber length | 10M/15M | 10M/15M | 10M/15M |
Optical fiber core diameter | 25um | 50um | 50um |
Fiber Wavelength | 1080nm | 1080nm | 1080nm |
Red light signal | 0.5mw | 0.5mw | 0.5mw |
Welding thickness of Iron | 3-5mm | 4-6mm | 5-8mm |
Welding thickness of Stainless steel | 3-5mm | 4-6mm | 5-8mm |
Welding thickness of Aluminum | 1.5-2mm | 2-3mm | 3-4mm |
Voltage/frequency | AC220V 50HZ/1P | AC380V 50HZ/3P | AC380V 50HZ/3P |
The engine Power | 5KW | 7.2KW | 12KW |
Weight | 282KG | 300KG | 350KG |
Size（CM） | 135*145*68 | 135*145*68 | Two packages |
Welding Head | HW | HW | HW |
Output head interface | QBH | QBH | QBH |
Output power range | <2% | <2% | <2% |
Operation mode | CW/Modulate | CW/Modulate | CW/Modulate |
Type of cooling | water-cooling | water-cooling | water-cooling |
Operating temperature | <70℃ | <70℃ | <70℃ |
welding gun
1. The internal design is dexterous, and the good interactive control system expands the tolerance range of the machined partsnand
the weld width, solves the disadvantage of small spot size, and welds are better formed.
the weld width, solves the disadvantage of small spot size, and welds are better formed.
2. The shape is light, the body engineering design method is adopted, and the grip is comfortable; the hand is easy to control,and the operation is simple and easy to use.
3. With multiple safety alarms, Automatically locks light when not aiming at theworkpiece，High security.
4. Beautiful weld seam, fast speed, no consumables, no weld marks, no discoloration, no need for post-grinding.
5. Can be equipped
stress-resisting capacity and it applies optimized second-generation fiber
transmission system to ensure more stable and moresophisticated cutting effect in thick sheet cutting
Wire feeding nozzle:
general use for wire feeding
U-nozzle (short):
U-nozzle (short):
for butt welding and fillet welding
U-nozzle (long):
U-nozzle (long):
for butt welding and fillet welding
Internal corner nozzle:
Internal corner nozzle:
used for internal fillet welding
Comparison project | Traditional welding | Laser welding | Qiao lian welding | ||
Heat Input to Workpiece | Very high | low | low | ||
Deformation and Undercut of Workpiece | Large | small | very nice | ||
Bonding Strength with Base Material | commonly | good | very nice | ||
Subsaquent Processing | polish | No or Little Polishing | |||
Welding Speed | Commonly | More than twice of argon arc welding | |||
Applicable Materials | Stainless steel/Carbon Steel/ Galvanized Sheet / Aluminum / Copper | ||||
Consumables | Consumables | less consumables | less consumables | ||
Operational Difficulty | complex | commonly | simple | ||
Oparator' s Safety | unsafe | safe | safe | ||
Environmental Protection Impact | No environmental Protecction | No environmental Protecction | No environmental Protecction | ||
Welding Fault Tolerance | good | not good | good | ||
Spot Brightness Adjustable | none | none | yes | ||
Welding Quality Comparison | differencea | commonly | very good | ||
Weld Requirements | wide | 0.2mm | 0.2mm | ||

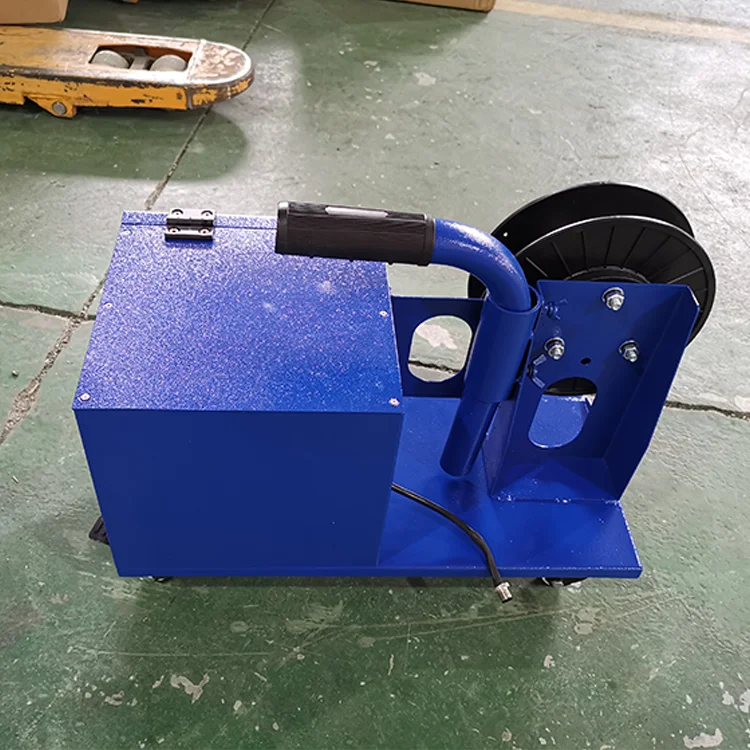

Wire feeder
Sample
Product packaging
Company Introduction
Wuxi Cylion Technologu Co., Ltd is a branch of Qiaolian group,responsible for R&D advanced industrial technologu for Qiaolian group long-term growth,and promoting CNC equipment and parts produced bu Qiaolian group companies on oversea market.Qiaolian group companies are engaged in steel production line,steel fabrication equipments like CNC machining centre,lathe,Plasma,laser cutting&welding machines,CNC control systems and parts design,production and service.
Welcome to visit our factories in Wuxi.
Welcome to visit our factories in Wuxi.
Qiaolian Laser has won praise from overseas customers for its high-quality products and intimate service. We are serving more than150 countries and regions on six continents.
Certifications
FAQ
Q1: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
If you are interested in this machine,Pls contact with us in any time,Thank you!
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
If you are interested in this machine,Pls contact with us in any time,Thank you!
