Сервер синхронизации времени NTP сетевой сервер для GPS
- Категория: Серверы >>>
- Поставщик: Hubei,Fangyuan,Environmental,Protection,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.36 $* |
| Aug-16-2025 | 0.47 $* | 0.8 $* |
| Jul-16-2025 | 0.80 $* | 0.78 $* |
| Jun-16-2025 | 0.3 $* | 0.67 $* |
| May-16-2025 | 0.0 $* | 0.30 $* |
| Apr-16-2025 | 0.54 $* | 0.94 $* |
| Mar-16-2025 | 0.44 $* | 0.44 $* |
| Feb-16-2025 | 0.82 $* | 0.86 $* |
| Jan-16-2025 | 0.7 $* | 0.93 $* |
Характеристики
Product Paramenters
Project | Main technical indicators |
Beidou second generation receiver Support for dual satellite receivers | TTFF cold start time 45s Hot start time ≤ 2S Accuracy 100ns Location update rate: 1Hz Navigation data format NMEA0183 |
Input | Beidou / GPS / IRIG-B / PTP / ground time service (optional) |
Output | Standard 5-way, up to 13 physically independent PTP / NTP / SNTP network interfaces or optical fiber interfaces (optional SFP plug-in) 1 PPS / pulse signal (TTL) IRIG-B (DC) time code (RS485 / TTL / RS232 / optical fiber) (optional B code plug-in) E1 frequency signal (2MHz / 2Mbit) (optional E1 plug-in) |
Time error proofing | It has time continuity discrimination, time message authenticity discrimination and other functions |
Network timing accuracy | 1 PPS pulse signal (TTL): ≤ 100ns IRIG-B (DC) time code: ≤ 100ns Network message NTP: ≤ 10us Network message PTP: ≤ 100ns |
Rising height on time | 1 PPS pulse signal (TTL): ≤ 50ns IRIG-B (DC) time code: ≤ 50ns |
Pulse width | 10-200 ms configurable (default 100ms) |
IEEE-1588 time service ability | IEEE-1588 highest timing accuracy is better than 100ns IEEE-1588 delay request processing capacity can reach 10000 times per second Time service load capacity of each network port ≥ 1000 P / S Number of time service equipment at each network port ≥ 1000 |
Self-timed stability | Rubidium clock: better than 1 μ s / day; constant temperature crystal oscillator: better than 1 μ s / h; punctuality time: ≥ 12h |
Delay compensation | Transmission delay compensation range: - 0.999999s ~+ 0.99999999s, resolution 8NS |
Mean time between failures | Not less than 50000h |
Power consumption | ≤ 30W (standard configuration) |
Antenna | Cable: RG-58 type, standard length 40m, configurable 60m, 80m, 100m, 120m |
Work environment | Operating temperature: - 10 ℃ ~ + 50 ℃; storage and transportation: - 25 ℃ ~ + 70 ℃; receiving antenna: - 40 ℃ ~ + 70 ℃ |
Electromagnetic compatibility | Reach level IV standard |
Power Supply | AC 220V |
Product Description
Functional features
○ Redundant hardware design of dual power supply
○ Message processing based on hardware time stamp
○ User configurable NTP/PTP
○ It conforms to ITU-T g.8265.1 standard telecommunication
○ Support 2-way satellite time source input
○ Support generation 2 Beidou dual-mode input / GPS input
○ Auto switch priority reference source
○ Web / SNMP management
○ Message processing based on hardware time stamp
○ User configurable NTP/PTP
○ It conforms to ITU-T g.8265.1 standard telecommunication
○ Support 2-way satellite time source input
○ Support generation 2 Beidou dual-mode input / GPS input
○ Auto switch priority reference source
○ Web / SNMP management
Product overview

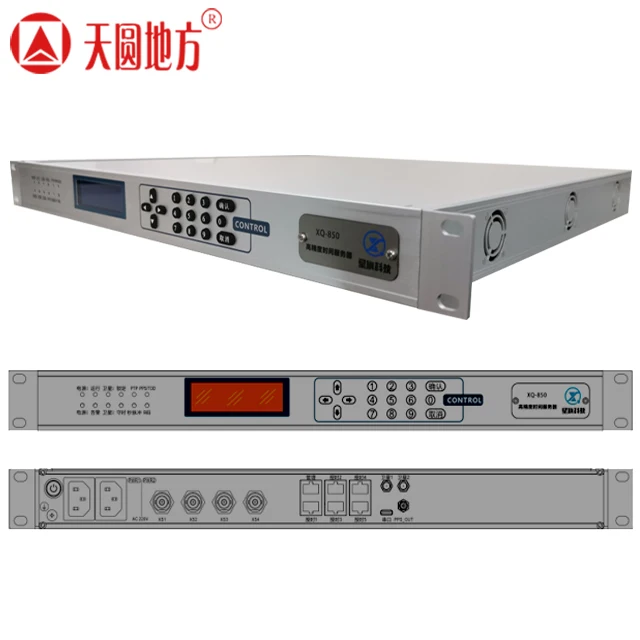

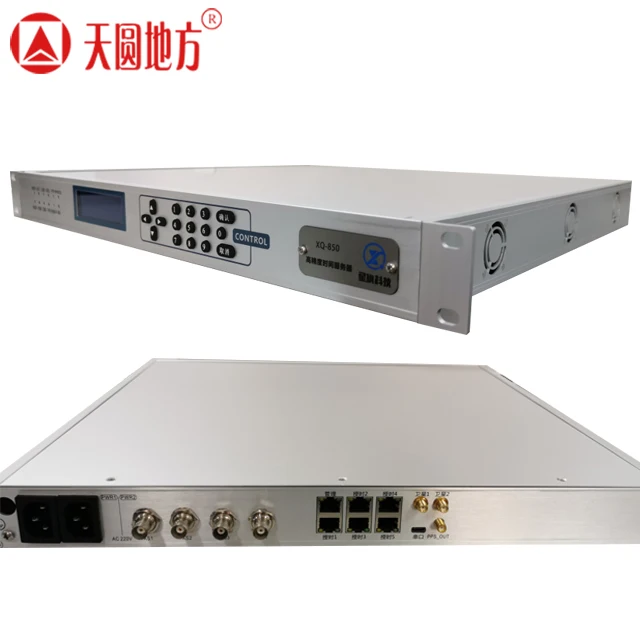

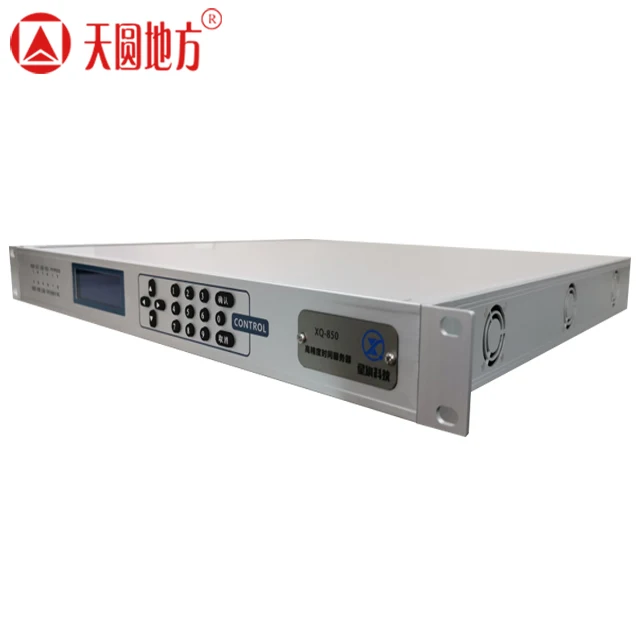

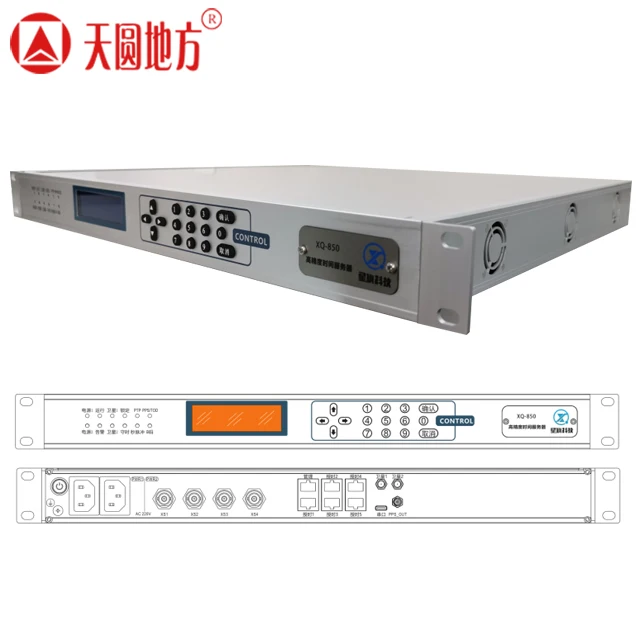

XQ-850 time synchronization system can receive Beidou satellite navigation system, GPS, IRIG-B (DC) code, PTP network time message and ground time service signal at the same time, generate pulse signal, IRIG-B time code, serial port time message, NTP / PTP network time message synchronized with UTC, ensure the effectiveness of time signal output, and provide stable, reliable and accurate time and frequency reference.
XQ-850 is the carrier level IEEE1588-2008 master clock, which provides high-performance client processing capability, hardware based packet processing and redundant hardware architecture design, so as to achieve high scalability and maximum network availability. It combines the high accuracy function of IEEE 1588-2008 master clock, the high performance output of 10MHz / 1PPS I / O port and the compact (1U) of the device. It is very suitable to be deployed in the field with limited space, such as wireless communication network controller and base station controller.
XQ-850 is the carrier level IEEE1588-2008 master clock, which provides high-performance client processing capability, hardware based packet processing and redundant hardware architecture design, so as to achieve high scalability and maximum network availability. It combines the high accuracy function of IEEE 1588-2008 master clock, the high performance output of 10MHz / 1PPS I / O port and the compact (1U) of the device. It is very suitable to be deployed in the field with limited space, such as wireless communication network controller and base station controller.
XQ-850 adopts dual antenna dual-mode input design. Based on the quality of clock source signal or the priority level set by users, XQ-850 supports automatic switching between GPS / BD / IRIG-B / TOD / PPS signals to select the priority reference source. Support BMC algorithm, support 1 + 1 hot backup between servers, provide one server for main use, provide normal service, and the other for standby, so as to ensure that when the failure occurs, the client can still work normally without being affected. At the same time, "dual power redundancy" mode can also provide excellent protection.
XQ-850 adopts high-performance PowerPC + FPGA hardware platform, based on hardware timestamp and package processing, and embedded VxWorks real-time operating system provides high-performance client response capability.
XQ-850 adopts high-performance PowerPC + FPGA hardware platform, based on hardware timestamp and package processing, and embedded VxWorks real-time operating system provides high-performance client response capability.
XQ-850 supports user's flexible and convenient configuration of software parameters. You can choose one step / twostep, E2E / P2P, L3 / L2, unicast / muiltcast settings to ensure compatible interconnection in the application environment of multi client (slave) suppliers.
XQ-850 provides optional NTP service functions, and supports many suppliers' products and protocols in existing mobile network base station locations. PTP and NTP protocols can run at the same time, and two eth time synchronization ports on MCP board can be configured separately. The processing capacity of NTP requests can reach 10000 times per second, while the carrying capacity of PTP can be maintained at up to 1000 clients.
XQ-850 provides optional NTP service functions, and supports many suppliers' products and protocols in existing mobile network base station locations. PTP and NTP protocols can run at the same time, and two eth time synchronization ports on MCP board can be configured separately. The processing capacity of NTP requests can reach 10000 times per second, while the carrying capacity of PTP can be maintained at up to 1000 clients.
