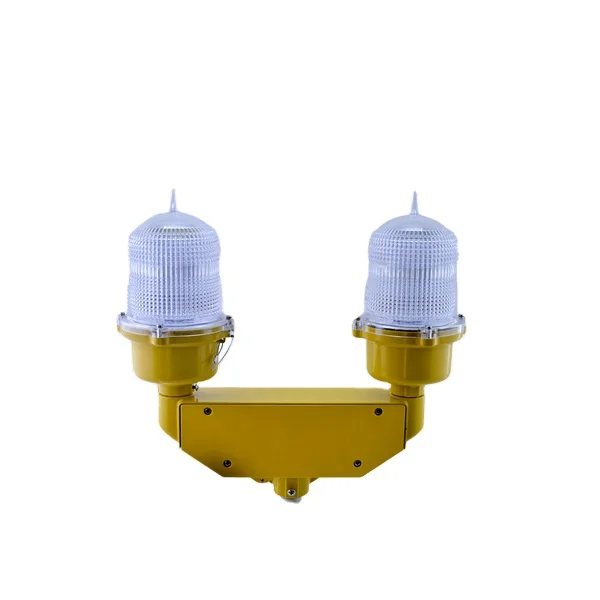

 DL32D FAA L 810 LED Double building aircraft warning light for Telecom Tower

Product Description:

LANSING DL32 series is typically a standard LED Obstruction light designed for marking any obstacle that may present hazards to aircraft navigation. It made of die-cast aluminum alloy housing with polycarbonate dome and complies with ICAO regulation, low intensity TYPE B.GPS or GPRS functions also available if required.

Features& Benefits:

• Based on Led or infrared Led Technologies

• Customizable for both AC and DC conditions.

• Customizable for steady burning or flashing mode

• Multiple light elements in the source reduce the chances of a complete blackout which

  could be caused in case of a single source failure.

• All hardware of obstruction lights are made of corrosion resistant metals.

• Bird spikes for protection against droppings.

• With NVG(Night Vision Goggles), this should be customized(optional)

• Built in photocell, which can switch ON/OFF the lights automatically at dawn and dusk (optional)

• Use of quality components and sophisticated technology reduce chances of maintenance

 and replacement.

• Low power consumption, which leads to huge savings on electricity bills.

• LED light source ensures long lifetime, maintenance free

• Built-in anti electrophoresis impact module, with lightning/surge protection

• Resistant to shock and vibration.

• No RF Radiations, EMC Compliant

• Reversed Polarity Protected(DC Type)

• Corrosion resistant lamp & housing-suitable for off-shore use

• Bottom cable entry-ease of mount, mount accessories available

• Self-contained compartment-eliminates additional box

• With surge protection, which can withstand an overvoltage of 10kV/10kA.

• Flashing rate adjustable

• With dry contact alarm, it will give an alarm in case of power and light failure

• Available both in single and double type

• 5 years warranty

• With GPS function, can work with other lights synchronously(optional).

• Corrosion resistant lamp& housing-suitable for off-shore use.

How to test alarm functions of the lights:

1.Connect the lamp to the power supply(using 3*1.5 cable)AC85-265V/DC20V-60V

2.After power on, check whether Lamp1and Lamp2 are working or not or whether the indicators (System good indicator) on the PCB board is on or not

3.The lamp have two operation modes: “service+service” or “service+standby”(when the dip switch is “ON” position, the lamp is “service+service” mode; when the dip switch is “service+standby”). When the lamp is in the “service+standby” operation mode, if Lamp 1 fails, after 30s, COM/NO 1 will give an alarm, and will switch to the Lamp 2 automatically, Alarm 1 indication will be off, and System good indication will flash. Similarly, when the Lamp 2 fails, after 30s, Alarm 2 indicator will be off and COM/NO 2 will give an alarm.

When the lamp is in the “service+service” operation mode, if any of the lamp fails, after 30s,COM/NO1,COM/NO2 will give an alarm, Alarm1and Alarm2 indication will be off,System good indication will flash.

4.All the lamps will be switched off after photocell working, COM/NO1,COM/NO2 will give an alarm and system good indicator will flash(Note: Lamp work indicator will be off). When the lamp is in steady burning operation mode, lamp work indication will be steady burning; when the lamp is in flashing operation mode, lamp work indicator will be flashing.

5.If the main power supply fails, COM/NO1,COM/NO2 will give an alarm.

Applications:

• High rise building marking          • Telecom tower marking

• Road obstruction marking           • Wind turbine

• Bridge cranes• Port, dock entrance & walkway

• Offshore gas & oil platform
