Цифровой расходомер газа Cowell с положительным

Цифровой расходомер газа Cowell с положительным

Категория: Flow Meters >>>
Поставщик: Shanghai,Cowell,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.25 $*	0.85 $*
Aug-16-2025	0.95 $*	0.31 $*
Jul-16-2025	0.54 $*	0.7 $*
Jun-16-2025	0.97 $*	0.37 $*
May-16-2025	0.58 $*	0.63 $*
Apr-16-2025	0.6 $*	0.35 $*
Mar-16-2025	0.62 $*	0.36 $*
Feb-16-2025	0.85 $*	0.93 $*
Jan-16-2025	0.1 $*	0.66 $*

Характеристики

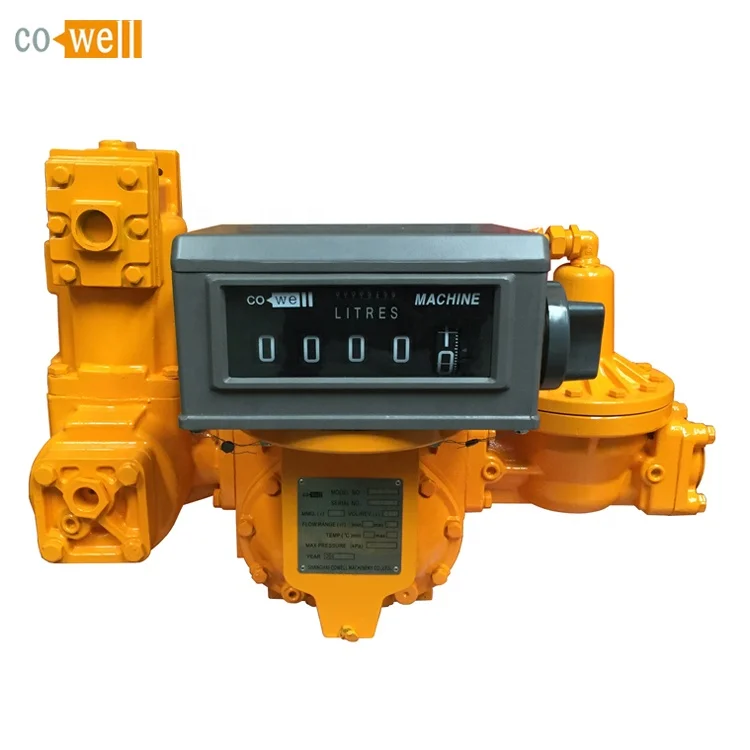

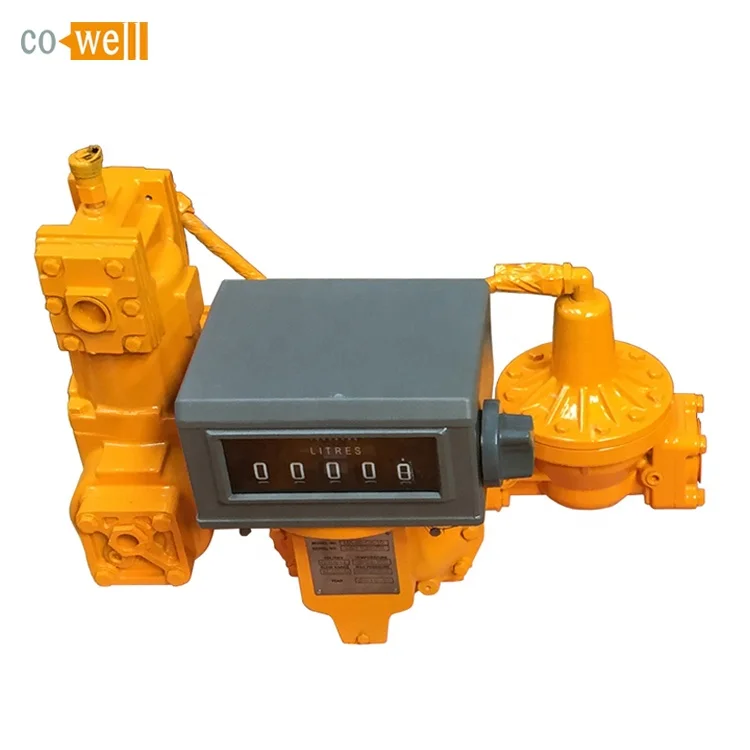

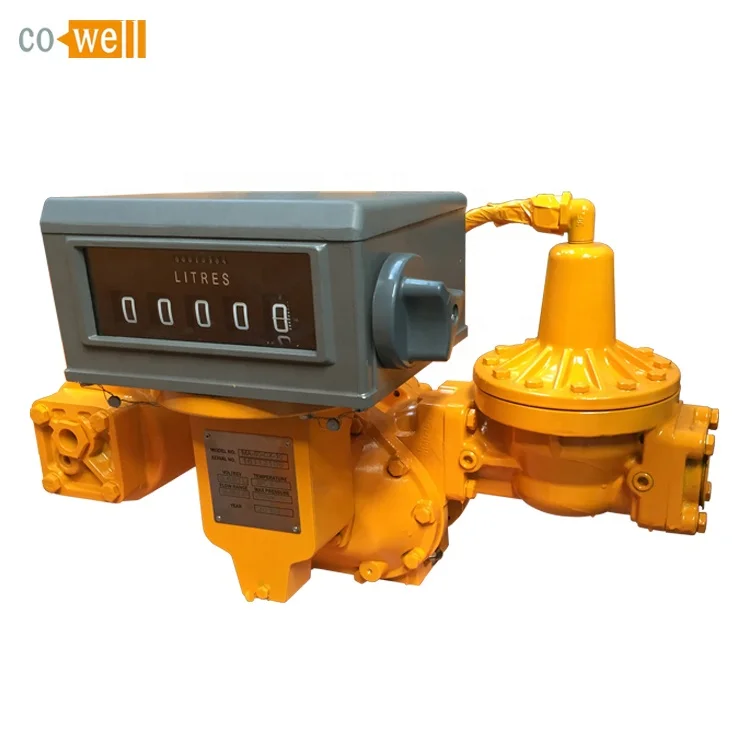

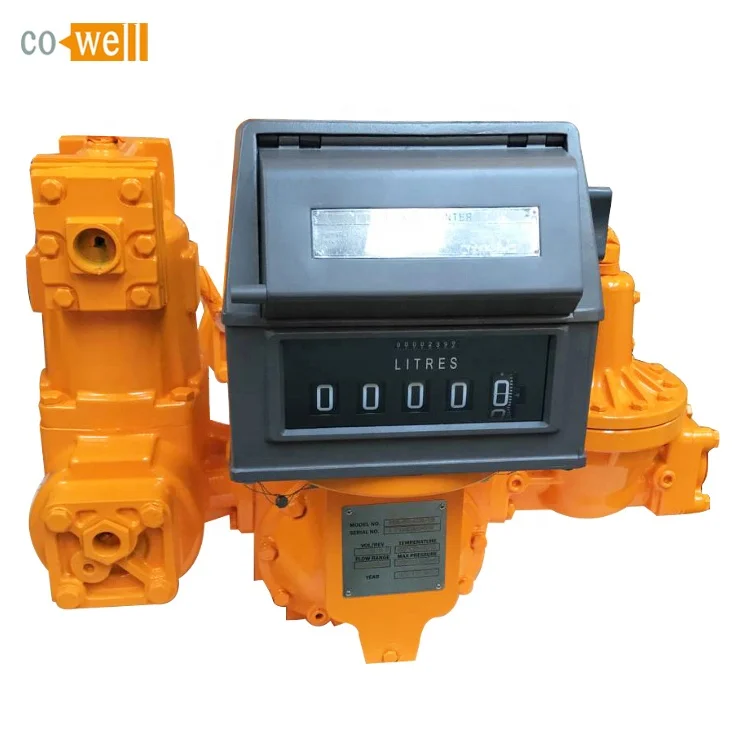

Cowell digital positive displacement LPG gas air flow meter

Excellent stepless adjusting mechanism allows a micro adjustment of the meter
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
Low maintenance, no metal-to-metal contact in measuring chamber, long life service
Low pressure loss, a true gravity flow meter
Accuracy regardless of pressure fluctuations, temperature variation, viscosity
Choice of aluminum, cast iron and stainless steel materials of construction

Technical Specification
Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm /1.5"	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.

Packaging Data
Model	M-40-1	M-50-1	M-80-1	M-100-1	M-150-1
Packaging	1 pc/Wooden Case
Net Weight	23Kgs	26Kgs	40Kgs	70Kgs	130Kgs
Gross Weight	35Kgs	38Kgs	55Kgs	90Kgs	155Kgs
Size	53×48×53cm	53×48×53cm	58×50×61cm	76×64×72cm	80×65×79cm
