Коаксиальный аттенюатор высокой мощности 3G N-типа 300

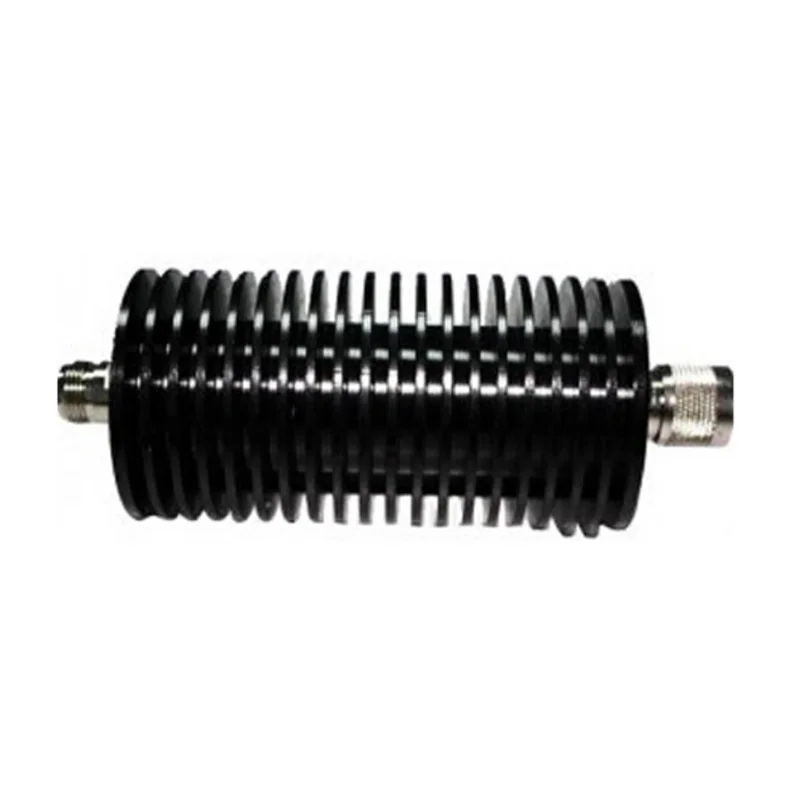

AT300 is an N-type High Power Coaxial Attenuator from 5 to 300 Watt and operates at DC 3.0 GHz. Our RF attenuators are
manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass.
Osprey RF coaxial attenuators include continuously variable attenuators, DC bias attenuators, fixed attenuators, and step
attenuators and programmable attenuators models. These RF attenuators are available in 50 Ohm impedance. Our series of coaxial attenuators are available in 2.4mm, 2.92mm, 7/16 DIN, 7mm, BNC, F, N, SMA and TNC connectors. RF dB attenuation values for these Osprey attenuators range from 0 dB to 120 dB. The frequency range of our RF attenuators is from DC to 12 GHz. This product line includes low to high power attenuators which have power handling that ranges from 0.5 Watts to 300 Watts. All our products are Rohs compliant.

SA-30

GPS Programmable Amplifier

SA-28

SA-22

22dB Gain Glonass Signal Amplifier

SA-44

44dB Gain Glonass Signal Amplifier

SA-BT

Glonass Bias Tee

SA-BT8

8G Glonass Bias Tee

Shielding Enclosures

- Manual Shielding Box

- Pneumatic Shielding Box

- Soundproof Box

GNSS Products

- Signal Transponder

- Signal Amplifier

Testing Instruments

- Coupler

- Power Divider

- Signal Attenuator

-DC Block
- Dummy Load

Customized design

We are able to offer whatever size you need according to your DUT.

Low MOQ

Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.

Fast Delivery

Delivering the products within 3 business days for some models.

RF shield box that allows engineers to create an affordable automated end-to-end test environment with each UE shielded individually. It enables the user to perform wireless network tests without undesired RF interference by protecting mobile devices from outside network frequencies.

Applied for below DUT:

2.4GHz and 5 GHz wireless LAN products: signal block or isolating for the wireless modem, wireless router, wireless LAN card, wireless charger, wireless earphone, wireless headset,

GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;

Smart products: signal block or isolating for smart led, smartwatch, smart security, smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box)

Measure products: water measure, electricity measure, temperature measurements, etc)

More ......

In order to avoid expensive measurements in EMC chambers, we have developed different shielding boxes. Bigger size for bigger DUT, like RC drone; Smaller size for smaller DUT, like the board. Sound isolation or signal blocking with different body material(metal sheet, aluminum sheet) and inside absorber material or different body size is against client's request. Whatever you need it, we can build it.

Shielding box full box or rf faraday cage without breaking hole design (Filter, SMA holes excluded), the frequency band is 1GHz ~ 6GHz, isolation is more than 80dB. Shielded box opened and closed is controlled by the manual button or through RS232 interface communication command. The rf shielding chamber or enclosures opens way is to take a large angle clamshell to facilitate operation. To prevent the hand grip design avoids industrial safety accident. In accordance with testing requirements can choose to use different filter interface.

A: We are factory.

A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.

A: Yes, we could offer the sample with charge

A: One year
