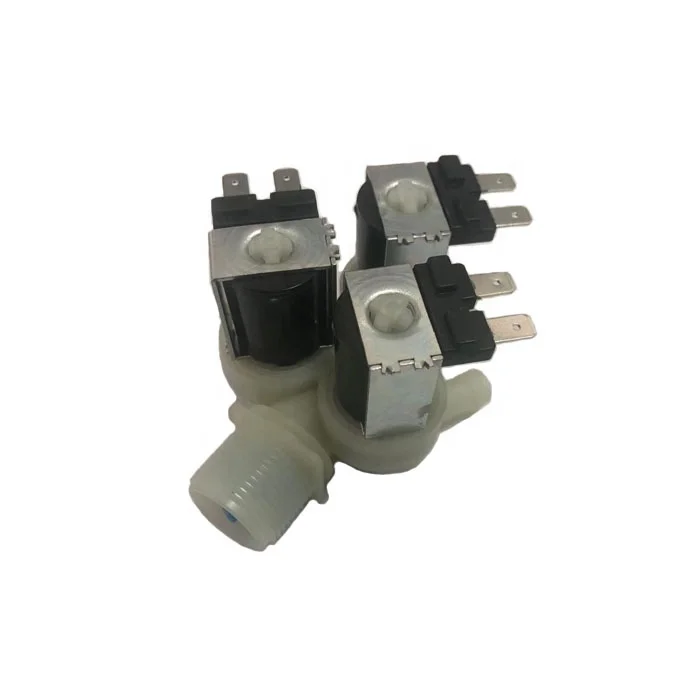

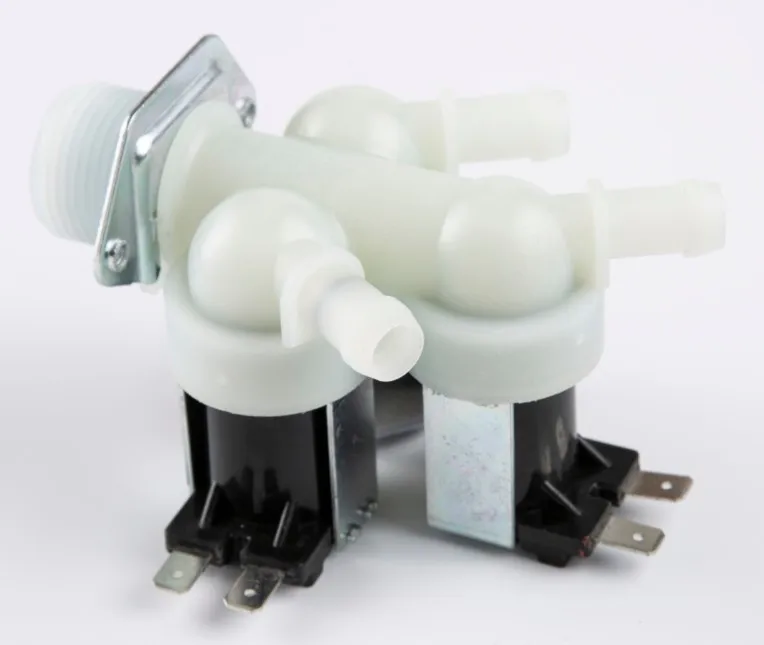

AC110-240V 3-ходовой водяной впускной клапан 3 Двухсторонний выпускной впуска воды для стиральной

Описание и отзывы

Трекер стоимости

Характеристики

:



























Technical parameters

1. Smooth appearance, uniform color, fastness

2.  Nominal voltage :220V  50Hz  :Customizable

3.  Rated current : 27±5mA

4. Insulation grade : E grade

5. Apply pressure : 0.02-1.0MPa

6. Maximum resistance to water pressure: Less than 2.0MPa, no leakage after 10min

7. Flow requirements :  ( Customizable )

Water pressure (MPa)	0.02	0.5	0.8	Max
Flow (L/min)	>3	>12	>21	<25



8. Coil resistance : 4.7±0.3KΩ

9. The service life not less than 30000 times, at room temperature, power on for 5 seconds at rated voltage, and power off for another 5 seconds is one cycle :(1) at 0.02MPa, 50000 times;(2) at 0.3mpa, 20000 times;(3) at 0.8mpa, 5000 times

10. The coil should not be burnt out after 8 hours of continuous electrification.

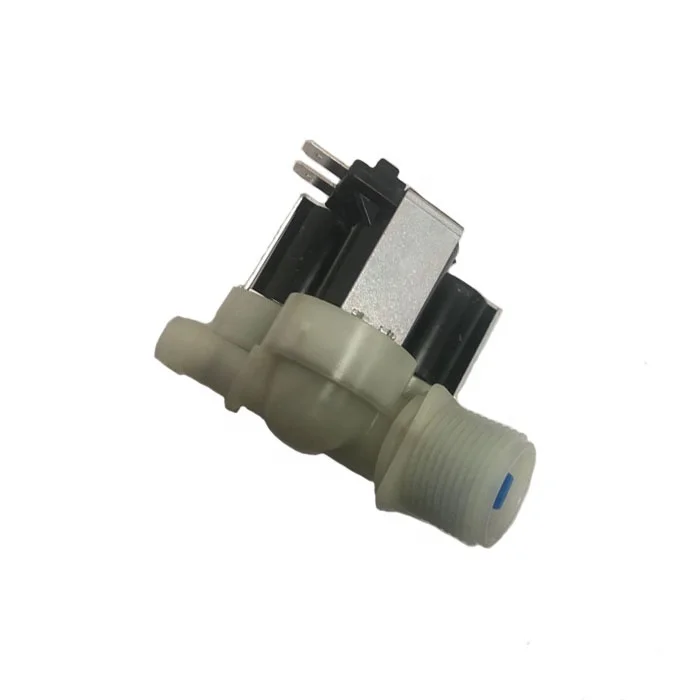

Water level sensor & Inlet valve









1.We will reply your enquiry within 24hours.Fast Online contact response.
2.High quality,Resonable price,Fast delivery.
3.All products will be inspect strictly before packing.
4.Well and proper packing,reduce the damage in the shipping as much as possible.
5.After-sale service:We gurantee 1 year quality warranty.Within one year,if the products come out any quality problem,we promise to make free replacement.

6.Customization: We are accepting customer's design,including the label design,colour box design.

7.Payment terms: T/T; Western Union; 30% TT advance,70% before shipment.
8.Delivery time : 15-30 days after receive the deposit .









Pls feel free to contact us for any enquiry !
