Матричный Коммутатор Hdmi 4x8 8x8 EDID RS232 8 дисплеев матричный коммутатор 4k
- Категория: Other Audio & Video Equipments >>>
- Поставщик: Shenzhen,Bitvisus,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 174.38 $* | 177.61 $* |
| Jul-18-2025 | 141.31 $* | 144.95 $* |
| Jun-18-2025 | 171.43 $* | 174.8 $* |
| May-18-2025 | 170.61 $* | 173.74 $* |
| Apr-18-2025 | 136.24 $* | 139.50 $* |
| Mar-18-2025 | 167.74 $* | 170.26 $* |
| Feb-18-2025 | 166.78 $* | 169.62 $* |
| Jan-18-2025 | 164.85 $* | 167.85 $* |
Характеристики
Product Description
Product Details
BIT-Ma-ADI-0404 is a 4 input 4 output all-digital ultra-clear matrix switcher, which supports a resolution of up
to 4K x 2K, supports 3D video, HDCP1.4 specification,16 bit color depth. It can provide customers with a non-destructive,
real-time, ultra-clear, full digital experience. Provide a variety of control interfaces ( RS232, TCP / IP) to meet customer
control needs.
to 4K x 2K, supports 3D video, HDCP1.4 specification,16 bit color depth. It can provide customers with a non-destructive,
real-time, ultra-clear, full digital experience. Provide a variety of control interfaces ( RS232, TCP / IP) to meet customer
control needs.

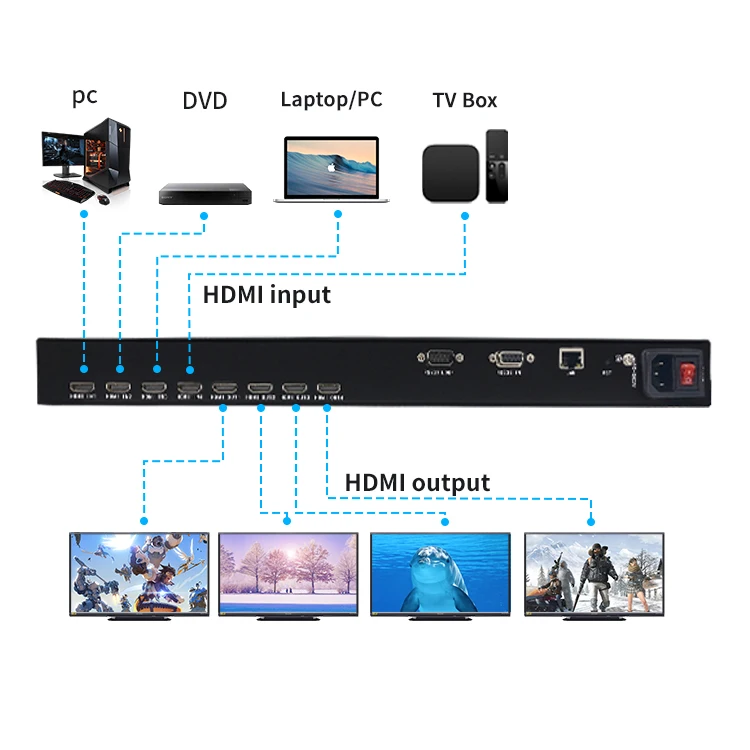

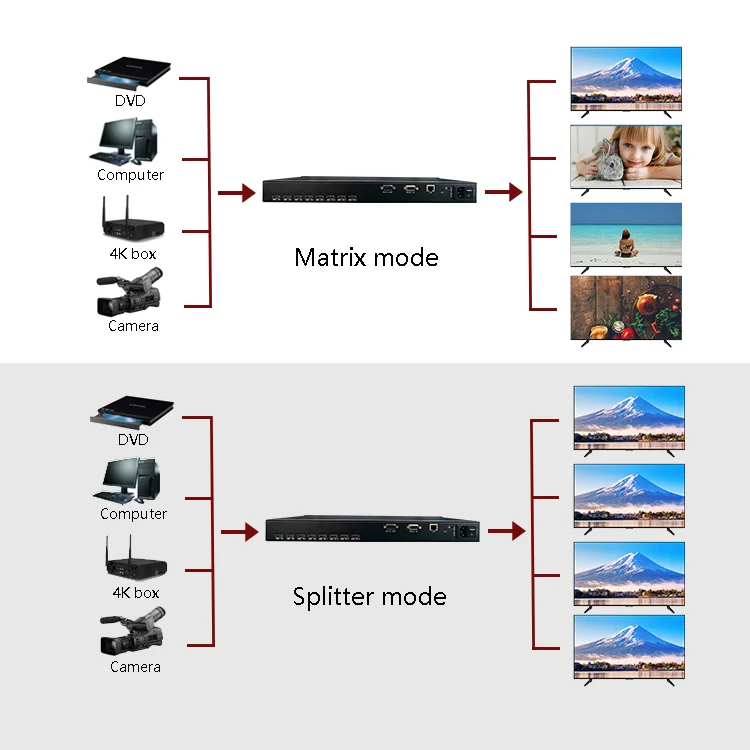

1．Support 4 HDMI video inputs and cross switching of 4 HDMI video outputs.
2．Support the highest resolution 4K x 2K,support 3D video.

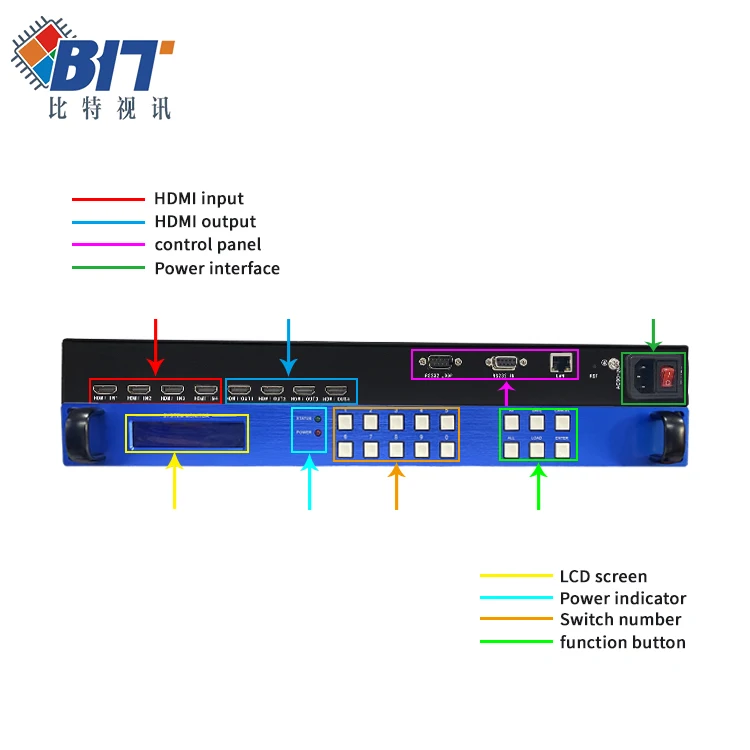

3．The front panel LCD shows the real-time feedback status. If there is no operation for a long time, thedisplay automatically enters the sleep low power state.
4．Supports HDMI 1.4 protocol, HDCP1.4 protocol, and 3D TV, compatible with DVT 1.0 protocol.
5．Multiple control methods: keypad operation, RS-232, TCP / IP.
6．Flexible EDID reading mechanism to solve various connection compatibility issues.
7．Integrated multiple control protocols, convenient and quick to use with various central control equipment.
8．Product firmware can be upgraded on-site through the network port, which can easily provide remote support on site and customization of special functions for users.
9．Built-in equalizer up to 100 feet at input and 50 feet at output.
10．Powerful storage function, can store and recall multiple pre-stored switching modes; has power-down memory function, with power-off site protection function.
11．Standard 1U industrial chassis, easy installation, fast operation, support 7X12 hours of uninterrupted work, support AC power in the range of 90-264V.
Certifications
model | BIT-Ma-ADI-0404 |
Specification | Input / output support 4 channels each |
Input signal | Full digital HDMI signal |
Output signal | Full digital HDMI signal |
Control method | Button，IR，Software（RS232、TCP/IP） |
Support resolution | The highest resolution can reach 4k x 2k (4096 × 2160) |
HDMI version | HDMI 1.4 with 3D TV support |
Digital content protection | Compatible with HDCP 1.4 |
Hot plug | Plug and play, easy to install, support hot plug |
Input line length | Built-in equalizer at input up to 100 feet |
Output line length | ≤50 feet |
Input / Output interface type | HDMI Interface Type A 19-pin Female |
External power | 110~220 VAC |
Working environment | Storage and use temperature: -20 ° ~ + 70 ° C humidity: 10% ~ 90% |
Product weight | 4KG |
Rated power | 22W |
Chassis size (W x D x H) | 1U（440mm x 263mm x 44mm） |
Warranty | 1 year free warranty |
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
TV Video Wall Controller,HDMI Extender,HDMI Matrix Switcher,Multi Viewer,HDMI Fiber Cable
4. why should you buy from us not from other suppliers?
Bitvisus has a strong R&D team,with more than 10 experienced engineers working here.Most of the core backbones come from leading companies in the industry such as Huawei,ZTE,Xilinx,etc.With more than 15 years of rich experience in the audio&video industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Korean
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
TV Video Wall Controller,HDMI Extender,HDMI Matrix Switcher,Multi Viewer,HDMI Fiber Cable
4. why should you buy from us not from other suppliers?
Bitvisus has a strong R&D team,with more than 10 experienced engineers working here.Most of the core backbones come from leading companies in the industry such as Huawei,ZTE,Xilinx,etc.With more than 15 years of rich experience in the audio&video industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Korean
