Месяц | Минимальная цена | Макс. стоимость |
---|---|---|
Sep-16-2025 | 21182.24 $* | 22241.10 $* |
Aug-16-2025 | 21004.78 $* | 22054.16 $* |
Jul-16-2025 | 17622.64 $* | 18503.13 $* |
Jun-16-2025 | 20648.31 $* | 21680.22 $* |
May-16-2025 | 17978.31 $* | 18877.34 $* |
Apr-16-2025 | 20292.47 $* | 21307.72 $* |
Mar-16-2025 | 20114.33 $* | 21120.72 $* |
Feb-16-2025 | 19936.71 $* | 20933.53 $* |
Jan-16-2025 | 19758.46 $* | 20746.52 $* |

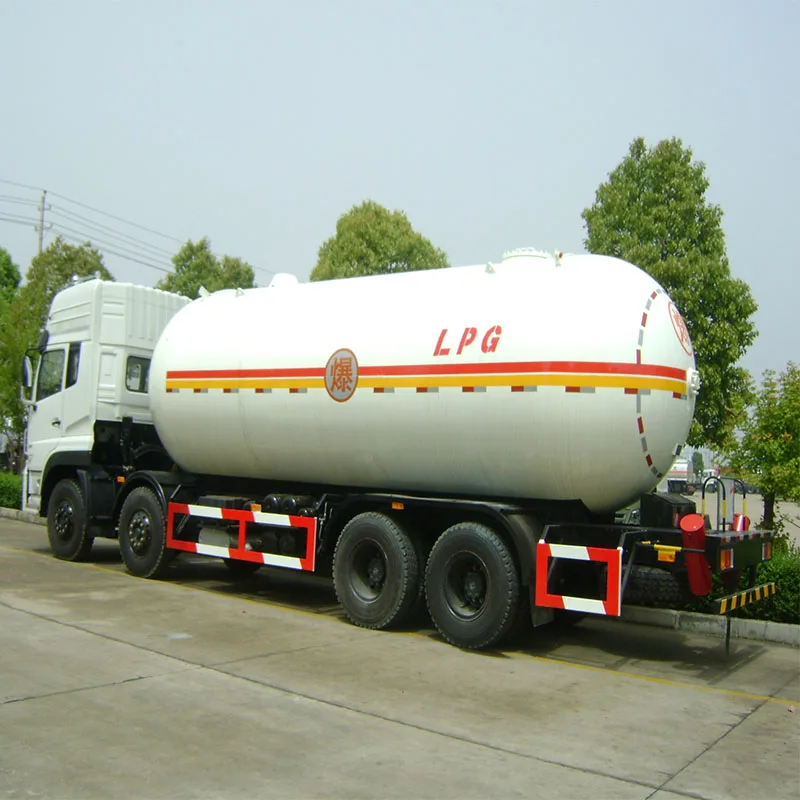

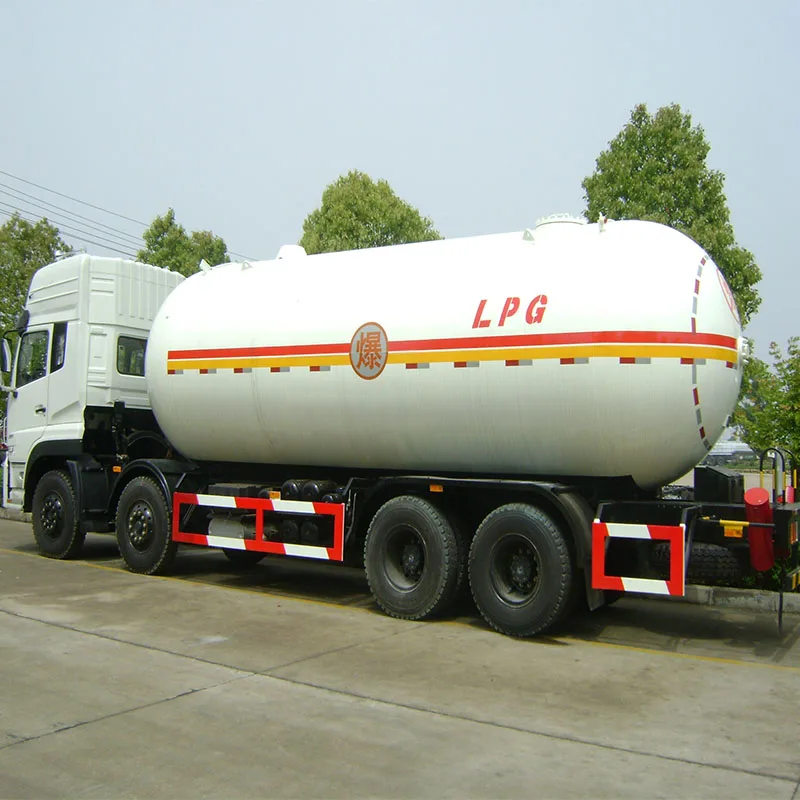

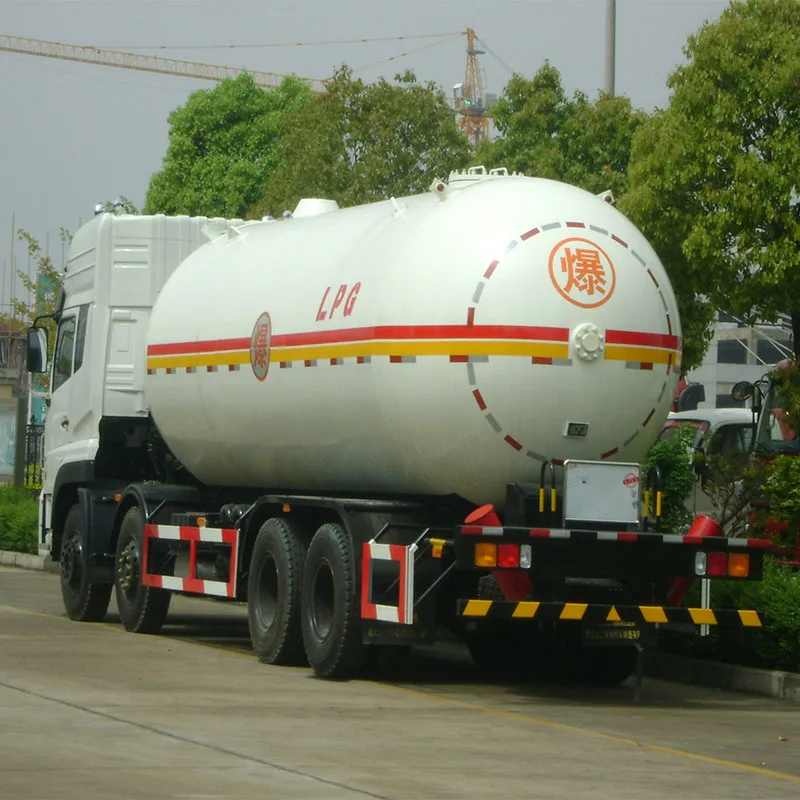

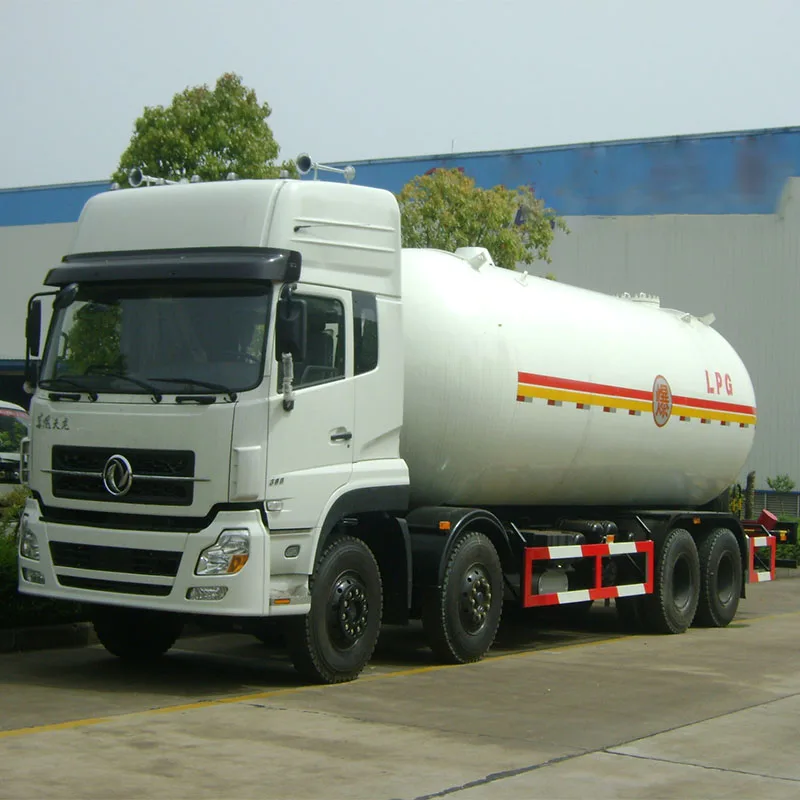

Dongfeng ASME ISO 8x4 25000L 25cbm 12MT LPG Road Tank Truck LPG Bobtail Vehicle Propane Delivery Truck
Dongfeng ASME ISO 8x4 25000L 25cbm 12MT LPG Road Tank Truck LPG Bobtail Vehicle Propane Delivery Truck
The main Brand Partner: DONGFENG, SINO HOWO , BEIBEN, FAW, FOTON, FORLAND, HYUNDAIH, HINO,IVECO,JAC,JMC,SHACMAN,HONYAN,GENLYON
Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 6 wheels,10 wheels , 12 wheels , 18 wheels
Capacity: 1000L, 3000L, 4000L, 6000L, 8000L, 10000L, 12000L, 15000L, 18000L, 20000L
Steering Wheel: Left Hand Drive and Right Hand Drive
Our factory is a professional LPG tank manufacturer in China, our
products fully passed ISO9001-2000 international quality system and 3C
authentication.

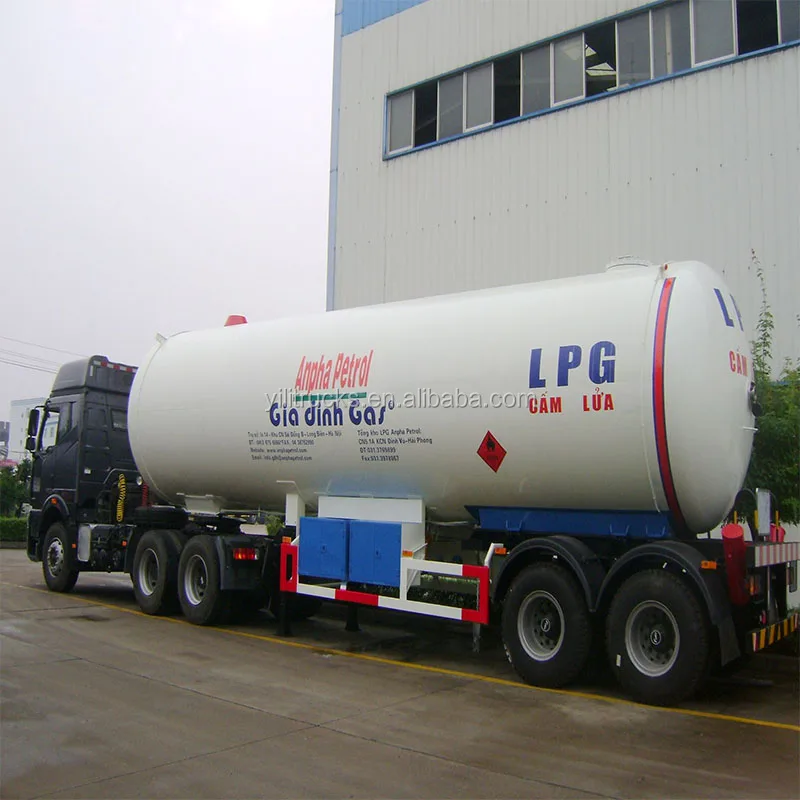

We have the biggest LPG trailer and LPG truck in the world:
1. We have the biggest LPG trailer in the world, the valid volume is
58.5cbm; low transport costs, more profit.
2. We have the biggest LPG truck in China, it's valid volume is
35.5cbm;
3. Our LPG storage tank ranged from 10cbm to 120cbm. both on the floor
ones and in the ground ones.
LPG STORAGE TANK SPECIFICATION | |||||||
Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
Design pressure | 1.77MPa | ||||||
Corrosion allowance( mm) | 1mm | ||||||
Medium density (kg/m3) | 420kg/m3 | ||||||
Material of tank and main pressure parts | Q345R | ||||||
Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve |
