Вакуумный роторный испаритель для CBD машина разделения конопляного масла 20 л промышленная Сбора
- Категория: Испаритель >>>
- Поставщик: Careddi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7140.2 $* | 7497.21 $* |
| Aug-15-2025 | 7080.94 $* | 7434.73 $* |
| Jul-15-2025 | 5940.8 $* | 6237.7 $* |
| Jun-15-2025 | 6960.45 $* | 7308.20 $* |
| May-15-2025 | 6060.77 $* | 6363.67 $* |
| Apr-15-2025 | 6840.60 $* | 7182.51 $* |
| Mar-15-2025 | 6780.99 $* | 7119.10 $* |
| Feb-15-2025 | 6720.66 $* | 7056.35 $* |
| Jan-15-2025 | 6660.40 $* | 6993.77 $* |
Характеристики
Product Description

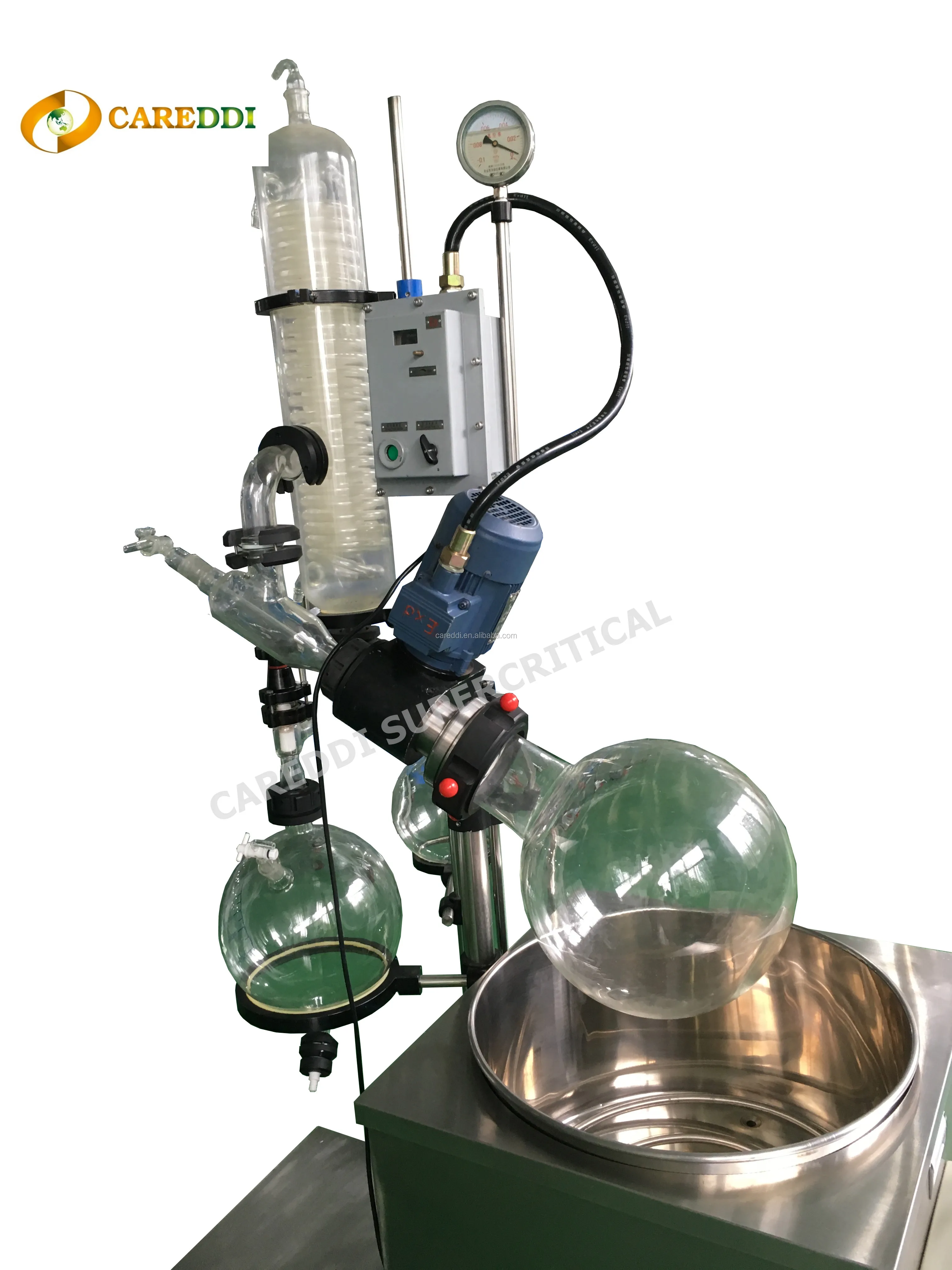

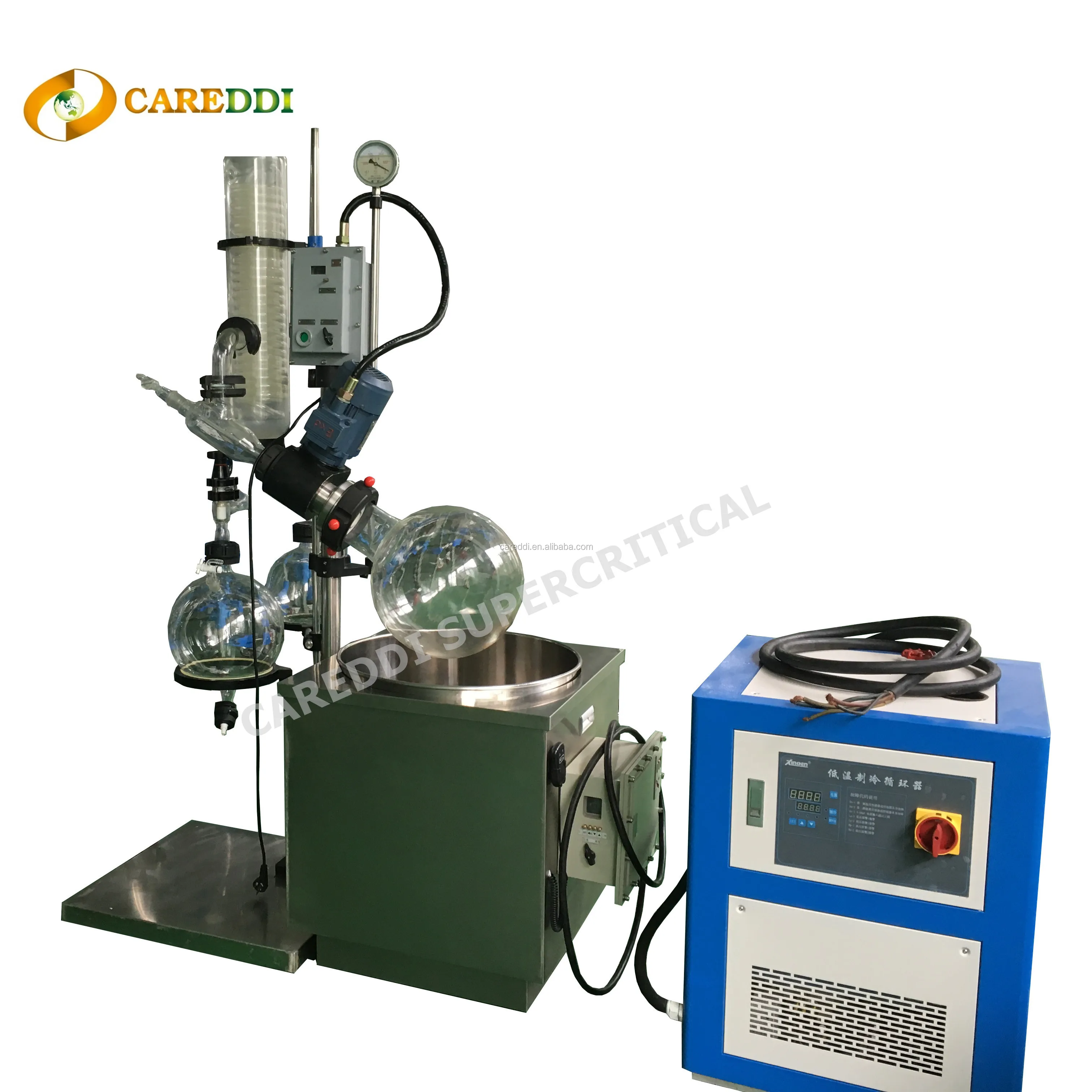

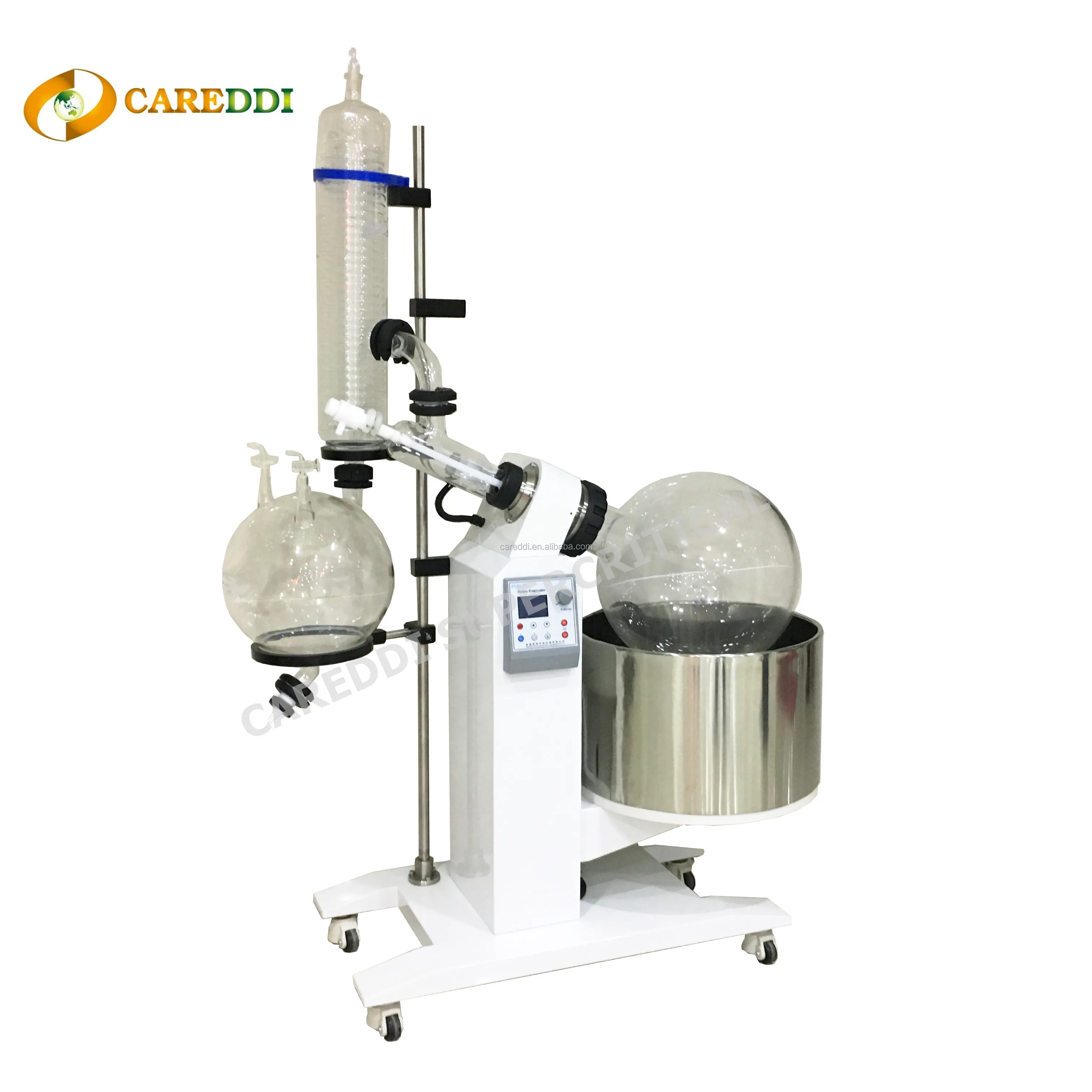

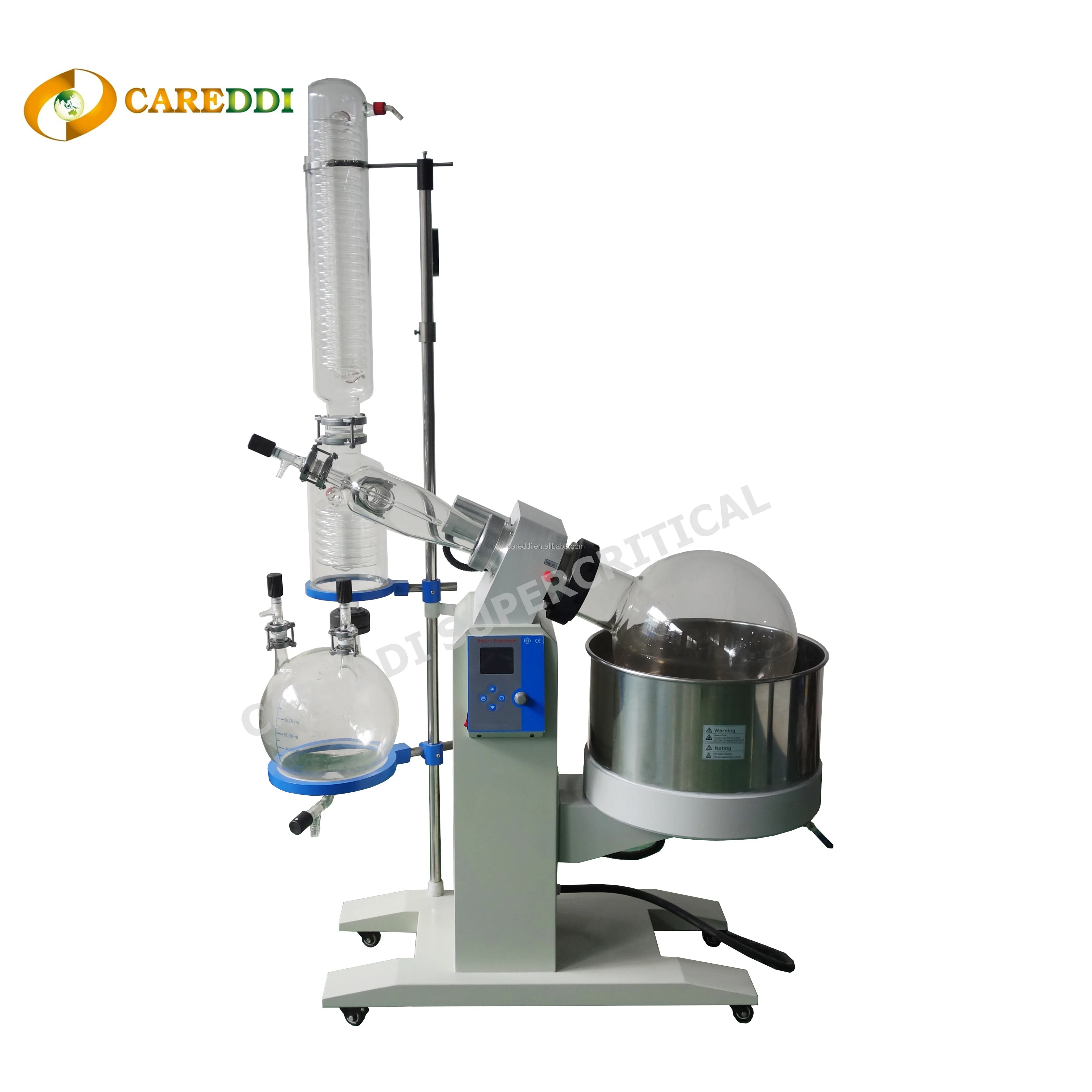

Industrial Vacuum Rotary Evaporator
Rotary Evaporator can form thin film by rotating under the constant heating and negative pressure, evaporate effectively and recover the solvent after condensing at same time.
PTFE bottom discharge valve, no pollution of grease
PTFE bottom discharge valve, no pollution of grease
Connector for anti-backflow of condensate
Main parts made by using #304 stainless steel material
Japanese Tech of AC induction motor, variable speed, no brush, no spark
Main parts made by using #304 stainless steel material
Japanese Tech of AC induction motor, variable speed, no brush, no spark
Features
1.This machine adopts advanced frequency conversion technology and electronic speed regulation, which can ensure the stable operation of the motor. So this machine has high evaporation rate, high recovery.
2. The bath pot can reduce the damage in the lifting process. During the evaporation of low boilling point, collecting bottle can be immersed in bath, which can reduce the secondary evaporation.
3. The collecting bottle connected by mouth ball milling connection, easy loading and unloading, and it has high sealing.
4. High temperaturedurable seal, dynamic seal system has corrosion resistance and long life time, good air tightness under high temperature.
5. Using Japanese technology-AC inducction motor, stepless speed regulation, no brush, no spark, can work long time effectively.
6. Rotay evaporator chassis, bath, main rod, shaft are mde of high quality stainless steel, beautiful apprearance and corrosion resistance.
7. Intelligent temperature control, water and oil bath, more widely application. The temperature fluctuation is relatively small, only 0.2 C error. Evaporation is more stalbe, not easy to wash away the material.
8. The series of modular design, strong expanibility, easy installation, convenient maintenance.
Technical Parameters | ||||||||||
Model | PR-2 | PR-5 | PR-10 | PR-20 | PR-50 | |||||
Evaporation Flask (L) | 2L | 5L | 10L | 20L | 50L | |||||
Collection bottle(L) | 1L | 2L OR 3L | 5L | 10L+5L | 10L+10L | |||||
Bath heating power (KW) | 1.5 | 2 | 3 | 5 | 5 | |||||
Vacuum pressure (Mpa) | 0.096 | 0.096 | 0.096 | 0.096 | 0.096 | |||||
Rotation speed (RPM) | 10-180 | 10-90 | 5-110 | 5-110 | 5-110 | |||||
Evaporation rate (H2O)(L/H) | 1.2 | 2 | 3.5 | 5 | 8 | |||||
Motor power(W) | 40 | 90 | 120 | 120 | 180 | |||||
Power phase | 2 phase | 2 phase | 3 phase | 3 phase | 3 phase | |||||
SIZE(LXWXH) (Cm) | 55x35x75 | 55x35x110 | 100x50x180 | 110x70x200 | 120x80x220 | |||||
