Дрон беспилотника с сотовой нагрузкой большая Полезная нагрузка и продолжительность


Поделиться:


Цена:115 000,00 $ - 131 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 136850.13 $* 143693.15 $*
Aug-16-2025 135700.53 $* 142485.36 $*
Jul-16-2025 113850.42 $* 119543.88 $*
Jun-16-2025 133400.62 $* 140070.71 $*
May-16-2025 116150.47 $* 121958.43 $*
Apr-16-2025 131100.27 $* 137655.12 $*
Mar-16-2025 129950.5 $* 136448.55 $*
Feb-16-2025 128800.16 $* 135240.2 $*
Jan-16-2025 127650.49 $* 134033.57 $*

Характеристики



Products Description

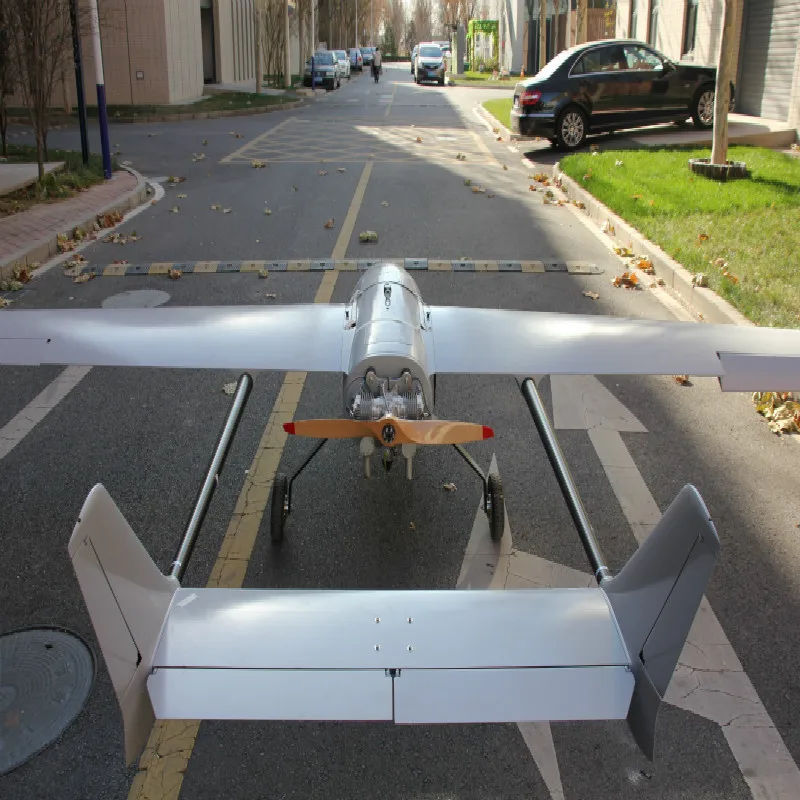

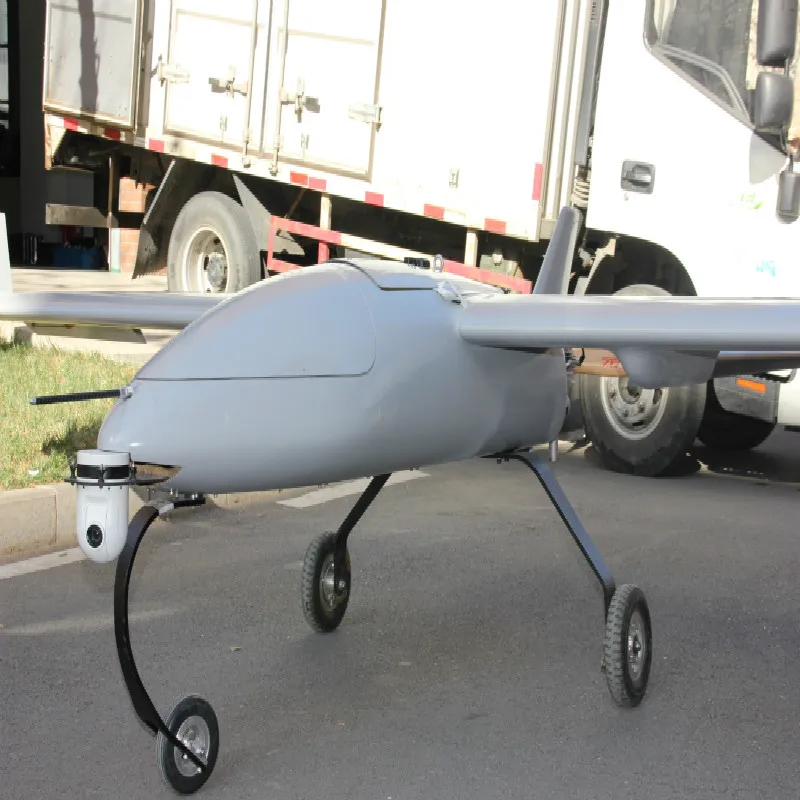

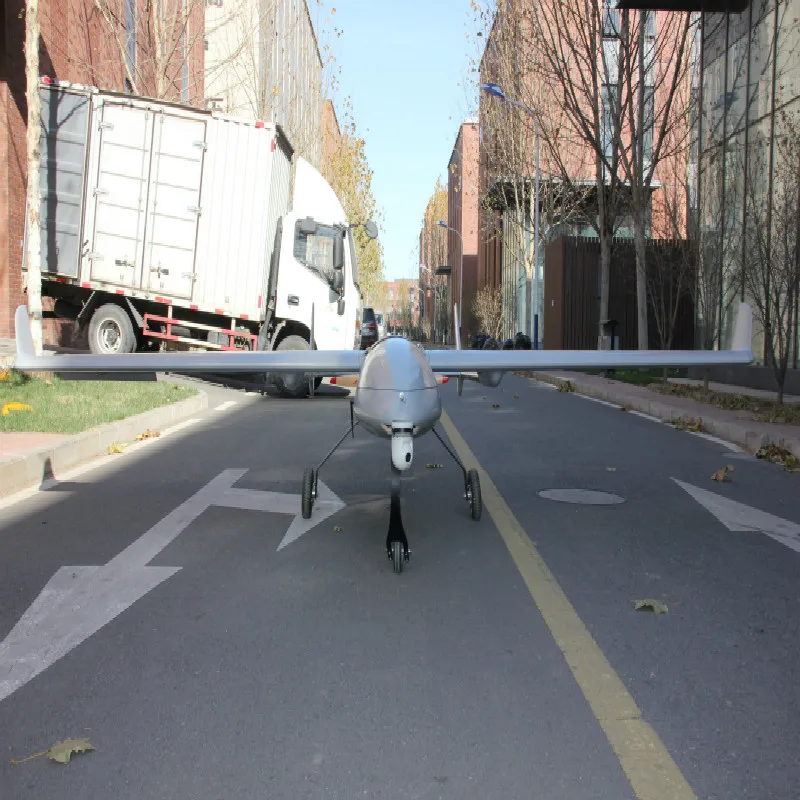

HC-132 Fixed-wing and Vertical Takeoff and Landing Gasoline-power UAV adopts engine push-back layout which provides high aerodynamic efficiency, up to 5.5 hours of flight time, convenient assembly, and transportation. The air frame of the whole aircraft adopts advanced manufacturing technology of aviation composite material, which has high structural strength, good fatigue resistance, long service life, and beautiful appearance. It can be used in Transportation, Cargo delivery, Long range Material Delivery, emergency disaster reduction, border surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights and so on.












Specifications




Category
Specification
Parameter








Flight System
&
Powerplant
Body Length
3251mm
Wingspan
5270mm
Payload
Customization
Manufacture material
Carbon fiber
Empty weight
55kg
Max take-off weight (sea level)
120kg
Standard payload
40.0kg
Max payload
50.0kg
Standard propeller
36×12 inch
Cruising speed
100 ~ 130km/h
Max flight speed
160km/h
Max Altitude
5000m (Above sea level)

Endurance
Up to 8h

Max Payload
Powerplant
Gasoline engine
Engine
3W275 Gasoline engine
Electric motor

Electric speed controller (ESC)
60A brushless ESC
Fuel tank capacity
50L
Specific fuel consumption (SFC)
5~10L/h
Assembly way
Detachable






Flight Control System
Attitude angle navigation accuracy
Static 0.5˚ / Dynamic 1˚

Position navigation accuracy
Horizontal 10cm / Vertical 50cm

Positioning accuracy
Normal 10cm / Differential 1cm

Attitude control accuracy
±1˚

Direction control accuracy
±2˚

Position control accuracy
±10cm

Positioning algorithm
RTK GNSS/GNSS+INS

Operating temperature range
-20˚C ~ 40˚C

Flight mode
Manual / Auto

Emergency measure
Out-of-control return, low voltage return, fault alarm

Link system
Control radius
≥120km (no obstacles)
Increase on Demand
Video Output resolution
1080P@60fps

Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Rain resistance level
IP54

Aircraft Logistics
Control radius
5-10km (no obstacles)
Video Output resolution
1080P@60fps


Operational environment
Wind resistance level
Level 5
Operating temperature
-20˚C ~ 40˚C
Remote Controller
Rain resistance level
IP54



Aircraft Logistics
Unfold, fold time
≤10min

Fuel
92 gasoline with engine oil 25:1 mixed fuel


Remote Controller
Model
FUTABA T8FG

Work frequency
2.4 GHz

Max signal effective distance (no interference, no occlusion)
2km
