Уличная Метеостанция BGT CE RS485 Modbus качество воздуха онлайн защита от пыли шума температуры влажности PM10 датчик
- Категория: Газоанализаторы >>>
- Поставщик: BGT,Technology,(Beijing),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 258.35 $* | 263.48 $* |
| Jul-17-2025 | 209.83 $* | 213.10 $* |
| Jun-17-2025 | 254.25 $* | 259.59 $* |
| May-17-2025 | 252.53 $* | 257.68 $* |
| Apr-17-2025 | 201.25 $* | 205.20 $* |
| Mar-17-2025 | 248.31 $* | 253.84 $* |
| Feb-17-2025 | 246.30 $* | 251.25 $* |
| Jan-17-2025 | 244.14 $* | 249.73 $* |
Характеристики
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description

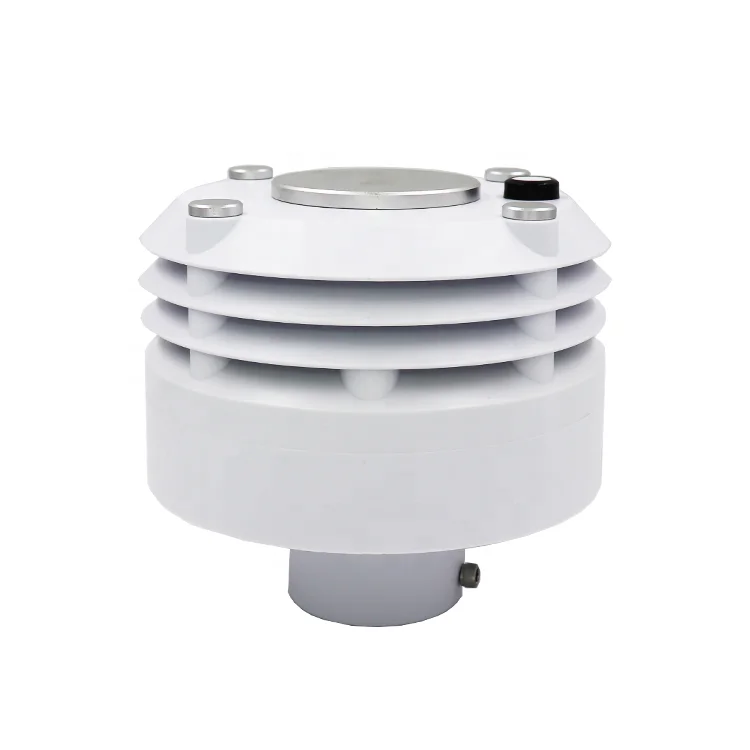

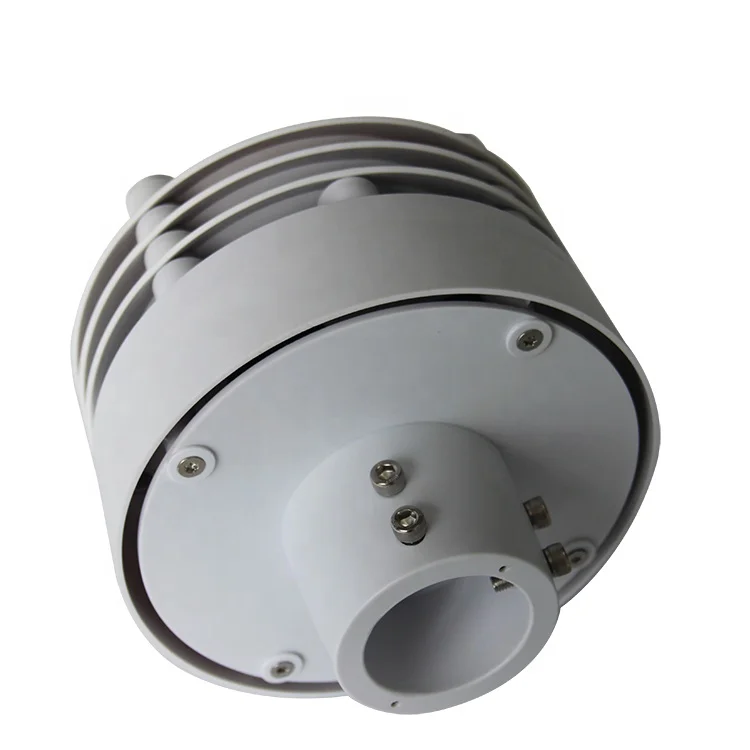

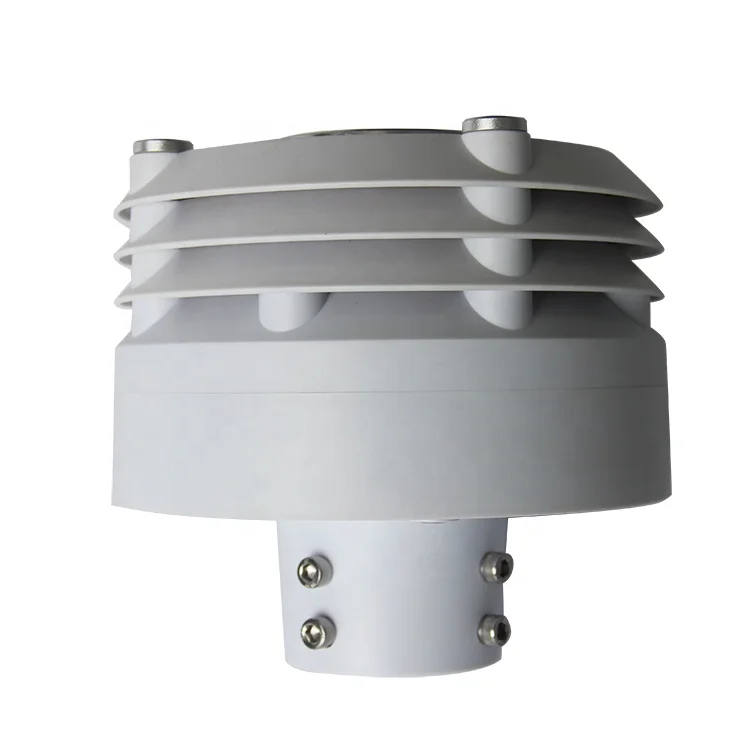

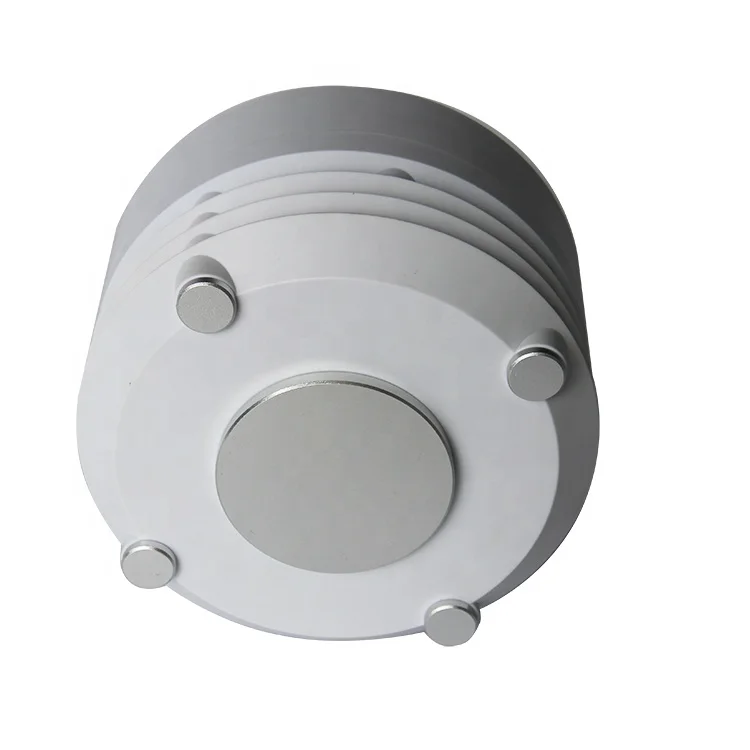

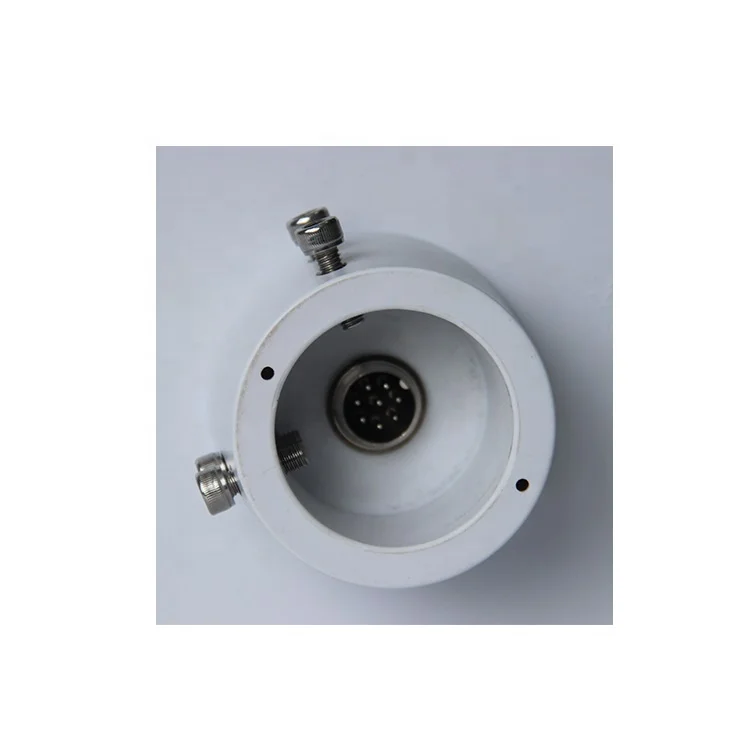

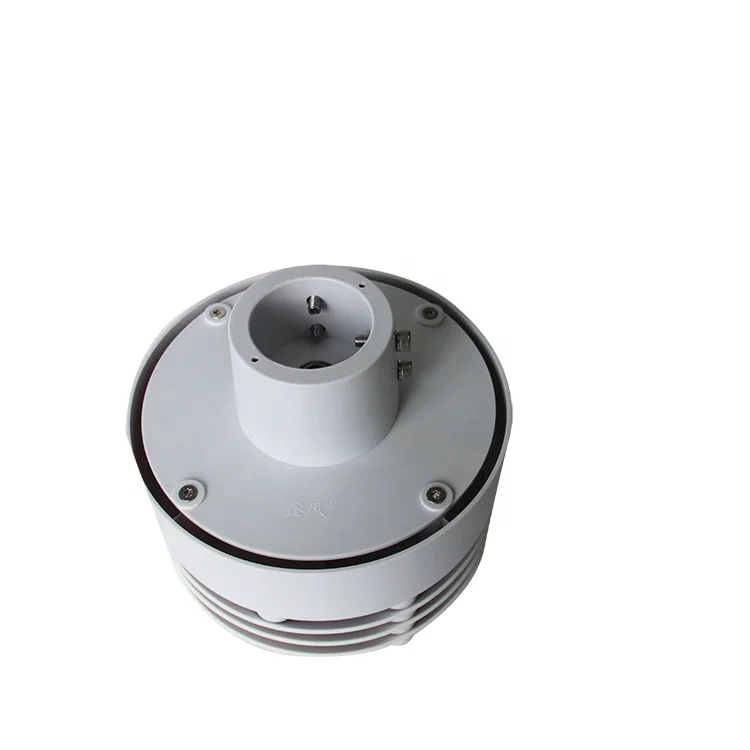

BGT-PM2516 Air Quality Sensor for Noise Illuminance Temperature Humidity PM2.5/PM10 Mornitoring
Detecting the temperature humidity concentration of particulate matter with diameter less than 2.5 microns and less than 10 microns in the air.The principle of laser scattering is adopted, that is, the laser is irradiated on the suspended particulate matter in the air to generate scattering, and the scattered light is received by the detector at a certain Angle,and the generated photo current is amplified to obtain a corresponding curve of the electrical signal and the particulate matter.After data collection by microprocessor, the particle mass with different particle size per unit volume is obtained through a series of algorithms.This product is an industrial standard output (RS485) PM monitor, mainly used in environmental protection, scenic areas, parks and other fields. It detects changes in dust concentration trends, enables long-distance transmission, and can be connected to various standard secondary instruments. Monitor air temperature and humidity.
Data Sheet
Product | Air quality sensor | ||||||
Type | BGT-PM2512 | ||||||
Measuring Range | PM2.5/PM10：0～1000μg/m³； Temperature：-40～60℃； Humidity：0～100%RH Noise: 30-130dB illuminance:0-100klux | ||||||
Resolution | PM2.5/PM10:1μg/m³ Temperature:0.01 ℃ Humidity：0.01%RH Noise: 0.1dB illuminance:10lux | ||||||
Accuracy | PM2.5/PM10:±10% OR ±10μg/m³ Temperature:±0.3℃ Humidity：±3%RH Noise: 10% illuminance:3% | ||||||
Power supply | DC12V--24V | ||||||
Output | RS485 Modbus communication protocol | ||||||
Cable Length | Standard: 3M | ||||||
PM minimum resolution particle size | 0.3μm | ||||||
Working current | DC12V <80mA(485) ;DC12V <100mA(current) | ||||||
Power Consumption | DC12V <1W(485) ;DC12V<1.2W (current) | ||||||
Response time | ≤120s | ||||||
Life cycle | About 1 year | ||||||
Operating environment | Temperature: -40 ~ 70℃,Humidity: 0 ~ 90%RH | ||||||
Operating environment | IP65 | ||||||
Installation
Installation notice:
1.Check frequently to ensure that sensors are not interfered with by other operating equipment that may not fully comply with common standards, such as radio/radar transmitters, ship engines, engines, etc.2. Do not install in the same plane with any radar scanning device, at least 2M above the distance;
3.It is recommended to keep some distance from the surrounding radio receiving antennas;
4.Use the cable recommended by the company;
5.If there is no correct connection after the cable is cut off, or the cable shielding wire is not properly connected, there is no need to create a ground loop, just wire it according to the installation instructions;
6.Ensure the continuous power supply of the equipment during operation;
7.Avoid the flocculation generated by surrounding buildings such as trees, telegraph poles, tall buildings, etc., which can affect the accuracy of ultrasonic anemometer;
Application
Order process
--In order to send you the specific quotation, please feel free to tell us the following information:
1. The power supply you required -- We have DC12V /DC24V for your choices.
2. The output method you required -- We have RS485 for your choices.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
BGT Product Good Feedback
More than 30 good feedback from Alibaba Trade Assurance Order since 2018.
Company Profile
As a wholly owned subsidiary of Beijing Guoxinhuayuan Technology Co., Ltd , BGT Technology (Beijing) Co., Ltd. specialized in the import & export business, which is a one-stop emergency solution supplier with production, research and development, sales of emergency supplies, road rescue, fire supplies, flood prevention supplies, Relief supplies, chemical accident emergency treatment, natural disaster monitoring and early warning solutions and other industrial products. Our products have been sold to more than 70
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
Our Factory
FAQ
Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products?
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty
