Высококачественная автоматическая гидравлическая роликовая машина с 2 роликами
- Категория: Гибочные машины >>>
- Поставщик: Zhejiang,Handa,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5831.87 $* | 6123.68 $* |
| Aug-16-2025 | 5782.16 $* | 6071.44 $* |
| Jul-16-2025 | 4851.27 $* | 5094.53 $* |
| Jun-16-2025 | 5684.1 $* | 5968.60 $* |
| May-16-2025 | 4949.66 $* | 5196.72 $* |
| Apr-16-2025 | 5586.79 $* | 5865.98 $* |
| Mar-16-2025 | 5537.39 $* | 5814.29 $* |
| Feb-16-2025 | 5488.79 $* | 5762.40 $* |
| Jan-16-2025 | 5439.59 $* | 5711.55 $* |
Характеристики
Technical Data
Type | HPE-RM03 | ||||||
Product name | CNC Hydraulic Rolling Machine | ||||||
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining | ||||||
Weight (KG) | 1500 | ||||||
Color | Red | ||||||
Usage | Metal Sheet Rolling | ||||||
Power（kw） | 5.5 | ||||||
Max. Working Length (mm) | 1000 | ||||||
Max. Plate Thickness (mm) | 3.5 | ||||||
Controller | CNC | ||||||
Condition | New | ||||||
Products Description
The hydraulic two roller plate rolling machine is mainly used to roll all kinds of thin metal plates into cylindrical workpieces. One of the rollers is a steel roller, and the other roller is a steel roller core with an outer elastic layer. The process principle is as follows: the plate is placed between two rollers to make contact—pressing is forced by the steel roller—the lower roller elastic layer is concave The shape causes the steel plate to bend - driving the two rollers to rotate, allowing the sheet to be continuously rolled and formed. The two-roller coiling machine does not need to perform pre-bending and other processes in advance, and the sheet material can be processed and formed at one time.
Function
● The main rubber roller is specially processed by Japanese professional technology.
● The entire hydraulic system has a small size, low noise, stable pressure, and a one year warranty.
● The control system uses PLC control, control cabinet main electrical components one year warranty and lifetime maintenance.
● The main frame steel plate welding structure, post-welding aging treatment.
● Parts must be shot blasting slag, rust, after the anti-rust primer, putty painted topcoat. The appearance of the whole machine is clean and beautiful.
● When the equipment is delivered, with the accessories of the machine, common tools, operating instructions, electrical diagrams.

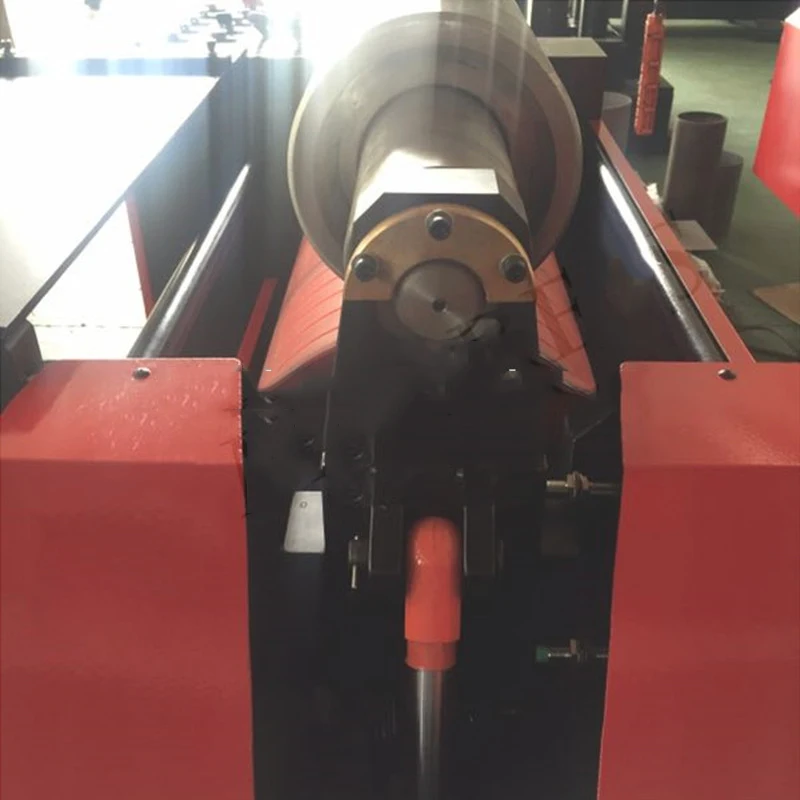

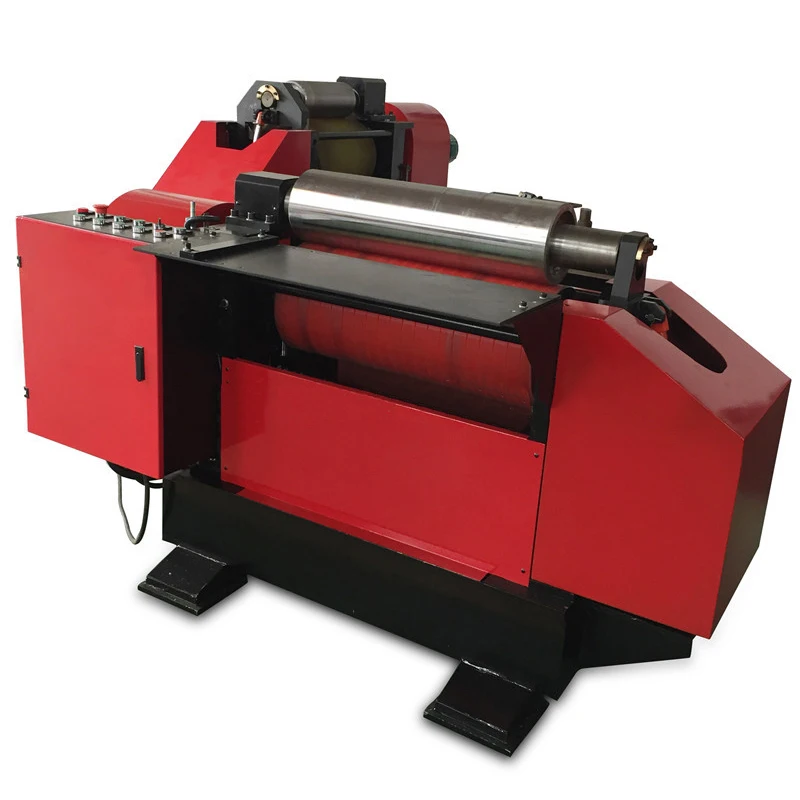

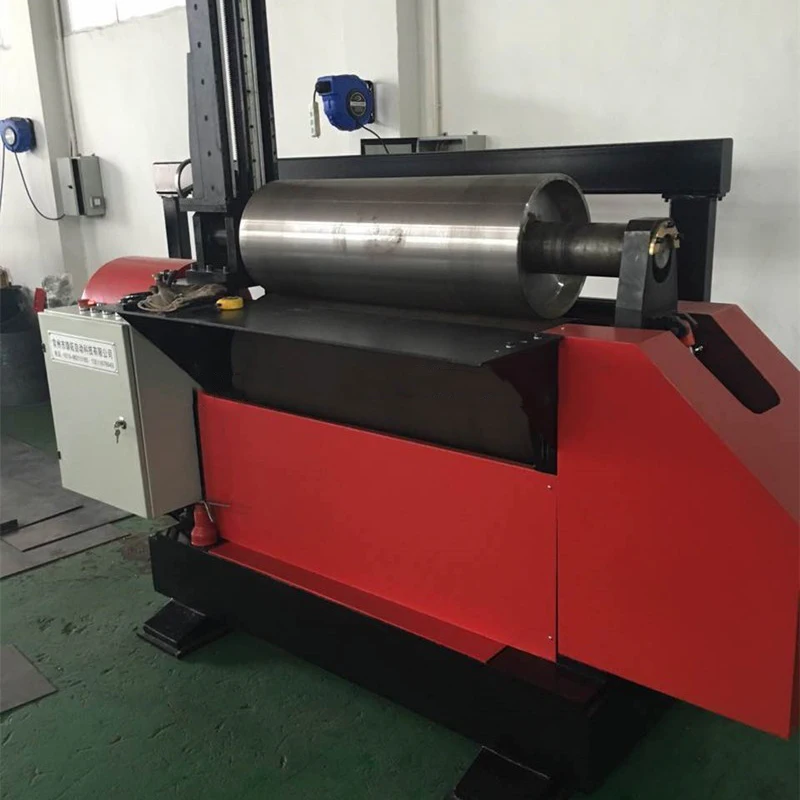

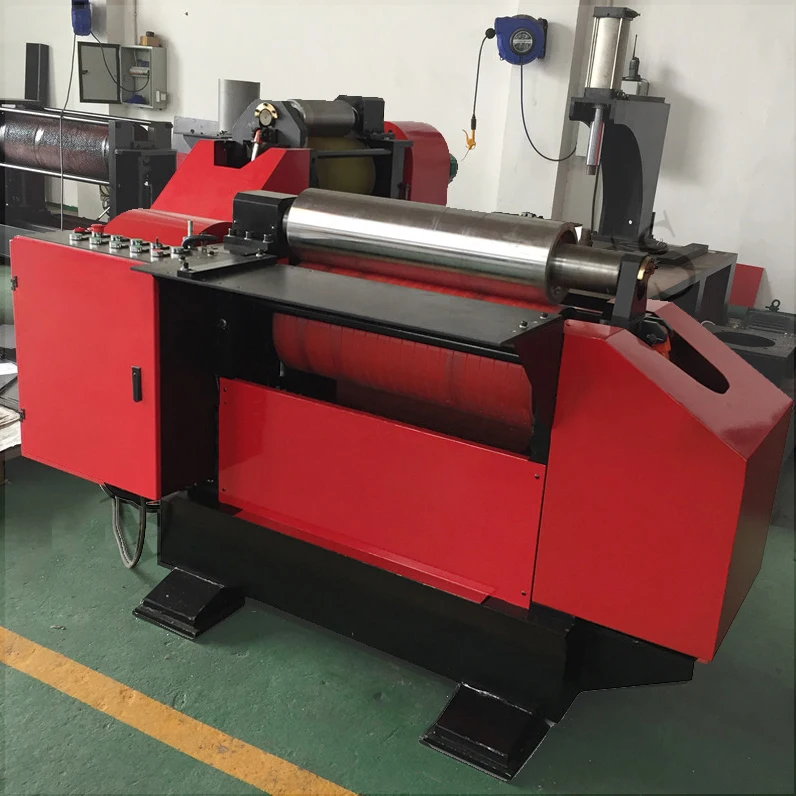

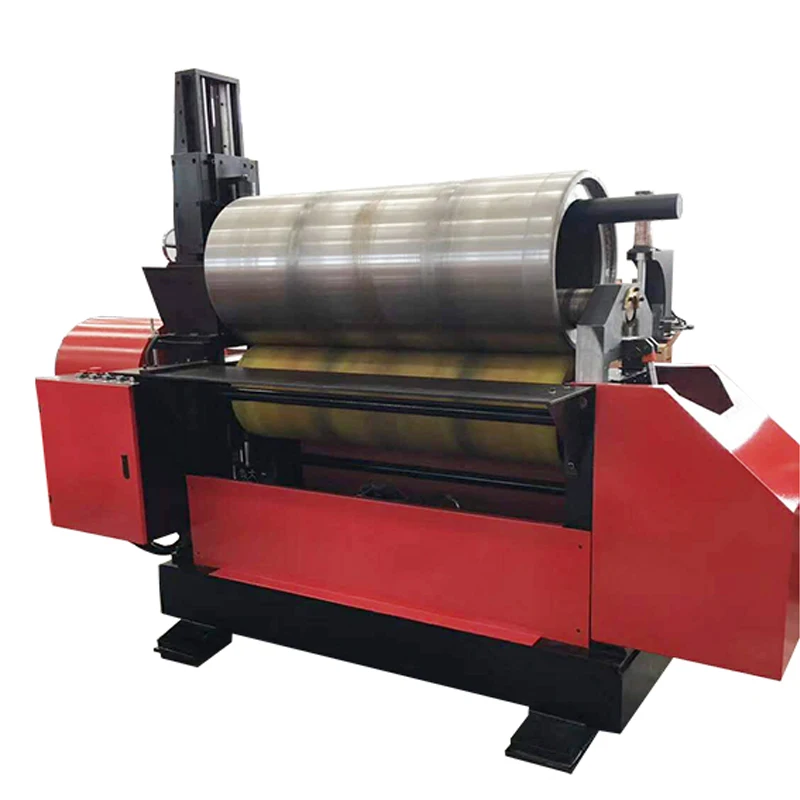

Details Images
Company Profile
Zhejiang Handa new energy Co., Ltd is the leading solar water heater and solar thermal equipment manufacturer in China, provide high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over 50 countries, and have found favor in the eyes of customers.
We also provide design-system or customized products which is suitable for customers local market.
We also provide design-system or customized products which is suitable for customers local market.
If you are interested in our products, please do not hesitate to contact us with more information. We are looking forward to cooperating with you!
Why Choose Us
1.Zhejiang Handa new energy Co., Ltd Have top engineers and technicians in the industry can providing invaluable product design experience. We make solar manufacturing equipment for solar production line raw materials if needed.
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
