100% биоразлагаемая машина для

Категория: Straw Making Machines >>>
Поставщик: Ruian,Honetop,Machinery,Co.,Ltd.

Цена:19 800,00 $ - 26 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	23562.78 $*	24740.7 $*
Aug-19-2025	23364.78 $*	24532.5 $*
Jul-19-2025	19602.55 $*	20582.91 $*
Jun-19-2025	22968.99 $*	24116.40 $*
May-19-2025	19998.23 $*	20998.57 $*
Apr-19-2025	22572.16 $*	23701.9 $*
Mar-19-2025	22374.24 $*	23493.81 $*
Feb-19-2025	22176.0 $*	23285.4 $*
Jan-19-2025	21978.12 $*	23077.88 $*

Характеристики

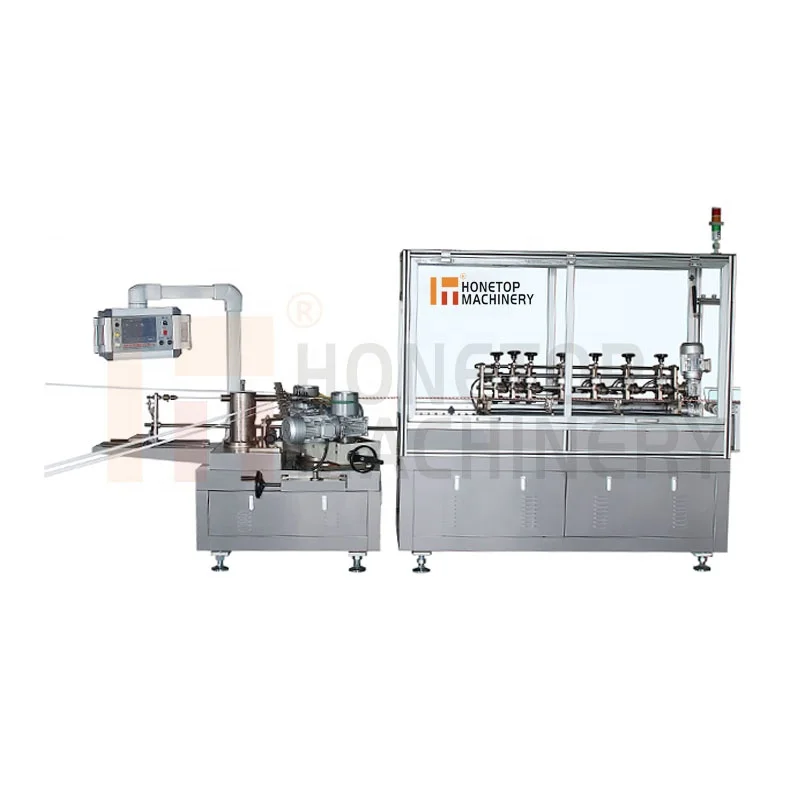

Paper drinking straw making Machine

Product Description

Suitable inner diameter of straws made: 5mm - 12mm, only change the mold)
(Suitable straw length made: 100mm - 220mm, only adjust blade distance)

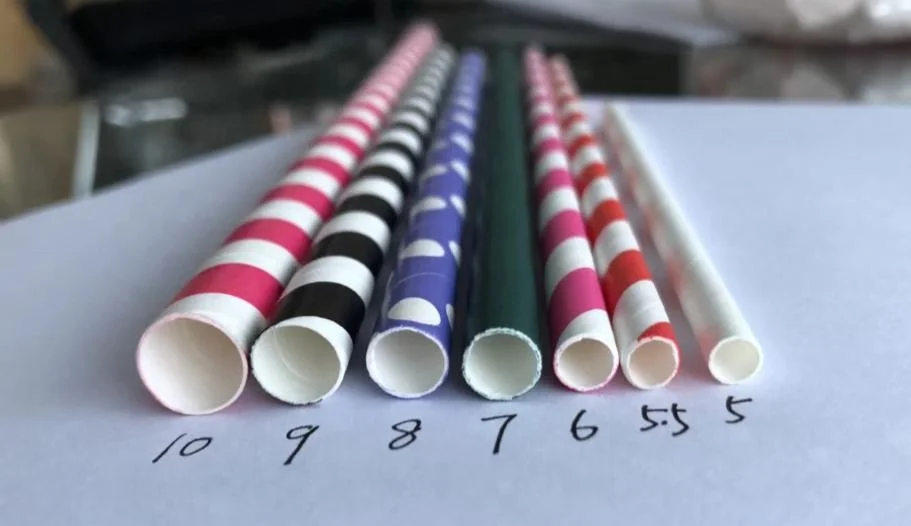

This paper drinking straw making Machine is suitable for producing different sizes of paper straws, such as 6mm; 8mm; 10mm,12mm etc.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

Equipment data

Technical Parameter			Control System
Paper Layer	6 layers	Programming Control	Schneider/France
Inner Diameter	5-12mm	Touch Screen	Schneider/France
Wall Thickness	0.25-1mm	Inverter	3.7kw Schneider
Stable Speed	25-45m/min.	Servo Motor	Schneider/France
Straw length	100-220mm (other size need customized)	Servo Driver	Schneider/France
Cutting Length	120-1300mm	Motor	3.0kw (1.5kw * 2pcs)
Winding speed	Max. 70m/min	Motion Controller	Panel Master
Way Of Fixing Shaft	Clamp	Operating Panel	Panel Master
Type Paper Reel Stand	T-bar	Language	English
Glue System	2 plies independent glue tank	Electric Components (main components)	Schneider
Way Of Cutting	58381.5mm Circular Cutting Blade	Pneumatic Components	AirTAC
Winding Head	Two heads single belt	Signal Components	China
Roll Fixed Type	Ring Wheel Chuck	Length Adjustment	Encoder (Omron / Japan)
Glue Coating	Single/Dual sides	Screw Rod	China
Machine & parts	Stainless steel	Slider	China
Length fixing	Encoder (Omron / Japan)	Bearing	Haerbin
Speed Adjustment	Inverter Changer	Configuration
Cutting System	Multi-blades; 7 sets online	Paper Reel Stand	6 Layers
Cutting Method	Servo cutting with synchronism tracking	Gluing Unit	3 Layers
Paper straw collecting	Automatic	Belt	5 Pieces
Operator	1-2 person	Mandrel Shaft	2 Pieces
Working Air Pressure	0.6Mpa	Extra blades	5 Pieces
Power Supply	380V / 3phases / 50 Hz	Useful Tool	1 Set

Detailed Images

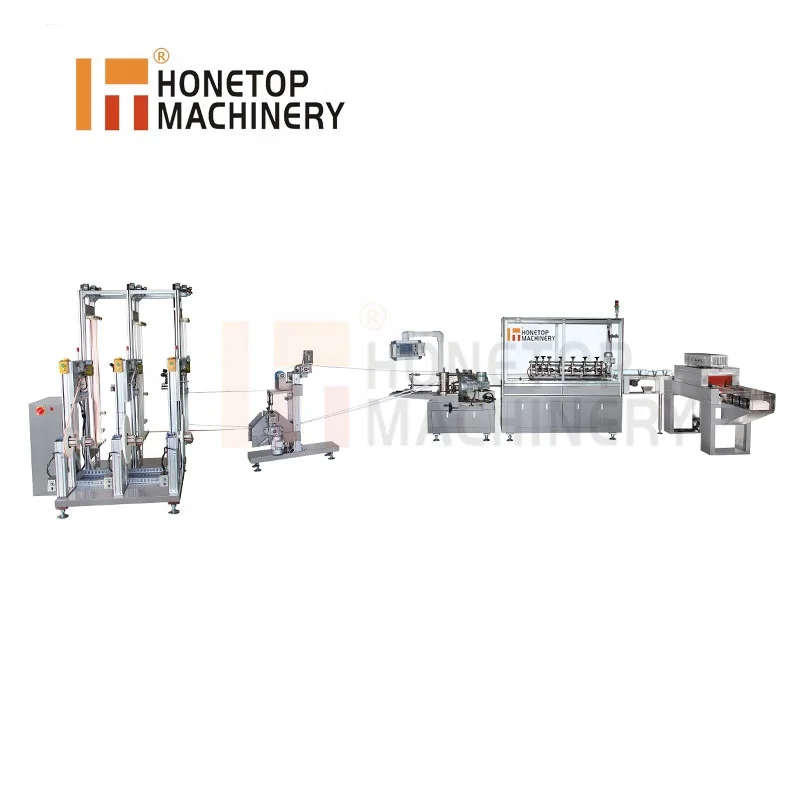

Combined Equipment

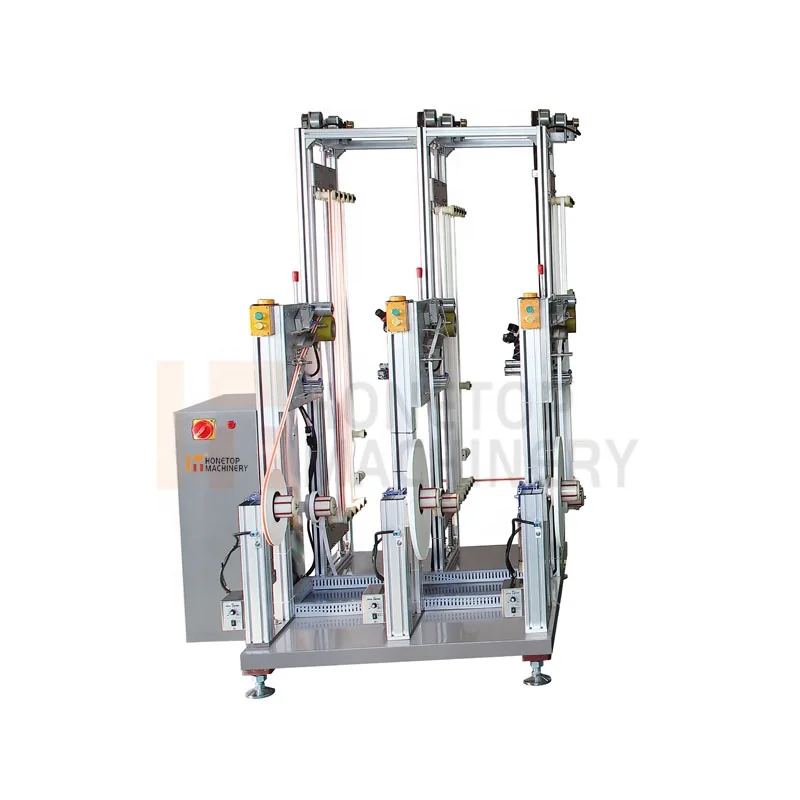

1.Auto Non-stopping Paper Reel Stand Unit

Unwinding speed: 0-70m/min
Paper reel model: Integral reel stand
Material: Aluminium

2.Stainless Steel Glue Unit

Gluing way: Single / double sides
With polyurethane scraper and high carbon steel plastic knife
Material: Stainless Steel (prevent glue corrosion)
