Pharmaceutical Sewage Dewatering Plant Sludge Dewatering Filter Press Machine

Product Introduction

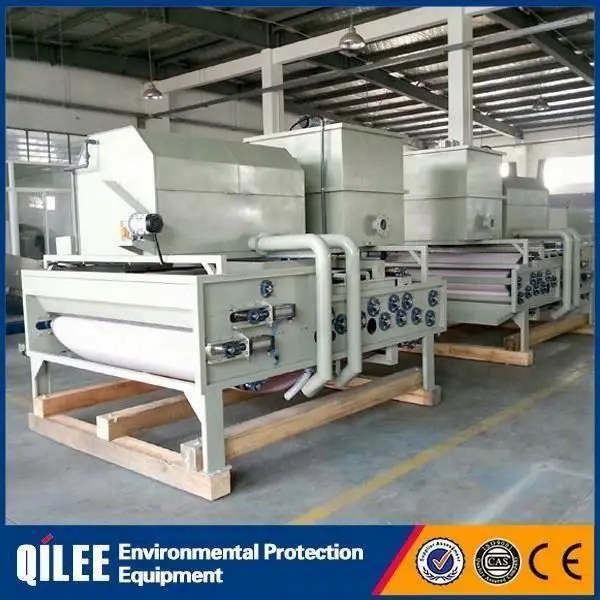

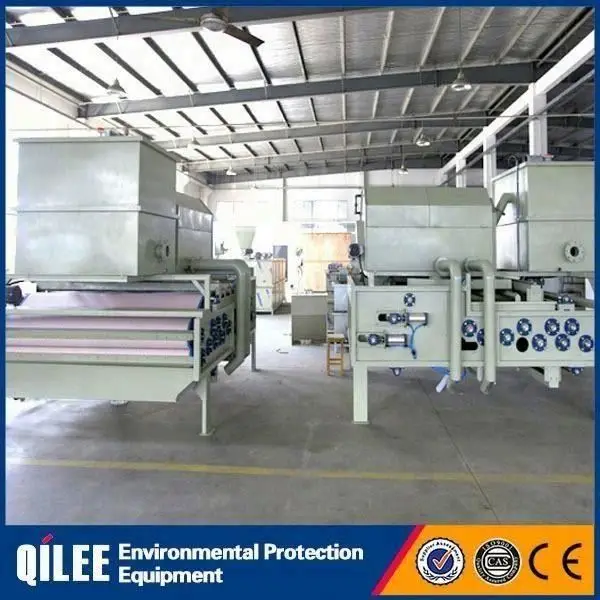

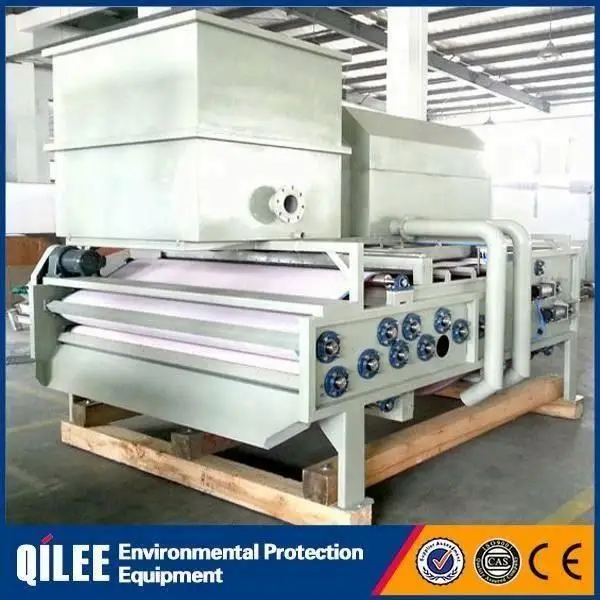

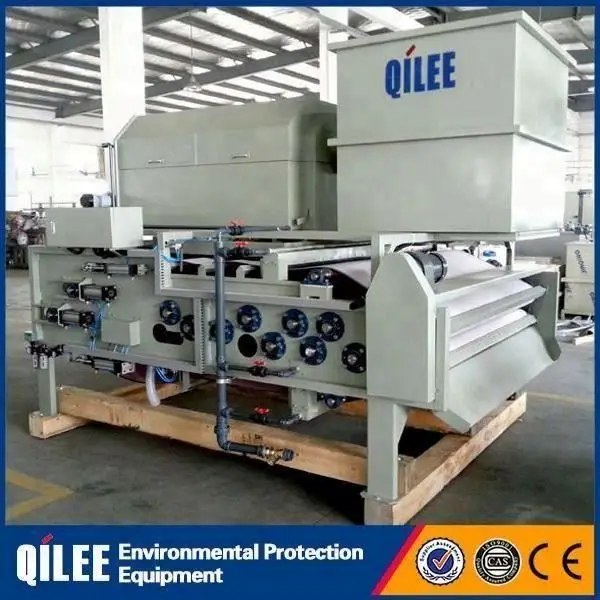

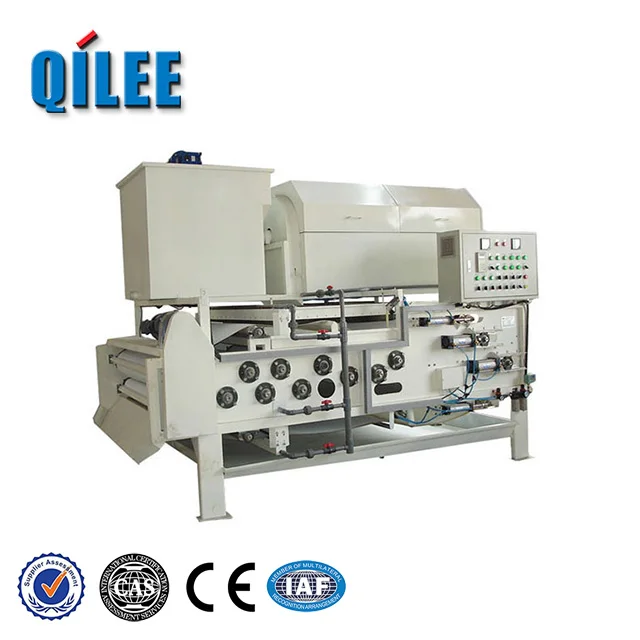

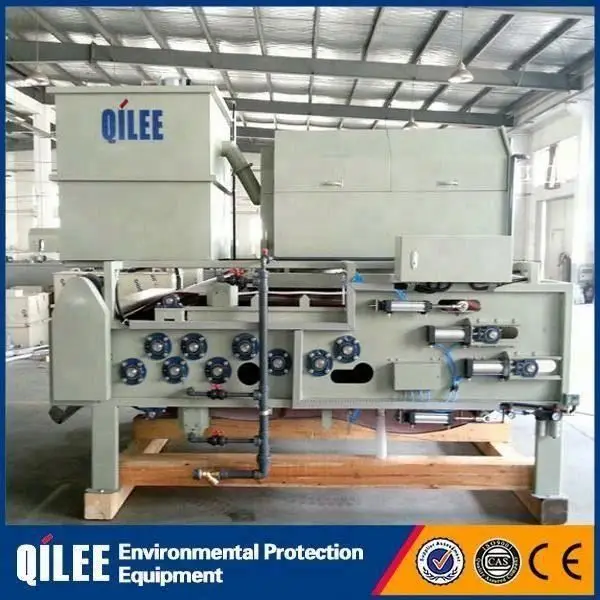

Sludge Dewatering Filter Press Machine

The pictures are for your reference only, please subject to practicality.

Sludge Dewatering Filter Press Machine Features:

1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.

2. The filter cloth imported from Swiss, to provide the best performance and long service life.

3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.

4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense

5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)

6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.

Sludge Dewatering Filter Press Machine selection of models:

Model		QTBH-1000	QTBH-1250	QTBH-1500	QTBH-1500L	QTBH-2000
Belt Width(mm)		1000	1250	1500	1500	2000
Low Consistency	Treating Capacity(m3/hr) Inlet Consistency(s.s.0.4-0.8%)	13.5-17.5	17.5-22.5	21-27	27.5-35.5	37.5-49
Low Consistency	Dried sludge(kg/hr)	55-112	70-144	85-172	110-228	150-312
Middle Consistency	Treating Capacity(m3/hr) Inlet Consistency(s.s.0.8-1.5%)	10.5-13.5	12.5-17.5	16-21	20.5-27.5	30-37.5
Middle Consistency	Dried sludge(kg/hr)	84-158	100-188	128-240	164-308	240-450
Water Content’s Rate(%)		75-85	75-85	75-85	75-85	75-85
Powder Consumption (HP)	Driving Motor	1/2	1/2	1/2	1	1
	Disposal Agitator Motor	1/4	1/4	1/2	1/2	3/4
	Drum Thickener	3/4	1	3/4*2	3/4*2	1*2
Lower Collecting Tray for Pressed Filtrate		None	None	None	None	None
External Dimensions (Reference)(mm)	L	2700	2800	2900	3500	3500
	W	1550	1800	2150	2150	2650
	H	2500	2500	2500	2600	2700
Base Dimension L1*W1(mm)		2100*1330	2100*1580	2100*1830	2450*1900	2580*2400
Reference Weight(kgs)		1420	1680	2100	2550	3150

Sludge Dewatering Filter Press Machine Treatment Flowchart:

Sludge Dewatering Filter Press Machine

Sludge Dewatering Filter Press Machine Application:

1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.
4. Sludge dewatering of city sewage, excretion, water purifying industries.

Sludge Dewatering Filter Press Machine

Sludge Dewatering Filter Press Machine Structure:

Sludge Dewatering Filter Press Machine

FAQ

What’s the application scope of sludge dewatering machine ?

It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.

What’s the material of sludge sludge dewatering machine ?

It is SUS304.

What’s the equipment used together with sludge dewatering machine ?

Sludge pump, polymer dosing pump, washing pump, air compressor.

How to choose the model?

Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
