033 U-образная машина для производства питьевой соломы
US $9200-$9500
Новая автоматическая машина для производства бумажных соломинок с скоростью 100
- Категория: Straw Making Machines >>>
- Поставщик: Ruian,Honetop,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 23562.44 $* | 24740.60 $* |
| Aug-17-2025 | 23364.51 $* | 24532.50 $* |
| Jul-17-2025 | 19602.20 $* | 20582.10 $* |
| Jun-17-2025 | 22968.99 $* | 24116.74 $* |
| May-17-2025 | 19998.55 $* | 20998.20 $* |
| Apr-17-2025 | 22572.26 $* | 23701.60 $* |
| Mar-17-2025 | 22374.70 $* | 23493.45 $* |
| Feb-17-2025 | 22176.76 $* | 23285.39 $* |
| Jan-17-2025 | 21978.96 $* | 23077.51 $* |
Характеристики
HT-100
High Speed Paper Straw Making Machine
(10 cutters, speed can reach max. 100m/min)
Products Description
Paper Straw Specification:
1.(Suitable inner diameter of straws made: 5mm - 12mm, only change the mold)
2.(Suitable straw length made: 100mm - 240mm, only adjust blade distance)
Speed and capacity for reference:
Paper Straw Making Machine
1-Production: about 30,000 pcs/hr (paper straw standard length * diameter: 6 *197mm).
2-As working time 8 hours, capacity is about 240,000pcs.
2- Blades: 10groups
3- A skilled worker can operation 2-3 sets
4. For D*L (paper straw 6mm*197mm) 1 ton glue (white latex) can produce about 7 millions paper straws, 1 ton paper can produce about 830 thousands straws.
Paper Straw Making Machine
1-Production: about 30,000 pcs/hr (paper straw standard length * diameter: 6 *197mm).
2-As working time 8 hours, capacity is about 240,000pcs.
2- Blades: 10groups
3- A skilled worker can operation 2-3 sets
4. For D*L (paper straw 6mm*197mm) 1 ton glue (white latex) can produce about 7 millions paper straws, 1 ton paper can produce about 830 thousands straws.
Specifications
Paper Layer | 6 layers |
Inner Diameter | 5-12mm |
Wall Thickness | 0.25-1mm |
Stable Speed | 25-45m/min. |
Straw length | 100-220mm(other size need customized) |
Cutting Length | 120-1300mm |
Winding speed | Max. 70m/min |
Way Of Cutting | 58*38*1.5mm Circular Cutting Blade |
Glue System | 2 plies independent glue tank |
Cutting System | Multi-blades; 7 sets online |
Power Supply | 380V / 3phases / 50 Hz |
Weight | 2500kgs |
Working Space | 8000*5000mm |
Details Images
Machine Functions:

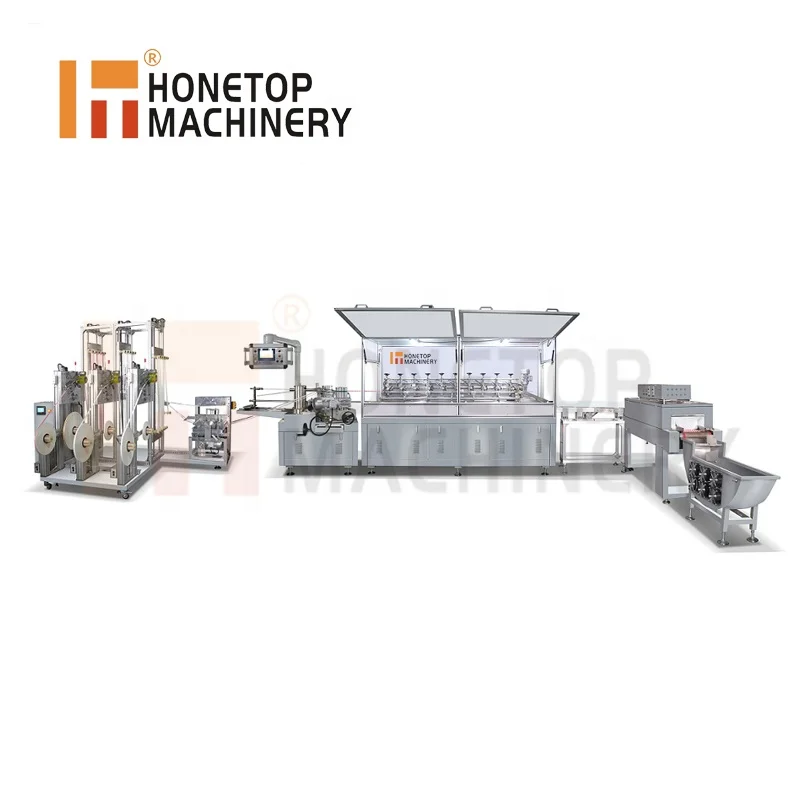

1.The price includes Auto Non-stopping Paper Reel Stand Unit (1 SET), Stainless Steel Glue Unit (1 SET), Paper Straw Forming Unit (1 SET), Paper Straw Cutting Unit and Conveyor Unit (1 SET).
2.It equipped with 10 sets of blades to cut off paper drink straw on line. It is suitable for making 5-12mm diameter paper drink straw.
3.Machine adopts Programming control, all data can be display in the touch screen

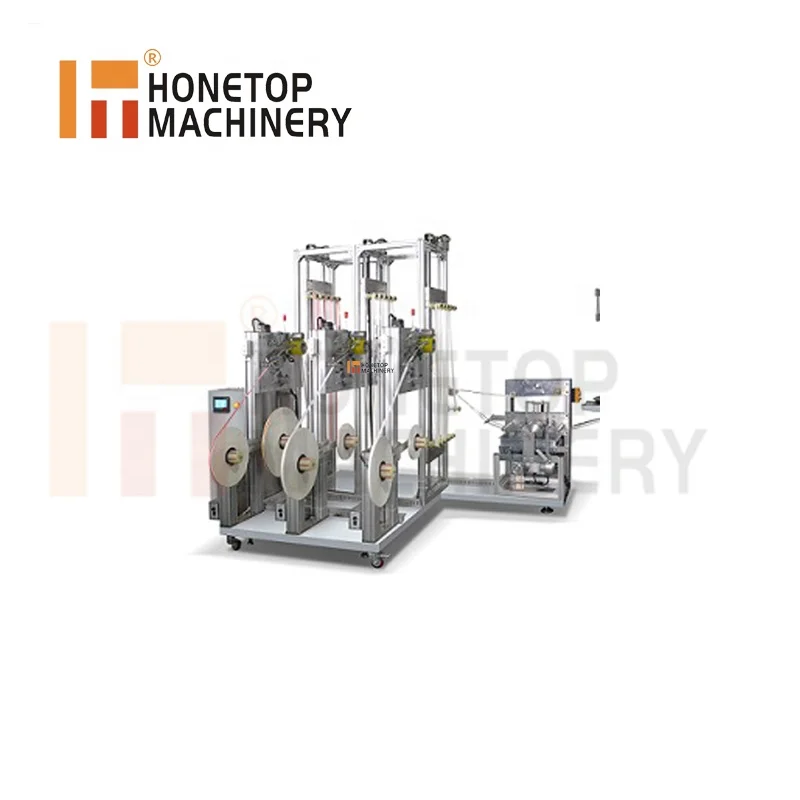

4.T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand
5.Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
6.Choose Single or double glue coating unit

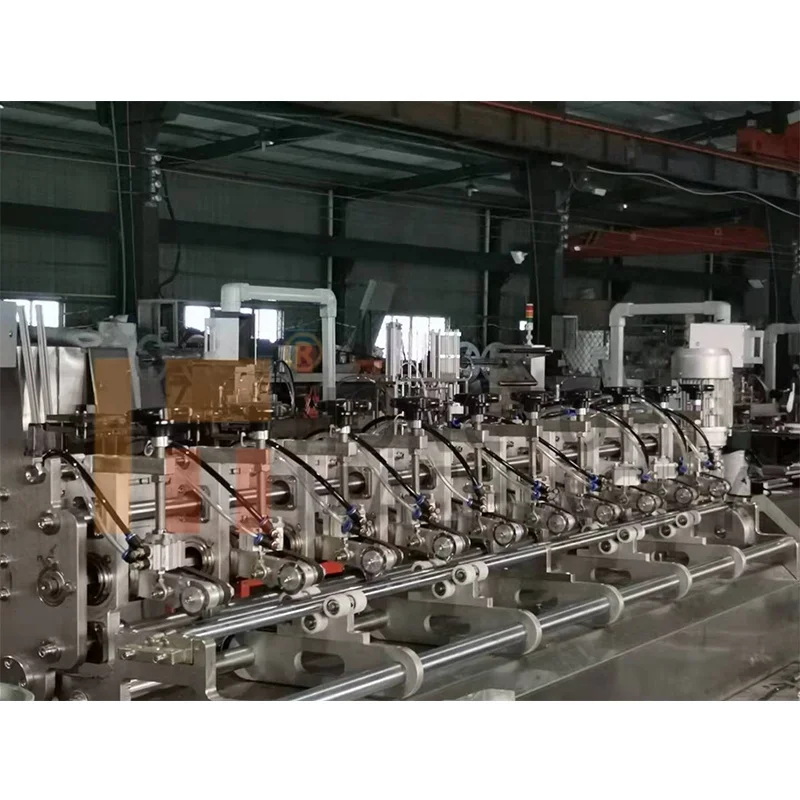

7.10 sets of blades system in-line cutting unit controlled by servo motor, no need secondary cutting, save labor and time.
8.Automatically cut, automatically fall pipe, automatically change speed and revert;
9.Paper straw diameter 6 mm, stable production 70 m/min, diameter 8 mm, stable production 100m/min.
1.The price includes Auto Non-stopping Paper Reel Stand Unit (1 SET), Stainless Steel Glue Unit (1 SET), Paper Straw Forming Unit (1 SET), Paper Straw Cutting Unit and Conveyor Unit (1 SET).
2.It equipped with 10 sets of blades to cut off paper drink straw on line. It is suitable for making 5-12mm diameter paper drink straw.
3.Machine adopts Programming control, all data can be display in the touch screen
4.T Bar Paper reeling stand , Slitting rolls are easily placed into reel stand
5.Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
6.Choose Single or double glue coating unit
7.10 sets of blades system in-line cutting unit controlled by servo motor, no need secondary cutting, save labor and time.
8.Automatically cut, automatically fall pipe, automatically change speed and revert;
9.Paper straw diameter 6 mm, stable production 70 m/min, diameter 8 mm, stable production 100m/min.

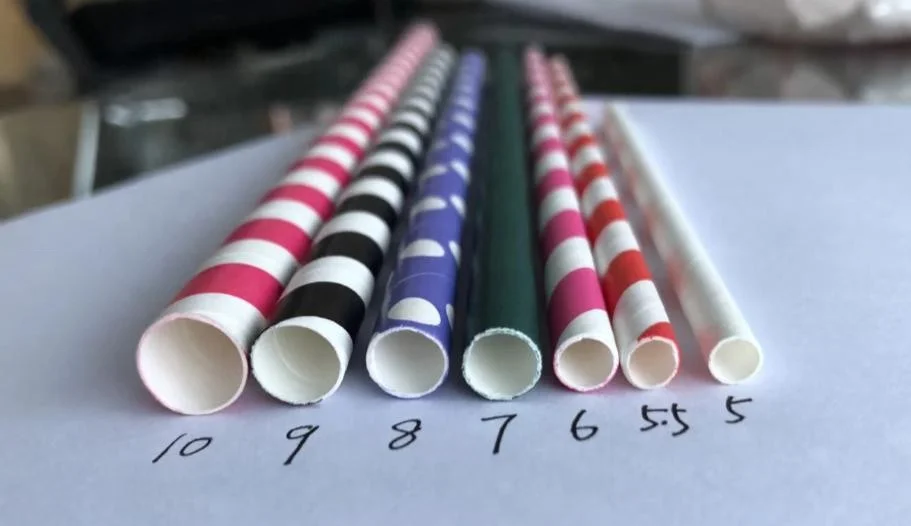

Use of straw
These paper straws are suitable for cold and hot drinks, such as hot water, coffee, beverages, etc., meet food requirements. Can be made paper straws with 3 layer paper or 4 layer paper. Can be kept in ice water for up to 6 hours without melting. Can be heated at 100 degrees without melting.
Click to get the test video of paper straws in hot water above 100 ℃
Recommended category
HT-60 Straw Making Machine
Capacity: 13,700 straws per hour
HT-70 Straw Making Machine
Capacity: 17,000 straws per hour
HT-100 Straw Making
Machine
Capacity: 30,000 straws per hour
About us
1.Our company
Packaging & Shipping
1.To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
2.Use film to wrap whole machine avoid the seawater dropping on the machine.
3.To pack whole machine into wooden case avoid machine collision.
1.Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
2.Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
2.Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
Exhibition
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, we have made video of every machine and uploaded them toYoutube.
Q2:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q3:Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
