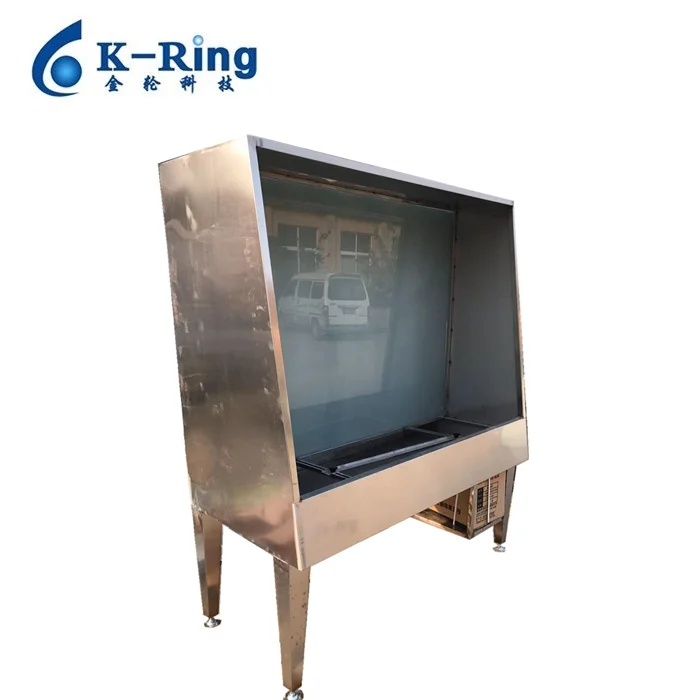

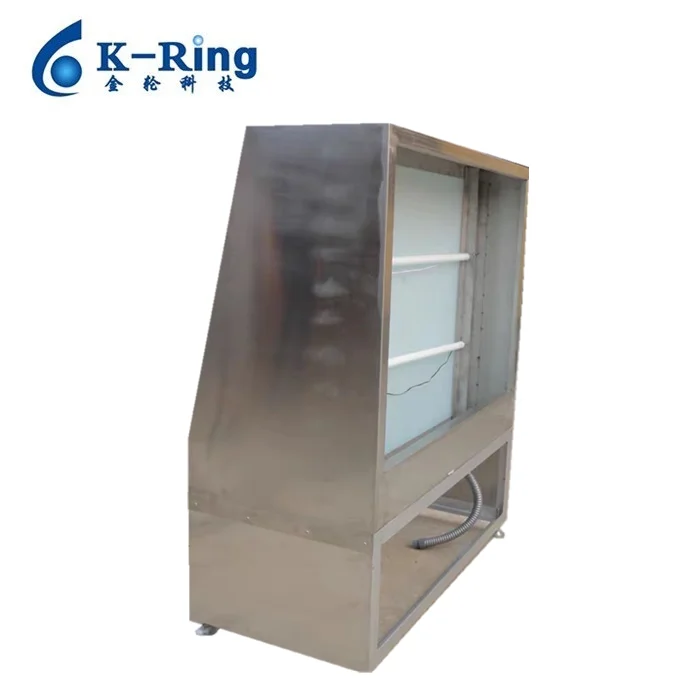

Screen frame washing tank with backlight



Using for:

After exposure, the screen can be developed by washing water from the plate punching table, the fluorescent lamp perspective and the high-pressure water sprayer to achieve the complete cleaning effect. When the emulsion coating table is used, the yellow lamp light can be used as the background light source, which can avoid the concern of the exposure of the sensitive emulsion and is widely used in screen printing to wash the precision screen.



Features:

1. During the development of the screen, the high-pressure water jet gun is used to wash the screen through the light perspective, so as to achieve the full and clear effect.

2. Simple setting, simple operation, fast and clear screen development.

3. It is made of stainless steel. There is a drain in the water tank, and the water can flow out directly. It has two lamps, so that it can more confirm the washing effect of the screen.



Specifications:

Model:	KRW900X1200	KRW1200X1500
Max washing frame size:	900x1200mm	1200x1500mm
Light:	40W x 2	40WX4
Sprinkler pressure:	0-1MP	0-1MP
Voltage:	220V 50Hz	220V-50hZ
Weight:	150kgs	180kgs
We accept customer order size
