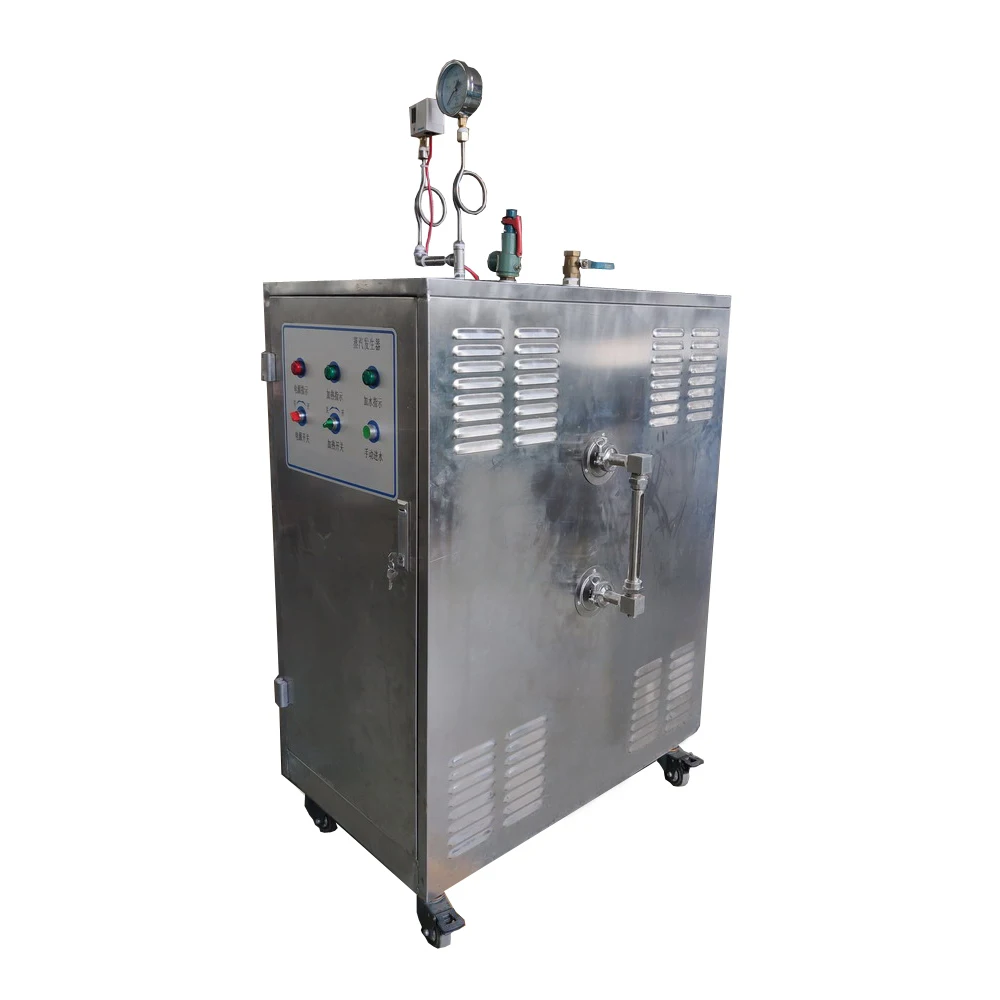

Паровые котлы для промышленного отопительного оборудования стерилизационное


Поделиться:


Цена:1 100,00 $ - 1 150,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 1309.62 $* 1374.48 $*
Aug-16-2025 1298.93 $* 1363.60 $*
Jul-16-2025 1089.53 $* 1143.81 $*
Jun-16-2025 1276.17 $* 1340.60 $*
May-16-2025 1111.92 $* 1167.79 $*
Apr-16-2025 1254.7 $* 1317.41 $*
Mar-16-2025 1243.18 $* 1305.41 $*
Feb-16-2025 1232.55 $* 1294.55 $*
Jan-16-2025 1221.86 $* 1282.23 $*

Характеристики



Product Description


1. Washing and ironing industry: dry cleaning machine, drying machine, washing machine, dehydrator, ironing machine iron bucket and other equipment supporting use;Small garment factory, chemical production line with steam.
2. Packaging machinery industry: label machine, set label machine supporting use.
3. Biological and chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifier and other biological and chemical equipment supporting the use.
4. Food machinery industry: tea fermentation;Steam kettle, sandwich pot, sterilizing pot, tofu machine, steam box, sterilizing box, packaging machine, coating equipment, sealing machine and other food and beverage equipment supporting use.
5. Medical industry: medical devices, drugs, etc.
6. Civil use: soybean milk boiling, steamed dim sum and soup;A small laundry is used for ironing.
7. Laboratory use: the laboratory USES a small amount of steam;For teaching experiments.
8. Electroplating surface treatment industry: electroplating tank, wash tank, tank of clean water temperature and constant temperature.
9. Other industries: hotel steamed rice thermal insulation, ironing, (oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing station) hot water supply, (bridge, railway) concrete maintenance, (leisure beauty club) bath, heat exchange equipment.







Description:For equipment other than the above parameters, we accept product customization. You can provide drawings or dimension parameters for customization








Main Features
A.Product features

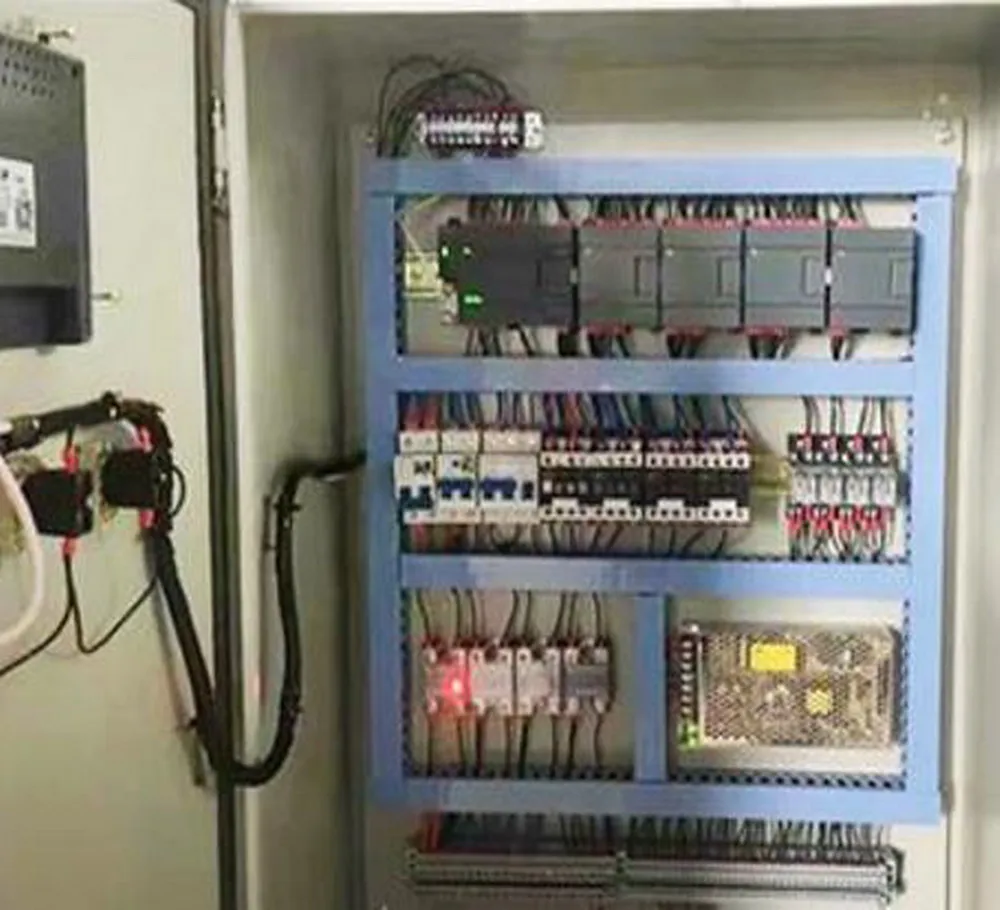

1. Adopt touch-tone control panel or LCD automatic intelligent electronic control system;
2. Adopt high-quality electric heating tube;
3. Use high-quality parts;
4. Multiple interlocking safety protection function;
5. Easy to install and use;
6. Scientific design and exquisite appearance;
7. Using electric energy is more environmentally friendly and economical.
B.Product advantage
1. Clean and environmental protection: electric energy heating, clean and environmental protection, no environmental pollution, small occupation, easy installation and use;
2. High efficiency and energy saving: able to reach the set working temperature and pressure quickly and efficiently in a very short time;
3. Easy to operate: the pressure and water level are fully automatic. You only need to press the button to enter the automatic operation state.
C.Fine quality
1. The product adopts high-quality materials and advanced welding equipment to produce high-quality welds and conduct X-ray inspection and hydraulic test;
2. The whole machine is manufactured in strict accordance with the steam boiler to ensure that customers have reliable products;
3. The electric heat pipe is made of nickel alloy heating elements, with high thermal efficiency and long life.
D.Safety performance
1. Automatic water filling function: due to continuous steam output during the working process, the water level in the generator body keeps falling.When the water level falls to the middle level, the feeding pump will work automatically to replenish and soften water in the generator to the upper level, and the feeding pump will shut down to stop water inlet.

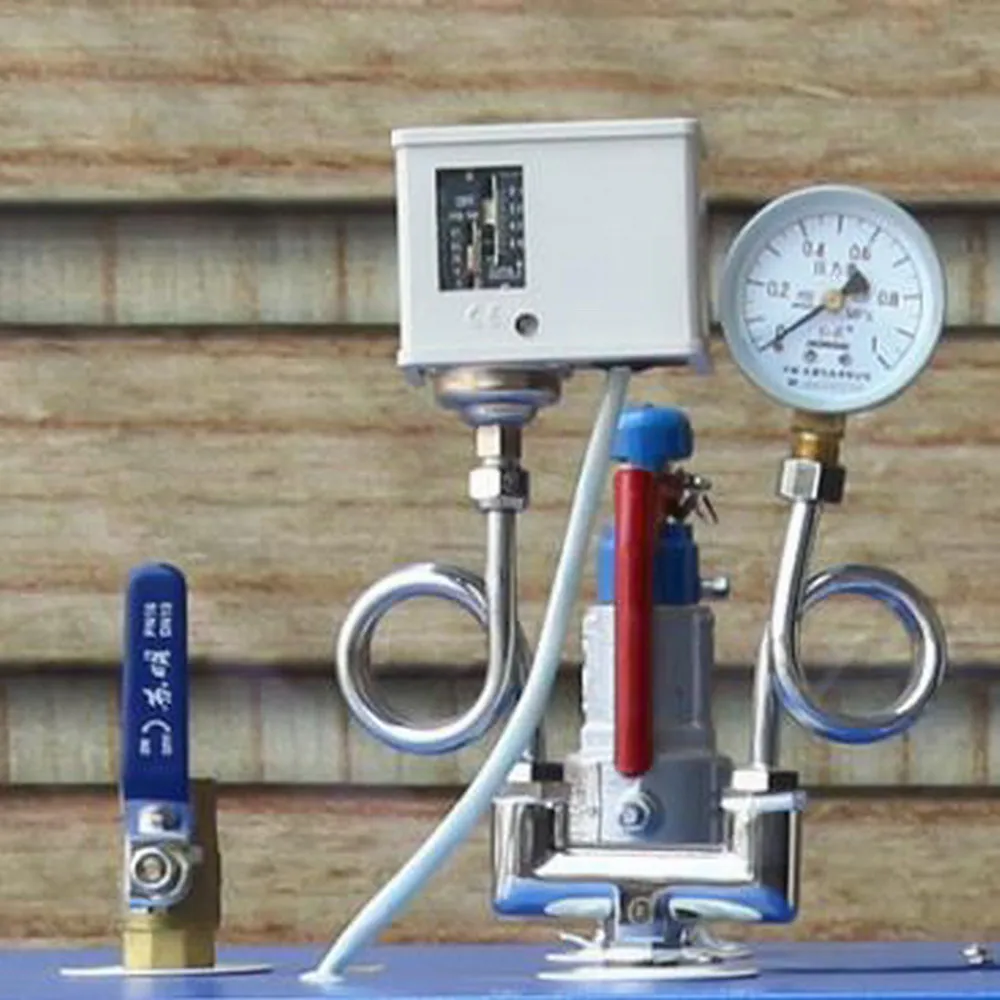

2. Automatic pressure control function: when the steam pressure in the generator body reaches the upper limit set by the pressure controller, the heating power can be cut off automatically;When the steam pressure in the generator body drops to the lower limit set, the heating power can be automatically connected to ensure the steam output at a basically constant pressure.
3. Automatic protection function for water shortage: adopt double automatic protection measures of liquid level controller and temperature controller.When the water level in the generator body falls to the lower level due to unexpected reasons, the heating power supply can be cut off automatically;Once the liquid level controller fails and the water level continues to drop to the position of the electric heat pipe, in order to prevent the electric heat pipe from dry burning without water, the temperature controller will signal and cut off the heating power, so as to ensure that the heating element will not be damaged due to dry burning due to lack of water.
4. Automatic overpressure protection function: when the pressure inside the generator exceeds the setting pressure of the safety valve due to unexpected reasons, the safety valve can be effectively and timely opened to protect the safety of equipment and operators.
5. Overcurrent protection function: when the generator is in operation and the current is too large due to various accidents, the circuit protection function will be started to prevent damage to personnel and equipment.



Certifications




The main parts

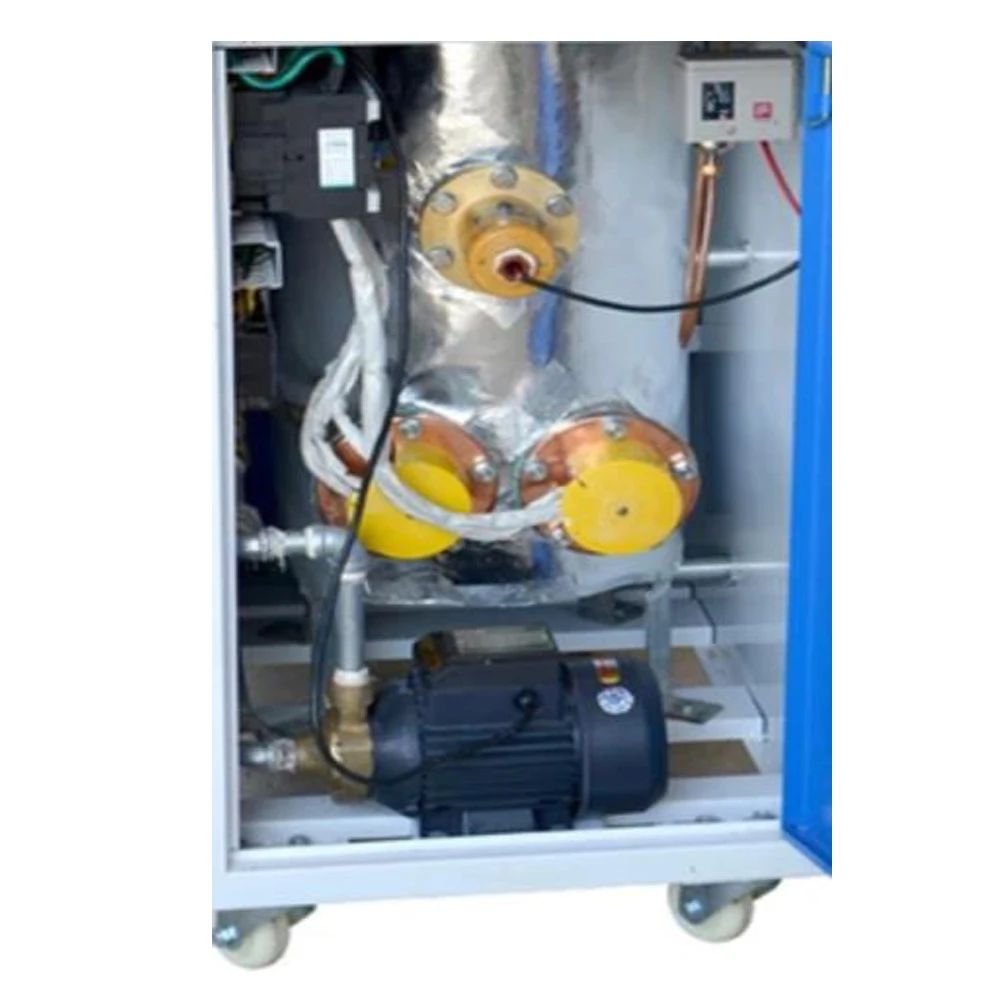

High quality stainless steel material, low surface load, small starting current, long life of electric heating tube.
Durable, quality assurance, water shortage can be automatically replenished, low noise, high pressure, low power consumption water pump.
Intelligent water level detection, can realize the control panel real-time dynamic display, water level change and accurate control of the start and stop of the feed pump, and very low water level alarm protection of the water level gauge.


Our Service


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.


Packing & Transportation




Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.


Company profile


Zhongtai company is a leading supplier of food processing industry, beverage industry, edible mushroom processing industry and the pharmaceutical industry in sterilization equipment. The company has the national Pressure Vessel Design, Manufacture, Installation alteration service qualification, was awarded the "new high-tech enterprises," the title of Shandong province. Professional manufacture of various sterilization retort, medical sterilization equipment, jacketed  kettle, agitation wok, pressure cooking pot, fermentation tank,extraction tank, concentration tank , mixing tank, animal oil and fat refining production line, rice dumpling production line, (sweet potato, potato) peeling production line, central kitchen equipment and other equipment,products have passed the European CE safety certification and ISO9001 international quality management system certification, with import and export rights. Forming a set of raw materials supply, product development, process design, production-manufacturing, finished product testing, storage and transportation, after-sales service in one of the network system.
Zhongtai company is sterilization pot industry standard drafting unit. The company has an independent R & D, testing center, can be completed with the thermal distribution of standard test before all sterilization pot factory. Products can be widely used in food, beverage, edible mushroom processing, pharmaceutical, chemical and other fields, the products have been sold to the provinces, city, autonomous regions, and exported to South Asia, Southeast Asia, Africa, Europe and America more than 30 countries and regions, enjoy a high reputation in the same industry.










Other major products and major engineering examples of the company






















FAQ
 1.How to visit our company?
   You can fly to qingdao airport,our company is 1 and a half hour car driving away from qingdao,we can pick up you at qingdao city.
2.Installment, commission and others
   The charges for installation and commissioning (if required by the buyer (user)) of these equipments are excluded. It will be charged at US$100 per person per day. Theround-trip air tickets between China and buyer's (user's) country, accommodation,insurance, food should be on the buyer's (user's)account.
 3.Voltage:380V/50HZ or the voltage can be customized.
 4. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1)Phone call guidance to confirm the problem.
2)We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
