XCMG official 8CBM небольшие дизельные бетономешалки

XCMG official 8CBM небольшие дизельные бетономешалки

Категория: Бетоновоз >>>
Поставщик: XCMG,E-Commerce,Inc.

Цена:10 000,00 $ - 500 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	11900.76 $*	12495.39 $*
Aug-15-2025	11800.75 $*	12390.92 $*
Jul-15-2025	9900.99 $*	10395.49 $*
Jun-15-2025	11600.57 $*	12180.49 $*
May-15-2025	10100.97 $*	10605.5 $*
Apr-15-2025	11400.8 $*	11970.92 $*
Mar-15-2025	11300.5 $*	11865.30 $*
Feb-15-2025	11200.13 $*	11760.15 $*
Jan-15-2025	11100.12 $*	11655.64 $*

Характеристики

Product Description

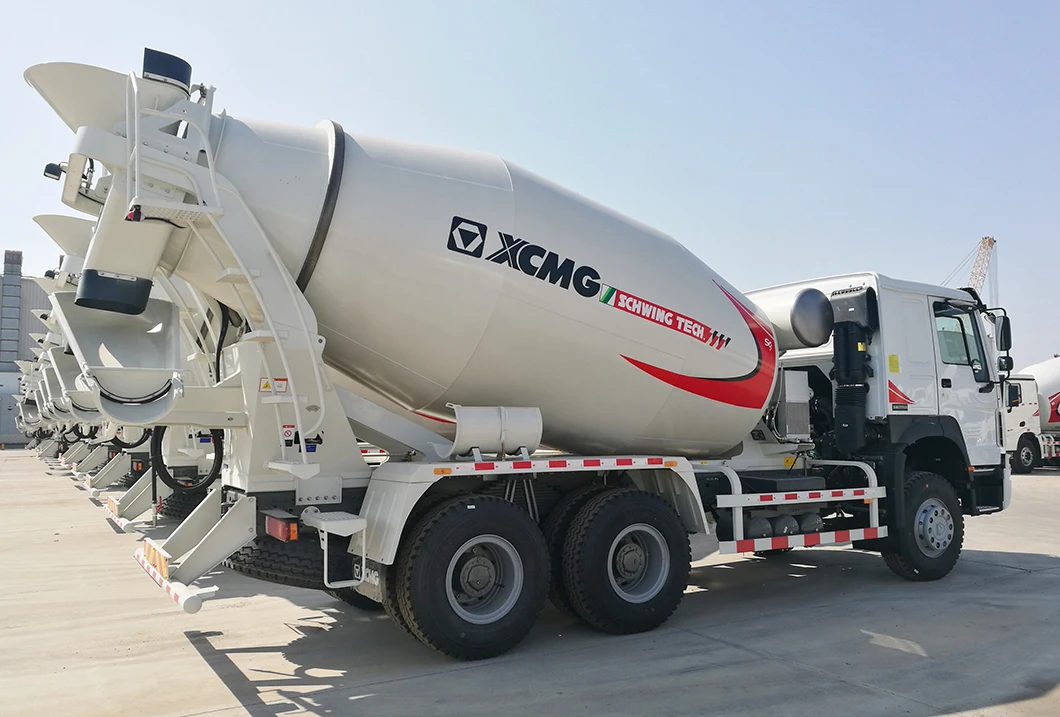

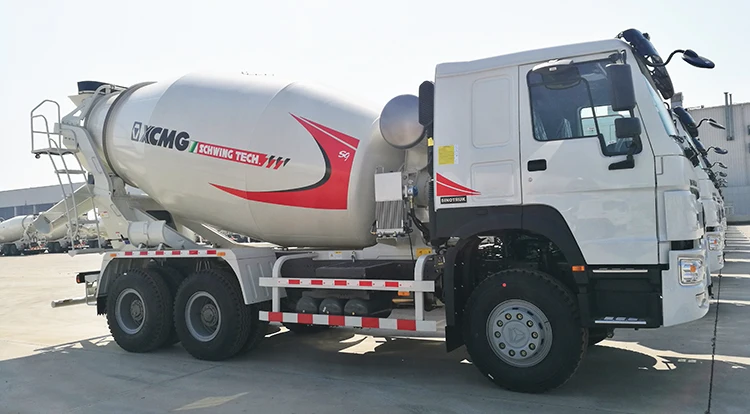

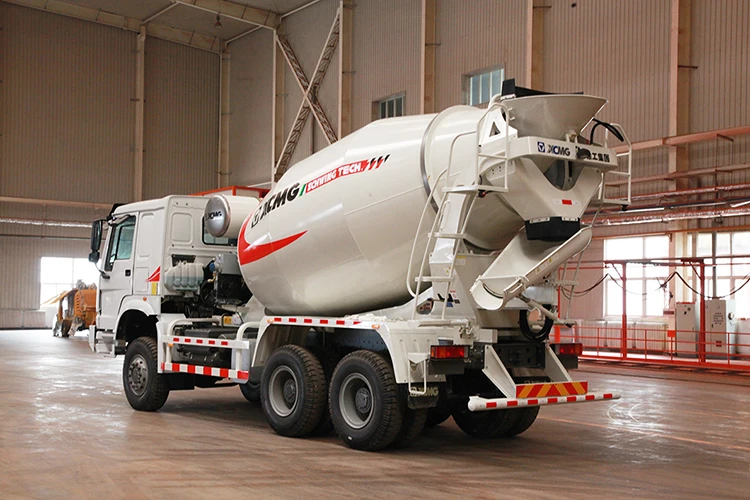

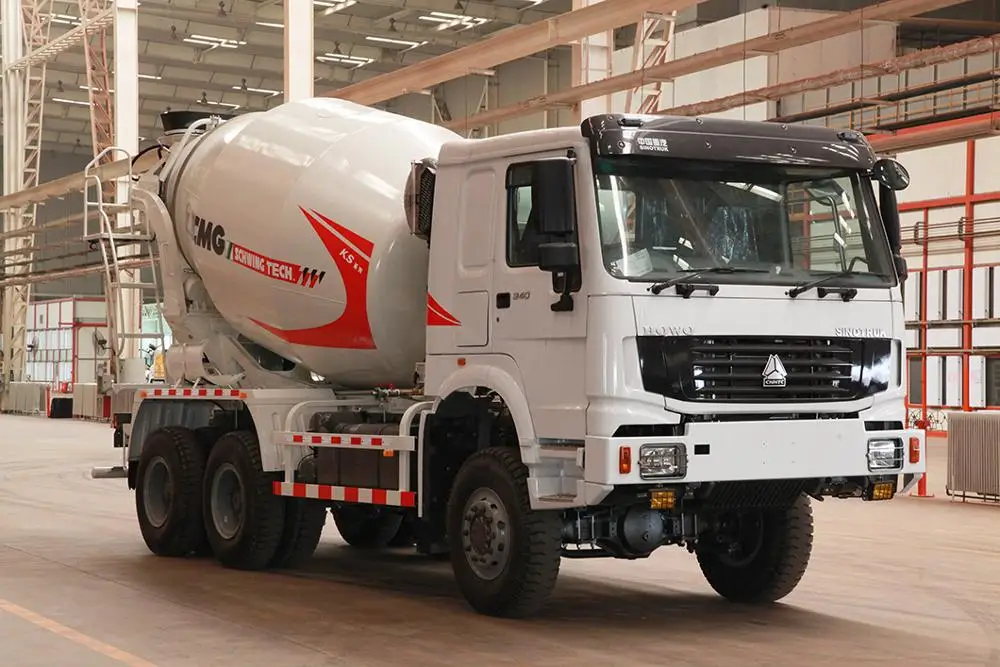

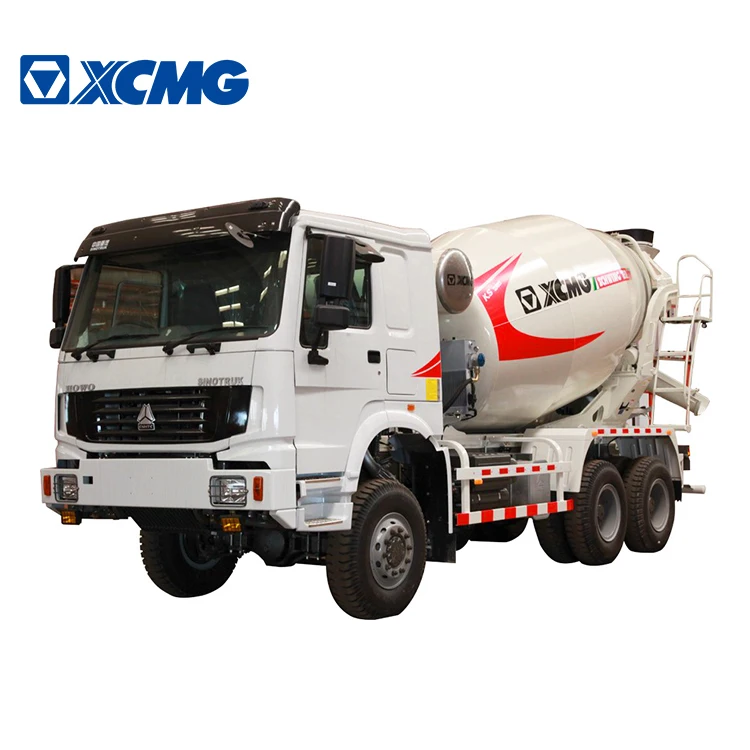

XCMG official 8CBM small diesel concrete mixers G08K

* On the basis of in-depth and integrative research on theindustry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.

* Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused bynonuniform concrete.

* Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam, rear base and accessory beam adopt integration design.

* Hydraulic pump, motor and speed reducer of such world-famous brands as ZF, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.

Product Paramenters

Catagory	Item	Unit	Parameter
Overall Parameter	Model		G08K
		Curb weight	kg	14000
		Max.total weight	kg	25000
		Outline dimension (L×W×H)	mm	8935×2500×3890
Chassis	Chassis brand		Sinotruk
		Chassis model		ZZ1257N3641W
		Steering position		LHD
		Driving type		6×4
		Wheel base	mm	3625+1350
		Tire		10.00R20
		Power take-off		Flywheel
Engine	Model		WD615.69
		Max.power	kW	247
		Displacement	L	9.726
		Emission standard		Euro II
Drum system	Geometric volume	m³	13.6
		Agitating volume	m³	8
		Max.diameter of drum	mm	2280
		Mixing drum length	mm	4795
		Slanting angle	°	15
		Rotating speed	r/min	0~14
		Feeding speed	m³/min	≥3
		Discharge speed	m³/min	≥2
		Discharge residual rate	%	< 0.4
		Slump scope	mm	50~210
