Кабель 3 метра белая внешняя морская Антенна GPS-передатчика


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.53 $* 0.65 $*
Aug-17-2025 0.1 $* 0.93 $*
Jul-17-2025 0.41 $* 0.51 $*
Jun-17-2025 0.40 $* 0.99 $*
May-17-2025 0.0 $* 0.95 $*
Apr-17-2025 0.74 $* 0.36 $*
Mar-17-2025 0.29 $* 0.3 $*
Feb-17-2025 0.18 $* 0.51 $*
Jan-17-2025 0.49 $* 0.40 $*

Характеристики



Specification


Dielectric antenna specification
SPECIFICATIONS
Center frequency
1575MHz+/-5 MHz
V. S. W. R
<1.5
Band width
CF±5MHz
Impendence
50 ohm
Gain
≥28DB
Polarization
RHCP
Lna specification
3V-5V
Lna gain (without cable)
42±2dB
Filter Insertion Loss
<3dB
Noise figure
<1.3
Current Consumption
18~35mA
Dc voltage
3~5V DC

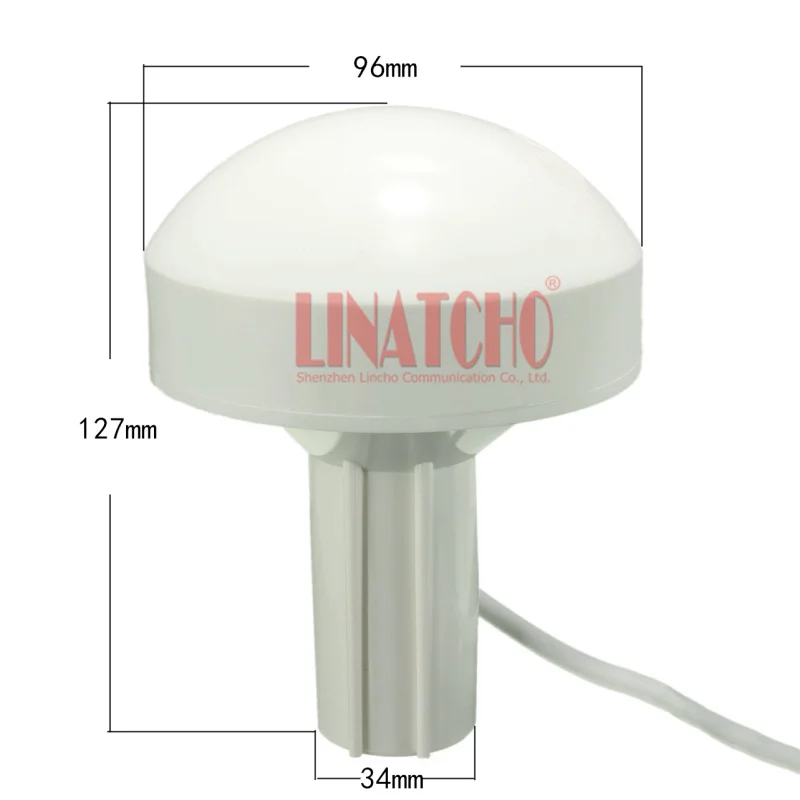

Mechanical specification
Weight
335g
Cable
SYV-50-3
Cable Length
3 meters (can be customized)
Connector
BNC male
Mounting base
screw thread connection ( G3/4 )
Environmental specification
Working temp
-40~+60
Storage temp
-50~+85
Vibration sine sweep
1g(0-p)10~50~10hz each axis
Humidity
95%~100%rh
Weatherproof
100%


Products Description


GPS antenna with BNC Plug connector compatibility:
Abarten: GPS Chart Navigator 951XW;
Furuno: GN-80 GPS Receiver AU-12-5B;
Garmin: GPS 100, GPS 100AVD, GPS 100STD, GPS 120, GPS 120XL, GPS 125 Sounder, GPS 128, GPS 15, GPS 152, GPS 45, GPS45XL, GPS 48
GPSMAP 225, GPS 50, GPS 65, GPS 75, GPS 89, GPS 90, GPS92, GPS 95XL, GPS II MAP 205, GPS II Plus, GPS III, GPS III Pilot, GPSIII
Plus, GPS V, GPSCOM 170, GPSMAP 130, GPSMAP 135 Sounder, GPSMAP152, GPSMAP 162, GPSMAP 168 Sounder, GPSMAP 172, GPSMAP 172C,
GPSMAP176, GPSMAP 176C, GPSMAP 178, GPSMAP 178C, GPSMAP 178C Sounder, GPSMAP 180, GPSMAP 182, GPSMAP 182C, GPSMAP 185 Sounder,
GPSMAP 188, GPSMAP 188C, GPSMAP 192C, GPSMAP 196, GPSMAP 198C Sounder, GPSMAP 200, GPSMAP 2006C, GPSMAP 205, GPSMAP 210, GPSMAP
215, GPSMAP 220, GPSMAP 230, GPSMAP 232, GPSMAP 235 Sounder, GPSMAP 238 Sounder, GPSMAP 276C, GPSMAP 292, GPSMAP 295, GPSMAP 296,
GPSMAP 298C Sounder,GPSMAP 376C, GPSMAP 378, GPSMAP 396, GPSMAP 478, GPSMAP 492, GPSMAP 496, GPSMAP 498C Sounder, NavTalk Pilot,
StreetPilot ColorMap, StreetPilot III GPS;
NorthStar: GP-270ML High Resolution Graphic Receiver, GP-360ML High Resolution Graphic Receiver, GPS Chart Navigator951XD, GPS
Chart Navigator 951XWD, iCOM, Active GPS Antenna AN145,Active GPS Antenna AN150, Chartplotter 925, Gold Chartplotter 6000i, GPS
Antenna AN150, GPS Chart Navigator 951, GPS Chart Navigator 951X XD, GPS Chart Navigator 952X XD, GPS Chart Navigator 961, GPS
ChartNavigator 962, GPS Navigator 941X XD XW, Platinum Chartplotter 6100i;
Raven Industries: Invicta GPS Receiver, Low Profile GPS Antenna;
San Jose Navigation: AIS Transceiver AIS-2;,
Synergy Systems: AR-10K GPS Antenna BNC, AR-10S GPS BNC Antenna, ART-10K GPS BNC Antenna 10001678, DB-9 GPS Sensors, DB9GPS
Sensors, SynPaQ E-M12+T, SynPaQ E-SS12, SynPaQ IE-M12+ DB9 GPSSensors, SynPaQ IE-m12= EN-3 GPS Sensors, SynPaQ III-M12+ GPS
Sensors, SynPaQ III-M12+ T GPS, SynPaQ III-QA GPS Sensors.

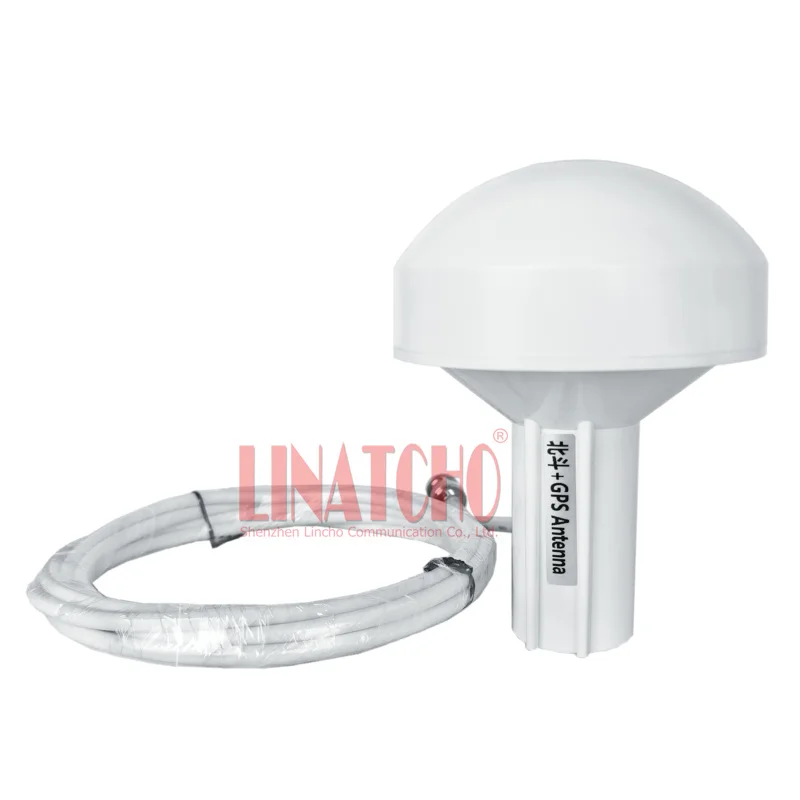

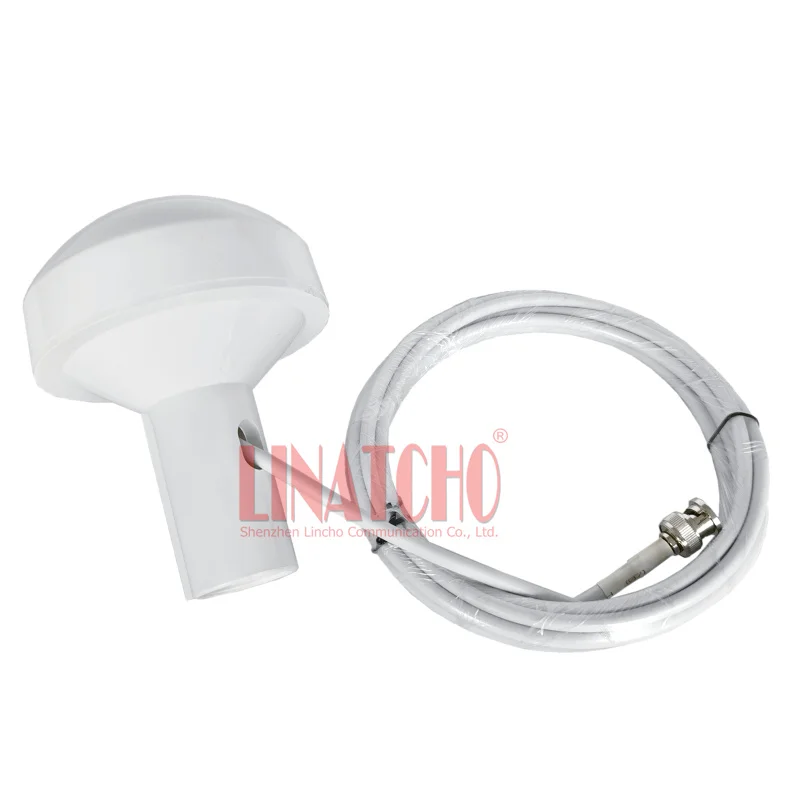

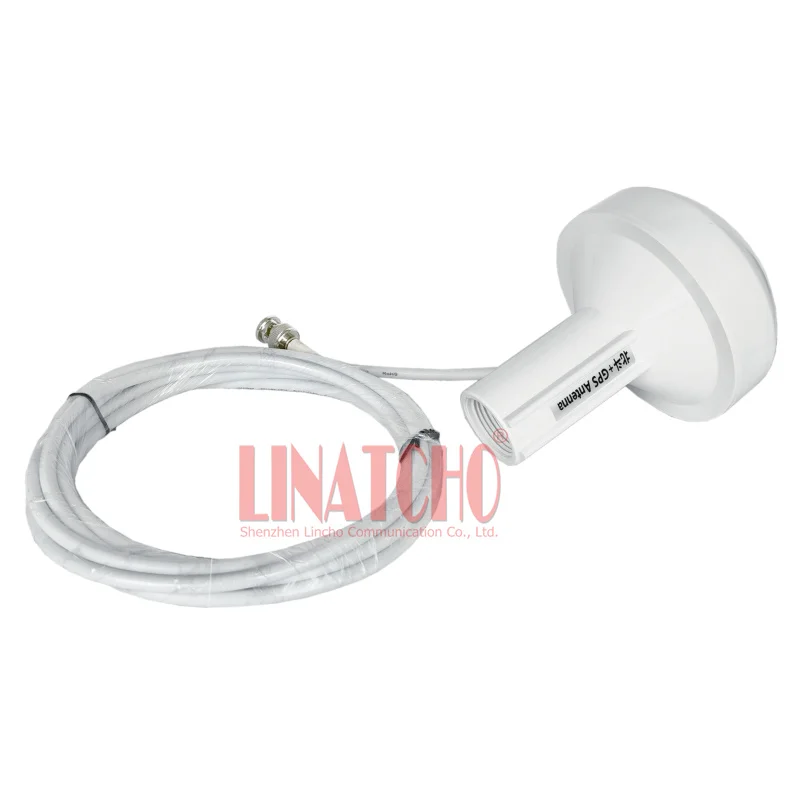

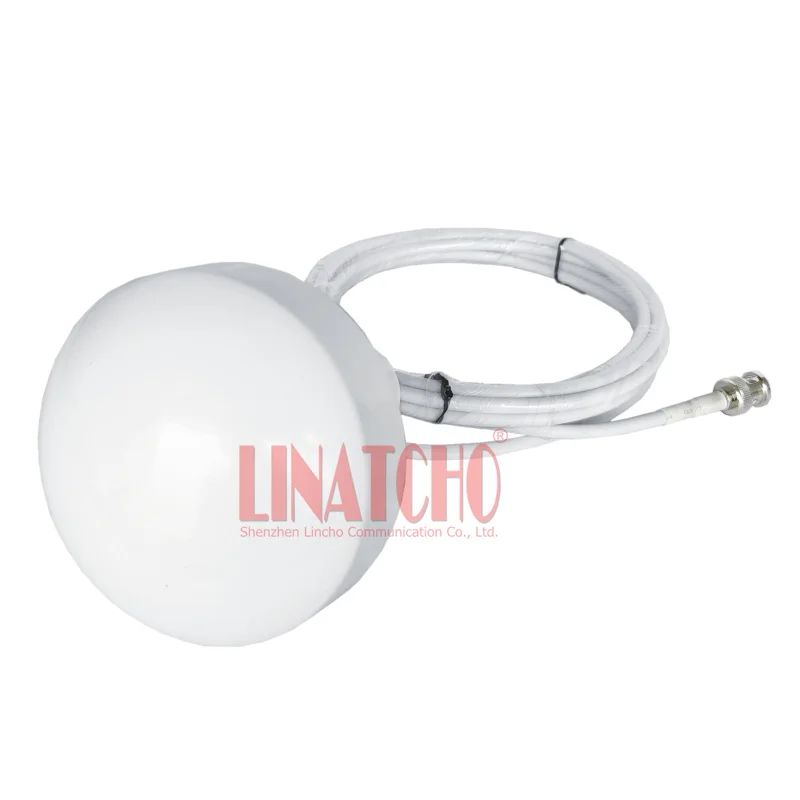

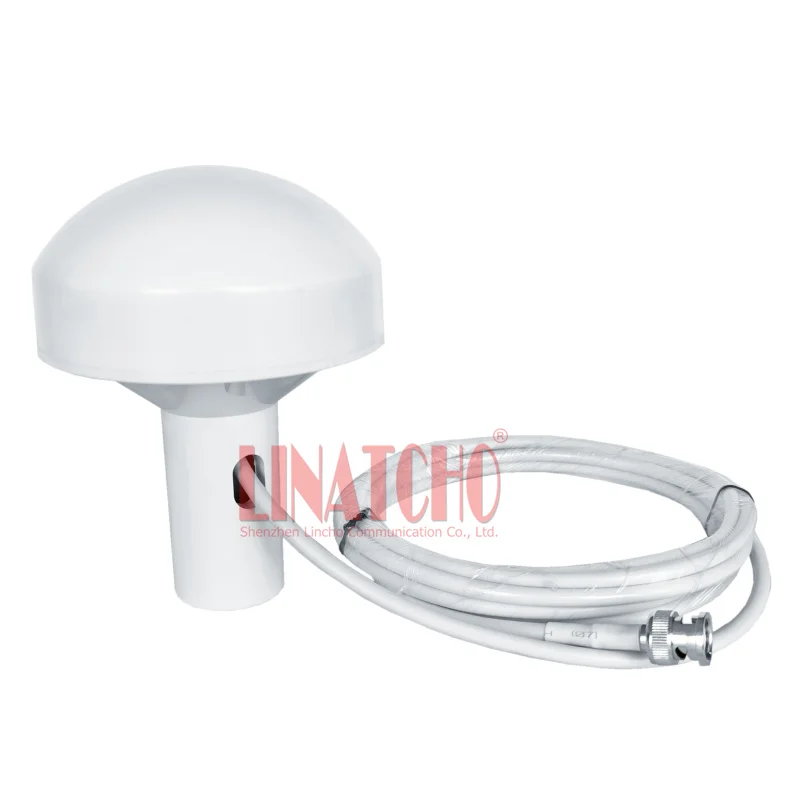

Details Images




Packing & Delivery




1.PACKAGE: Natural carton package or OEM service.
2.LEADTIME: 3-5days for samples, order depand on the quantity.
3.SHIPPING METHOD: DHL, EMS, UPS etc as you want
4.RETURN and WARRANTY: 100% QC inspection before shipment. Accept exchange within 7 working days after you received. Pls contact us before you return. Our service representitive will help you.
5.MINIMUM ORDER: 2 pcs, Sample order and trial order are welcome.
