Introduction:
26/35kV, 48/66kV, 64/110kV, 76/132kV, 127/220kV, 290/500kV



Model No.: YJJJI, YJJTI







Test Standard:



IEC60502, IEC60840, IEC62067



Each product will carry out the delivery test in high-voltage lab of the company.



a. Partial discharge test                      b. Voltage withstand test

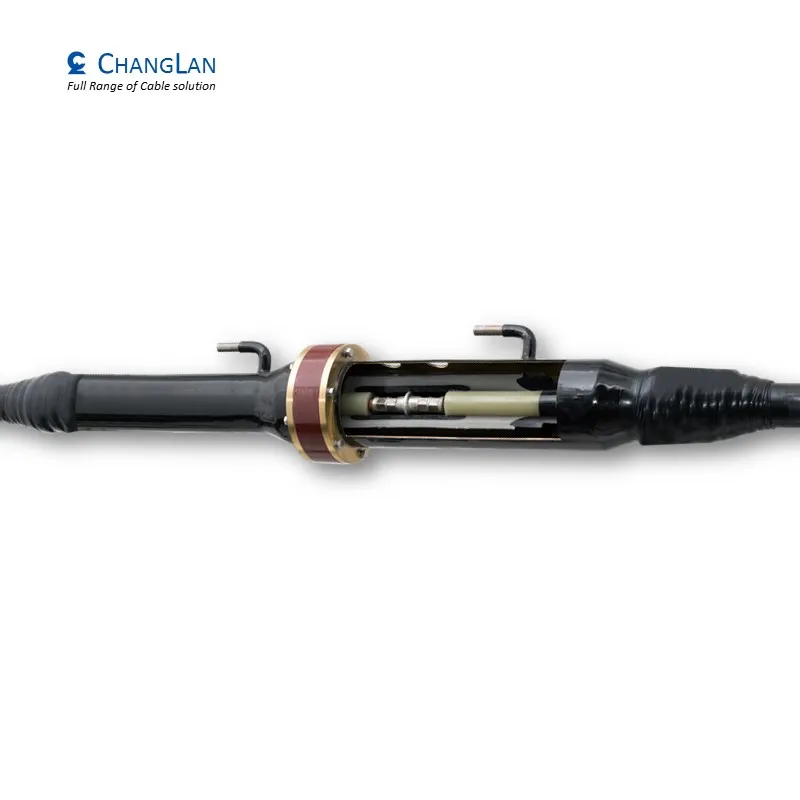

The product is XLPE cable straight joint and insulated joint. The shell is made of high-strength copper and cast EICR-8016 waterproof insulation resin into the shell. We can also provide reinforced glass fiber steel outer shell as an optional and cast CL-8010 waterproof insulation resin. I has the advantages of good mechanical protective, good seal property and compact structure and small volume.



The Main Feature:
The joint has compact structure, easy to installation. Long creeping distance for rubber installation unit.



Outer protective shell adopts the structure of high-strength protective shell and waterproof insulation sealing. I has advantages of good mechanical protective, good sealing property and good anti-corrosion to ensure the termination can be run safely on the bad weather condition.



The joints are factory moulded and factory tested, providing maxium reliability. Factory moulding ensures a level of insulation and shielding system integrity.



Good anti-explosion property.





Rated voltage applicable cable dimension



Rated Voltage	Cable Section
35kV	25-800mm2
66kV	185-1600mm2
110kV	185-1600mm2
138kV	185-1600mm2
220kV	240-2500mm2







When ordering, please state the following data:

1). Voltage

2). Conductor material copper or aluminum

3). Conductor cross section diameter

4). Diameter of insulation

5). Outer diameter of cable



Quality warranty & after sales service:

1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;

2. 2-year warranty;

3. Can provide service of installation or training your installation workers.

4. Service Life: 30 years
