Twintex PCL6000-20 Remote Sense Auto CC CV Low Ripple Adjustable Voltage 0-20V High Current 6kW 300 amp DC Power Supply

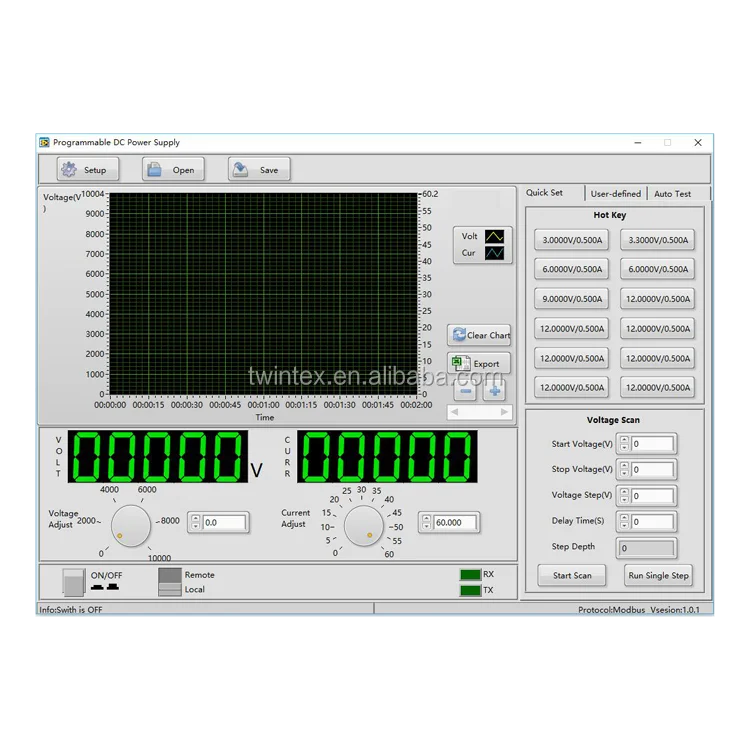

Free PC Software
Multiple remote control and sampling functions, such as: voltage & current setup, voltage & current feedback.
Support data recording, export data to EXCEL, List mode function, voltage scan function, auto run function.

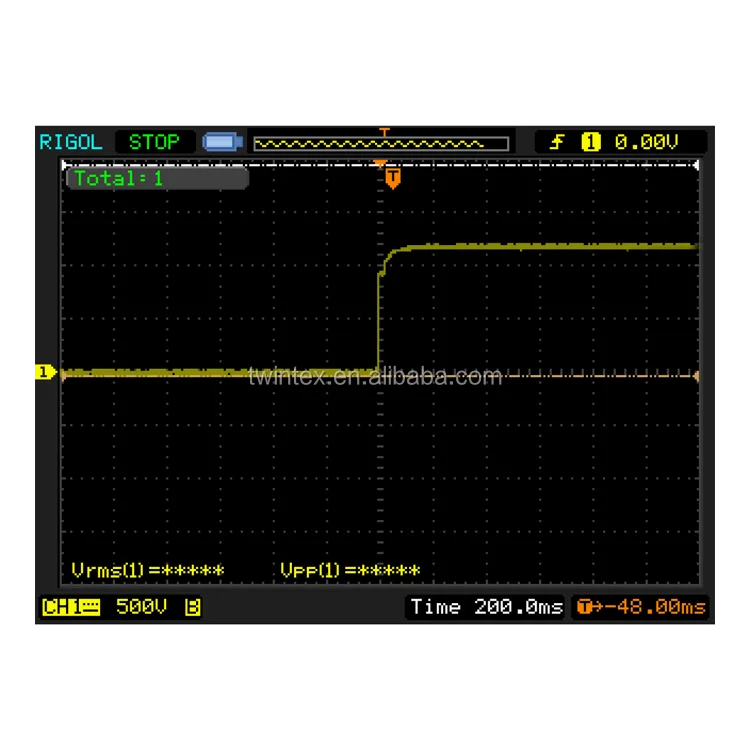

No overshoot during startup



Introduction
The PCL series are high power output Switching DC power supply with rated power of 600W, 1200W, 2400W, 3000W and 6000W. The PCL series adopts ZVZCS PWM technology, which greatly reduces switching consumption and therefore facilitates switching function with high efficiency and high stability.
The PCL series are built into a 2U 19-inch standard chassis. The maximum rated voltage is from 6V to 600V and the maximum rated current is from 2A to 200A. RS232, RS485 and RS422 communication interfaces are made as standard part for PCL series, providing multiple communication choices for digital control.



Features
Adopting ZVZCS PWM technology, high efficiency and high stability
4 1/2 digits LED display for voltage and current
Max.rated output 600W, 1200W, 2400W, 3000W and 6000W
Max.rated voltage from 6V to 600V, max.rated current from 2A to 300A
Constant voltage and constant current operations, auto CV/CC switch

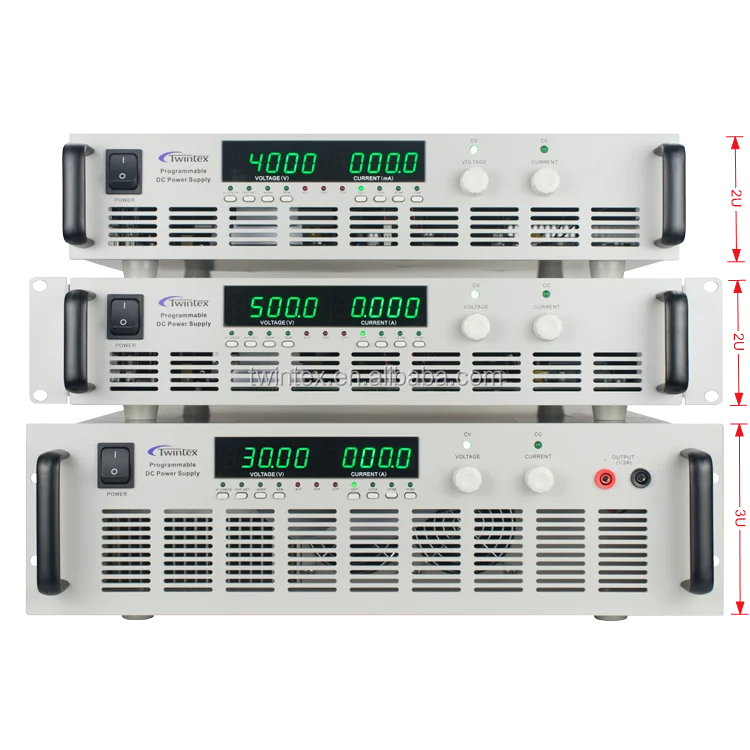

Built into 19-inch standard chassis, 2U chassis for 600W, 1200W, 2400W, 3000W and 3U chassis for 6000W
Thermostatic control fan, low noise
Low ripple, high stability
No overshoot during startup
List mode function, Auto Run function
Remote sense function
Front panel operation: preset voltage and current, output ON/OFF
Multiple protections: OVP, OTP, UVP and current limit protections
Multiple programming interfaces: RS232, RS485 and RS422
Support ModBus-RTU commands



Specifications

Model		PCL6000-20	PCL6000-30	PCL6000-40	PCL6000-60	PCL6000-1H	PCL6000-150
Output
Rated output	Voltage	0~20V	0~30V	0~40V	0~60V	0~100V	0~150V
	Current	0~300A	0~200A	0~150A	0~100A	0~60A	0~40A
	OVP	0~21V	0~31.5V	0~42V	0~63V	0~105V	0~157.5V
Load regulation		CV≤0.1%+2LSB, CC≤0.1%+2LSB
Line regulation		CV≤0.1%+2LSB, CC≤0.1%+2LSB
Ripple & Noise		≤100mV	≤100mV	≤100mV	≤100mV	≤100mV	≤200mV
Programming resolution	OVP	0.01V	0.01V	0.01V	0.01V	0.1V	0.1V
	Voltage	0.01V	0.01V	0.01V	0.01V	0.1V	0.1V
	Current	0.1A	0.1A	0.1A	0.1A	0.01A	0.01A
Display resolution	Voltage	0.01V	0.01V	0.01V	0.01V	0.1V	0.1V
	Current	0.1A	0.1A	0.1A	0.1A	0.01A	0.01A
Display accuracy		Voltage≤0.2%+2LSB, Current ≤0.5%+2LSB





Programming
Interface	RS232, RS485 and RS422
Commands	ModBus-RTU
Protection
Over Voltage Protection (O.V.P.)	Built-in OVP protection with limit of 105% rated output voltage. The output will be shut down when OVP is activated.
Over Temperature Protection (O.T.P.)	Built-in OTP protection with heat sink temperature limit of 50℃±5%. The output will be shut down when OTP is activated.
Under Voltage Protection (U.V.P.)	Built-in UVP protection with limit of 165Vac. The output will be shut down when UVP is activated.
General
Cooling method	Cooling fan
Operating environment	0℃~40℃, 10%~80%RH
Storage environment	-20℃~70℃, 10%~90%RH
Power source	Single phase AC220V±10%, 47~63Hz for 600W, 1200W, 2400W and 3000W models Three phase AC380V±10%, 47~63Hz for 6000W models
Weight	11~14kg for 600W, 1200W, 2400W and 3000W models 18~20kg for 6000W models
Dimensions	213W×88H×340D mm for 600W 482Wx88Hx460D mm for 1200W, 2400W and 3000W models 482Wx132Hx535D mm for 6000W models
