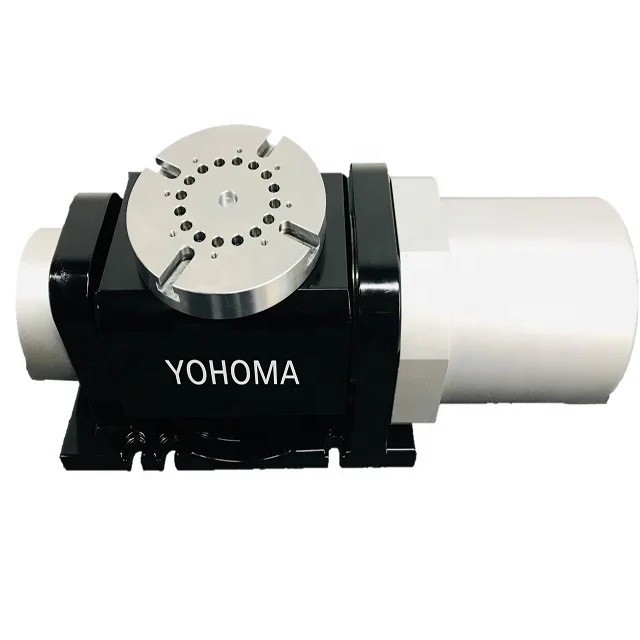

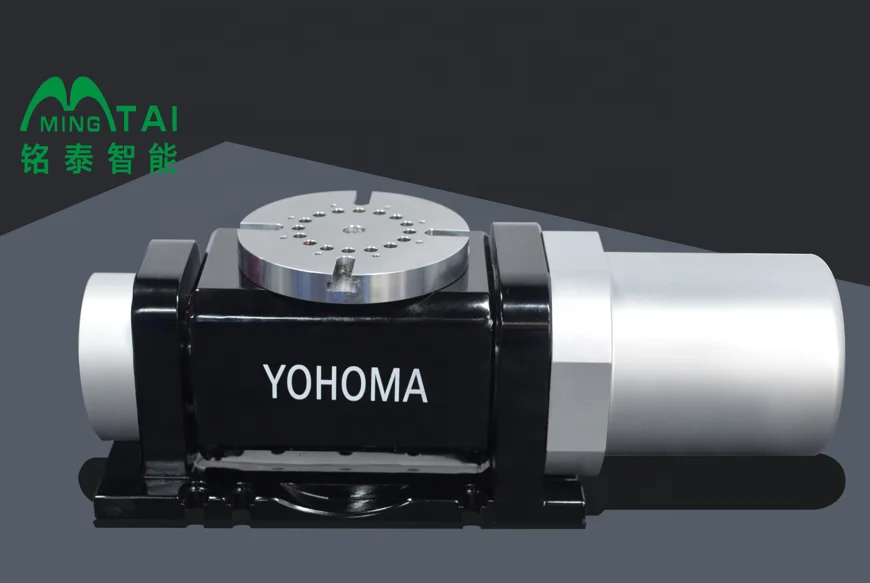

Навсегда 200 мм CNC 5 осьный роторный стол для
- Категория: Стол >>>
- Поставщик: Shenzhen,Forever,Precision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12495.97 $* | 13120.52 $* |
| Aug-16-2025 | 12390.96 $* | 13010.90 $* |
| Jul-16-2025 | 10395.74 $* | 10915.29 $* |
| Jun-16-2025 | 12180.8 $* | 12789.85 $* |
| May-16-2025 | 10605.99 $* | 11135.33 $* |
| Apr-16-2025 | 11970.74 $* | 12569.28 $* |
| Mar-16-2025 | 11865.19 $* | 12458.9 $* |
| Feb-16-2025 | 11760.65 $* | 12348.67 $* |
| Jan-16-2025 | 11655.20 $* | 12238.34 $* |
Характеристики
Product Description
Functional features:
▲ large Japanese high-precision angular contact ball bearing is adopted to support the external load;
▲ adopt the original ultra precision gear transmission structure of Japan;
▲ High torque, precision and rigidity
▲ adopt the original ultra precision gear transmission structure of Japan;
▲ High torque, precision and rigidity

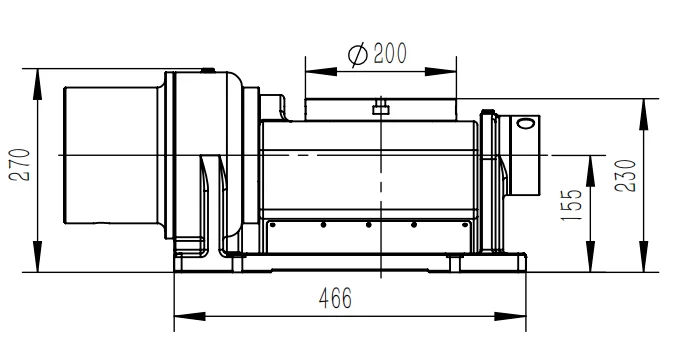

Size Information
Size Chart of This Design
Detailed Images
Specifications/Model | Unit | YHM-120 | ||||
Diameter of turntable disk surface | In the meantime, it is necessary to200 | |||||
Table height | Level | Mm | 231 | |||
Center Height | 90° | Mm | 155 | |||
Total height | Level | Mm | 270 | |||
Diameter of central hole | Mm | 20H7 | ||||
WorkbenchT Groove width | Mm | 12H7 | ||||
Tilt angle | Deg | ±120° | ||||
Turntable end surface runout | Mm | 0.015 | ||||
Parallelism between the disk surface and the base surface of the rotating table | Mm | 0.015 | ||||
The center hole diameter of worktable jumps | Mm | 0.015 | ||||
Axial | - | Rotating axis (B Axis) | Tilt axis (A Axis) | |||
Minimum Setting Unit | Deg | 0.001 | 0.001 | |||
Indexing accuracy | Sec | 23" | 23 " | |||
Repeated positioning accuracy | Sec | 5" | 5" | |||
Output load torque | Optional motor (General) | - | 400w | 750w/1KW | ||
Continuous/Maximum torque | N | 153/882 | 153/882 | |||
Total reduction ratio | - | 1:121 | 1:121 | |||
Maximum speed of rotary table | Motor speed 3000 turn | r.p.n | 25 | 25 | ||
Maximum workload | 0° Horizontal time | kg | 80 | |||
0°~90° Tilting time | kg | 40 | ||||
Turntable weigh | kg | 80 | ||||
