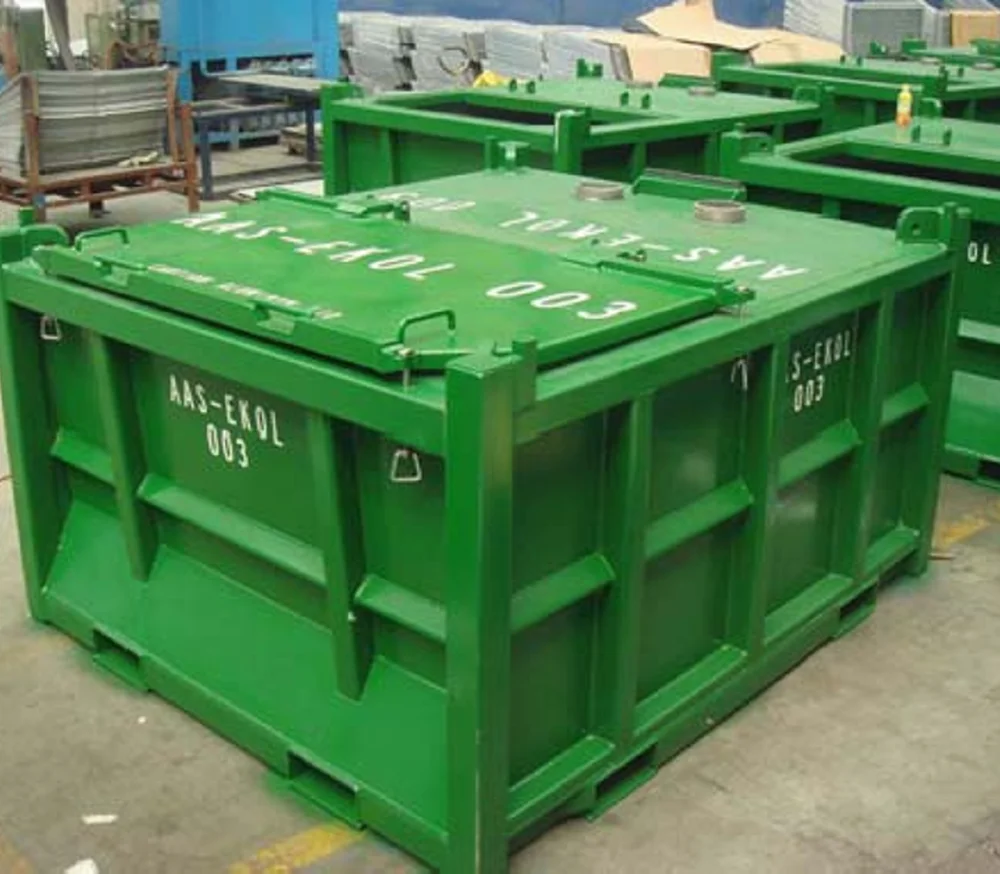

DNV 2 7-1 5 футов/8 футов/10 футов контейнер для буровых отходов резки на открытом

SPECIFICATIONS
Dimensions MM FT – IN
ExternalLength 2991 10’

Width 2438 8’

Height 2591 8’ 6“
Internal
Length 2825 9’ – 3 11/32”
Width 2348 7’ – 8 19/32”
Height 2260
Fork Pocket Height 96 3-25/32”
Inside Cubic Capacity
CU.M CU.FT
KG LBS
Maximum Gross Weight 10000
Tare Weight (nominal)  2010
Maximum Payload 7990
SPECIAL FEATURES
1. Material: JIS SPA-H/16Mn:JIS SPA-H/16Mn
2. Surface treatment: painted, with high anti-corrosion performance & compliant with
environment protect trend
3. This Container Complies With DNV2.7-1 and EN12079-2006 Standard
4. Design Temperature:-40℃/-20℃

 The containers specified herein are manufactured under sufficient quality control, which will be
approved by one of following authorized classification societies:
A.B.S.: American Bureau of Shipping (U.S.A.)
B. V.: Bureau Veritas (France)
G. L.: Germanischer LIoyd (Germany)
C.C.S.: China Classification Society (P.R.C.)
K. R.: Korean of Shipping (Korea)
L. R.: Lloyd’s Register (Britain)

CIMIC Containers businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as thebusinesses of modular buildings and floor. Its annual production capacity of dry cargocontainer exceeds 2.4 million TEUs and the annual production capacity of refrigerated

1.  Classification societies

 A.B.S      American Bureau of Shipping (U.S.A.)

B.V  Bureau Veritas (France)

G.L   Germanischer LIoyd (Germany)

C.C.S  China Classification Society (P.R.C.)

K.R    Korean of Shipping (Korea)

L.R    Lloyd’s Register (Britain)

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.

7. Contact information

Email : artest_zhang2004 (@)aliyun.com or 313365674 (@)qq.com

Mobile phone: 008613920482102

Whatsapp: 008613920482102

Skype: 008613920482102
