Отрезной станок
Лидер продаж станок для резки стали 3 кВт 2 с базовой пластиной 12

Лидер продаж станок для резки стали 3 кВт 2 с базовой пластиной 12

Категория: Отрезной станок >>>
Поставщик: Ningbo,Kezhuwang,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.21 $*	0.54 $*
Aug-16-2025	0.19 $*	0.87 $*
Jul-16-2025	0.3 $*	0.4 $*
Jun-16-2025	0.68 $*	0.7 $*
May-16-2025	0.40 $*	0.19 $*
Apr-16-2025	0.80 $*	0.37 $*
Mar-16-2025	0.9 $*	0.46 $*
Feb-16-2025	0.22 $*	0.15 $*
Jan-16-2025	0.20 $*	0.80 $*

Характеристики

Product Description

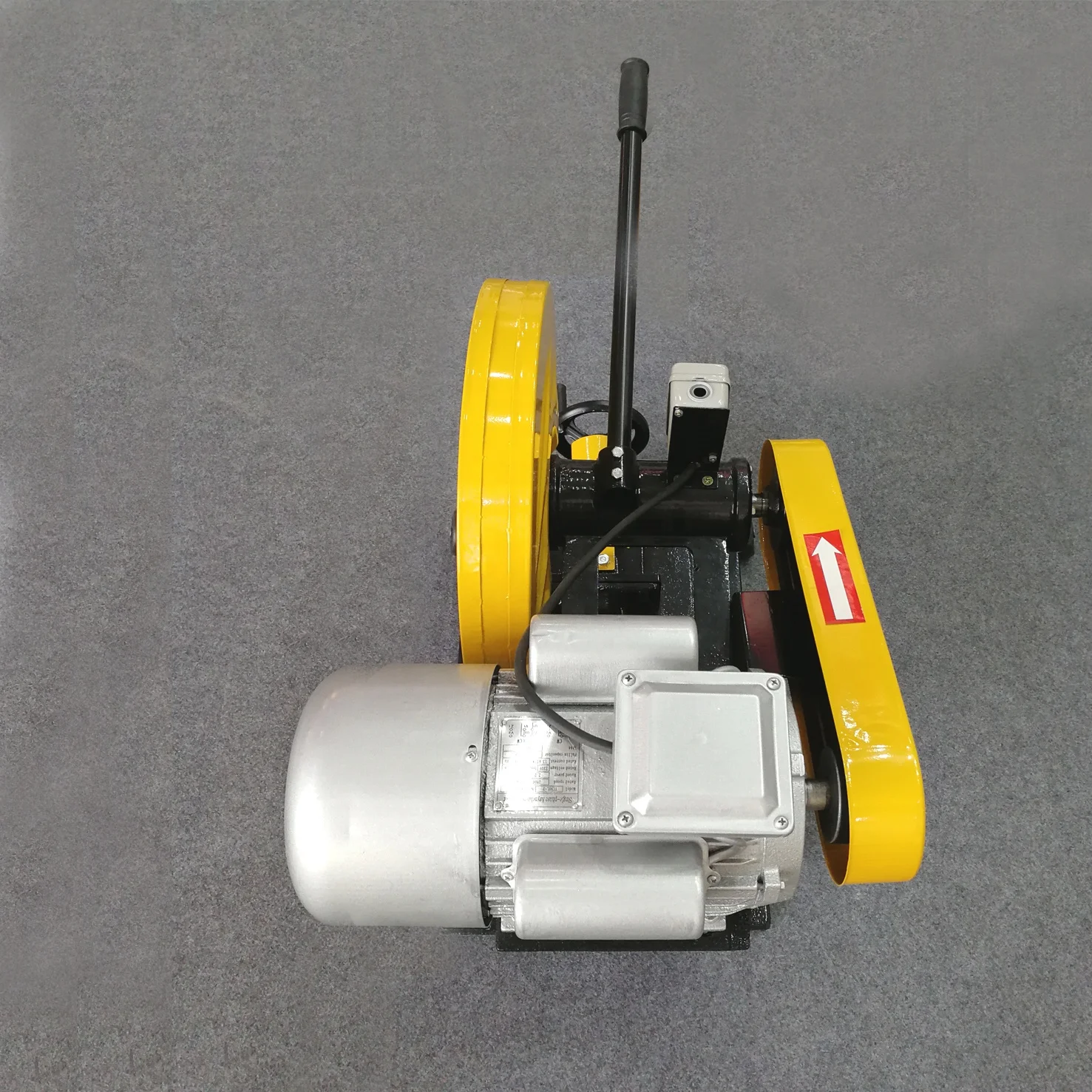

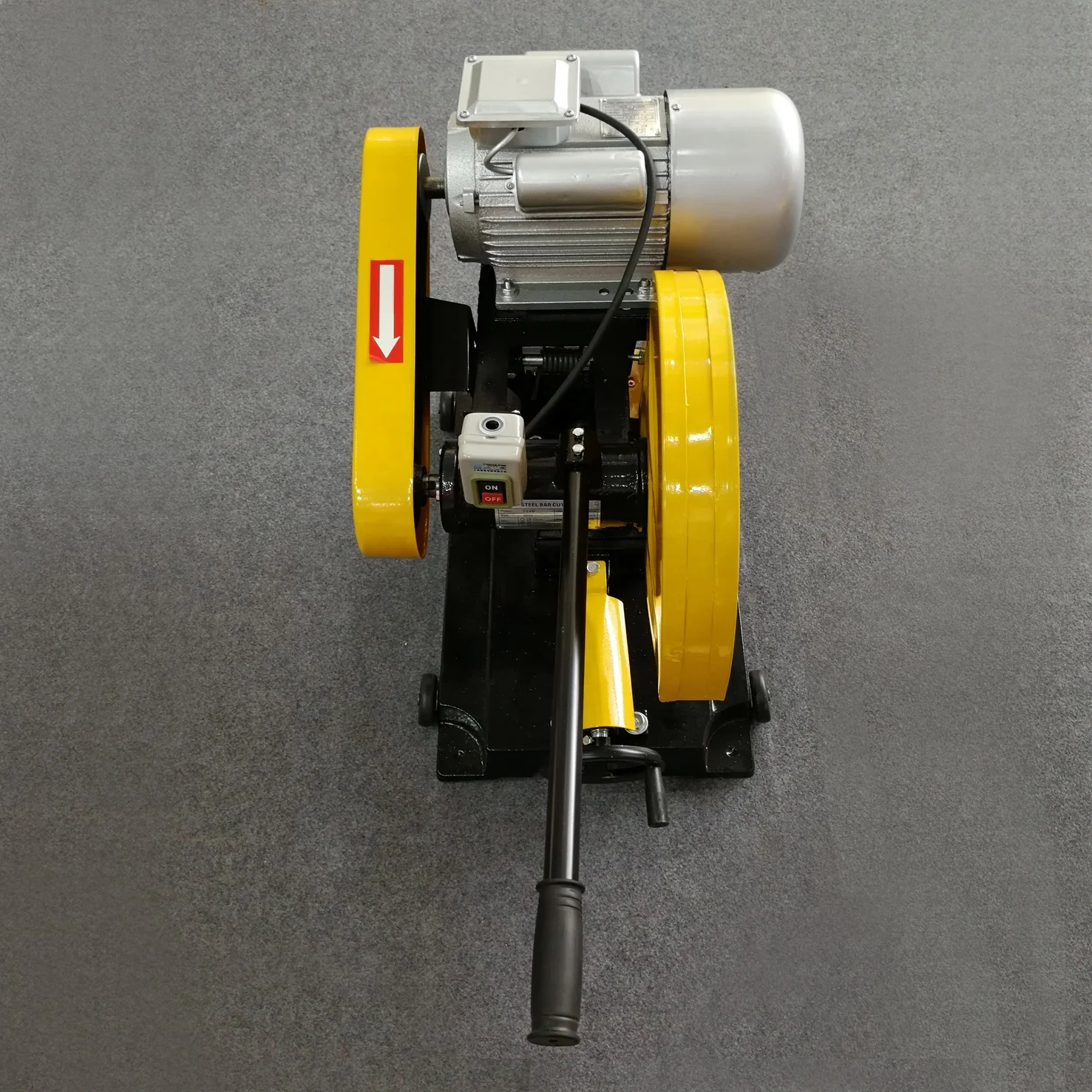

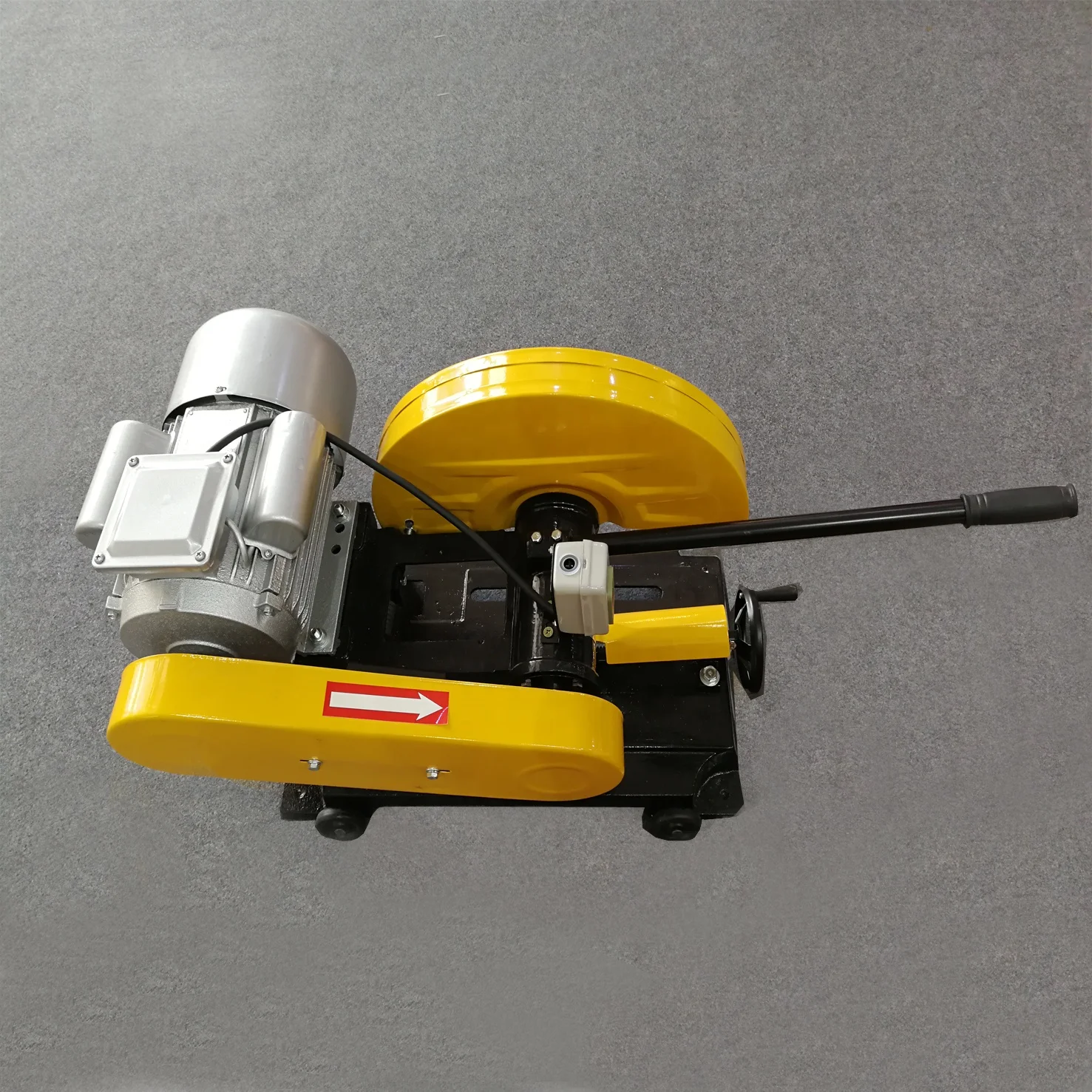

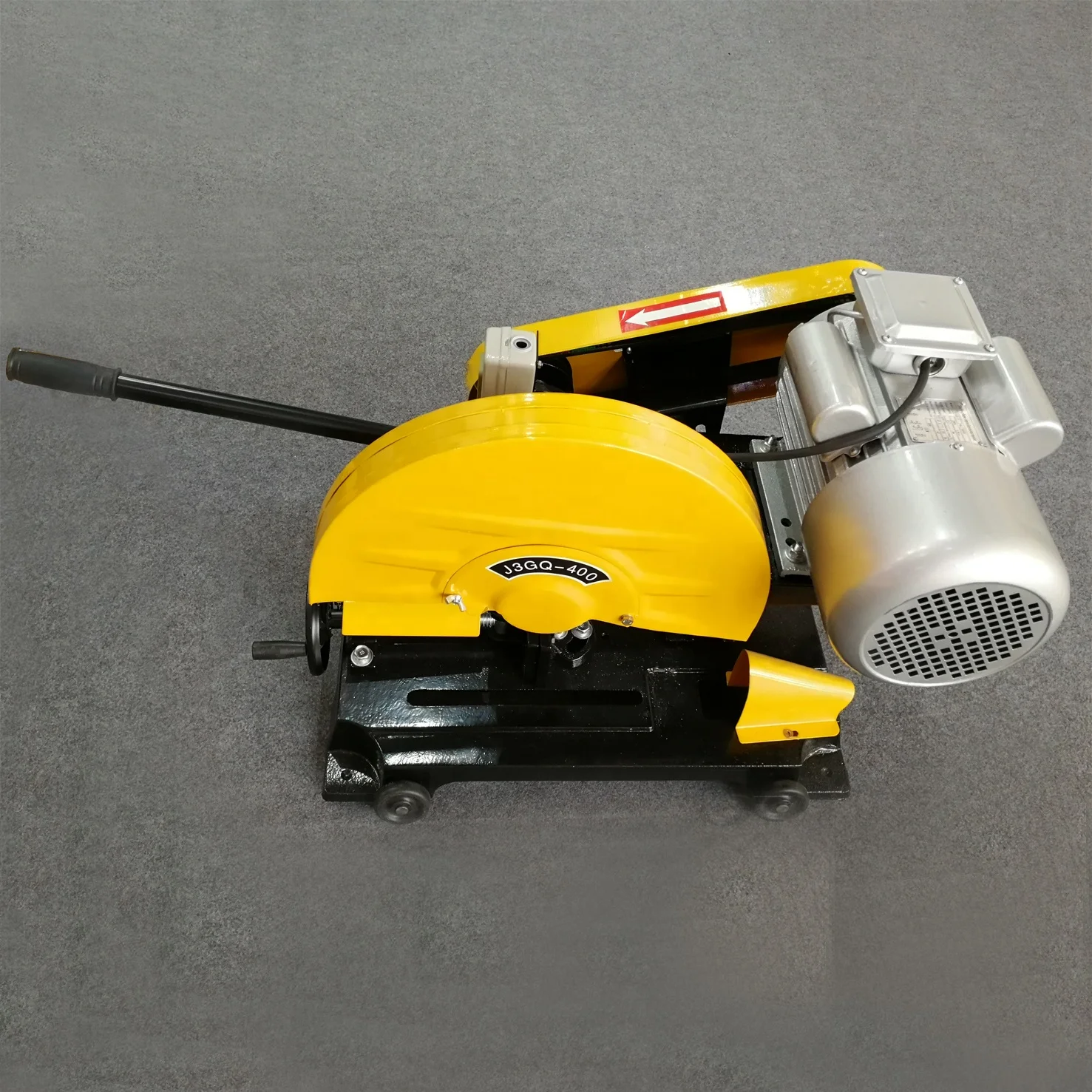

cut off machine

the J3GQ serials steel bar cutting can be driven by three phase or single phase motor.suitable to cut steel or aluminum stuff .the angle of clamp can be adusted in the scope of 45",this kinds of products are our patent products this machine can be used for cutting steel bar,channel steel,round steel tube,angle steel etc.

9kg/12kg/14kg base plate is optional

model	J3G2	J3G3	J1G2	J1G3
voltage(v)	380	380	220	220V
current(A)	5.8	7.9	10.0	13.67
power(kw)	2.2kw/3.0hp	3kw/4.0hp	2.2kw/3.0hp	3kw/4.0hp
fiber reinforced grinding wheel	Φ400332
rotary speed of motor	2840rpm
rotate angle of clamp	0 15" 45"
steel pipe(mm)	Φ135*6
steel cut off machine cutting ability
model	J3G2	J3G3	J1G2	J1G3
steel bar(mm)	40	50	40	50
angle steel(mm)	100*10	100*10	100*10	100*10
chanel stel(mm)	120*53	120*53	120*53	120*53
steel tube(mm)	100*10	100*10	100*10	100*10
angle steel(mm)	100*10
circle steel	belowΦ40

This serial products uses the single phase AC series motor as a power, depending on through the transmission system actuation straight-type wheel piece cutting metal tool, has reliable, the labor intensity to be low safely, the production efficiency is high, cut-off surface smooth smooth and so on merits, is suitable in exchanging 50/60Hz, rated voltage 220V/380V. Widely uses in moldings and so on circular steel pipe, shaped pipe, cast iron pipe, round steel, channel steel, angle steel, flat steel carrying on the cutting processing.
