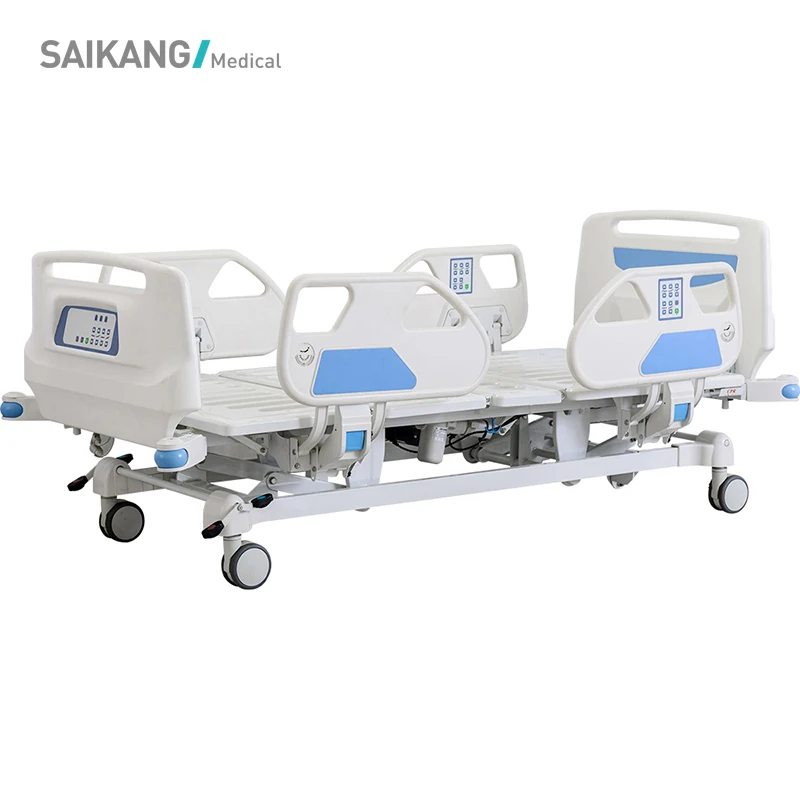

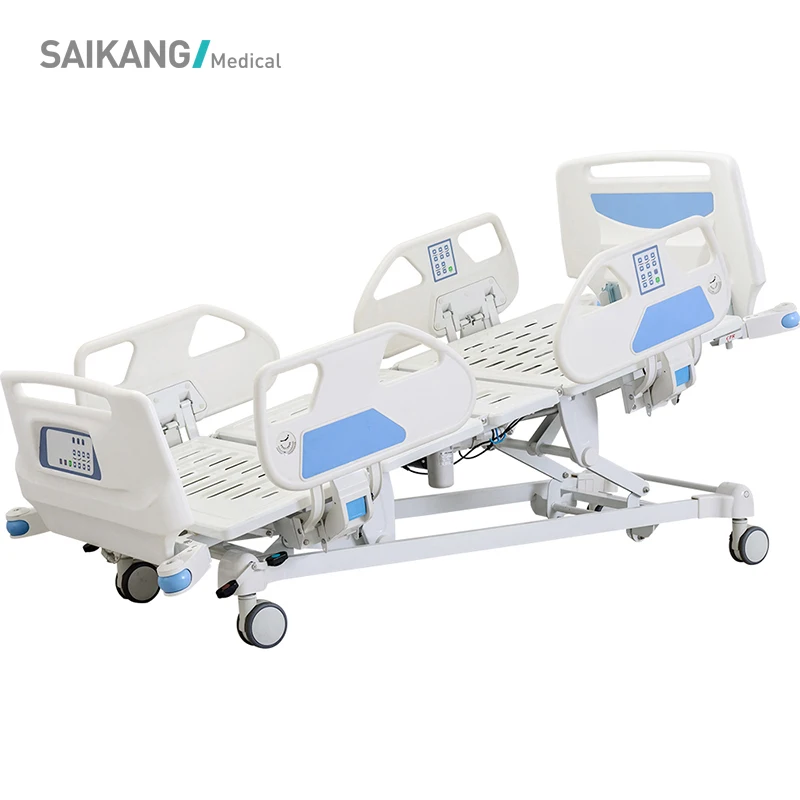

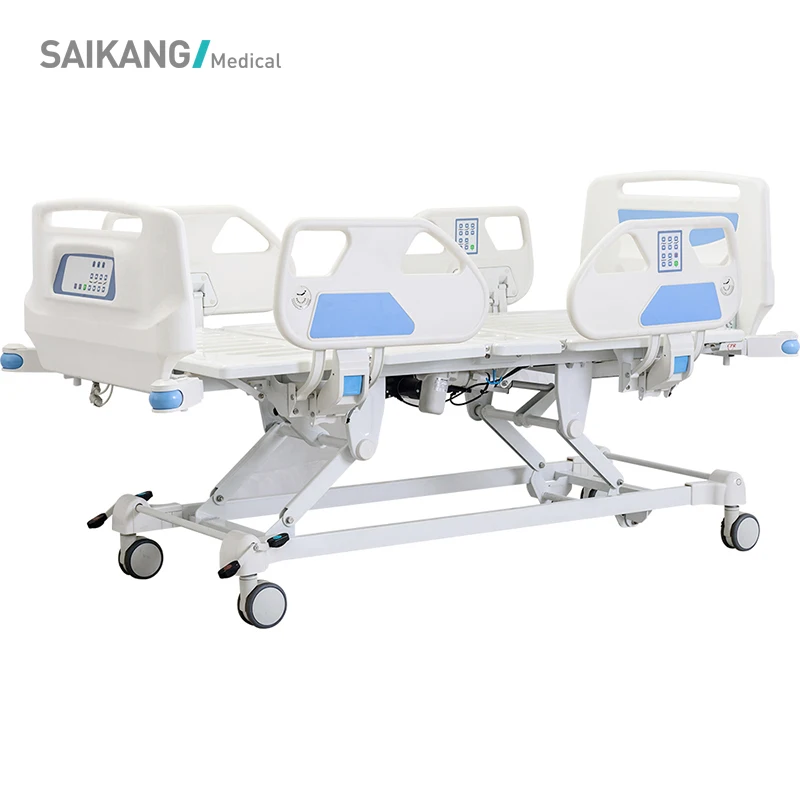

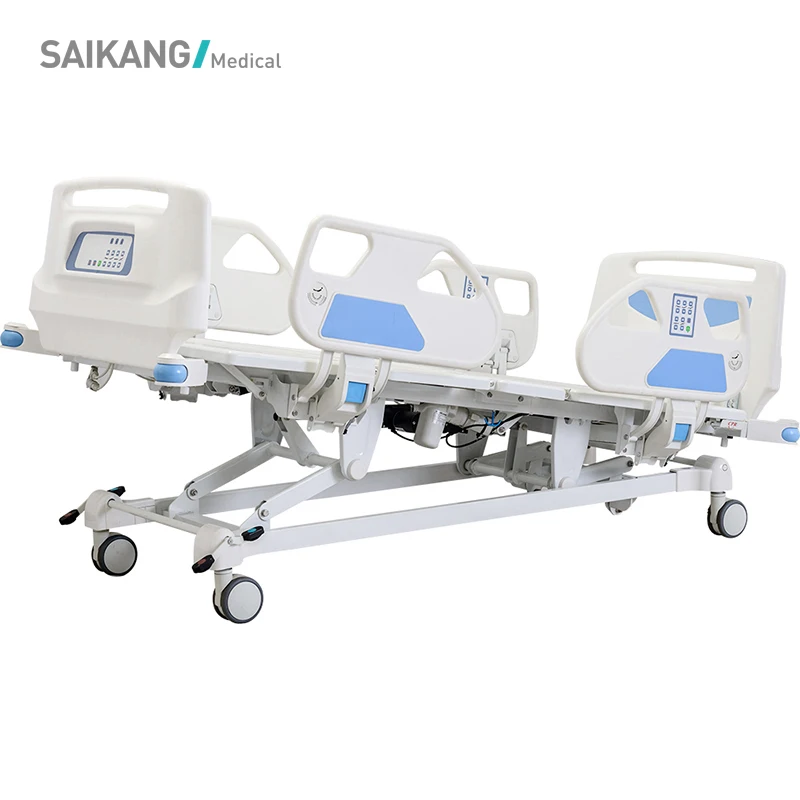

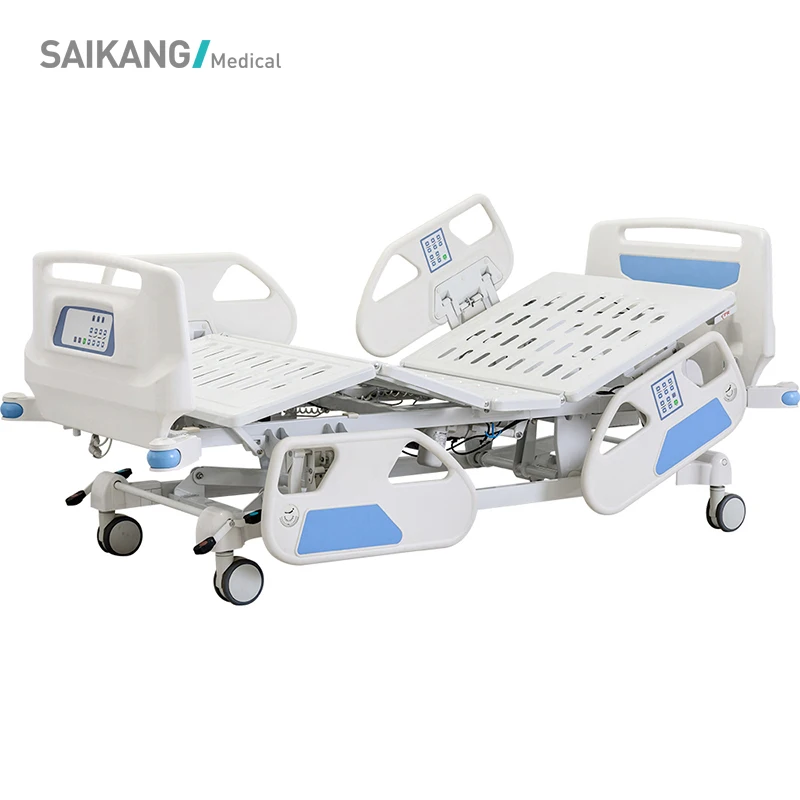

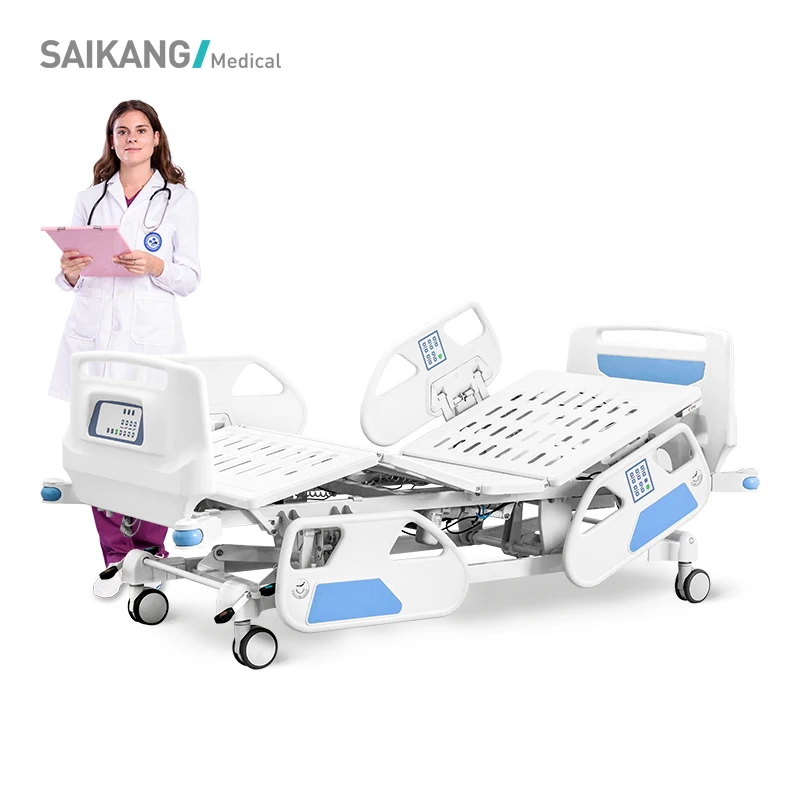

C8e Modern Hospital Sick Room Beds With Guard Rails

Important Quality Control
* E-shaped large guardrail, with angled display and built-in controller, meets safety standards, providing conforting feeling for patients
* Baosteel from Fortune Global 500
* Environmental plastic can be sterilized in 100°C,tensile upto 30MPa
* Solid bed base made of 5.0mm stamped rotating plate
* Break spring keep qualified after 10,000times uninteruped break
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* Panasonic Robotic ensure
* 360° full smooth wedlding
* IEC60601 Safty Standard
* American motor, with UL/ROHS/EN standard. Noise under 50dB, with lifetime 20,000times movement.



Functions
* 5 Functions
* CPR- quick release back part
* One button stop, prevent the maloperation
* One button trendelenburg, release Abdominal pressure and prevent shock
* Nurse lock funtion, one button flat. Hook type optional



Accessories Details
* Stamping forming platform, smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform
* Full ABS material,tuck away side rail with built-in controller.
* From top of the guardrail to bed surface is about 345mm, more height provides better protection for patient.
* Buttom can endure 100,000times press, buffer, built-in angle indicator
* Full ABS material, with built-in controller, Buttom can endure 100,000times press
* Head and foot board can be reversable
* Patent bumper wheel detachable, max. protect the bed and patient during transportation
* Patent angle indicator
* Secure® castors

* Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time"
* ABS cover on castors joint, prevent the dust or hair stuck in. Easy to clean.
* Plastic drainage hook, movable
* Full SS IV pole, bearing 5kg
* Battery - 18times movement with 100kg bearing, 130times movement without bearing

* Lifting pole - Bearing 765N force!
* Oxygen cylinder rack - adjustable for anysize tank
* Utility basket: big size 600*540*80mm

* Weighing system with memory function, accuracy 0.01kg, Kg and Ib switchable, language switchable

* 4.3inch LCD display, shows moving angle.



Technical Parameters

External L*W*H	2280*1065*(460-750)mm
Mattress Platform	1925*900mm
Safe Working Load	250kg
Back-rest Adjustment	0-75°(±10°)
Knee-rest Adjustment	0-35°(±10°)
Reverse Trendelenburg	0-12°
Trendelenburg	0-12°
Angle Indicator	0-90°



Accessories

Linear Motor	4pcs
6" Double Side Secure®Castors,Central Locking	4pcs
ABS Side Rail Extra Height	1set
ABS Bed Ends with Intergrated LCD Control Panel	1set
Φ85mm Wall Bumper Wheel	4pcs OPTIONAL
Trapeze Socket	2pcs
IV Pole	1set
IV Pole Prevision	4pcs
Drainage Hook	2pcs
Central Locking Pedal	2pcs

About SAIKANG:
SAIKANG MEDICAL is maintaining its position out in front of its competitors in hospital bed manufacture. we frequently introduce products and services with innovative functions and features that enhance the efficacy of the products and increase patient comfort.
Our responsibility:
As a solution-focused company, we strive to have a long positive impact on our community through every aspect of our business. We are directed by our social mission to ensure high standards for health, safety, equal rights policy, and morality. Committed to minimizing our environmental impact, we invest in the growth and development of our people, and we uphold global standards of ethical conduct.
Mission :
We deliver to our mission by being significantly close to our customers, through our solution, commitment to follow long-term customer satisfaction with constant innovation. producing a unique outcome required a strong vision built on solid value shared among 400 team members worldwide.
Quality:
As a responsible firm, we ensure the high and consistent quality of our products, from the purchasing of first materials to the final step of assembly and packaging with inspection in each part of the production.
- From SS bolts and screws to Mild steel ERW rectangular tubes or sheets 1.2-5.0 mm thickness, that meet all the EU, CE. ABS plastic materials wish is fire retardant, eco-friendly with 10 years lifetime.
- Top-end production system and technologies, to ensure that the step of the production is by our policy standard, all processes would be supervised under the QC department.
- SAIKANG MEDICAL has reached the hight efficiency in steel rust treatment, by implementing the pickling, phosphorization, Electro-coating, Sandblasting and Baking at high temperature after power coating to ensure the paint finish.

Warranty:
Aiming to satisfy our customers and partners, we provide a standard warranty, optional to be increased, 1% free parts of the total quantity will be provided together with goods.
The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company. Beyond the maintenance period, we will charge the accessories, but the technical service is still free.
Common question :
Q: Lead time?
A: standard 28 days
Q: Is it the color on headboard/footboard and abs side rail optional?
A: We can provide the color as per requirement based on bulk purchasing.
Q: Motors options?
A: Linak, Timotion, Dewert, or Jiechang, many motor optional.
Q: Do you accept OEM service?
A: Yes, OEM service available, please provide your drawing and detailed specification.
Q: Showroom? We have showrooms worldwide, welcome to your visit:
A: China - head quarter which is only 2hours drive from Shanghai,2000square meters rooms like hospital;
Kenya - 500square meters showroom
Russia - 1000square meters showroom
Brazil - 800square meters showroom
Chile - 500square meters showroom
Thailand - 800square meters showroom
