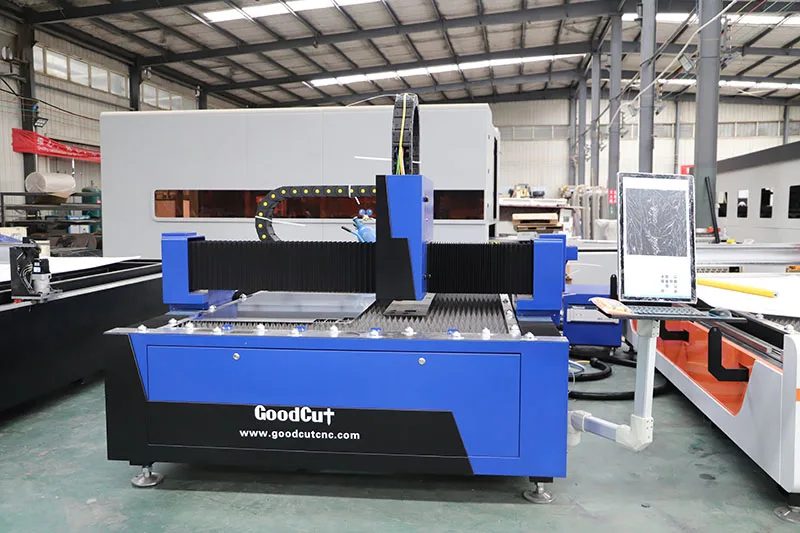

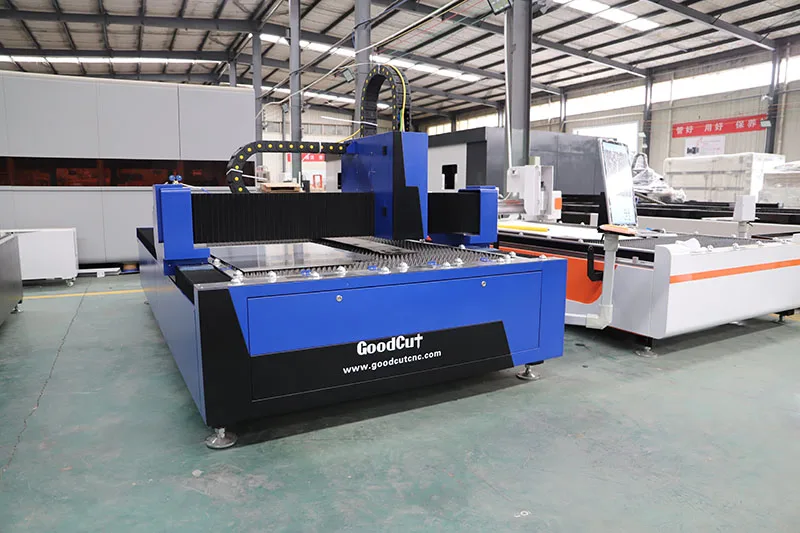

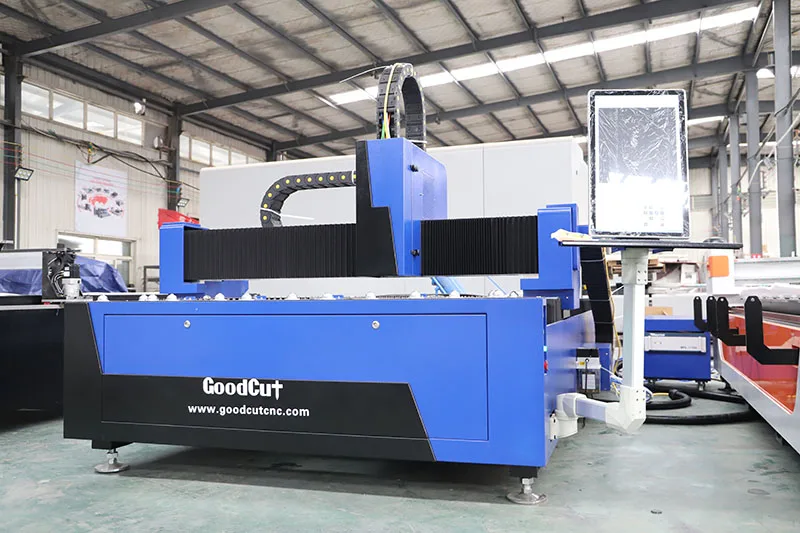

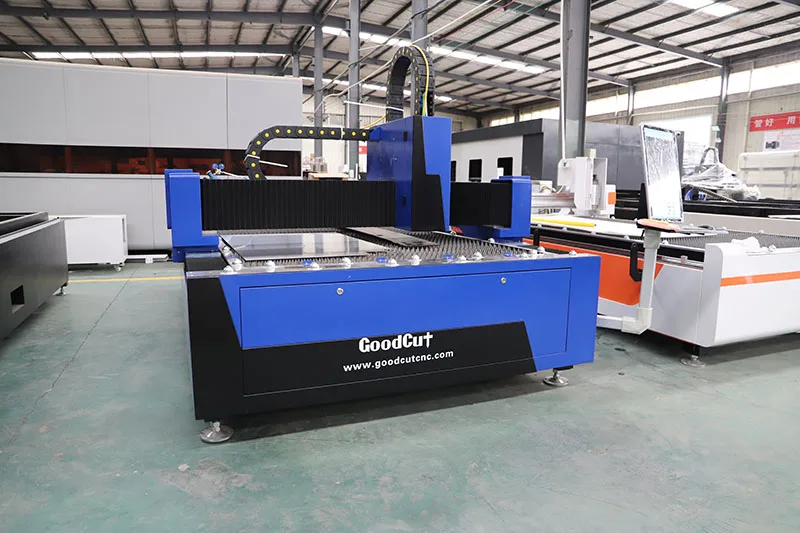

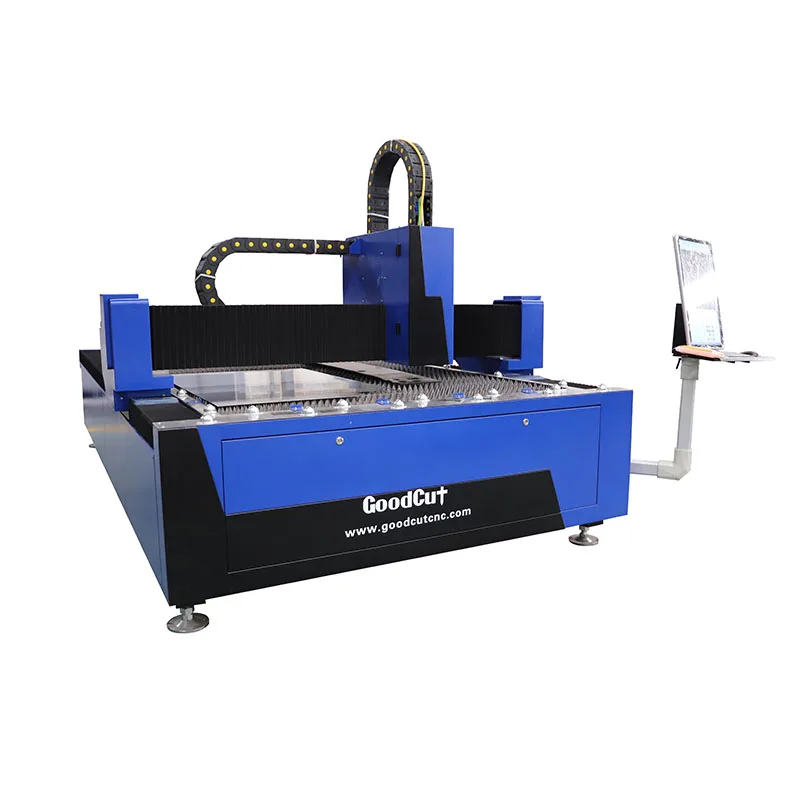

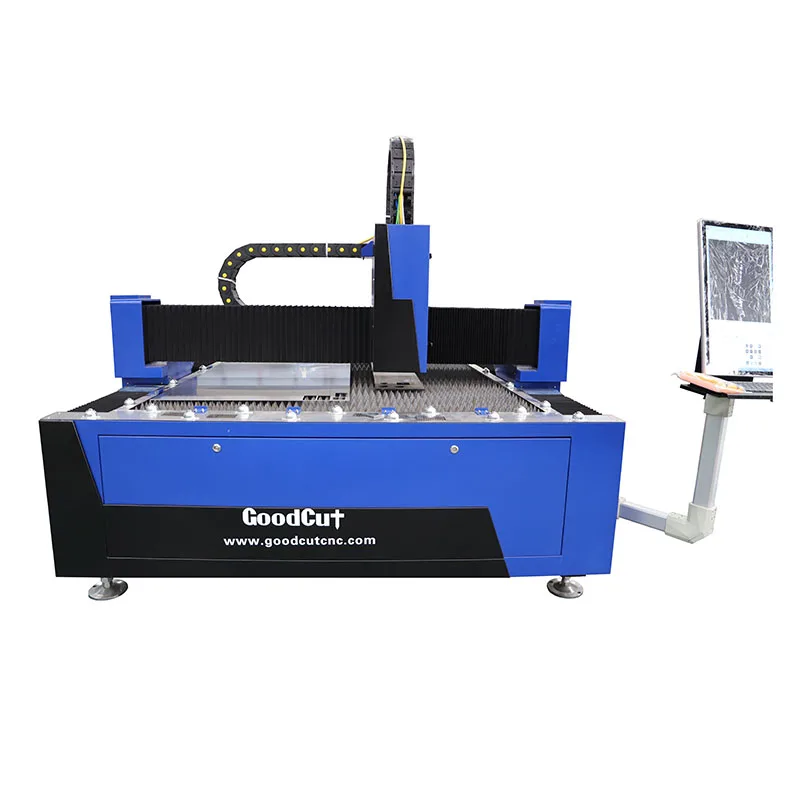

3kw 4kw 6kw 1000w 1500w 2000w Raycut Fiber Laser Cutting Machine
Parameter:
Working area | 1500*3000mm, size can be customized |
Laser power | 1000W / 1500W/ 2000W / 3000w / 4000w / 6000w / 8000w /12000w/ 20000w/ 40000w |
Laser source | Raycus / IPG / MAX |
Controller | Cypcut controller |
Motor driver | Japan Yaskawa / Fuji servo motor driver |
Repeated positioning accuracy | 0.03mm |
Max moving speed | 80m/min |
Max acceleration | 1.0G |
Transmission | Rack and gear, double drive on Y axis |
Power consumption | <10kw |
Voltage | 380V, 50HZ/60HZ, 3 phase |
Feature:
1. Machine Structure
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,
The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing,
2. Japan THK Linear Rail and Block
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break. The usage lifespan and the product quality definitely can be ensured.
The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break. The usage lifespan and the product quality definitely can be ensured.
3. France Schneider Servo System
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.
4. CYPCUT Control System
The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.
The best control system in fiber laser machine industry. It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus
cutting head.
5. S & A Chiller
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.
Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.
6. Raycus Laser Source
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)
7. Japan Shimpo Servo Reducer
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.
Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.
8. Raytools Fiber Laser Cutting Head
Our fiber laser machine install the Raytools manual focus cutting head, The machine also can optional automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.
Our fiber laser machine install the Raytools manual focus cutting head, The machine also can optional automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.
9. Oil Lubrication System
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.
This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.
Applied materials :
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industry:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Company Information
Jinan GoodCut CNC Machinery Co.,Ltd.
GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.
We can offer highest quality machine, and competitive price.
Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine,
wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.
Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
Good Price
1. GoodCut manufactures about 500 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching to eliminate customer worries.
