IEC 60099-4 standard 11kV distribution line MOA lightning surge
- Категория: Оборудование распределения электроэнергии >>>
- Поставщик: Yueqing,L&r,Imp&exp,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 17.2 $* | 17.54 $* |
| Jul-15-2025 | 13.76 $* | 13.50 $* |
| Jun-15-2025 | 16.95 $* | 16.27 $* |
| May-15-2025 | 16.84 $* | 16.41 $* |
| Apr-15-2025 | 13.91 $* | 13.99 $* |
| Mar-15-2025 | 16.48 $* | 16.57 $* |
| Feb-15-2025 | 16.52 $* | 16.47 $* |
| Jan-15-2025 | 16.8 $* | 16.62 $* |
Характеристики
Banner

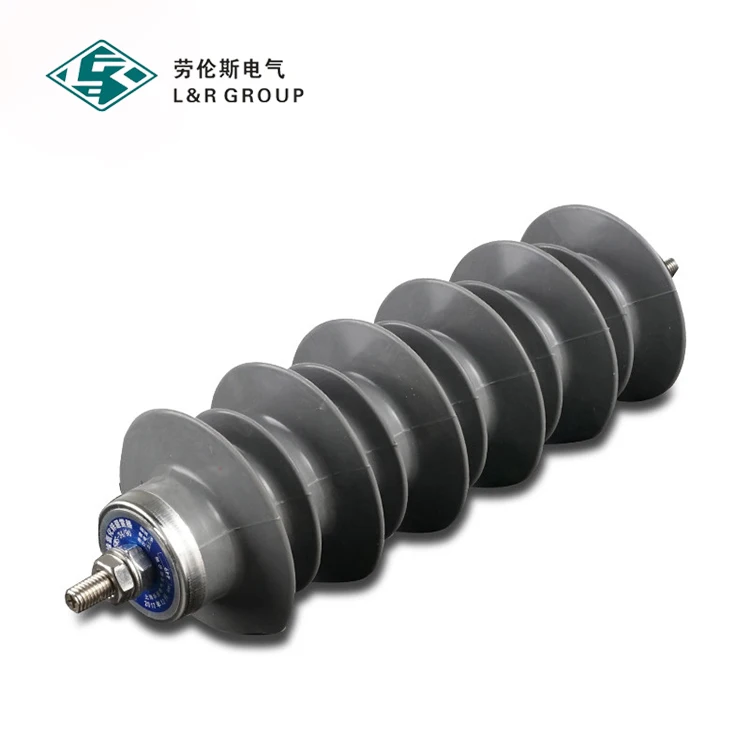

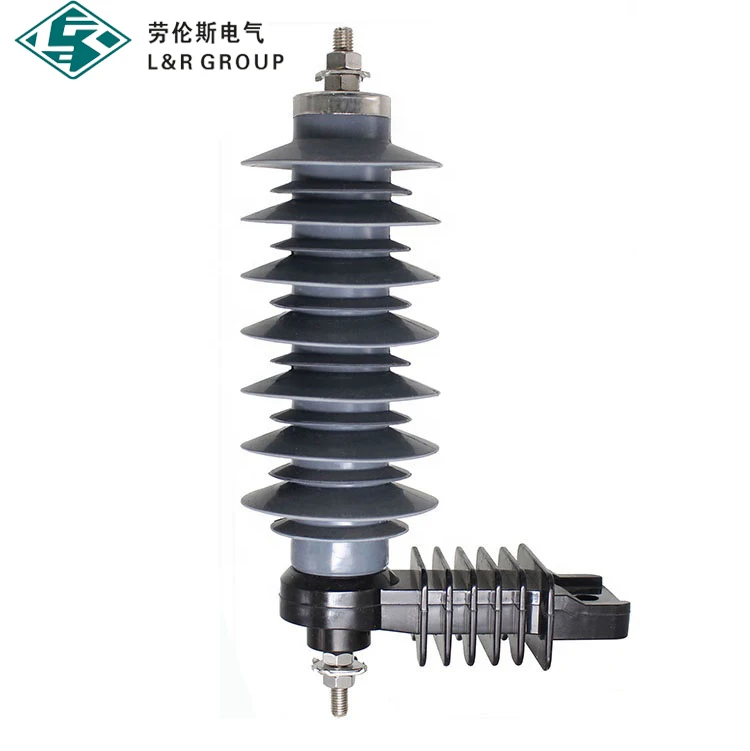

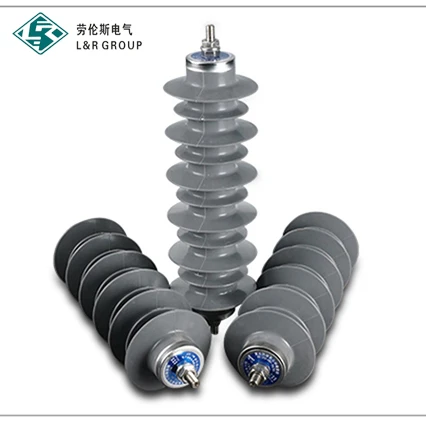

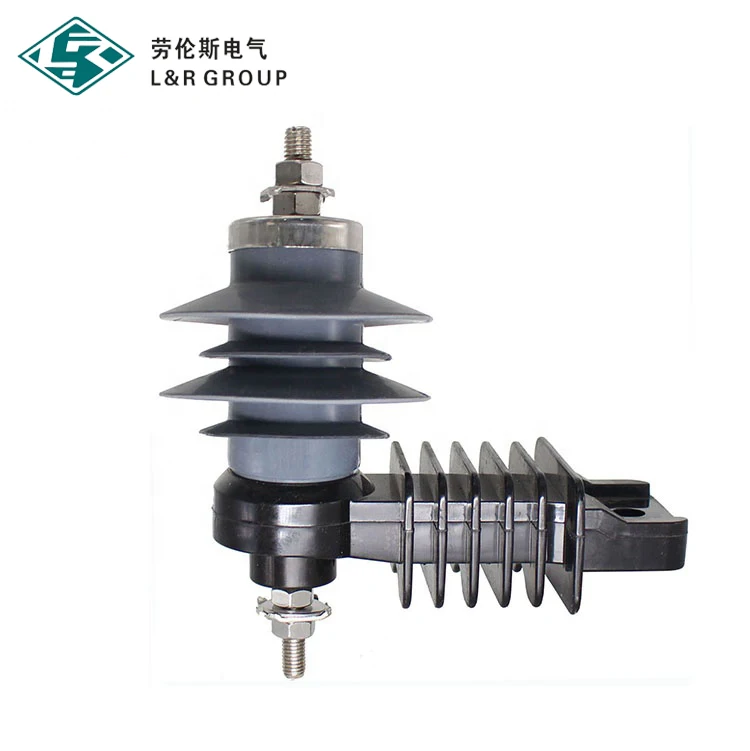

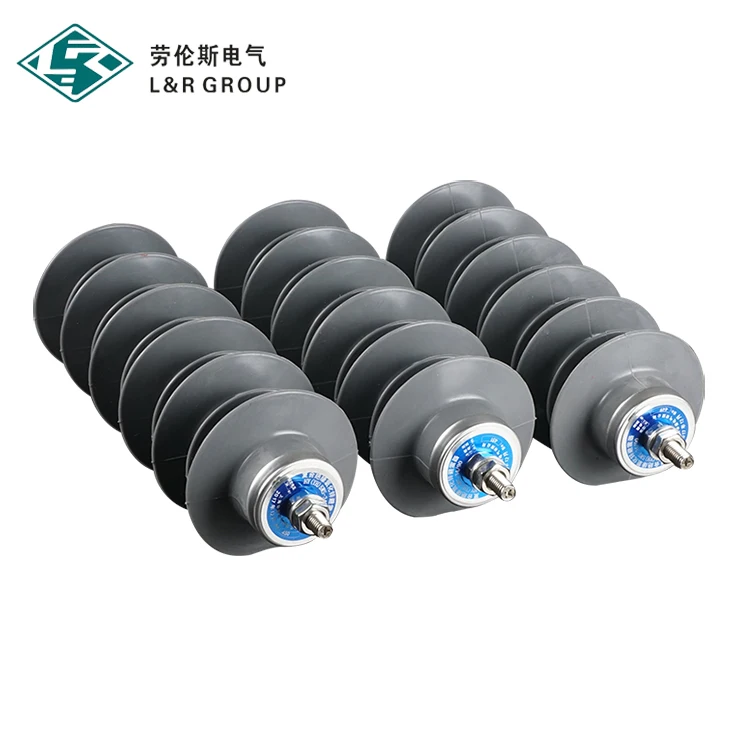

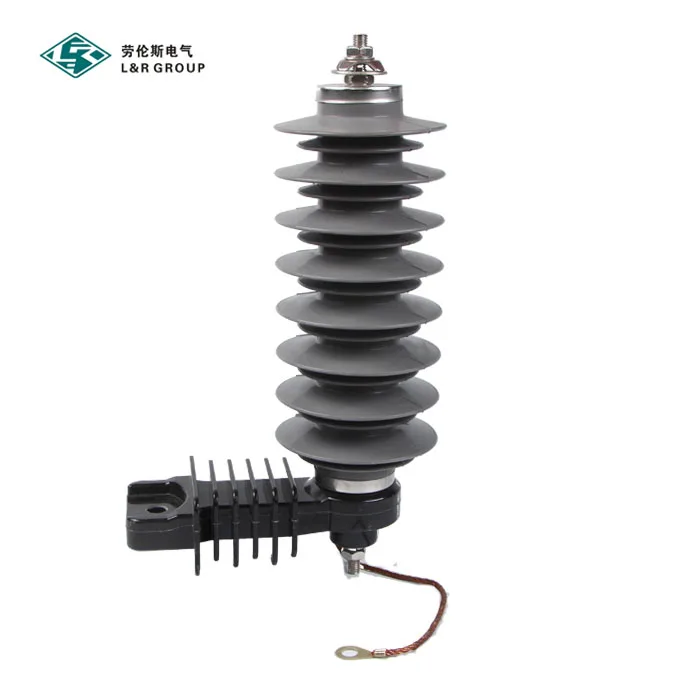

11kV EN660099-4 Line distribution surge arrester
Main Technical Parameter
| Product Model | Rated Voltage (kV) | Continuous Operating Voltage (MCOV)(kV) | Lighting Impulse Residual Voltage Under Nomial Discharge Current(≤vKp) | Line DIscharge Class | Creepage Distance (mm) | 2ms square wave impulse current withstand (A) | 4/10μs High Current Impulse Witstan (kA) |
| HY10W-11kV | 11 | 9.4 | 33 | 1&2 | 340/450 | 250 | 100 |
| HY10W-12kV | 12 | 9.6 | 36 | 1&2 | 380/440 | 250 | 100 |
| HY10W-15kV | 15 | 12 | 45 | 1&2 | 400/450 | 250 | 100 |
| HY10W-18kV | 18 | 14.4 | 54 | 1&2 | 510/400 | 250 | 100 |
| HY10W-21kV | 21 | 16.8 | 63 | 1&2 | 580/730 | 250 | 100 |
| HY10W-24kV | 24 | 19.2 | 72 | 1&2 | 640/730 | 250 | 100 |
| HY10W-27kV | 27 | 21.6 | 81 | 1&2 | 710/730 | 250 | 100 |
