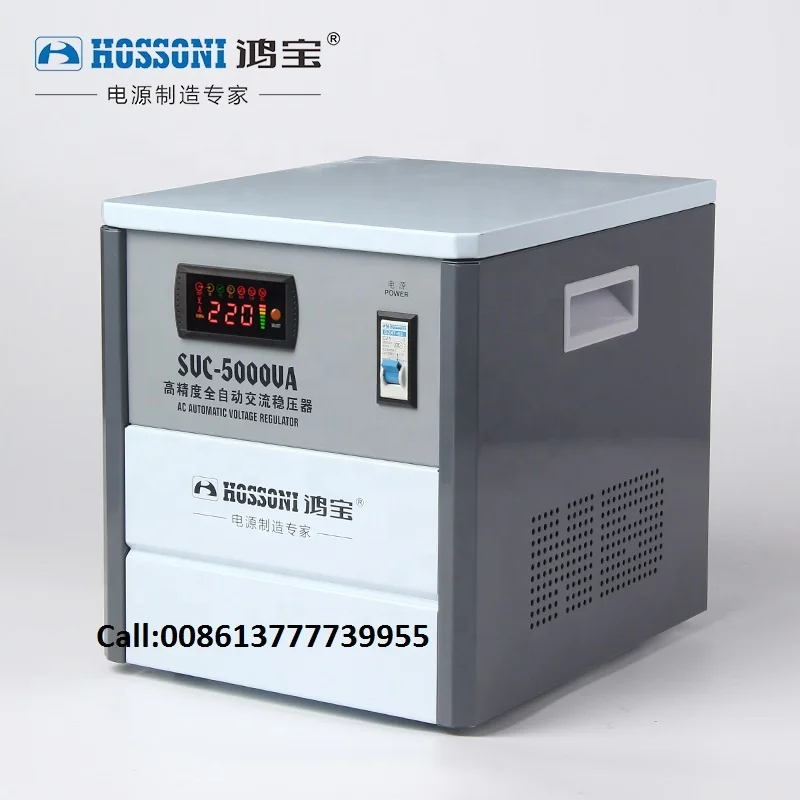

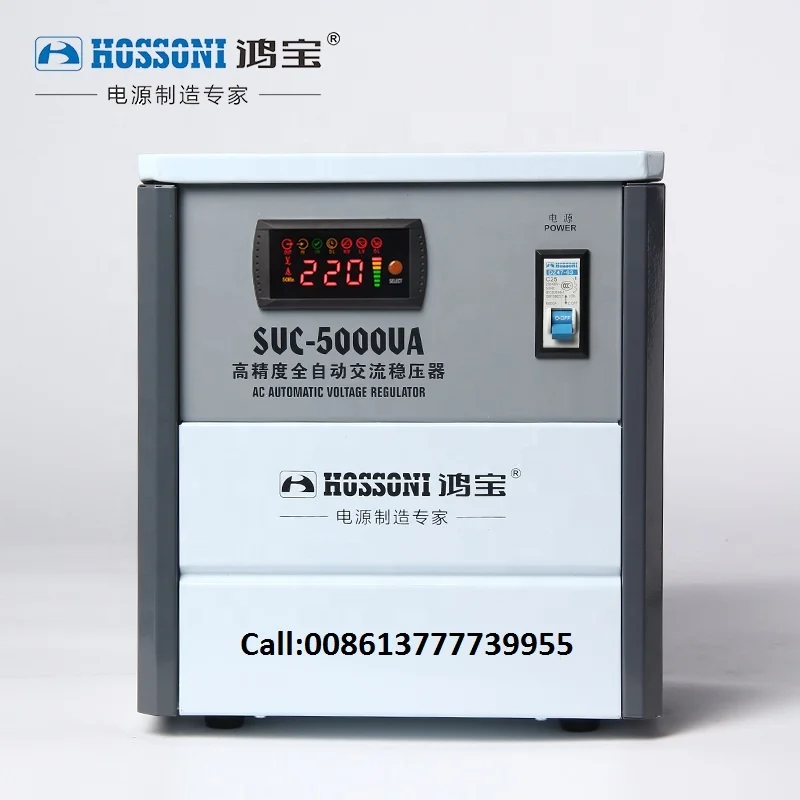

Автоматический регулятор напряжения SVC-N5000VA/5KVA 5.5KVA высокое качество чистая медь
- Категория: Voltage Regulators\/Stabilizers >>>
- Поставщик: Hongbao,Electric,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.96 $* | 0.82 $* |
| Aug-20-2025 | 0.98 $* | 0.34 $* |
| Jul-20-2025 | 0.5 $* | 0.61 $* |
| Jun-20-2025 | 0.80 $* | 0.43 $* |
| May-20-2025 | 0.78 $* | 0.72 $* |
| Apr-20-2025 | 0.46 $* | 0.12 $* |
| Mar-20-2025 | 0.36 $* | 0.70 $* |
| Feb-20-2025 | 0.95 $* | 0.75 $* |
| Jan-20-2025 | 0.82 $* | 0.17 $* |
Характеристики
Single Phase:
Newest Factory Management System:
ISO9001:2015 / ISO14001:2015 / OHSAS18001:2007
Single phase -Servo Motor type ,High quality with CE /Rohs Standard
Power:(Notice:1KVA=1000VA=800W,International Power Standard)
SVC type(with Coil,Mostly for Home/Building Use:
350VA/500VA/1000VA/1500VA/2000VA/3000VA/3500VA
5000VA/7000VA/8000VA/10KVA15KVA/20KVA/30KVA/45KVA
DBW typ(with Transformer, Industrial Use customization):
10kVA/20kVA/30kVA /50kVA /60kVA /80kVA /100kVA
120kVA /150kVA/180kVA/250kVA
Single-phase high accuracy full automatic AC voltage stabilizer consists of contact type self-coupling voltage regulator, servo motor, automatic control circuit and other parts.
Working Principle:
When Voltage instability or the load varies, the automatic sampling control circuit will make a signal to drive servo motor to Adjust the position of carbon brush of the self-coupling voltage regulator,Then get Stable voltage to protect your Equipments.
Main Application:
In areas With Unsteady power Voltage, The Voltage regulator should be installed, That can keep your equipments in normal working.
Wide usage Suitable to post office, store, elevator, hospital, school, publishing house and stock exchange where normal voltage is in need, Also the factories of large and middle-scale industrial and mining corp. It is very much suitable for some important devices and supporting single machine.
| A)Input voltage(standard): | 150V-260V | Frequency: | 50HZ/60Hz |
| B)Input voltage(especial ): | 90V-240V/120V-260V/ 180V-300V(different price) | Adjustable time: | <1s(when input voltage has a change of 10%) |
| A)Standard Output: | 0.5KVA-10KVA 220V/110V | Ambient temperature: | -5 ºC--+ 45 ºC |
| 500VA-250KVA 220V | Waveform distortion: | No additional waveform distortion | |
| B) Especial Output: | 110V/220V | Load power factor: | 0.8 |
| (100V/120V/230V/240V) | Dielectric strength: | 1500V/1min | |
| Accuracy: | 220V±3% 110V±6% | lnsulation resistance: | ≥2MΩ |
Remarks:if need low/high output volt protection,delay or otherfunction,need contact us!!!
Packaging & Shipping
Customized Packing:
1,FROM 350VA/5000va-carton packing as picture 1.
2,FROM 10KVA/15KVA/20KVA can be Strong packing as picture 2,3,4.(will be different price)
3,FROM 30KVA to all above can be wooden packing as picture ,3,4.(will be different price)
(if need FREE-FUMIGATION packing , pls tell us , but need add extra price)
LOADING
Timely Feedback
More Quantities -Less Transportation Charge-Better Price.
Here No Low Quality ,We are Professional Factory.
High Quality Will Bring You and Us good business!
Pls Call/What'sapp/wechat/imo : 0086-13777739955
Alibaba on line messager : cnhossoni
Skype:hossoni1983
website: www.cnhossoni.com
