KSRRH-10010 Двойное действие 100 тонн гидравлический полый поршень
- Категория: Домкраты >>>
- Поставщик: Taizhou,Kashon,Power,Equipment,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1797.88 $* | 1887.99 $* |
| Aug-15-2025 | 1782.78 $* | 1871.59 $* |
| Jul-15-2025 | 1495.7 $* | 1570.1 $* |
| Jun-15-2025 | 1752.0 $* | 1840.37 $* |
| May-15-2025 | 1525.6 $* | 1601.42 $* |
| Apr-15-2025 | 1721.92 $* | 1807.62 $* |
| Mar-15-2025 | 1706.93 $* | 1791.11 $* |
| Feb-15-2025 | 1691.97 $* | 1776.44 $* |
| Jan-15-2025 | 1676.47 $* | 1760.79 $* |
Характеристики
Product

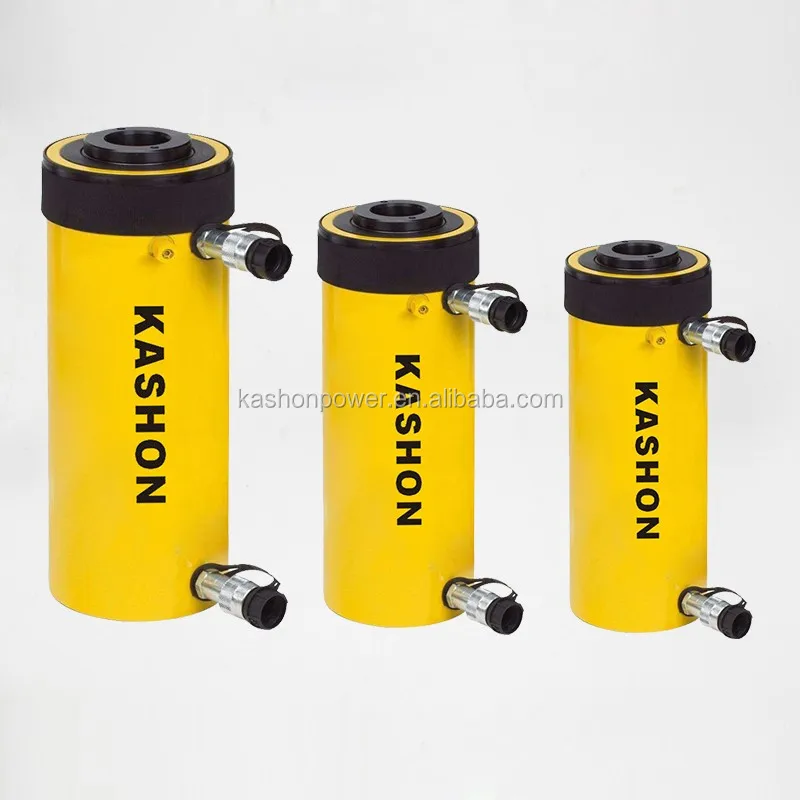

KSRRH-10010, 100 ton double acting hollow plunger hydraulic cylinder
Product Description
These double acting cylinders enable fast and controlled retraction.
The hollow rod design enables pulling and tensioning.
Threaded collars enable convenient placement.
Coated with corrosive resistant baked enamel.
All cylinders have a nickel-plated floating centre tube to increase their working life.
Cylinder piston rod wiper reduces contamination, extending cylinder life.
Over-pressurisation is prevented due to built in safety valves.
Parameters
| Model | Capacity (ton) | Max. Working Pressure | Closed Height A (mm) | Stroke (mm) | Center Hole Diameter Y (mm) | Oil Capacity (cm³) | Oil Capacity (cm³) | Outside Diameter D | Plunger Diameter F (mm) | Weight (kgs) |
| KSRRH-10010 | 100 | 70 | 460 | 257 | 79.2 | 3420 | 2246 | 212 | 127 | 106 |
Company Information
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
