Автоматическая машина для резки и шитья изготовления ПП тканых сумок
- Категория: Packaging Material Making Machine >>>
- Поставщик: Dalian,Sitong,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 47600.58 $* | 49980.47 $* |
| Aug-16-2025 | 47200.93 $* | 49560.84 $* |
| Jul-16-2025 | 39600.67 $* | 41580.93 $* |
| Jun-16-2025 | 46400.53 $* | 48720.73 $* |
| May-16-2025 | 40400.21 $* | 42420.86 $* |
| Apr-16-2025 | 45600.29 $* | 47880.38 $* |
| Mar-16-2025 | 45200.80 $* | 47460.82 $* |
| Feb-16-2025 | 44800.97 $* | 47040.61 $* |
| Jan-16-2025 | 44400.66 $* | 46620.84 $* |
Характеристики
Product Description
Production capacity depends on the quality of the rolls used, the specifications of the final product and the proficiency of the operators.

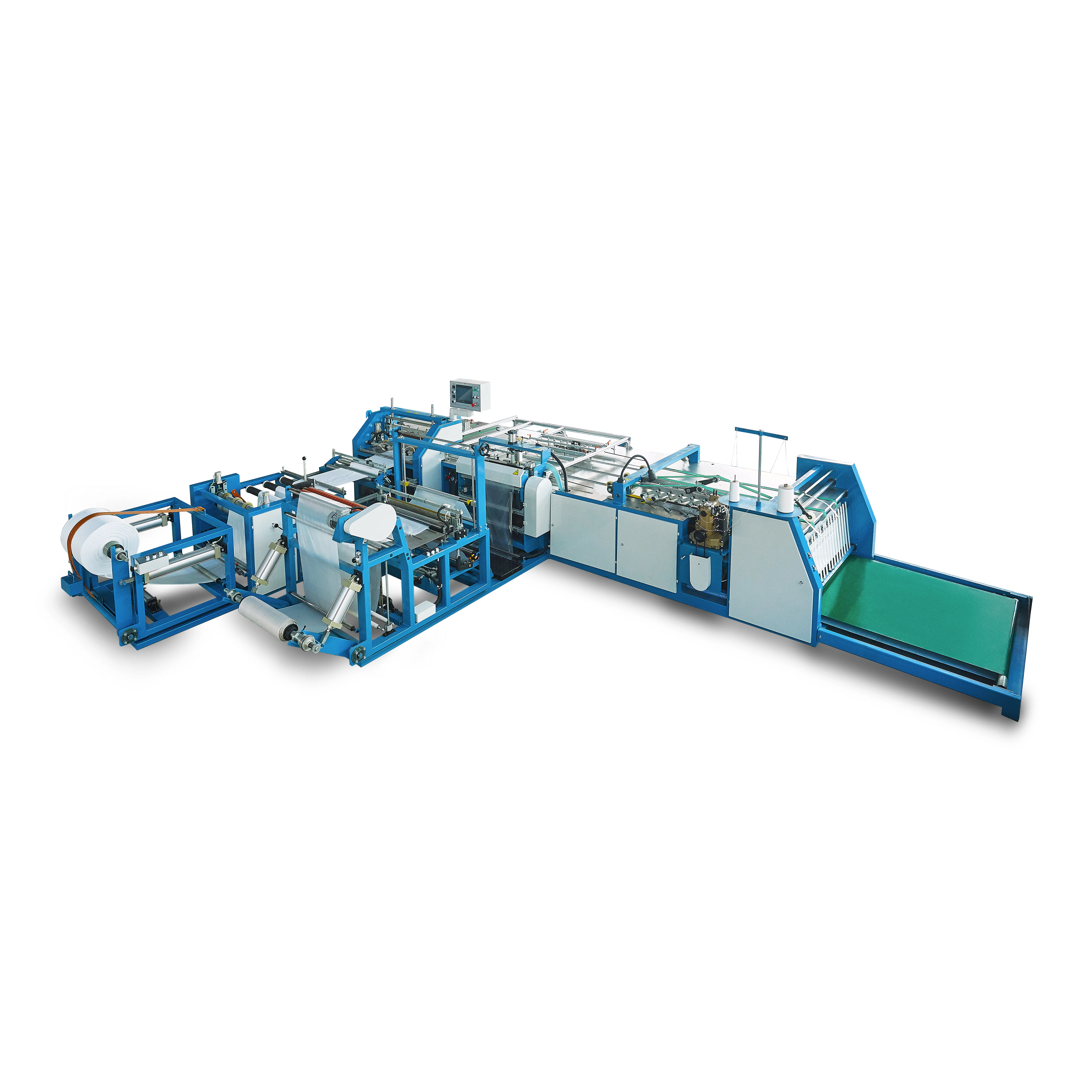

Technical parameters of QTF-750 woven bag full self-cutting and sewing machine
Features:
1. Electrical parts: Adopting foreign advanced electrical control systems, high degree of automation, few failures and low maintenance rate.
2. Unwinding part: automatic pneumatic winding, photoelectric automatic tracking correction.
3. Color mark tracking: imported color mark electric eye tracking, suitable for woven bags after continuous printing.

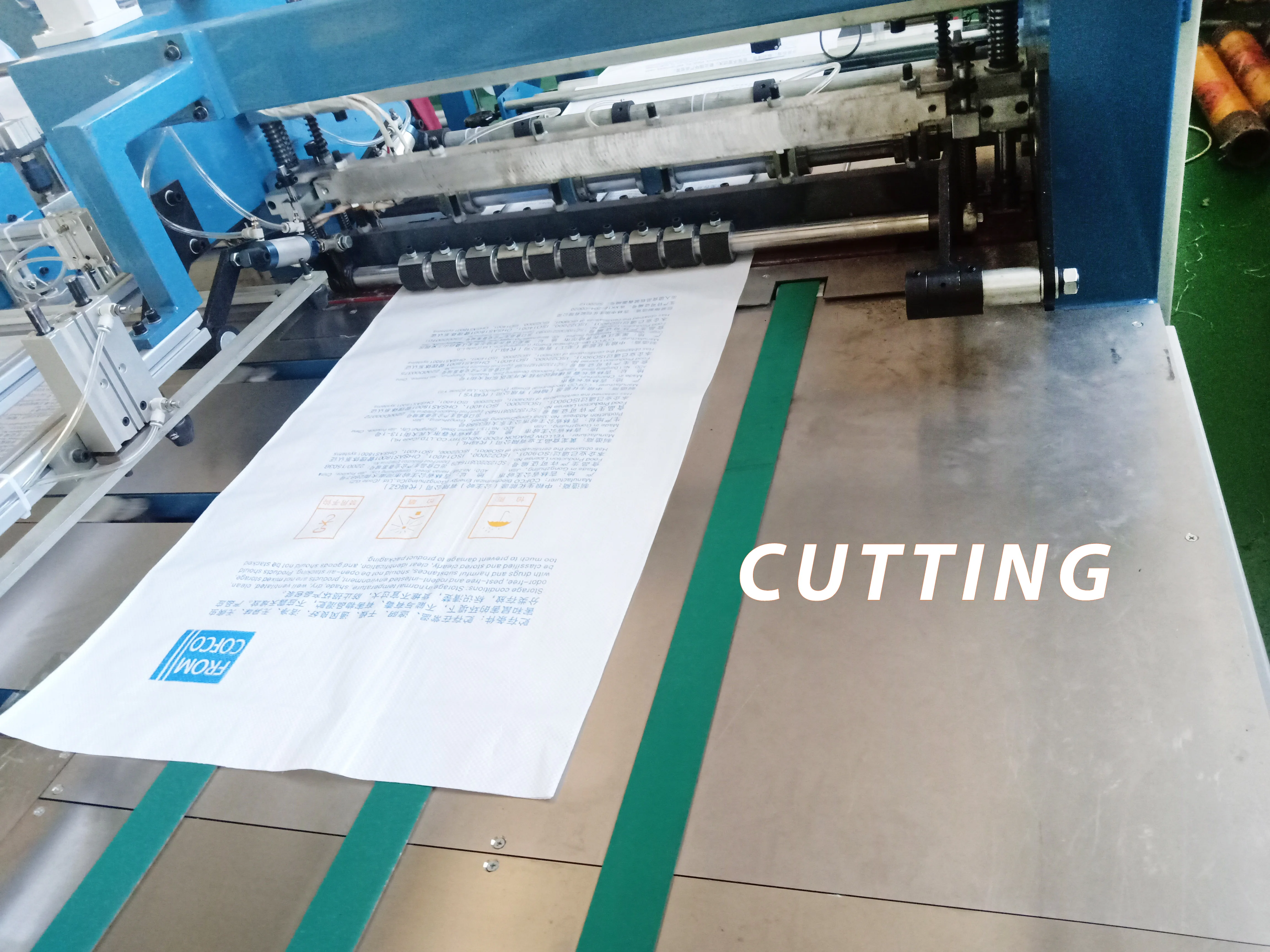

4. Cut-off part: The hot cutter uses a heated cutter, double rubbing, and the cold knife uses a servo motor to control the cold knife blade.
5. The feeding bag adopts servo counting length, which makes the cutting more accurate.
6. Steering part: This machine uses a servo motor to control the mechanical device, which solves the deviation of the sewing machine's woven bag when turning, so that the woven bag can be fed into the sewing machine more accurately. .

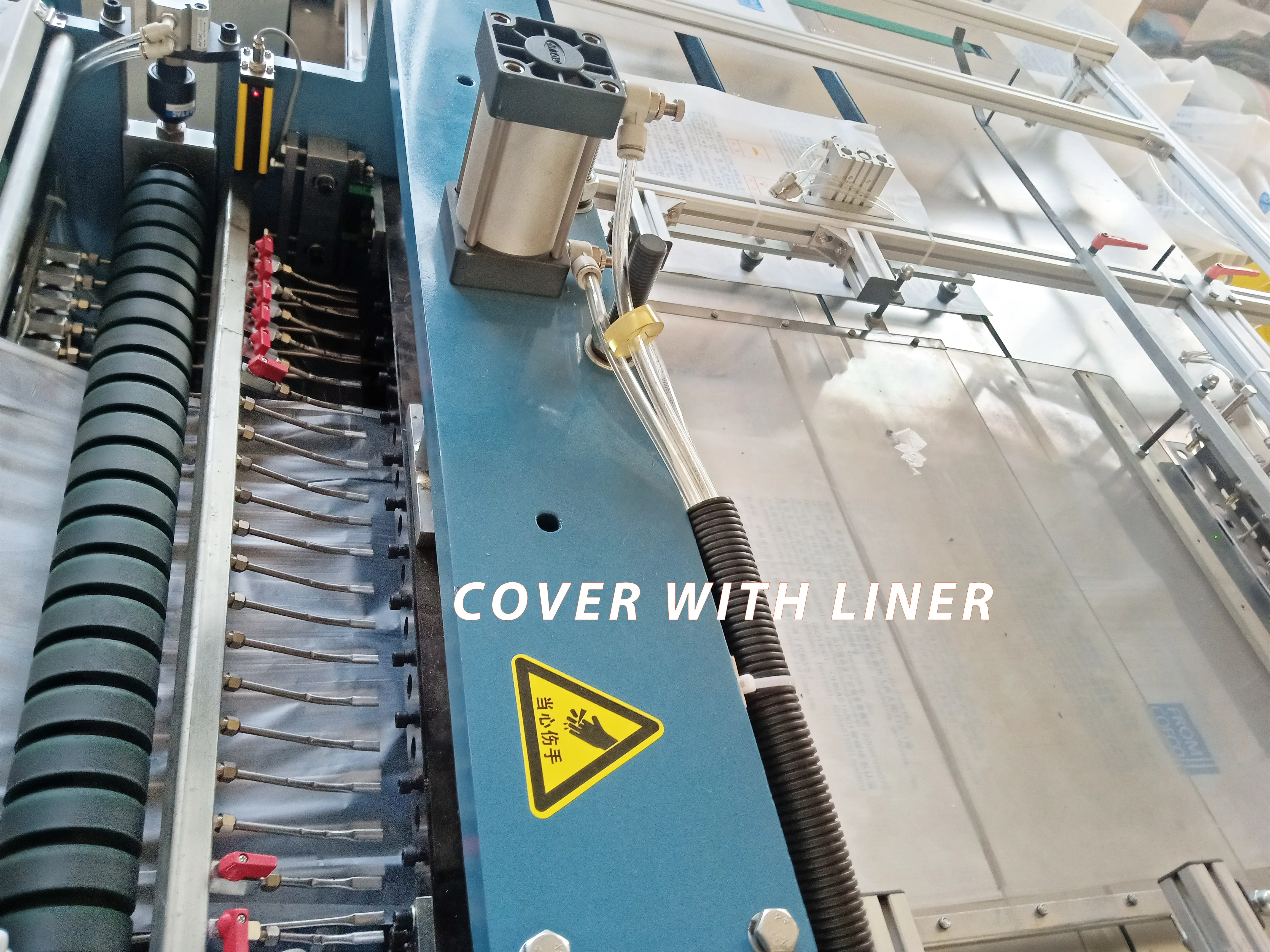

7 sets of film parts: The film feeding and the servo motor are used to measure the length to make the cutting more accurate. Cut, iron the bottom and cover film at one time.

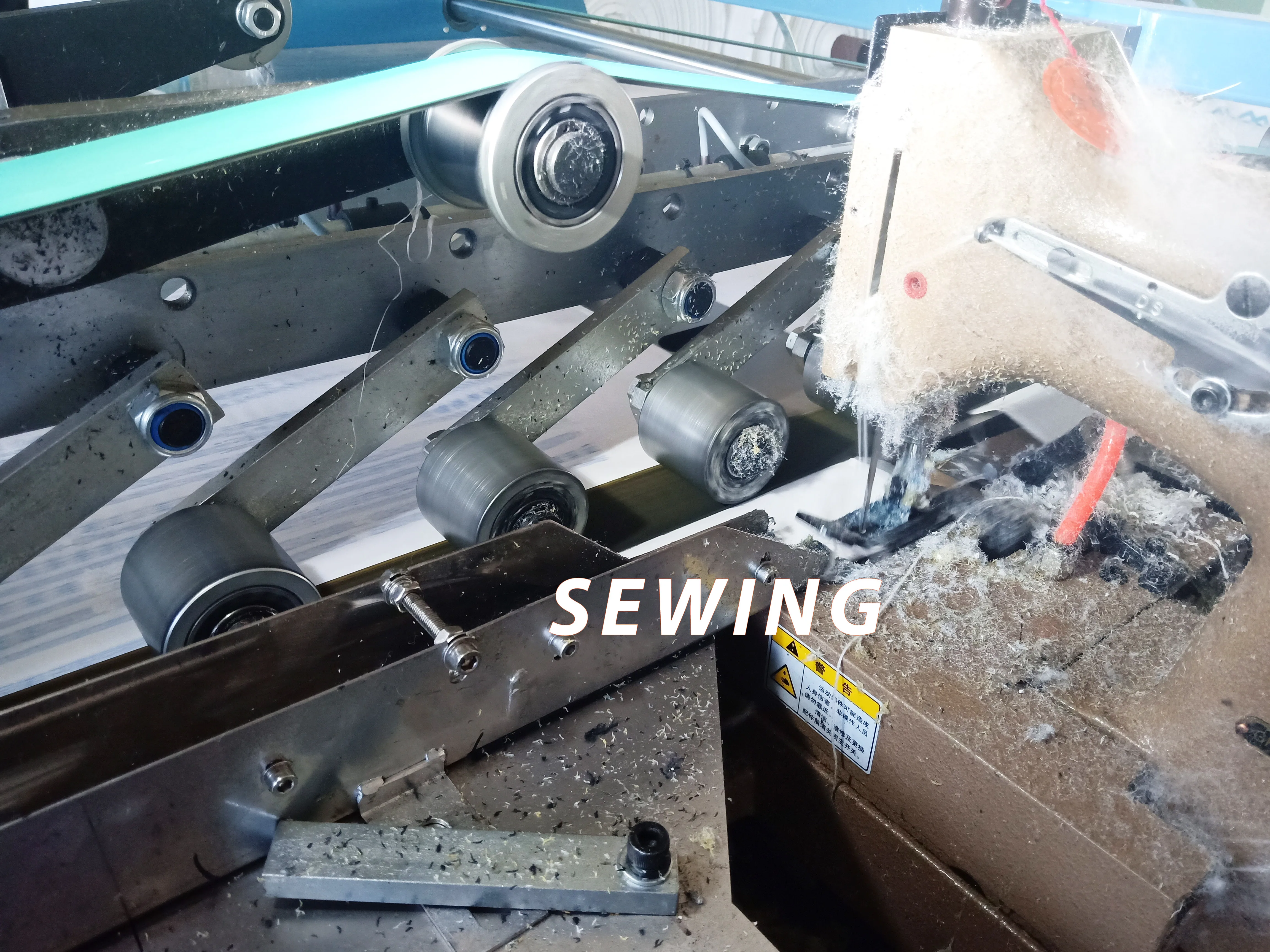

8. Sewing part: It adopts industrial sewing machine with upper awning, which is more efficient.
9. The speed of the whole machine is uniformly adjusted, and unwinding, cutting, film feeding, film covering, conveying, and sewing can be started with one button. Operation adjustment and replacement specifications are simple and convenient.
Features:
1. Electrical parts: Adopting foreign advanced electrical control systems, high degree of automation, few failures and low maintenance rate.
2. Unwinding part: automatic pneumatic winding, photoelectric automatic tracking correction.
3. Color mark tracking: imported color mark electric eye tracking, suitable for woven bags after continuous printing.
4. Cut-off part: The hot cutter uses a heated cutter, double rubbing, and the cold knife uses a servo motor to control the cold knife blade.
5. The feeding bag adopts servo counting length, which makes the cutting more accurate.
6. Steering part: This machine uses a servo motor to control the mechanical device, which solves the deviation of the sewing machine's woven bag when turning, so that the woven bag can be fed into the sewing machine more accurately. .
7 sets of film parts: The film feeding and the servo motor are used to measure the length to make the cutting more accurate. Cut, iron the bottom and cover film at one time.
8. Sewing part: It adopts industrial sewing machine with upper awning, which is more efficient.
9. The speed of the whole machine is uniformly adjusted, and unwinding, cutting, film feeding, film covering, conveying, and sewing can be started with one button. Operation adjustment and replacement specifications are simple and convenient.
1. diameter of unwinding fabric | Max.1200mm |
2. length of cutting bag | 700-1200mm |
3. cutting accuracy | 400-700mm |
4. length of PEfilm bag | ±1mm |
5. width of bag | >30mm |
6. PEthickness of PEfilm bag | ≥0.01mm |
7.folding width of bottom | 18-25mm |
8.folding accuracy | ±2mm |
9. stiching range of sewing machine | 7-12mm |
10. capacity | 25-35pcs/min |
11.total power (no heating power) | 10kw |
12..heating power | 2kw |
13. air consumption | 0.9m3/min |
14.Dimensions | 7450*5100*1400cm |
15.total weight | 3.5T |
Details Images

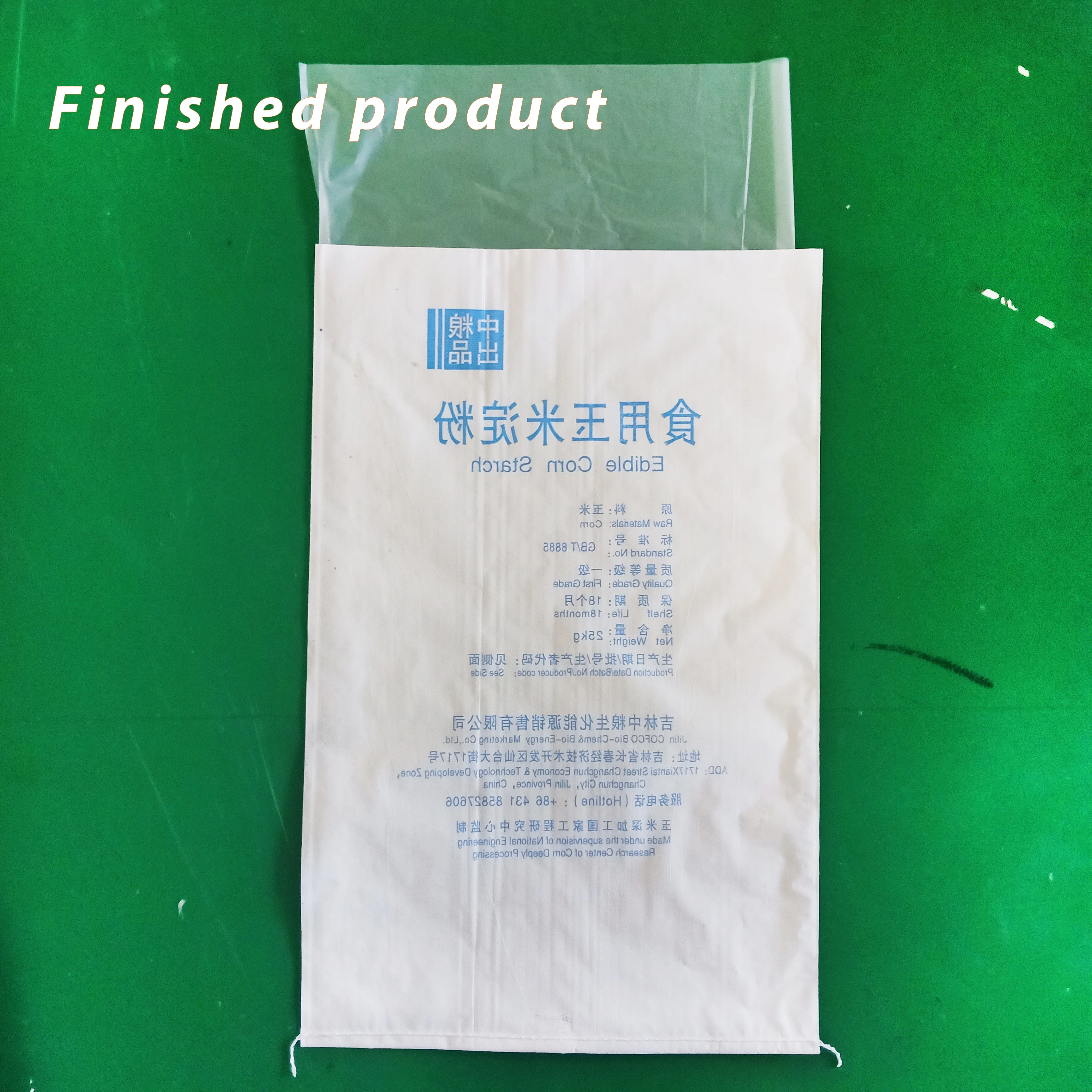

Finished product display
