Сварочный аппарат WELDMAN 500 А MMA TIG дизельный на двигателе
- Категория: Другие дуговые сварочные аппараты >>>
- Поставщик: Shenzhen,Genor,Power,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 6306.27 $* | 6432.27 $* |
| Jul-18-2025 | 5114.56 $* | 5216.79 $* |
| Jun-18-2025 | 6206.15 $* | 6330.15 $* |
| May-18-2025 | 6157.35 $* | 6280.46 $* |
| Apr-18-2025 | 4915.96 $* | 5013.56 $* |
| Mar-18-2025 | 6057.13 $* | 6178.61 $* |
| Feb-18-2025 | 6008.89 $* | 6128.96 $* |
| Jan-18-2025 | 5958.31 $* | 6077.9 $* |
Характеристики

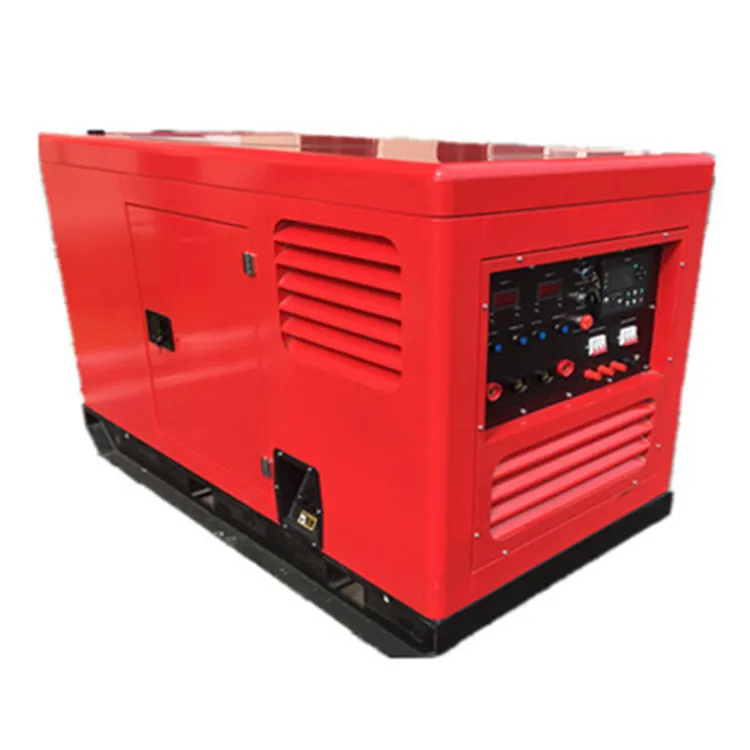

WELDMAN 500 amp Diesel powered by the engine welding machine
The diesel engine welding machine adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.
1. Electric Starter ensures easy starting
2. Separate welding range with fine adjustment in each range
3. Great Welding Performance
4. Auxiliary power while welding
5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding
| Model | GPW 500 | ||||||||
| Welding output | |||||||||
| Welding Processes | MMA | TIG | FCAW | ||||||
| Open Circuit Voltage (V) | 75 | 75 | 75 | ||||||
| Current Range (A) | 30-500 | 30-500 | 30-500 | ||||||
| Welding Current (A) | 310 | 350 | 500 | 310 | 350 | 500 | 310 | 350 | 500 |
| Welding Voltage (V) | 32.4 | 34 | 36 | 22.4 | 24 | 26 | 29.5 | 31.5 | 33 |
| Duty Cycle | 100% | 80% | 60% | 100% | 80% | 60% | 100% | 80% | 60% |
| External Characteristic Curve | Drop Characteristic | Drop Characteristic | Flat Characteristic | ||||||
| Generator output | |||||||||
| Power | 16Kw | ||||||||
| Excitation Type | AVR Brushless Excitation | ||||||||
| Frequency | 50Hz | ||||||||
| Phase | Three Phase | Single Phase | |||||||
| Output Voltage/Power | AC 400V/16Kw | AC 230V/6.9Kw | |||||||
| Engine | |||||||||
| type | 4 stroke ,direct injection diesel engine | ||||||||
| Fuel | Diesel | ||||||||
| Rated Power | 29kw | ||||||||
| Rated Speed | 1500 RPM | ||||||||
| Low Temperature | Pre-heated Start | ||||||||
| Warning Type | Water Temperature /Oil Pressure/Battery Voltage | ||||||||
| Fuel Capacity | 50L | ||||||||
| Cooling Method | Water-cooled | ||||||||
| Fuel Consumption | 5.0L/hr | ||||||||
| Complete appliance | |||||||||
Control system:
1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
2. Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
