Токарный станок CK6160Q для ремонта колес с
- Категория: >>>
- Поставщик: Taian,Haishu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7735.22 $* | 8122.74 $* |
| Aug-19-2025 | 7670.42 $* | 8054.71 $* |
| Jul-19-2025 | 6435.28 $* | 6757.99 $* |
| Jun-19-2025 | 7540.37 $* | 7917.90 $* |
| May-19-2025 | 6565.2 $* | 6893.52 $* |
| Apr-19-2025 | 7410.34 $* | 7781.85 $* |
| Mar-19-2025 | 7345.60 $* | 7712.90 $* |
| Feb-19-2025 | 7280.66 $* | 7644.51 $* |
| Jan-19-2025 | 7215.24 $* | 7576.65 $* |
Характеристики

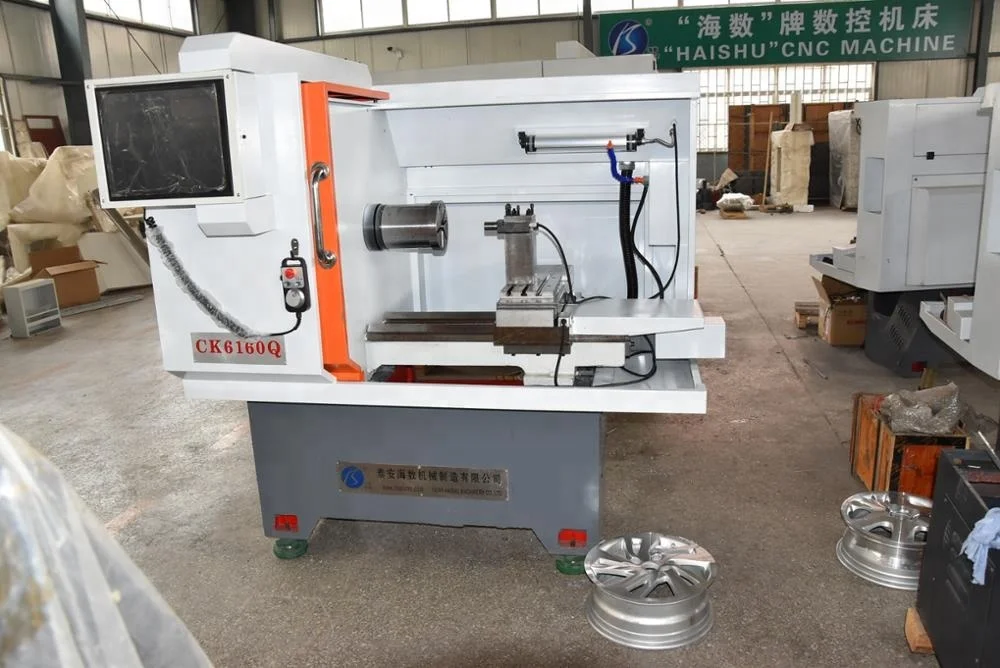

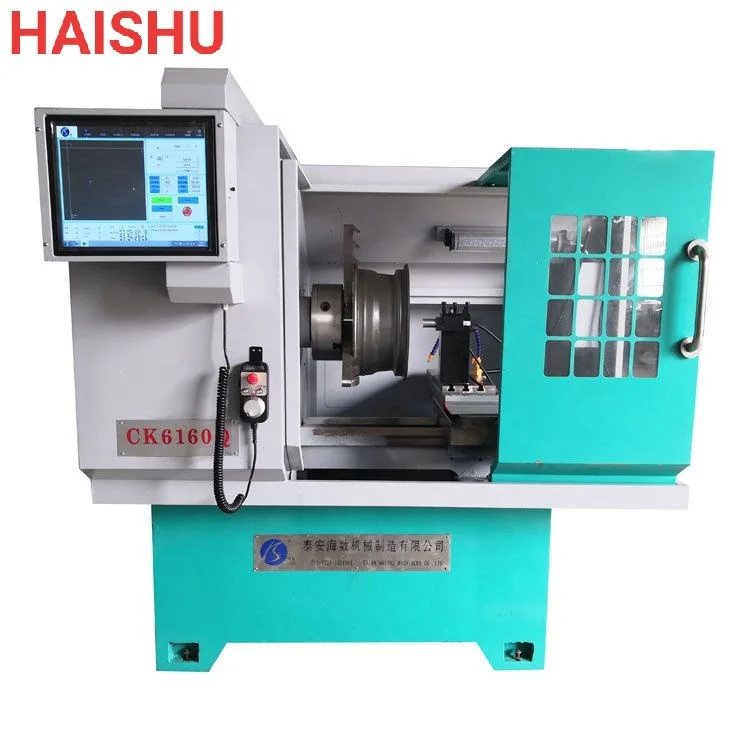

CNC Alloy Wheel Machine CK6160Q Wheel Repair Lathe
Project name | Unit | Technical parameters |
Max. turning diameter | mm | 720 |
Max. wheel machining diameter | mm | 24” |
Max. workpiece length | mm | 500 |
Probe measuring direction |
| X,Z |
Probe measure way |
| Laser probe or touch probe |
Machning accuracy |
| IT6~IT7 |
Surface roughness | um | Ra0.8~1.6 |
Main transmission form |
| Independent spindle; frequency conversion step-less |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 3 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Turret form |
| 2-position fixed tool holder |
Section of turning tool | mm | 25×25 |
The size of the machine (L×W×H) | mm | 2000×1500×1800 |
Net weight of the machine | 1500Kg | |
