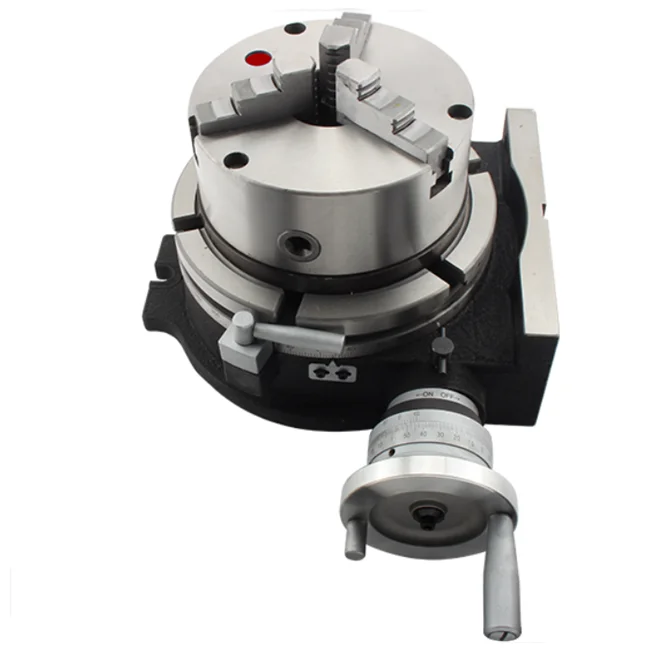

CNC Precision Horizontal Milling Machine Horizontal Vertical Rotary Table

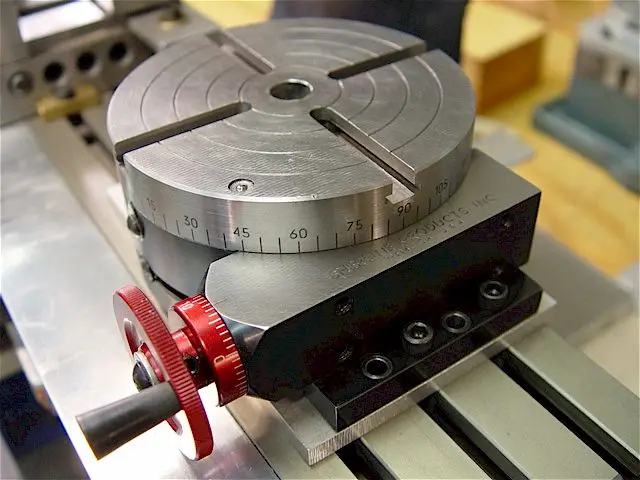

Rotary table or circular milling attachment is especial work holding device, which is bolted on the top of the machine table. It provides rotary motion to the table. The attachment consists of a circular table having T-Slots mounted on the graduated base. The circular table may be rotated by hand, and in special case by power by linking the rotary table driving mechanism with the machine lead screw.



The rotary table has a unique table locking mechanism that is positive and does not move the table as it is locked. To maintain accuracy and frictionless movements, ball bearings are used. Worm gears are factory greased and the drives sealed to keep out chips and dirt. An oiler is easily accessible to facilitate lubrication of the table. The appearance is instrument quality with a black oxide base, precision ground finishes, and laser engraved markings.



Order No.	TSL100	TSL160	TSL200	TSL250	TSL320	TSL400
Table Dia(mm)	100	160	200	250	320	400
Morse taper of the center hole	2#		3#		4#
Dia of the center hole (mm)	Φ20*8	Φ25*6	Φ30*6		Φ40*10
Height of center for Verti.mounting (mm)	70	125	150	170	210	260
Width of the T-slot (mm)	6	10	12		14
Adjacent angle of table T-slot	90			60
Width of locating key (mm)	10	12	14		18
Module o fthe worm gear	1	1.5	1.75	2	2.5	3.5
Transmission ratio of the worm gear	1:72	1:90
Graduation of the table	360
Readout of the handwheel	2'	1'
Minimum reading of the vernier	10'
Indexing accuracy	120"	80"	60"
Max.bearing(with table Hor.) kg	20	100	150	200	250	300
Max.bearing(with table Vert.) kg	10	50	75	100	125	150
Net,(kg)	7	23	31.5	46	77	150
Gross,(kg)	8	30	42	57	92	175
Case Dia (mm)	245*165*112	432*432*220	450*440*235	510*460*240	590*580*250	750*684*286

Installation sketch and dimensions

	TSL100	TSL160	TSL200	TSL250	TSL320	TSL400
A	125	242	285	328	410	525
B	125	196	236	286	360	450
C	70	125	150	170	210	260
D	Φ100	Φ160	Φ200	Φ250	Φ320	Φ400
E	10	12	14		18
F	125	186	208	253	320	400
G	/	12	14		18
H	70	85	100	110	120	150
J	/	12	15	16
L	114	194	211	241	273	337
M	MS2		MS3		MS4
N	48	82	99	106	118	145
P	30	37	48			70
Q	50	125			140	160
d	Φ20	Φ25	Φ30		Φ40
h	8	6			10
