Мастерская по техническому обслуживанию дизельного топлива CR918S BOTEN edc ve испытательный стенд насоса диагностический станок для всех
- Категория: Другие части автомобильного двигателя >>>
- Поставщик: Taian,Beacon,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.89 $* | 0.52 $* |
| Aug-18-2025 | 0.71 $* | 0.9 $* |
| Jul-18-2025 | 0.6 $* | 0.93 $* |
| Jun-18-2025 | 0.78 $* | 0.55 $* |
| May-18-2025 | 0.19 $* | 0.22 $* |
| Apr-18-2025 | 0.75 $* | 0.47 $* |
| Mar-18-2025 | 0.92 $* | 0.31 $* |
| Feb-18-2025 | 0.18 $* | 0.34 $* |
| Jan-18-2025 | 0.2 $* | 0.79 $* |
Характеристики

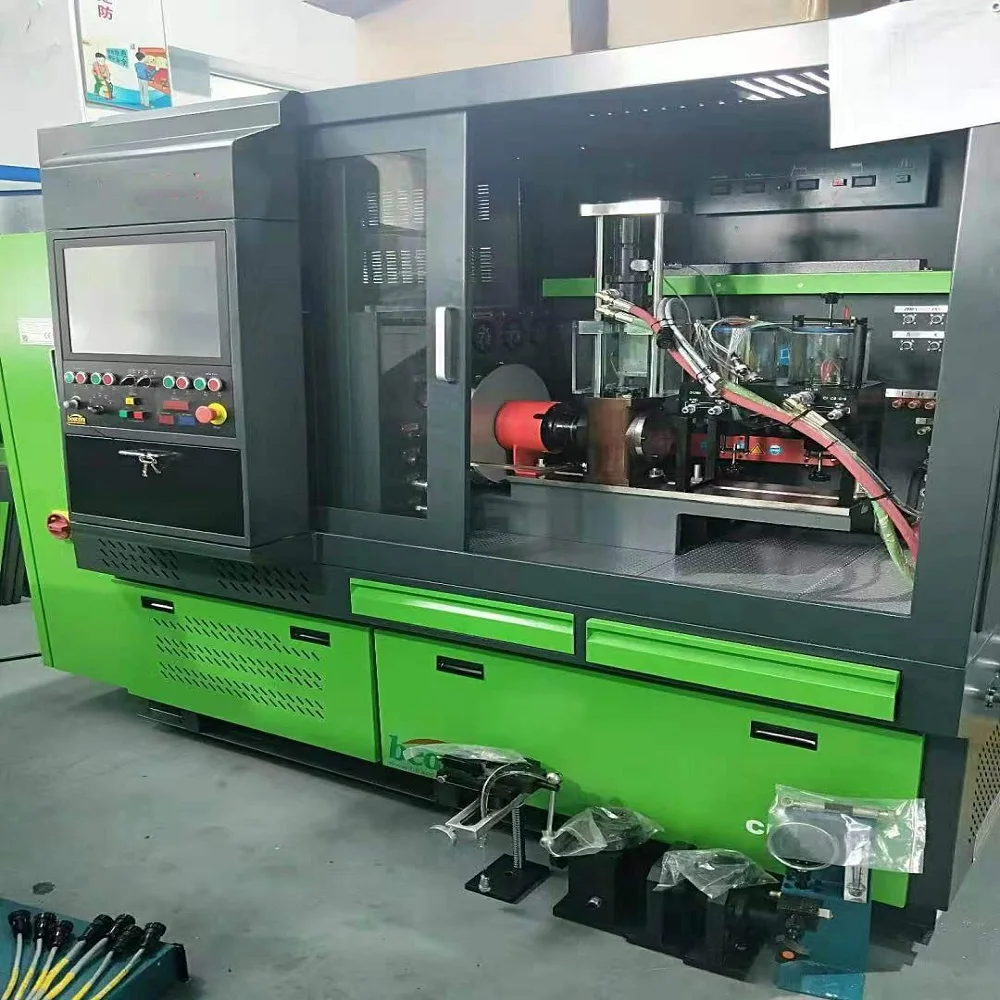

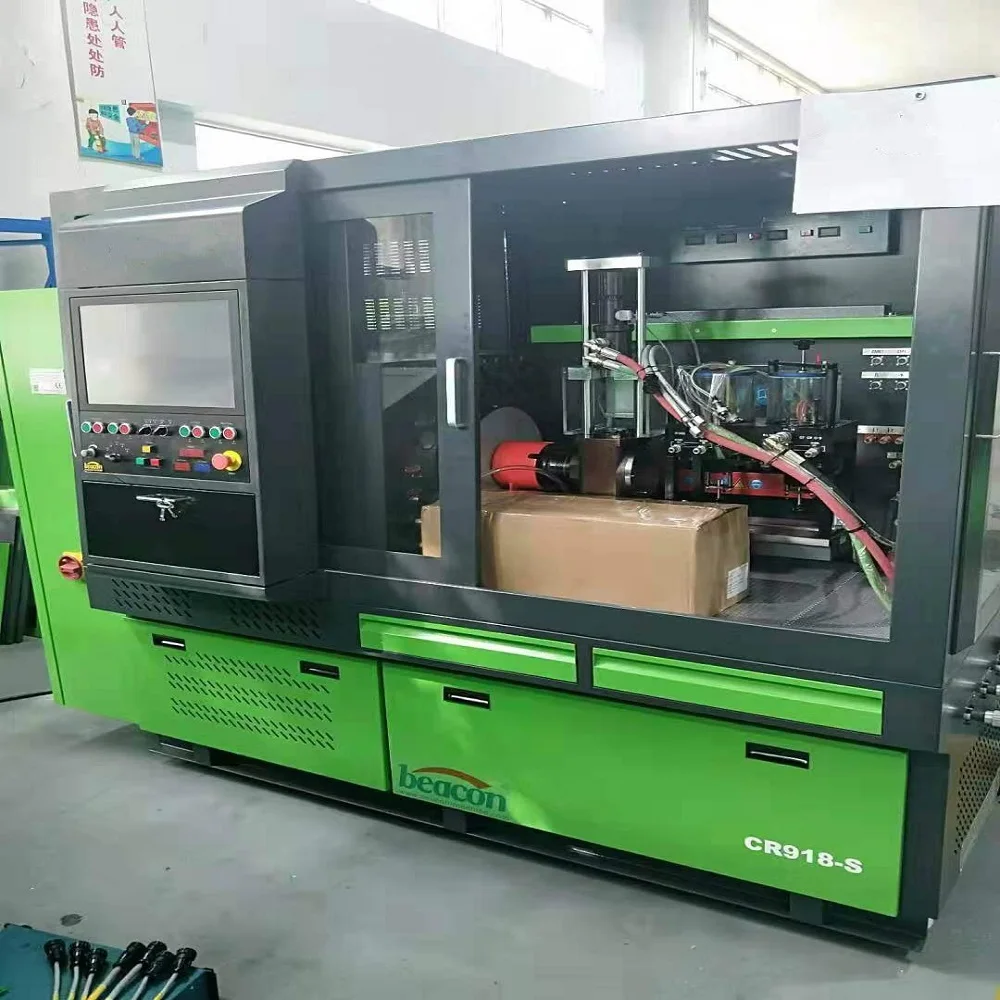

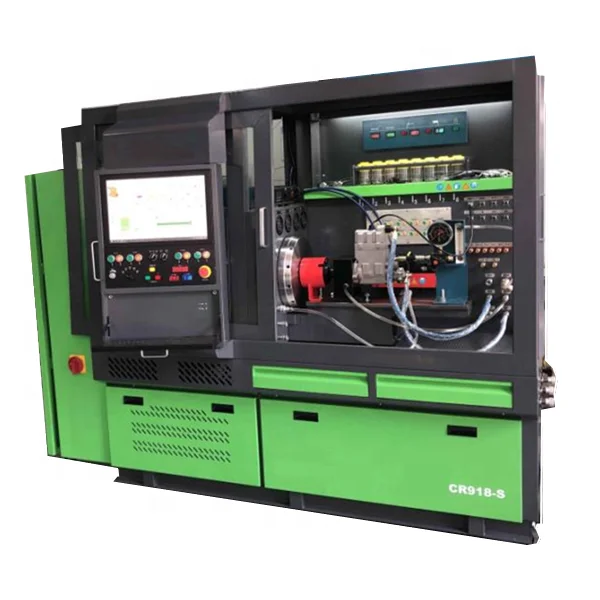

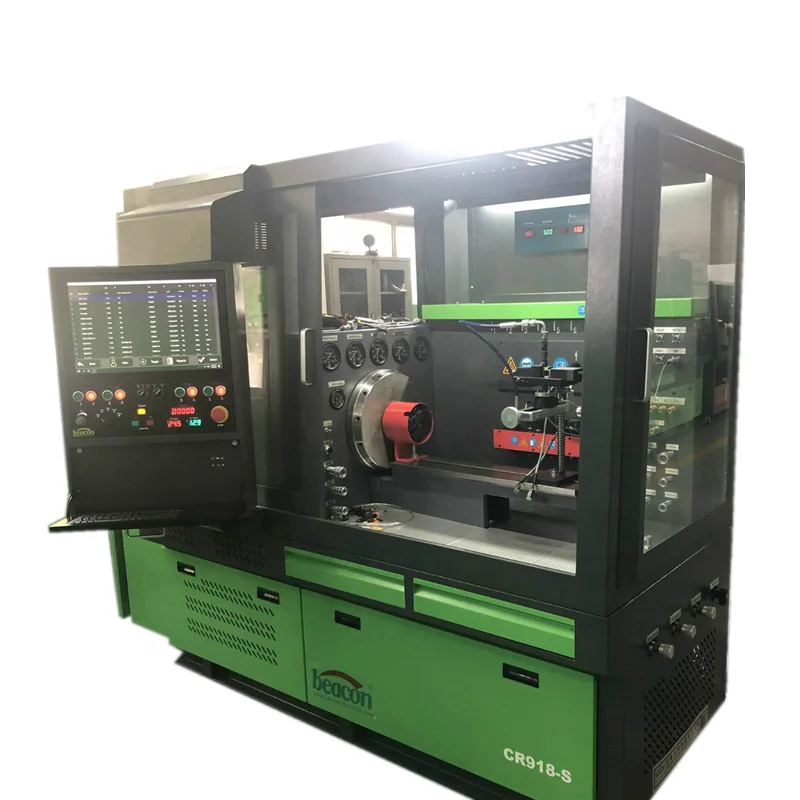

Diesel maintenance workshop CR918S BOTEN edc ve diesel pump test bench diagnostic machine for all cars
CR918-S comprehensive test bench
Test common rail injector
Test common rail pump

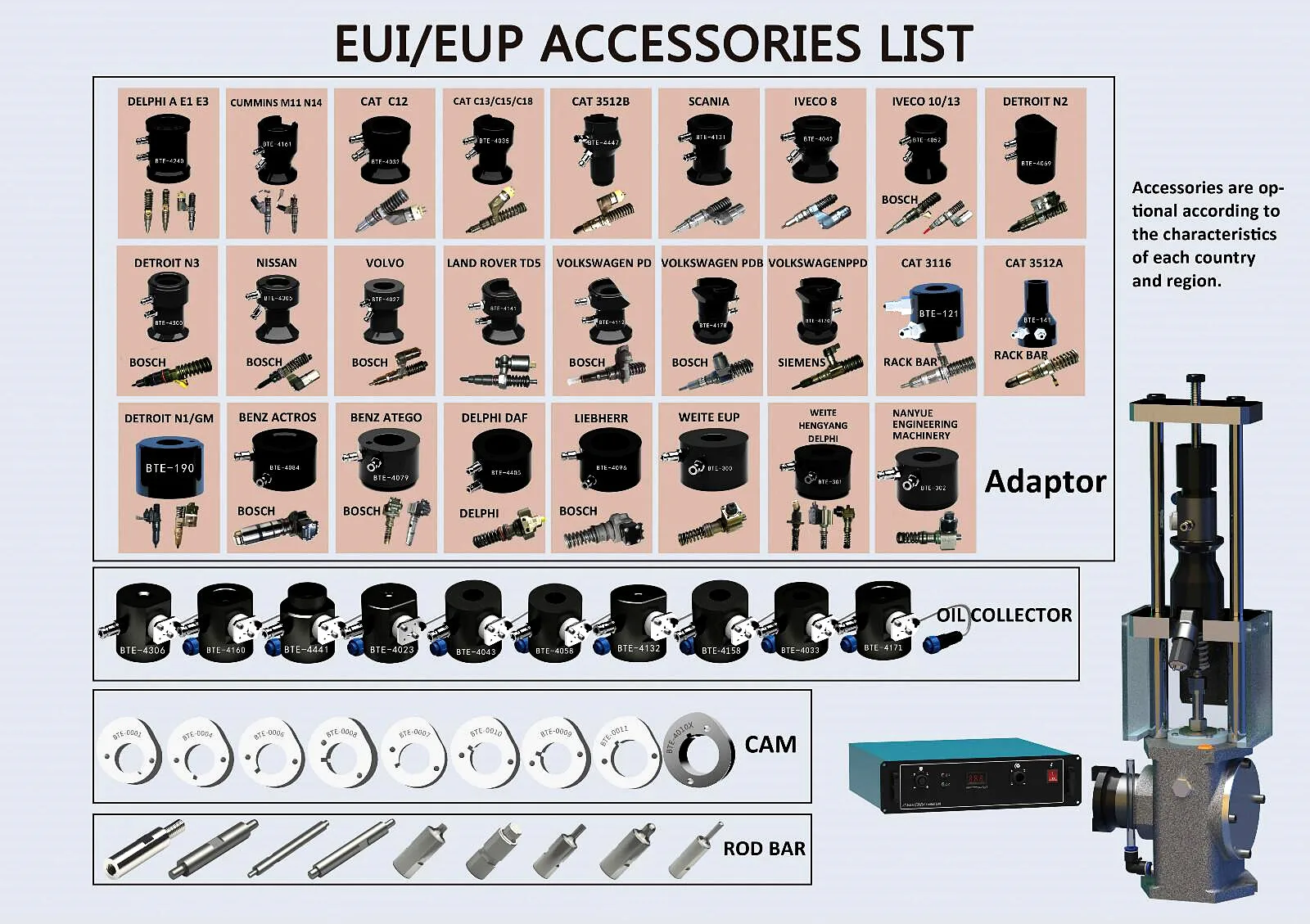

Test EUI/EUP
Test the HEUI injector
Test HEUI actuation pump
The highest rail pressure is 2400 bar
Drive motor 22KW
Injection drive and system voltage monitor
Common rail with filter function
Dual DRV configuration
High pressure filter plugging reminder function
Waste tank overflow warning
Oil tank and diesel tank integrated air conditioning strong refrigeration system
Accurate response time
Generate oil correction code
Test PT pump
Test PT injector
Test HPI Q60 X15
Test Cummins HPI Actuator
Six injectors can be triggered at the same time, and six injector correction codes can be generated simultaneously
Features
Bosch 6, 7, 8,9, 10-digit IMA encoding generation
Bosch piezoelectric IMA, ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i.C3i encoding generation
Siemens (VD0) ICC code generation
TECHNICAL PARAMETERS | |
Main power | 380V AC 220V(Optional) |
Phase | Three,single(Optional) |
Frequency | 50HZ/60HZ |
Current | 45A(MAX) |
Main Motor | 22kw |
Main motor rotation | 0-4000 RPM/MIN |
Oil motor HP/FLOW | 0.19KW/13L/MIN |
Diesel motor HP/FLOW | 0.19KW/13L/MIN |
Control circuit voltage | DC12V/24V 350W |
ECU internal voltage | 0-200V DC(MAX) |
Oil tank volume | 30L |
Diesel Tank volume | 52L |
Tempreature control | Heating/Forced cooling |
Max rail pressure | 180Mpa 240Mpa(Optional) |
Flowmeter(injection) | 4-550ml/min |
Flowmeter(pump supply) | 1-400L/H |
Flowmeter(pump flowback) | 1-400L/H |
Flowmeter(oil) | 5-600L/H |
Center distance between motor and working bench | 125mm |
Weight | 1100KG |
Outlook size net | (LxWxH)2400x1350x1880 |
Wooden cage | (LxWxH)2500x1480x2050 |
