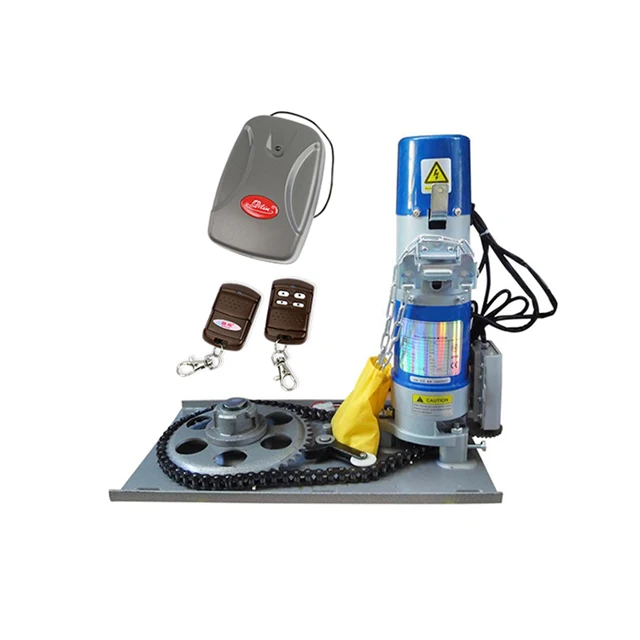

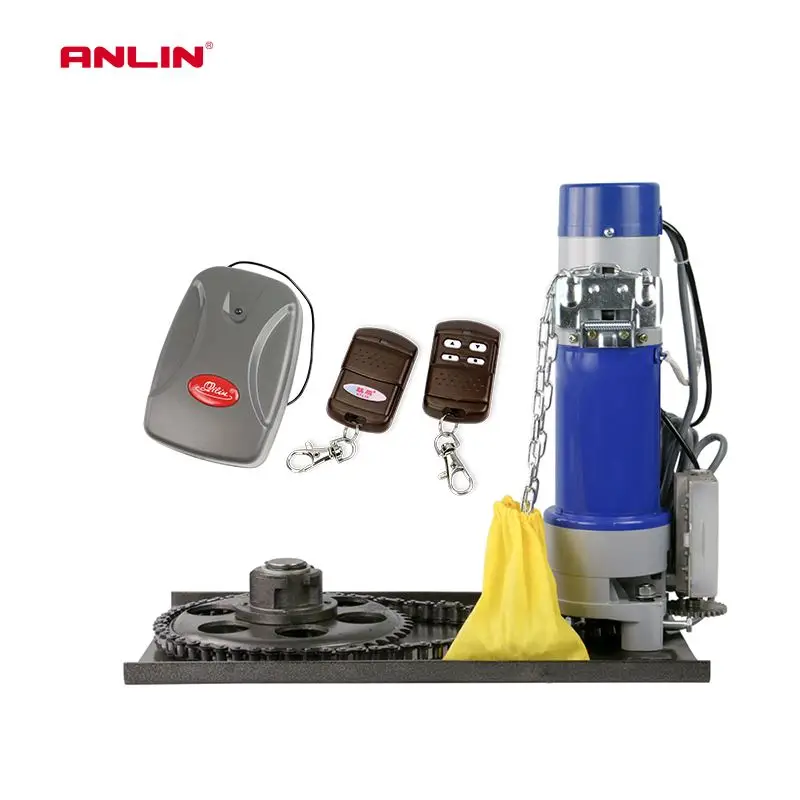

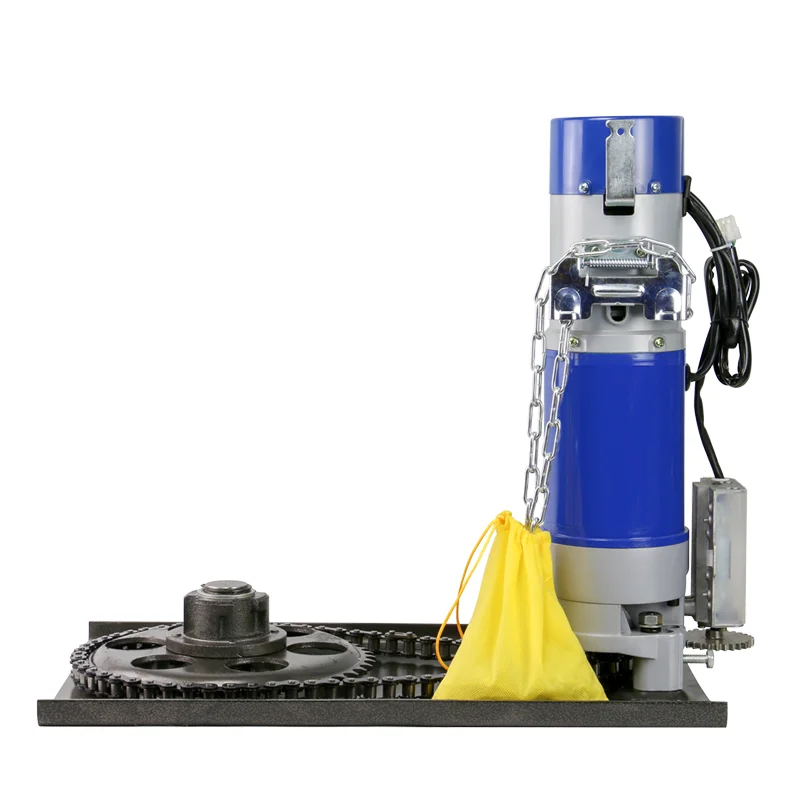

Секционные открыватели для дверей Anlin автоматическая цепь ворот боковой мотор Дистанционный автоматический роликовый маленький коммерческий
- Категория: Дверные и оконные аксессуары >>>
- Поставщик: Fujian,Anlin,Intelligent,Science,And,Technology,Co.,Ltd.Fujian,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11338.57 $* | 11905.24 $* |
| Aug-16-2025 | 11243.24 $* | 11805.90 $* |
| Jul-16-2025 | 9433.1 $* | 9905.16 $* |
| Jun-16-2025 | 11052.64 $* | 11605.81 $* |
| May-16-2025 | 9623.7 $* | 10104.94 $* |
| Apr-16-2025 | 10862.36 $* | 11405.22 $* |
| Mar-16-2025 | 10767.25 $* | 11305.69 $* |
| Feb-16-2025 | 10671.7 $* | 11205.26 $* |
| Jan-16-2025 | 10576.72 $* | 11105.78 $* |
Характеристики
verified Informatio
Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.
click for details
 | ||
 |  |  |
 |  |  |
Product Description
Product information
| Technical Specifications | |||||||||
| Model | Rated Voltage | Rated
Frequency | Rated Power (W) | Rated Current (A) | Lifting Force (kg.f) | Output Torque (N.m) |
Output speed (r/min) | Max Lifting Height (m) | Continued Working time (min) |
| QL-300-1P(300kg) | 220V /110V | 50Hz | 250 | 1.9 | 300 | 168 | 5.4 | 6 | 7 |
| QL-400-1P(400kg) | 220V /110V | 50Hz | 300 | 3.2 | 400 | 225 | 5.4 | 6 | 7 |
| QL-500-1P | 220V /110V | 50Hz | 370 | 3.3 | 500 | 343 | 5.7 | 6 | 7 |
| (500kg) | |||||||||
| QL-600-1P(600kg) | 220V /110V | 50Hz | 370 | 3.3 | 600 | 412 | 5.3 | 6 | 7 |
| QL-700-1P(700kg) | 220V/110V | 50Hz | 370 | 3.9 | 700 | 509 | 5.3 | 6 | 7 |
| QL-800-1P(800kg) | 220V /110V | 50Hz | 400 | 4.5 | 800 | 647 | 4.6 | 9 | 7 |
| QL-1000-1P(1000kg) | 220V /110V | 50Hz | 400 | 4.5 | 1000 | 809 | 4.4 | 9 | 7 |
| QL-1500-1P(1500kg) | 220V /110V | 50Hz | 400 | 4.5 | 1000 | 809 | 4.4 | 9 | 7 |
Product characterist
The electronic limit technology is adopted, is used to reduce the fault caused by the humidity, dust, stain and environmental influence of the limiting box.
Electronic limit absolute value precision positioning.Low noise
Prevent to rush out of limit position
