Алюминиевая литьевая машина/Полностью Автоматическая Литьевая Машина из алюминиевого сплава
- Категория: Станок для литья под давлением >>>
- Поставщик: Bengbu,Long,Hua,Die,Casting,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 60207.9 $* | 61411.77 $* |
| Jul-16-2025 | 48829.34 $* | 49806.15 $* |
| Jun-16-2025 | 59259.28 $* | 60444.75 $* |
| May-16-2025 | 58785.49 $* | 59961.3 $* |
| Apr-16-2025 | 46933.62 $* | 47872.99 $* |
| Mar-16-2025 | 57837.44 $* | 58994.70 $* |
| Feb-16-2025 | 57362.31 $* | 58509.33 $* |
| Jan-16-2025 | 56888.52 $* | 58026.74 $* |
Характеристики
Product Description

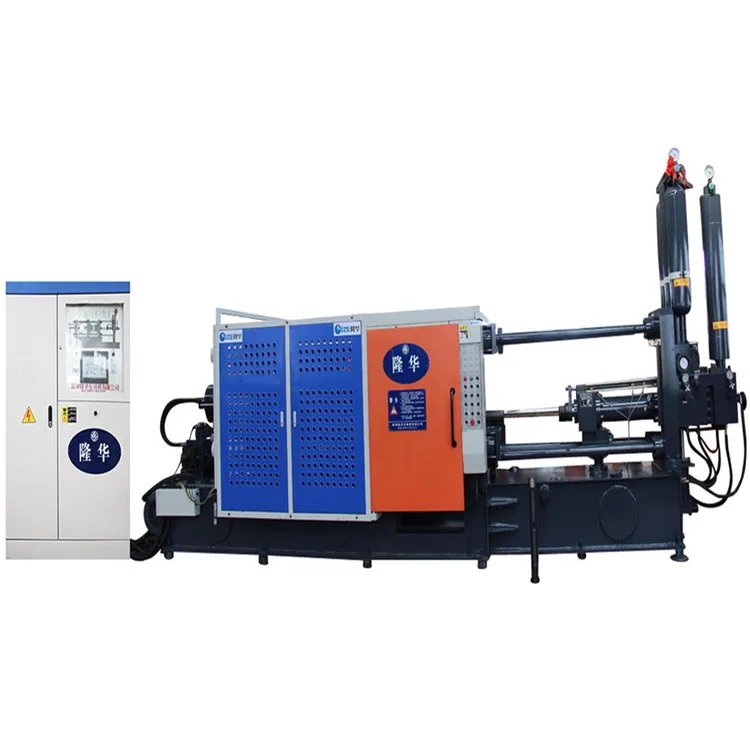

Longhua aluminum alloy die-casting machine adopts imported computer centralized control and is equipped with world-famous electrical appliances and hydraulic components, which makes the equipment easy to operate and stable in performance. The machine can be controlled in multiple stages, safe and energy saving. Fully automated production line to improve production efficiency. Widely used in automobiles, motorcycle accessories, household appliances, LED lighting equipment, bathroom accessories, electronic products, etc.

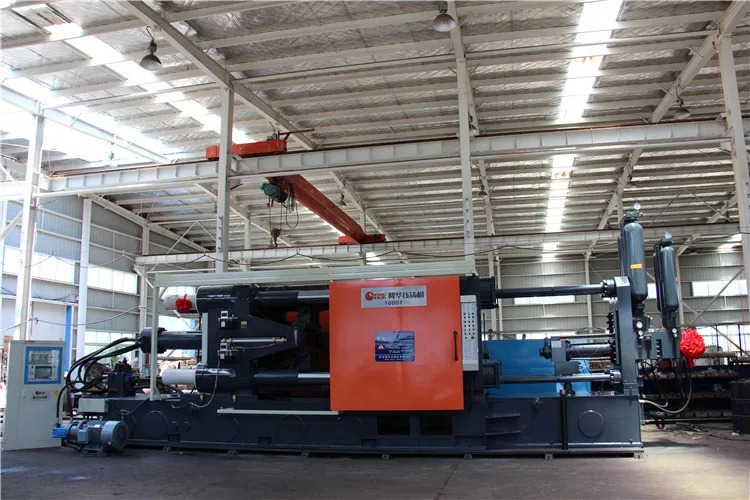

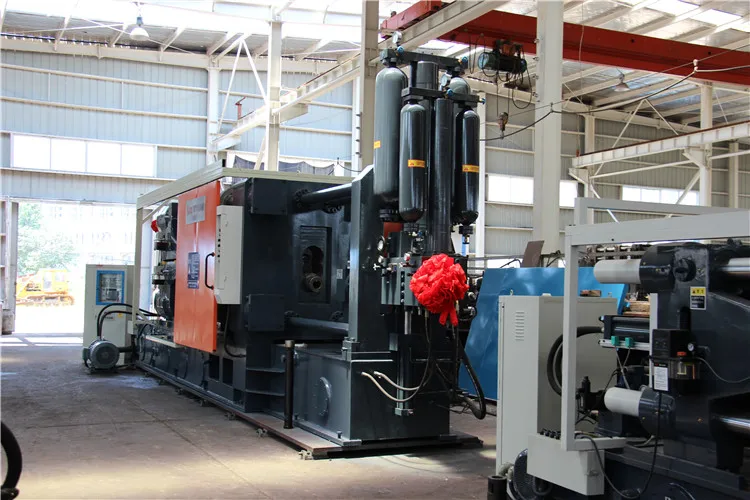

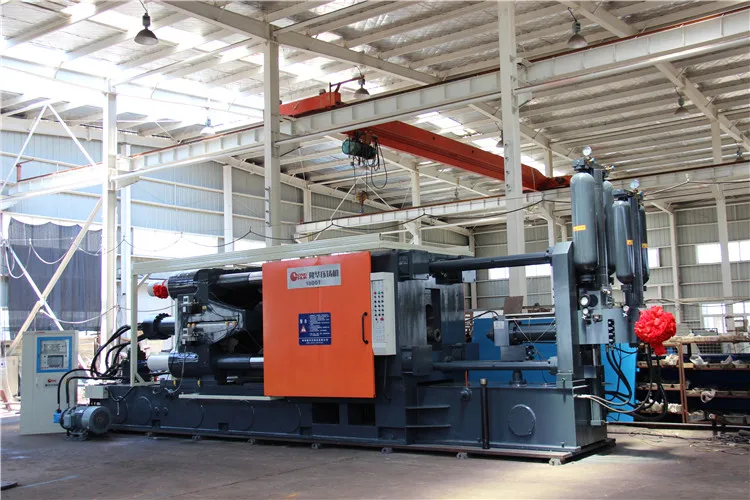

Detailed Images
Size Information
Items | Unit | Specification |
Hydraulic Working Pressure | MPa | 14 |
Clamping Force | KN | 4000 |
Space Between Tie Bars | mm | 620*620 |
Tie Bar Diameter | mm | ￠125 |
Die Opening Stroke | mm | 450 |
Injecction Force(intensify) | KN | 415 |
Plunger launch distance | mm | 200 |
Injection position | mm | 0 -- 175 |
Plunger Diameter | mm | ￠60----￠80 |
Injection Stroke | mm | 500 |
Casting pressure (intensify) | MPa | 141/104/80 |
Casting Fiange Protrusion | mm | 12 |
Casting Fiange Diameter | mm | 130 |
(40Mpa) Max Casting Area Under40Mpa | CM2 | 1008 |
lnjection Weight(Al) | Kg | 5 |
Die Height(Min--Max) | mm | 300～750 |
Ejector Force | KN | 180 |
Ejector Steoke | mm | 140 |
Motor Capacity | Kw | 18.5 |
Machine Dimensions (L*W*H) | m | 7.3*2*2.8 |
Referential Machine Weight For Uplifting | T | 16.5 |
Oil Tank Capacity | L | 1000 |
Packing&Shipping
We have a professional hoisting team to ensure that the die casting machine can enter the container smoothly and safely and reach your factory.
After Sales Service
factory Outlet
Factory direct sales, cost-effective machines, high efficiency, energy saving, environmental protection
Company Introduction
Longhua Die Casting Machine Co., Ltd. has been focusing on the research and development and production of die casting machines for 38 years. Is a national high-tech enterprise. Successively won: State Intellectual Property Office: "20 invention patents, 25 utility model patents", "National Torch Plan, two high-tech product certificates".
Longhua's R & D and production of die casting machine machinery industry standards, fully own independent research and development design and manufacture LH125Ton ~ LH3000Ton cold chamber die casting machine and some hot chamber die casting machine.
Longhua horizontal cold chamber die-casting machine has won the title of "Excellent Product of the Ministry of National Machinery", and is the only product in China's die-casting machine industry that has won this award so far.
Meet the individual needs of customers. Imported brands of electrical and hydraulic components make the equipment easy to operate and stable in performance.

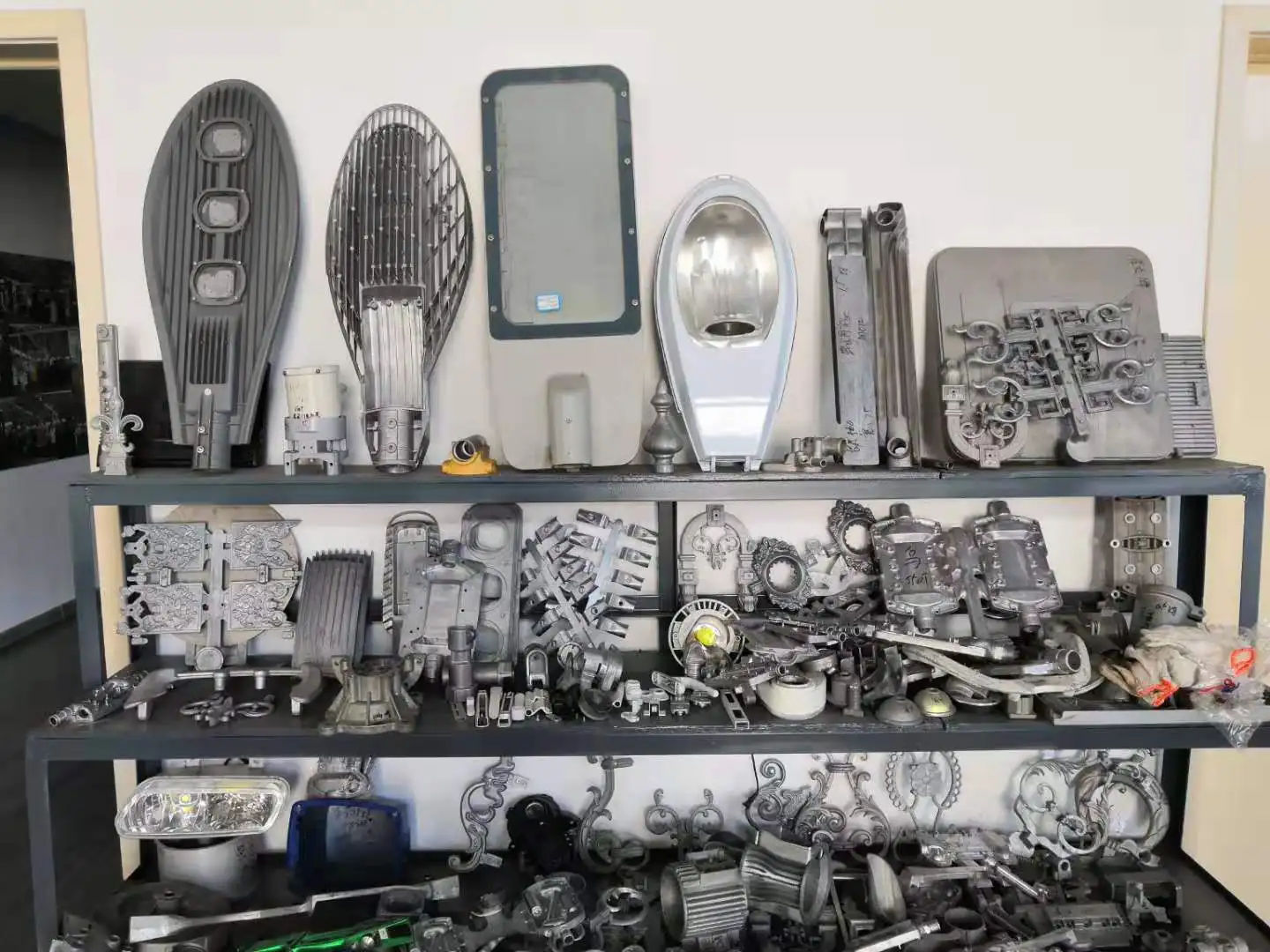

Longhua die casting machine is widely used in 3C industry, automobile, motorcycle, furniture, military industry, electrical lighting, building materials, machinery and equipment, and other non-ferrous metals (such as: aluminum alloy, copper alloy, magnesium alloy, zinc alloy, lead alloy Etc.) Manufacture of further processed products.
Our die-casting machine has passed the international quality supervision department, CNAS, ISO9001, SGS, and other certifications. Longhua has become one of the leading brands in the domestic and foreign die casting machine market, and its products are exported to more than 100 countries and regions in Europe, South America, Africa, the Middle East and Southeast Asia.
Because our aim is: "Today's quality, tomorrow's market"
Longhua's R & D and production of die casting machine machinery industry standards, fully own independent research and development design and manufacture LH125Ton ~ LH3000Ton cold chamber die casting machine and some hot chamber die casting machine.
Longhua horizontal cold chamber die-casting machine has won the title of "Excellent Product of the Ministry of National Machinery", and is the only product in China's die-casting machine industry that has won this award so far.
Meet the individual needs of customers. Imported brands of electrical and hydraulic components make the equipment easy to operate and stable in performance.
Longhua die casting machine is widely used in 3C industry, automobile, motorcycle, furniture, military industry, electrical lighting, building materials, machinery and equipment, and other non-ferrous metals (such as: aluminum alloy, copper alloy, magnesium alloy, zinc alloy, lead alloy Etc.) Manufacture of further processed products.
Our die-casting machine has passed the international quality supervision department, CNAS, ISO9001, SGS, and other certifications. Longhua has become one of the leading brands in the domestic and foreign die casting machine market, and its products are exported to more than 100 countries and regions in Europe, South America, Africa, the Middle East and Southeast Asia.
Because our aim is: "Today's quality, tomorrow's market"
