PZEM-051 DC Цифровой Панель Вольтметр Амперметр переменного тока 6 5-100V 100A 4 IN1 ЖК энергии измеритель с
- Категория: Счетчики электроэнергии >>>
- Поставщик: Shenzhen,Hehejin,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 9.25 $* | 9.59 $* |
| Jul-20-2025 | 7.90 $* | 7.99 $* |
| Jun-20-2025 | 9.31 $* | 9.64 $* |
| May-20-2025 | 9.71 $* | 9.50 $* |
| Apr-20-2025 | 7.91 $* | 7.22 $* |
| Mar-20-2025 | 9.95 $* | 9.51 $* |
| Feb-20-2025 | 8.82 $* | 8.69 $* |
| Jan-20-2025 | 8.95 $* | 8.80 $* |
Характеристики
PZEM-051 DC Digital Panel Voltmeter Ampere Meter 6.5-100V 100A 4 IN1 LCD Power Energy Current Meter with 100A Shunt
Brief Instruction
Patented product ( Patent No: ZL201530340281.0)
Voltage + current + power + energy,
Voltage range DC6.5V-100V, current range 0-100A; With shunt; The grid voltage is directly powered, no external power supply is required; Accurate measurement, large screen LCD, full-screen display is clear!

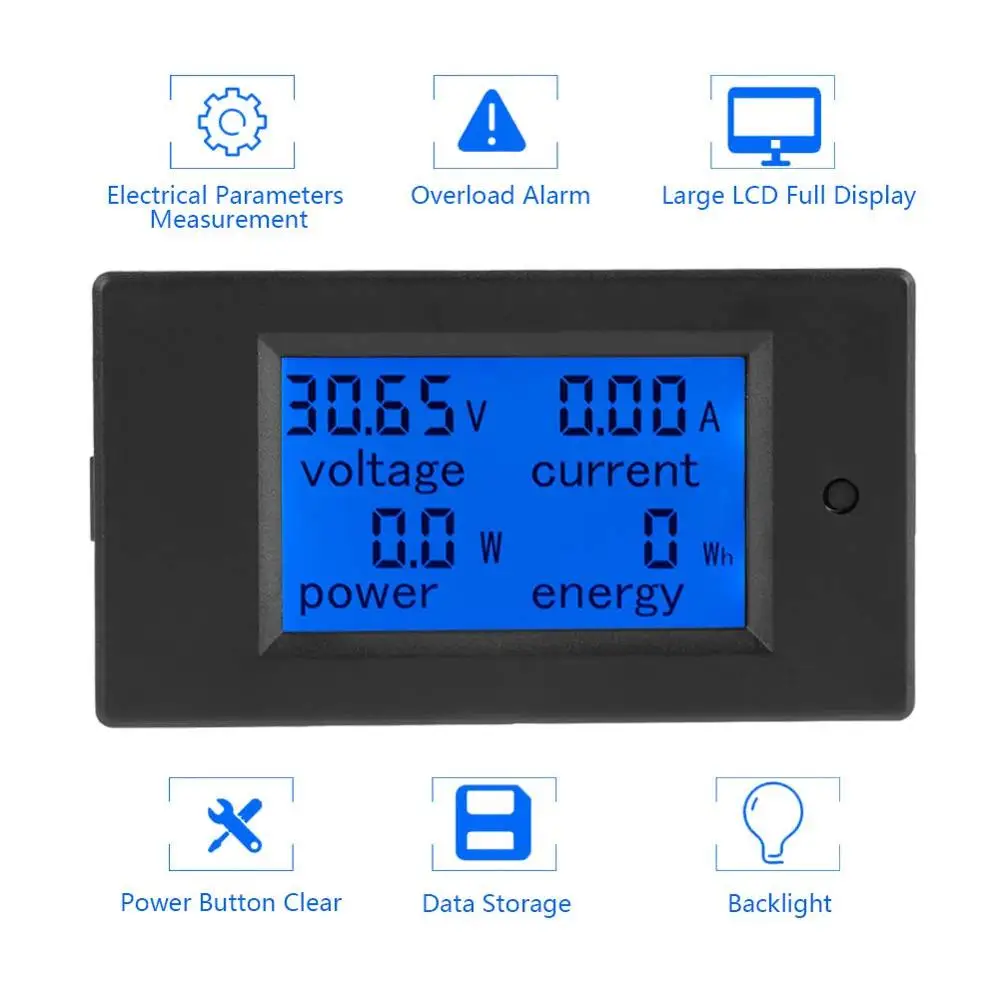

Functions
1. the function of measuring electrical parameters (voltage, current, active power, electricity).
2. overloading alarm function (exceeding the power alarm threshold, backlight and power flashing tips).
3. power alarm threshold preset function (the power alarm threshold can be set by yourself).
4. power button zero function.
5. power down data saving function.
6. backlight fuction.
Feature
- Operating voltage: DC6.5 ~ 100V
- Test voltage: DC6.5 ~ 100V
- Rated power: 100A/10000W
- Measurement accuracy:±1%
Specification
| Product Type | PZEM-051 |
| Accuracy | 1.0 grade |
| Display Size | 51*30mm |
| Product Size | 89.6*49.6*24.4mm |
| Weight | 209g |
| Test Range | 1. Voltage: 6.5~100V 2. Current: 0~100A 3. Power: 0~10kW 4. Energy: 0~9999kWh |
Current Range | 100A |
refresh rate | 1S |
| Function | 1. Electrical parameter measurement function(voltage, current, active power, energy) (over voltage alarm threshold, backlight and voltage flashing to alarm). |
LCD Display
1. Power: measurement range 0 ~ 10kW
within 1kW display format 0.0 ~ 999.9W
above 1kW display format 1000 ~ 9999W
2. Energy: measurement range 0 ~ 9999kWh
within10kWh the display format 0 ~ 9999Wh
above 10kWh the display format 10 ~ 9999kWh
3. Voltage: test range 6.5 ~ 100V
display format 6.50 ~ 99.99V
4. Current: test range 0 ~ 100A
display format 0.00 ~ 99.99A

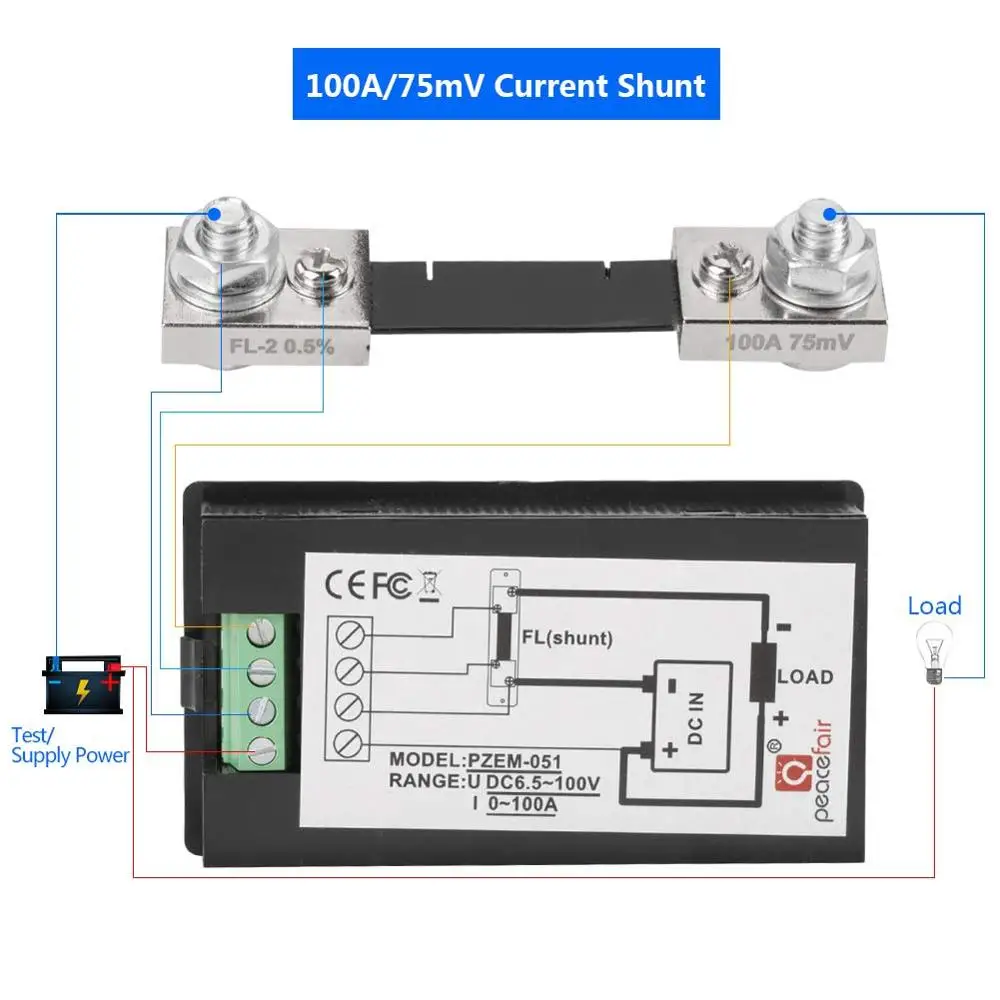

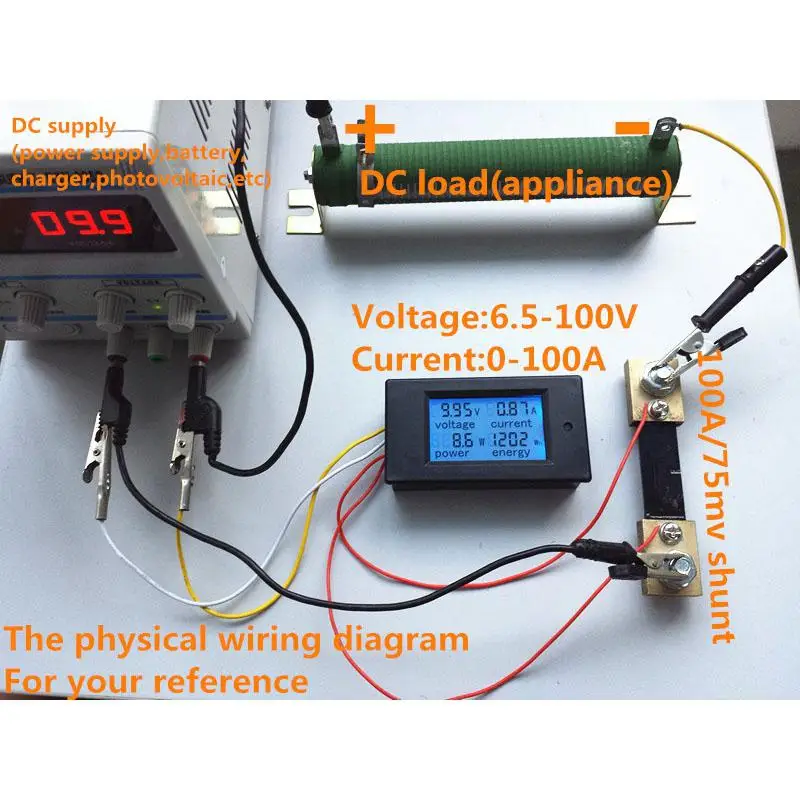

Installation

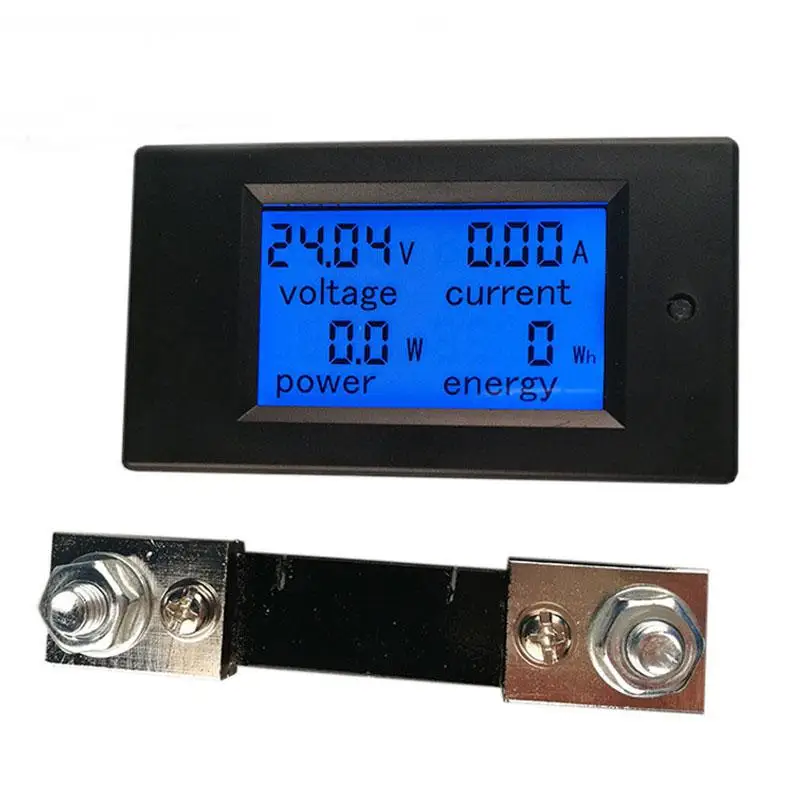

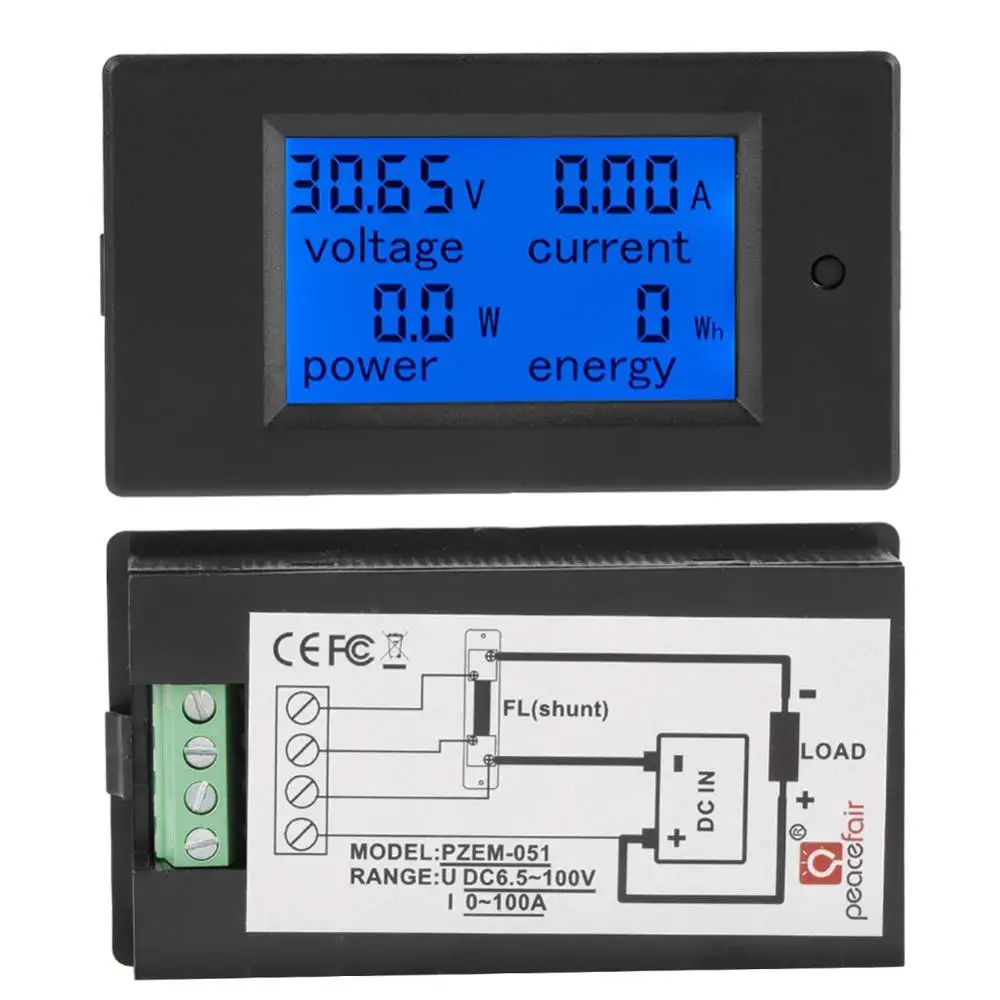

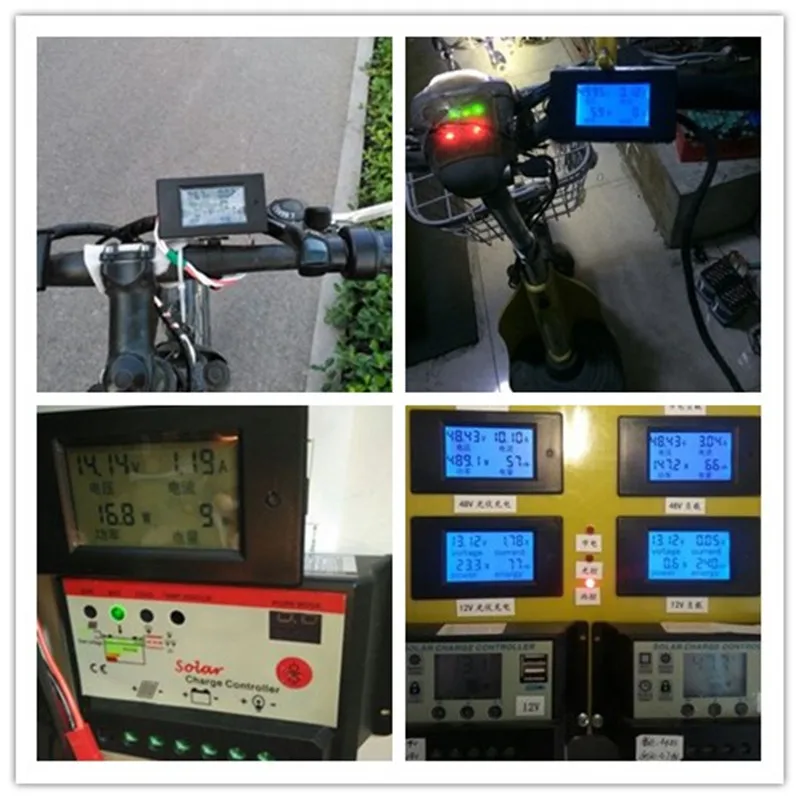

Detailed Images
