Литиевая батарейка LiMnO2 3 в Кнопочная CMOS CR1220 с проводами для припоя Кабельный
- Категория: Основной батареи >>>
- Поставщик: Shenzhen,ChanLin,Electronic,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.48 $* | 0.9 $* |
| Aug-17-2025 | 0.65 $* | 0.78 $* |
| Jul-17-2025 | 0.2 $* | 0.59 $* |
| Jun-17-2025 | 0.56 $* | 0.44 $* |
| May-17-2025 | 0.62 $* | 0.42 $* |
| Apr-17-2025 | 0.11 $* | 0.17 $* |
| Mar-17-2025 | 0.68 $* | 0.9 $* |
| Feb-17-2025 | 0.85 $* | 0.44 $* |
| Jan-17-2025 | 0.68 $* | 0.55 $* |
Характеристики
3v Lithium LiMnO2 Coin Cell Button Battery CMOS CR1220 with Solder wires cable connector
Product Description
1. Voltage: 3.0v
2. Capacity: 40mAh
3. End voltage: 2.0v
4. Package: bulk packing.
5. Dimension: 12.5x2.0mm
| Coin Cell Model | Normal Voltage (V) | End voltage (V) | Dimension (DiameterxHeight)mm | Capacity (mAh) |
| CR927 | 3 | 2 | 9.5x2.7 | 40 |
| CR1025 | 3 | 2 | 10x2.5 | 40 |
| CR1220 | 3 | 2 | 12.5x2.0 | 45 |
| CR1225 | 3 | 2 | 12.5x2.5 | 48 |
| CR1616 | 3 | 2 | 16x1.6 | 50 |
| CR1620 | 3 | 2 | 16x2.0 | 70 |
| CR1625 | 3 | 2 | 16x2.5 | 90 |
| CR1632 | 3 | 2 | 16x3.2 | 125 |
| CR2016 | 3 | 2 | 20x1.6 | 80 |
| CR2025 | 3 | 2 | 20x2.5 | 150 |
| CR2032 | 3 | 2 | 20x3.2 | 210 |
| CR2330 | 3 | 2 | 23X3.0 | 250 |
| CR2354 | 3 | 2 | 23X5.4 | 350 |
| CR2430 | 3 | 2 | 24.5X3.0 | 300 |
| CR2450 | 3 | 2 | 24.5X5.0 | 580 |
| CR2477 | 3 | 2 | 24.5x7.7 | 950 |
| CR3032 | 3 | 2 | 30x3.2 | 580 |
Related models

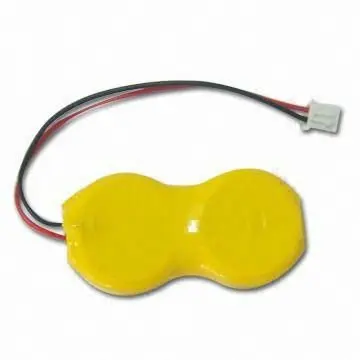

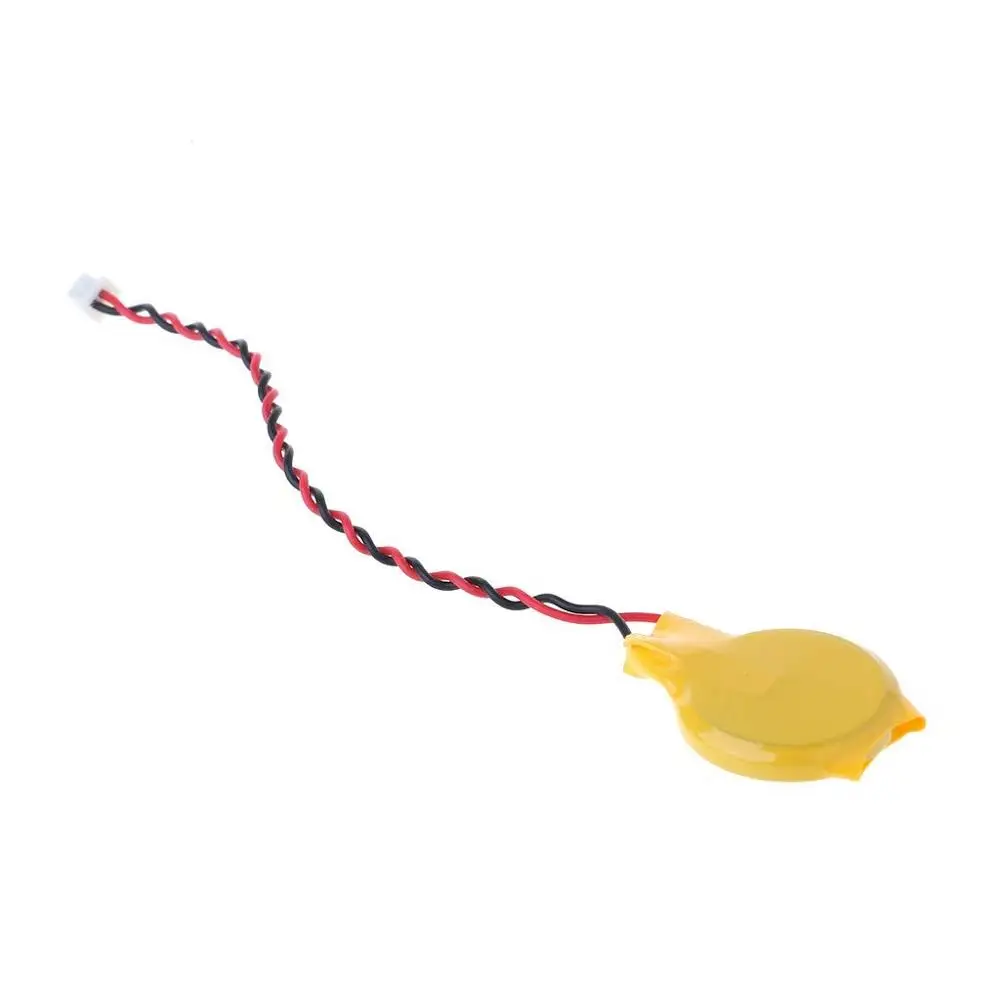

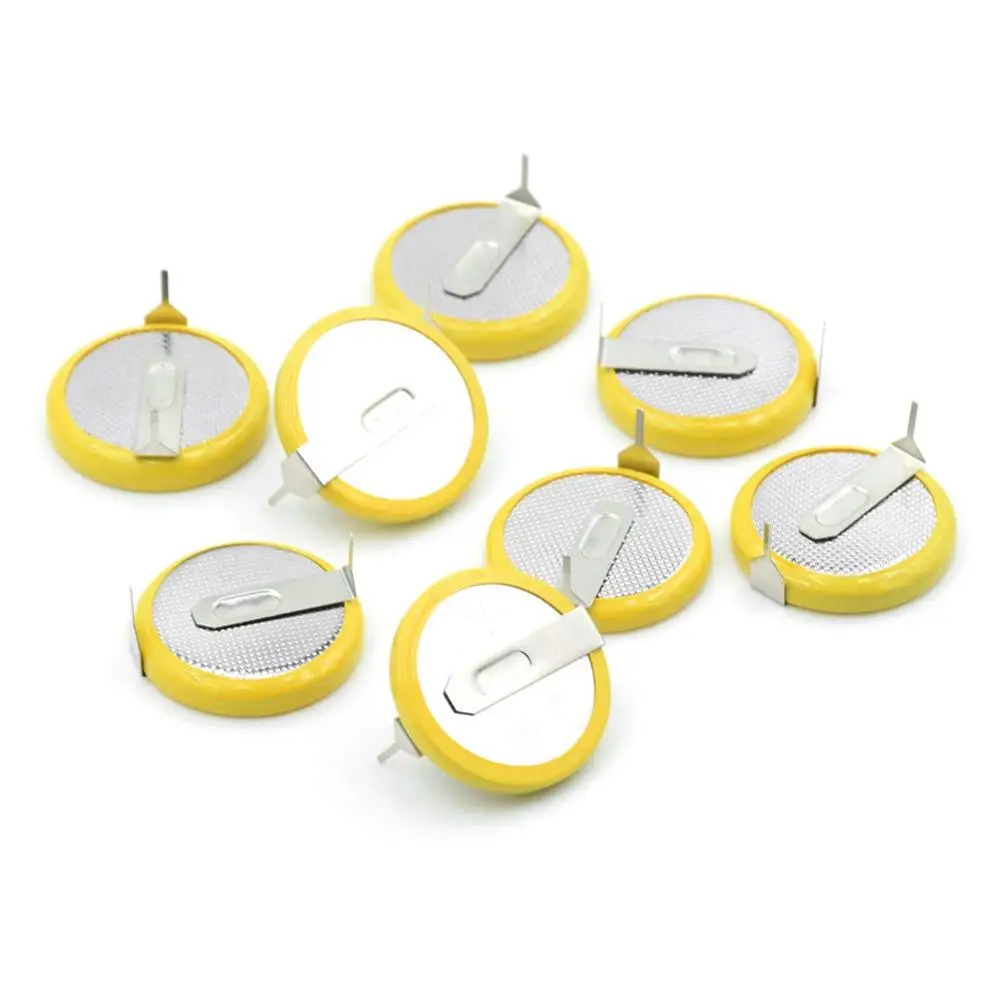

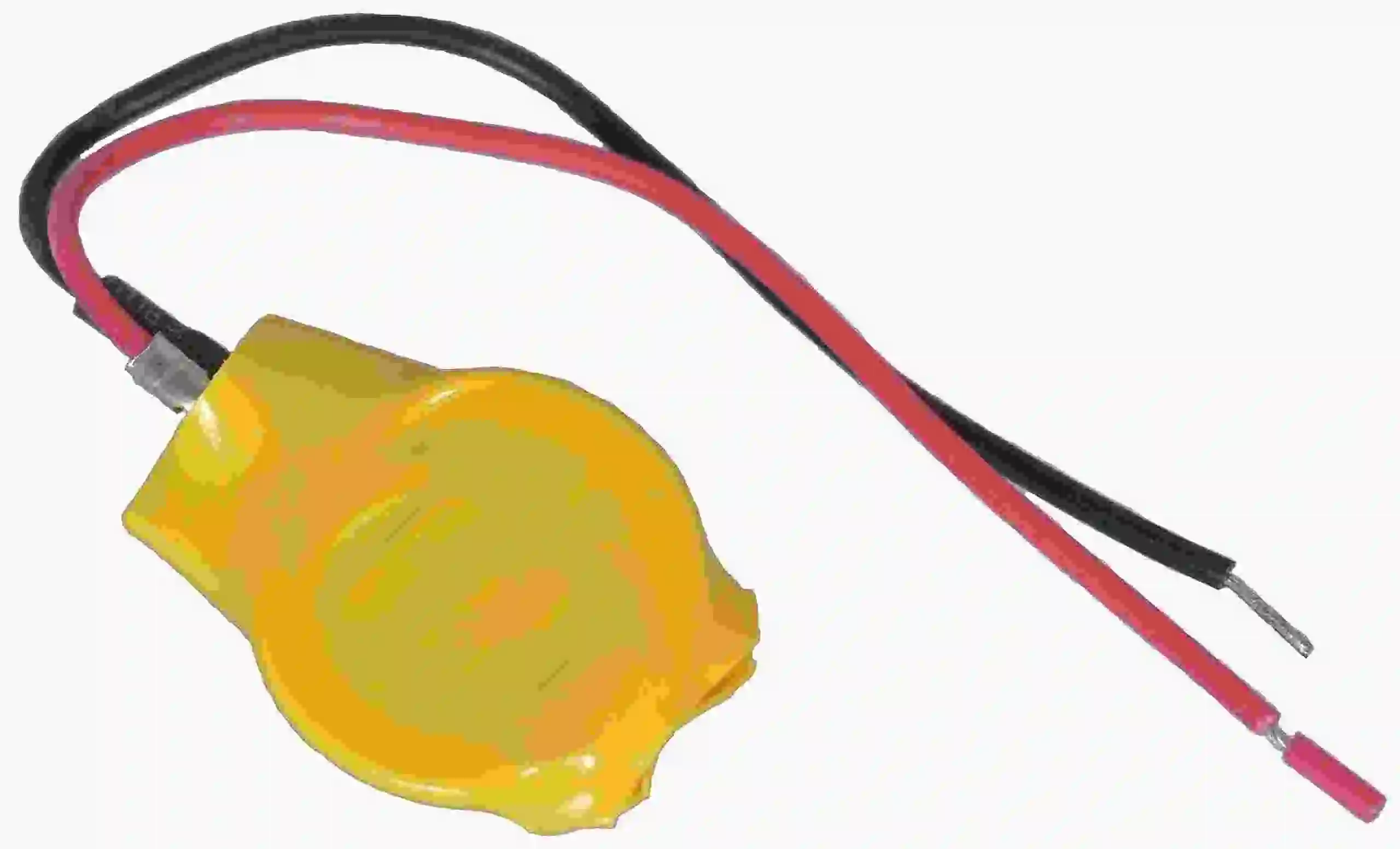

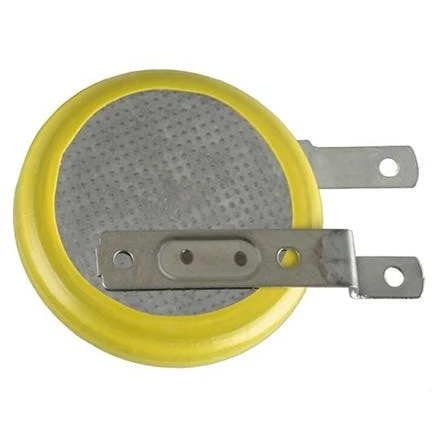

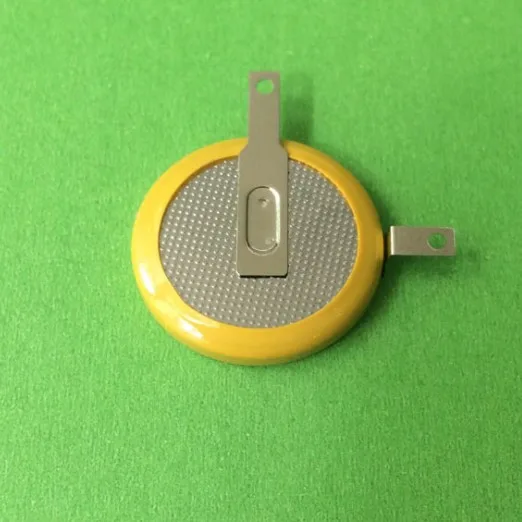

We can produce CR1220 battery with solder tabs or wires & connector
SMT TYPE
DIP TYPE
DRAWINGS
NOTICE: if there haven't the drawing you need, please contact us, we can produce with your requirements also, such as button battery pack with tabs or wires in Seires or Parallel.
