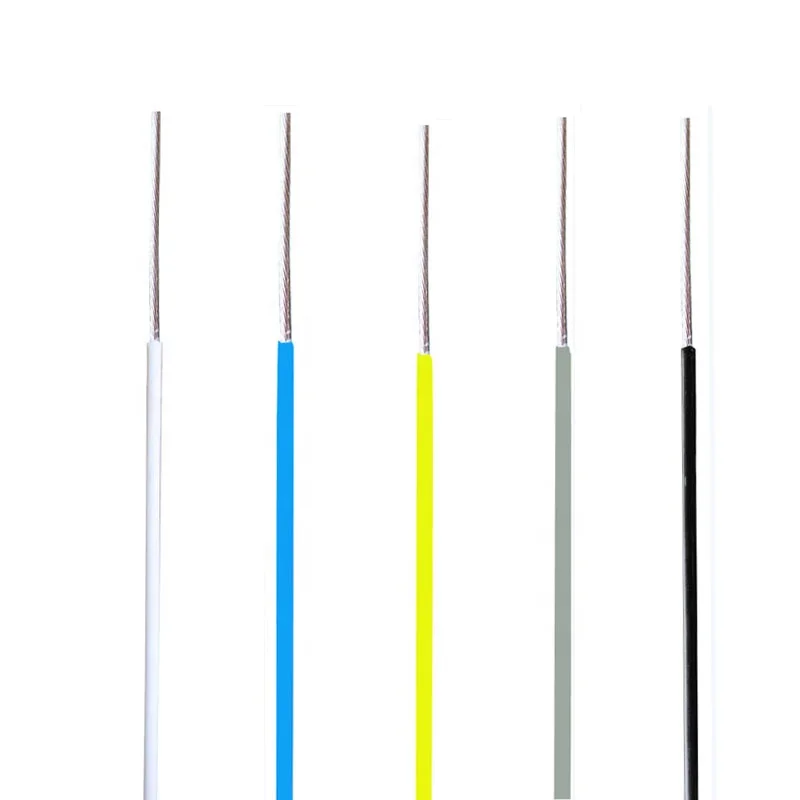

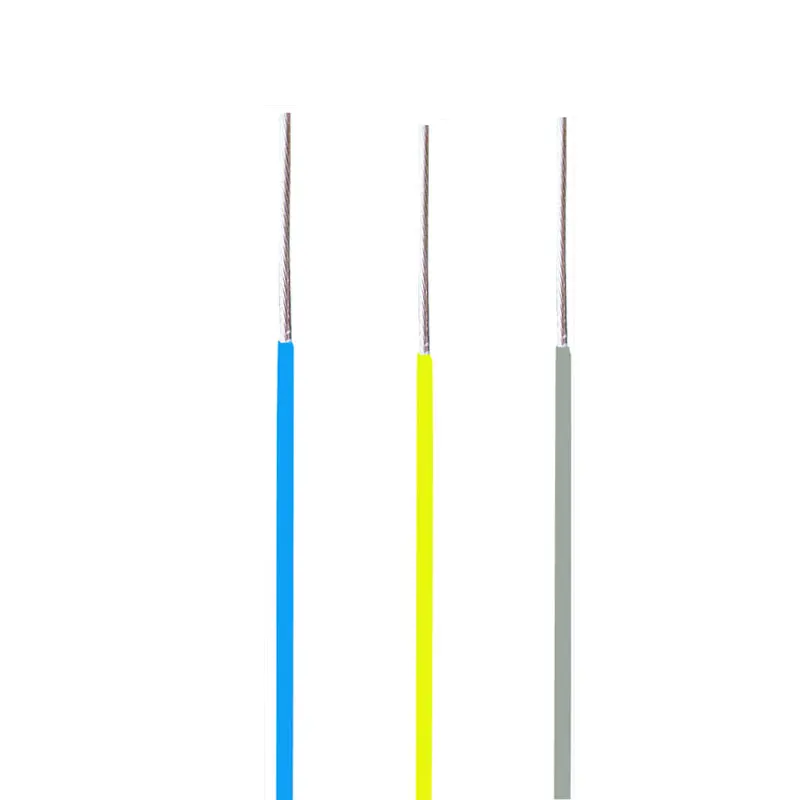

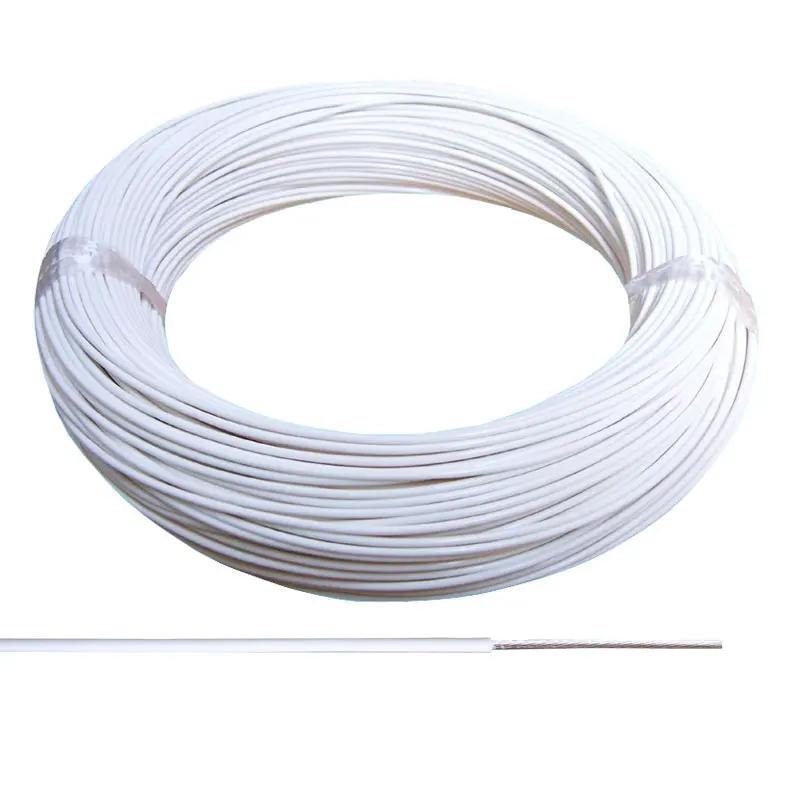

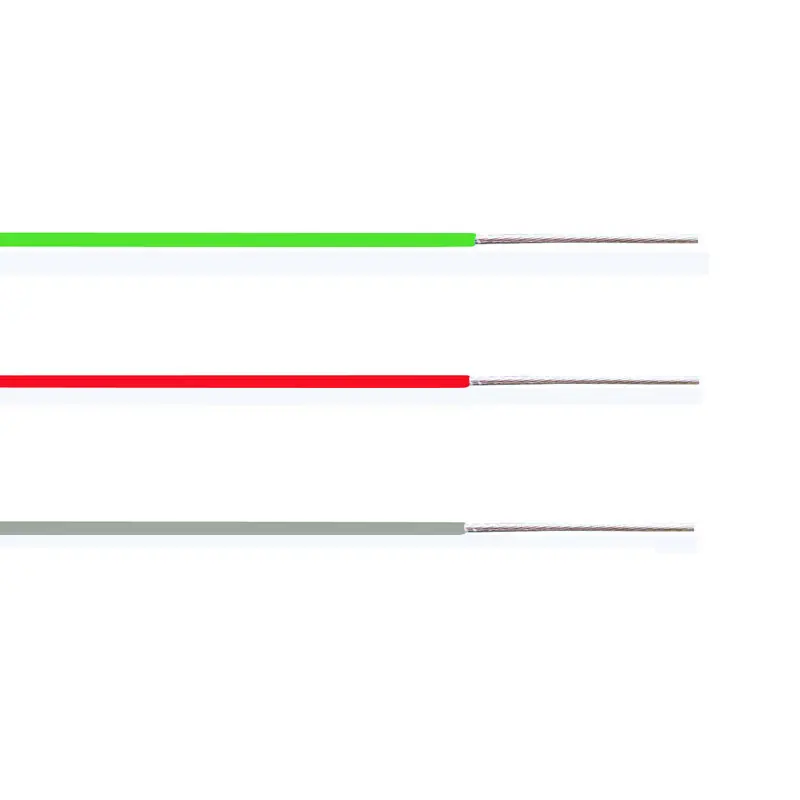

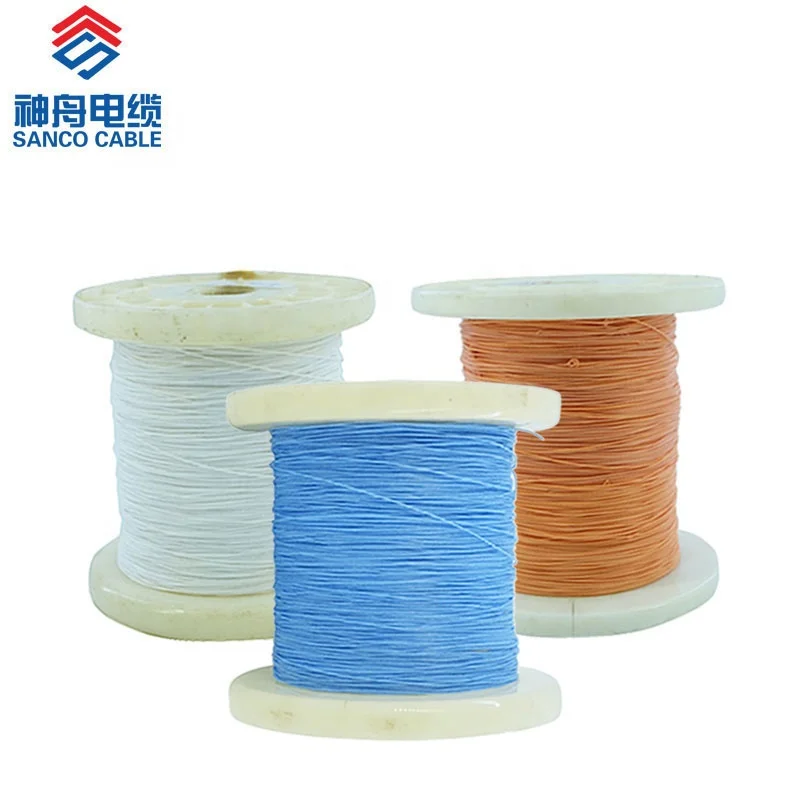

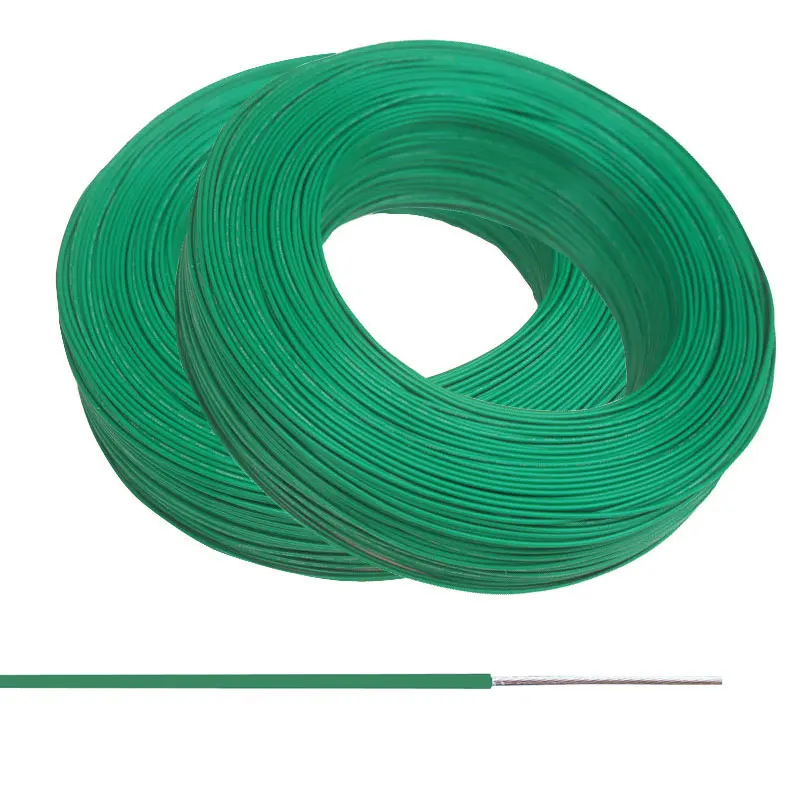

Solid Core PTFE Wire Manufacturers and Suppliers, Hook-up Wire






Product Description





Application: Flexible Special Cable is used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.





Flexible Special Cable can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.





Product Features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;  flame-retardant, Anti-ageing, long age of usage





Cable Specifications:






































Conductor Materials



 Silver Plated Copper, Tinned Plated Copper, Bare Copper



Conductor Type



 Stranded or Solid



Insulation



 PTFE, FEP, PFA Insulated



Number Core



Single Core or Multiple Cores



Size



 0.05~3mm2



Rated Voltage



 600V or Below



Rated Temperature



 -80~+250ºC



Color


White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green






Type and Name:





























TypeName
AF-200     Silver plated copper wire conductor high temperature FEP insulated wire
AF-200-1    Tinned copper wire conductor high temperature FEP insulated wire
AFP-200      Tinned copper wire or silver plated copper wire core FEP insulated shielding wire
AFS-200    Tinned copper wire or silver plated copper wire core FEP insulated stranded cable
AFSP-200    Tinned or silver coated  copper FEP insulated stranded shielding cable



































AFR-200

Bare Copper wire conductor PTFE film insulated lead wire


AFR-250

Silver plated copper wire conductor PTFE film insulated lead wire


AFP

Bare Copper wire conductor PTFE film insulated screen lead wire


AFP-1

Silver plated copper wire conductor PTFE film insulated screen lead wire


AFRP-200

Bare Copper wire conductor PTFE film insulation shield lead wire


AFRP-250

Silver plated wire copper conductor PTFE film insulation shield lead wire


AFRPF-250, AFPF

Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire









AFR250





 Cable Structures:

























































































































































Nominal Section


(mm2)




Conductor


Construction
  (No/mm)




Insulation Thickness


(mm)



Outer Diameter


(mm)



D.C. conductor resistance at


20ºC(Ω/km)



Tinned copper

Silver coated copper


0.0510/0.080.30.9383370
0.067/0.100.30.9348339
0.087/0.120.30.96286280
0.17/0.140.31.02157150
0.12

7/0.15


30/0.07


0.31.05152145
0.14

7/0.16


19/0.10


0.31.08136130
0.1530/0.080.31.1111105
0.2

7/0.02


19/0.12


0.31.28782
0.3519/0.160.31.45754
0.519/0.180.31.54037.5
0.819/0.230.321.792423
119/0.260.3522120
1.219/0.280.452.31918
1.519/0.320.452.51312
219/0.370.452.75109
2.537/0.300.553.287
337/0.320.683.66.86.4










Company Informations




Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers. Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.







Product Flow







EXHIBITION & VISIT




In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India... Also Delegation from Ezeagu Government of Nigeria Visited our factory in 2017, and they became a long time partner with us.





WHY CHOOSE US


WHY-CHOOSE-US.jpg We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.





PACKING & SHIPPING


PACKING-2.jpg We use fast international express delivery, such as DHL, UPS, FEDEX, TNT, EMS, etc. We can also send by air, sea, or land transportation as your requrement.





FAQ







1).Q:Are you a manufacturer or trading company?


 A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China





2).Q:What is your company's strengths?


 A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.





3).Q:How do you guarantee your product quality?


A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.





4).Q:What's the warranty of your products?


A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.





5).Q:How can I get the samples?


A: We can make the sample order for you. And if the sample qty is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
