Лабораторный вертикальный насос высокого давления химический гидротермальный
- Категория: Reactors >>>
- Поставщик: Zhengzhou,Tainuo,Film,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.84 $* | 0.90 $* |
| Aug-16-2025 | 0.3 $* | 0.35 $* |
| Jul-16-2025 | 0.84 $* | 0.28 $* |
| Jun-16-2025 | 0.27 $* | 0.70 $* |
| May-16-2025 | 0.5 $* | 0.17 $* |
| Apr-16-2025 | 0.29 $* | 0.24 $* |
| Mar-16-2025 | 0.78 $* | 0.84 $* |
| Feb-16-2025 | 0.8 $* | 0.63 $* |
| Jan-16-2025 | 0.16 $* | 0.84 $* |
Характеристики
laboratory vertical high pressure chemical hydrothermal autoclave
Product Description

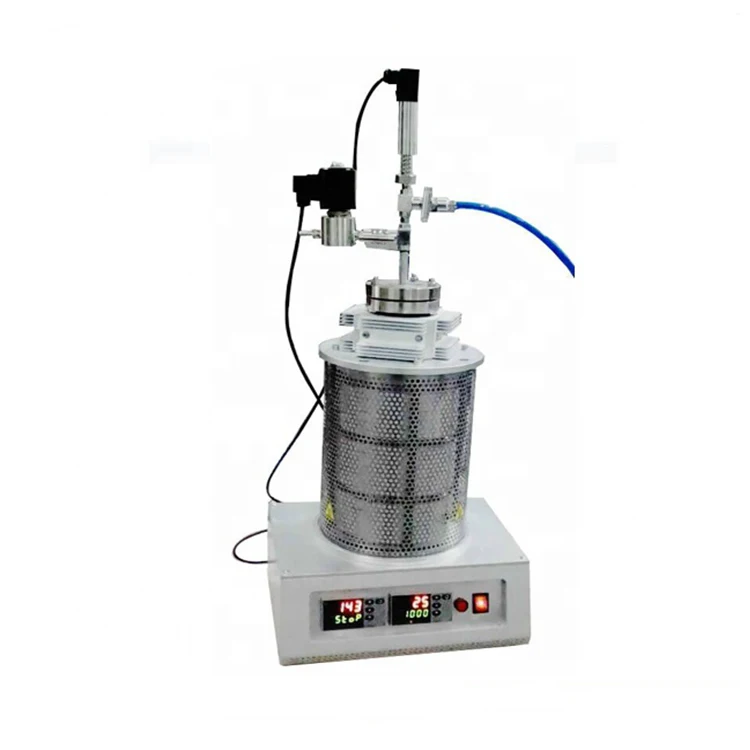

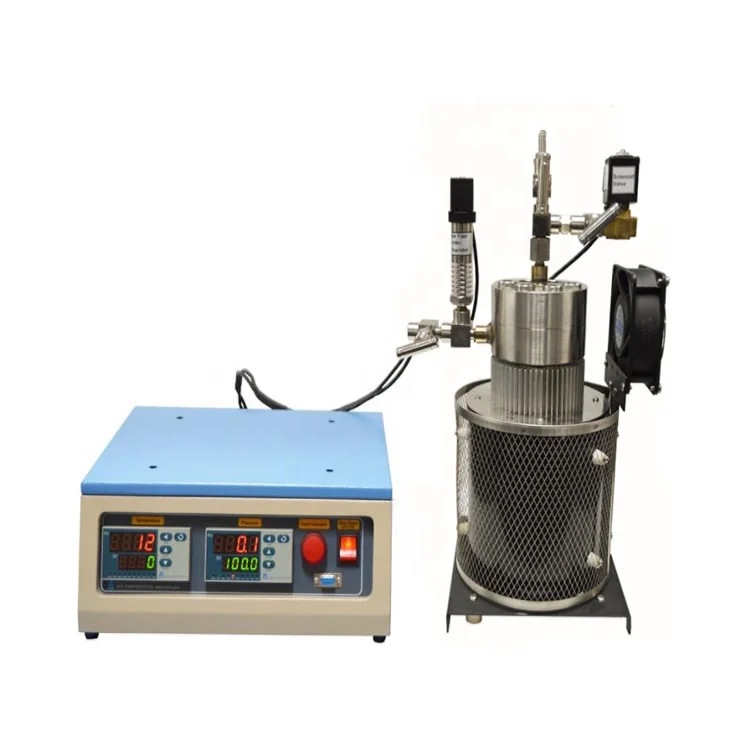

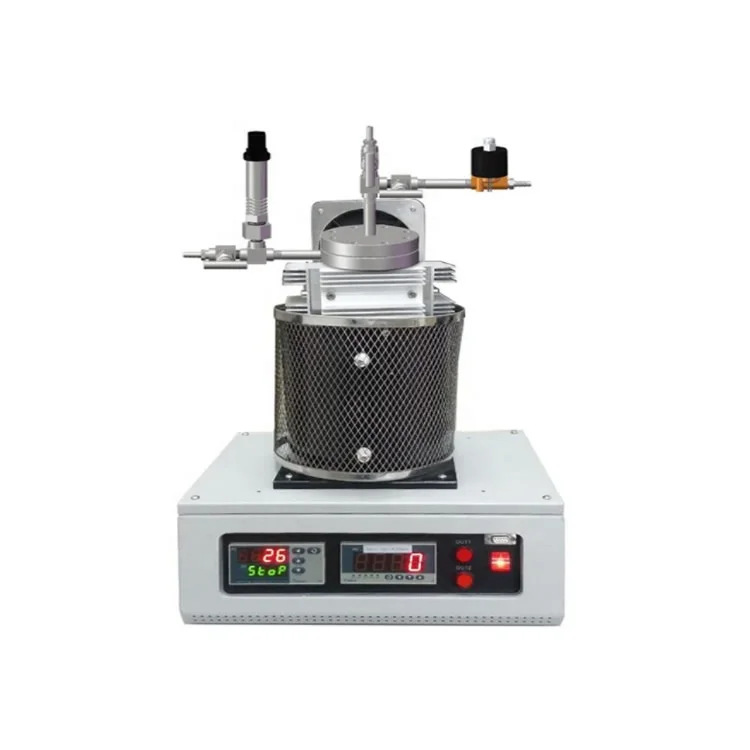

TN-1100X is a 100mL high pressure chemical autoclave made of Ni-based Superalloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 3 MPa under oxygen or inert gases. It is an ideal tool for preparing advanced material by the hydrothermal method, especially for heat treatment of sample under high oxygen pressure. A solenoid valve is installed on the flange for automatic pressure relief control. Temperature control and pressure monitoring software are included for remote control.
Specification :high pressure chemical autoclave
Model Numbe | TN-1100X |
Input Power | Input voltage: AC 208~240V, 50/ 60Hz, single phase Power: 1.5KW |
Pressure chemical reactor | (1) Ni-based superalloy hydrothermal chemical reactor with 300mL capacity. (2)Made of Ni-based superalloy GH747 (3) chemical reactor size: 70mm( OD) * 25mm( ID) * 210mm( H) (4) Air cooled flange via aluminum heat radiator (5) A small quartz or alumina boat should be used to load the sample inside the chemical reactor, which increases chemical reactor service life. (6) Gold or Ni foil can be used to wrap the crucible boat to minimize contamination to chemical reactor
|
Working pressure | 18MPa ≤800℃ 13MPa ≤900℃ 8MPa ≤1000℃ 3MPa ≤1100℃
|
Pressure Monitoring and Relief | (1) Precision high pressure sensor (measurement range up to 25 MPa, or 250 bar) is installed on the pressure chemical reactor. The pressure monitor displays pressure in bar (2) Pressure monitor allows the user to set a high pressure alarm. When the pressure reaches the alarm set point (15 MPa max), alarm will sound and the pressure will be released via a solenoid valve on the flange. For using the chemical reactor with a pressure > 15 MPa at low temperature, please shut off the needle valve near the solenoid valve and use the manual pressure relief valve
|
Temperature Control and Heater | Limiting temperature: 1100℃ Working temperature: 1000℃ Heating zone length: 330mm Constant temperature zone: 80mm within ±1℃ Heating element: Fe-Cr-Al alloy Thermocouple: K type Program: Digtial temperature controller, 30 programmable segments and ±1℃ accuracy
|
Size | 340mm( W) * 320mm( D) * 820mm( H) |
Net weight | 35KG |
Warranty | One year limited warranty with lifetime support |
